CD18P PMR446 FRS Affordable License-free Walkie Talkie

0.5W/2W License-free Radio, FCC & CE Certified, Keyboard Lock

→ User’s Manual & Programming software ←

Features:

  • 0.5W/2W License-free Radio, PMR446 Version / FRS Version
  • 1500mAh Li-ion Rechargeable Battery
  • 1.28 inch LCD Screen
  • 2-pin Kenwood accessory port
  • Lightweight, Colorful Design
  • FCC & CE Certified

Function:

  • Time out timer(TOT)
  • VOX
  • Busy Channel Lockout
  • Keyboard Lock (Auto/Manual)
  • Squelch level(0-9 grades)
  • Auto power saving function
  • Audio Compander
  • Monitor function
  • CTCSS/DCS Encode/Decode
  • Low power indication/alarm
  • Scan function
  • Call ringtone (10 group)
  • NOAA(only for FRS version)

Application:

  • Restaurant
  • Hotel
  • Retail
  • Salon
  • Outdoor

Standard Package:(2 sets)

  • Radio*2
  • Belt Clip*2
  • USB Cable*1
  • Hand Strap*2
  • User’s manual*1

Chierda CD18P mini walkie talkie features an LCD display and half keyboard operation. It is easy to use with screen and buttons.  To prevent accidental touches, it has a keyboard lock function. This portable and license free walkie-talkie is suitable for retail stores, restaurants, events, schools, etc.

License-free Walkie Talkie

You can use CD18P walkie talkie when it comes out of the box. The frequency and channels are programmed. It’s user-friendly and easy to operate.

Lightweight and Compact

CD18P mini walkie talkie features a lightweight and compact design. The streamlined shape is easy to hold.

NOAA Weather Forecast

CD18P can receive NOAA channels to get weather information. It is a good function when you are traveling.

Note: NOAA function only can work in the United States and Canada.

Headphone Jack

You can use an external headset microphone/earpiece to connect to CD18P.

Powerful Clarity

CD18P is upgraded with an anti-magnetic speaker and has 9 levels of noise reduction.

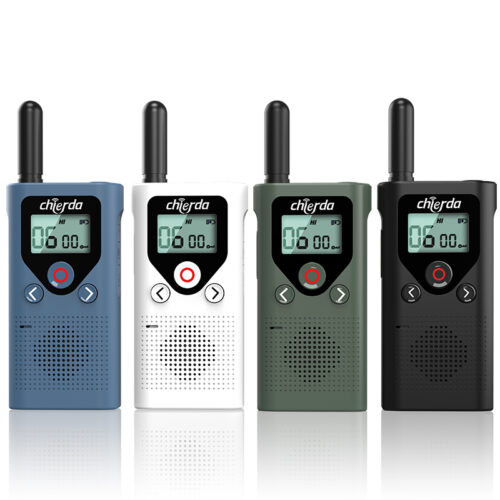

Multiple Colors Available

CD18P has many colors for you to choose, black, white, blue, and dark green.

Visible Indicator Light

The indicator light on the top can quickly identify the status of the walkie talkie. You can know the power, transmission, reception, and charging status from that.

Technical Data:

SPECIFICATION TRANSMITTER RECEIVER
Frequency Range VHF:136-174MHz/
UHF:400-480MHz
Output Power ≤2W RF Sensitivity ≤ 0.25uV/ ≤ 0.3uV
Channel Spacing 16 Current ≤1.2A Silent Sensitivity ≤ 0.2uV/≤ 0.25uV
Memory Channel 12.5 KHz/ 25 KHz Modulation Distortion <5%(300-3000Hz) Audio Frequency Power ≥ 300mW
Rated Voltage 3.7V DC Maximum Frequency
Deviation
≤ 5KHz/≤ 2.5KHz Audio Distortion ≤5%
Battery Capacity 1500mAh CTCSS Frequency
Deviation
0.75KHz± 50Hz Modulation Receiver Bandwidth ±7KHz
Frequency Sensitivity ±2.5ppm Remanent Radiation ≤ 7uW Spurious Rejection ≥55dB
Antenna Impedance 50Ω Modulation Mode FM Selectivity ≥65dB
Dimension 106x55x23 mm
( without antenna )
Remanent Modulation ≤-35dB Intermodulation ≥60dB

Resources:

→Download CD18P Manual
