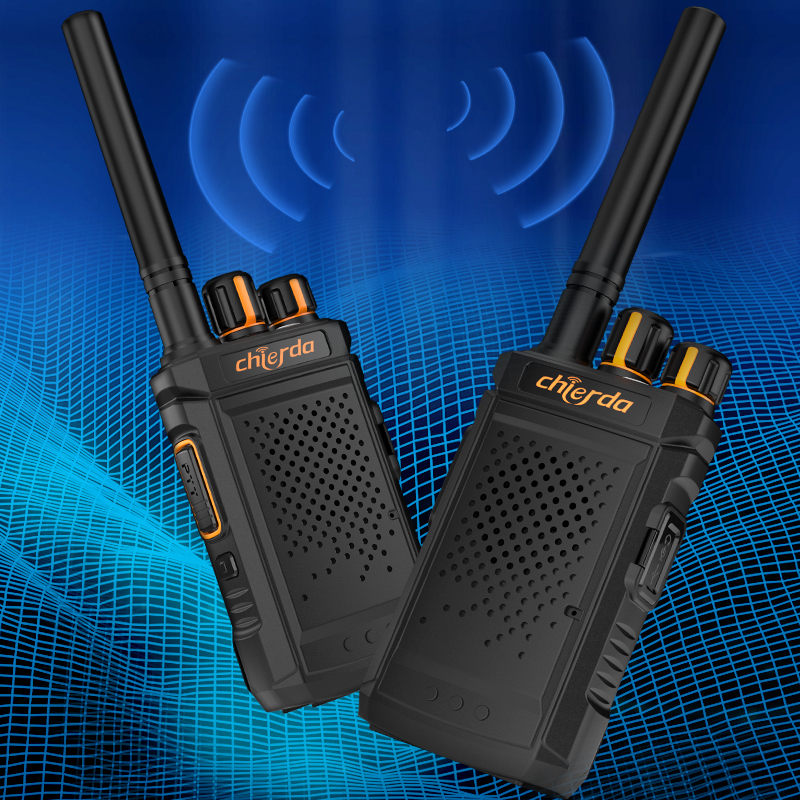

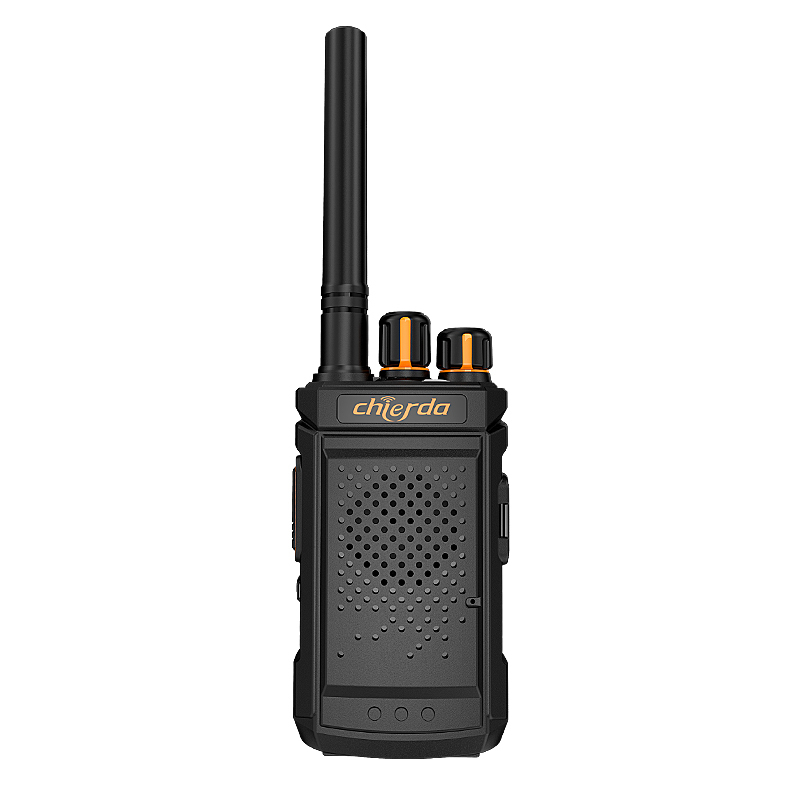

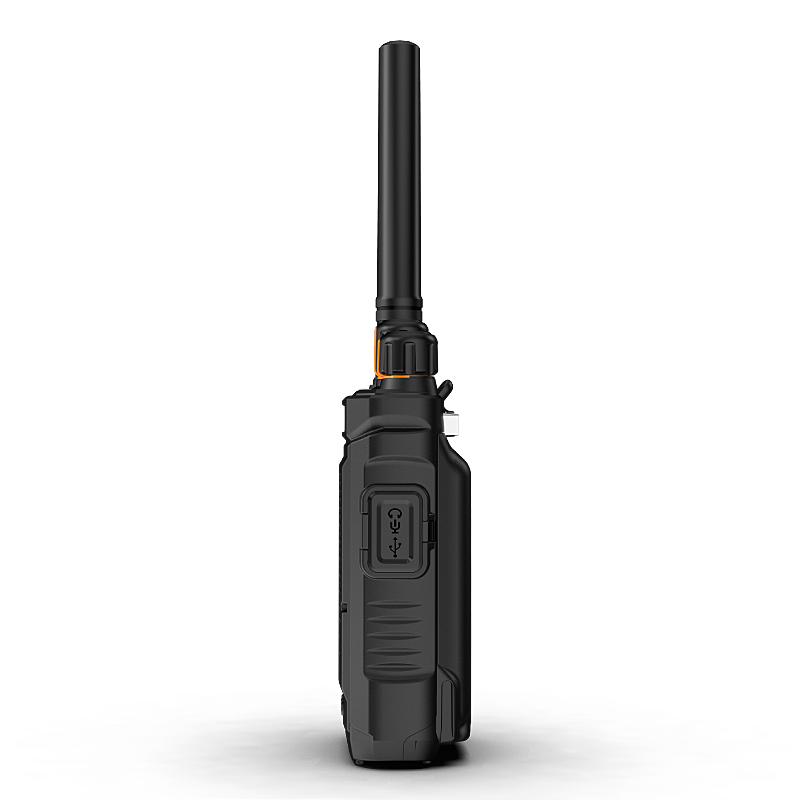

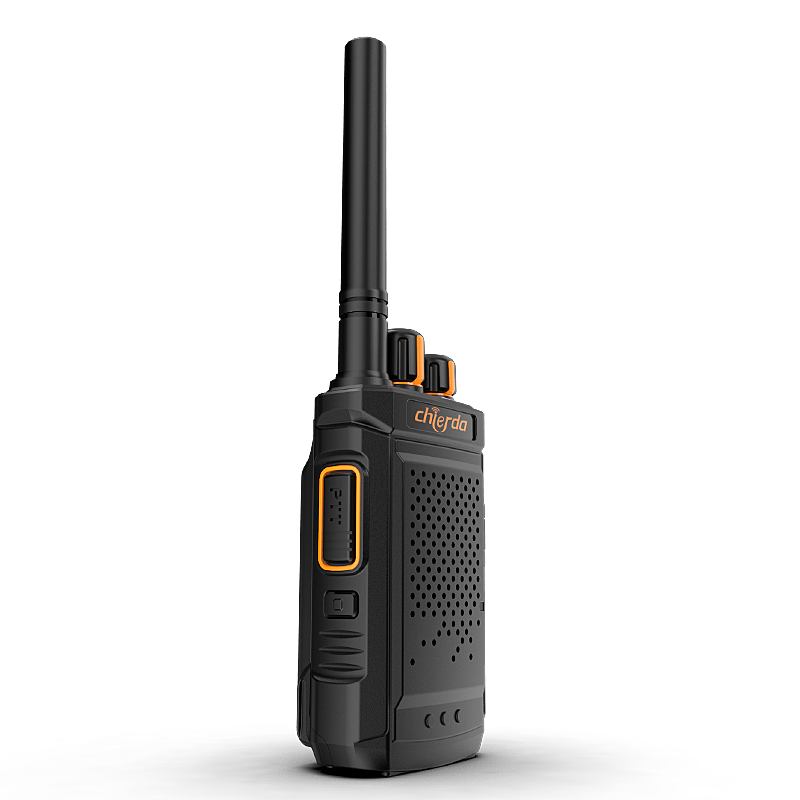

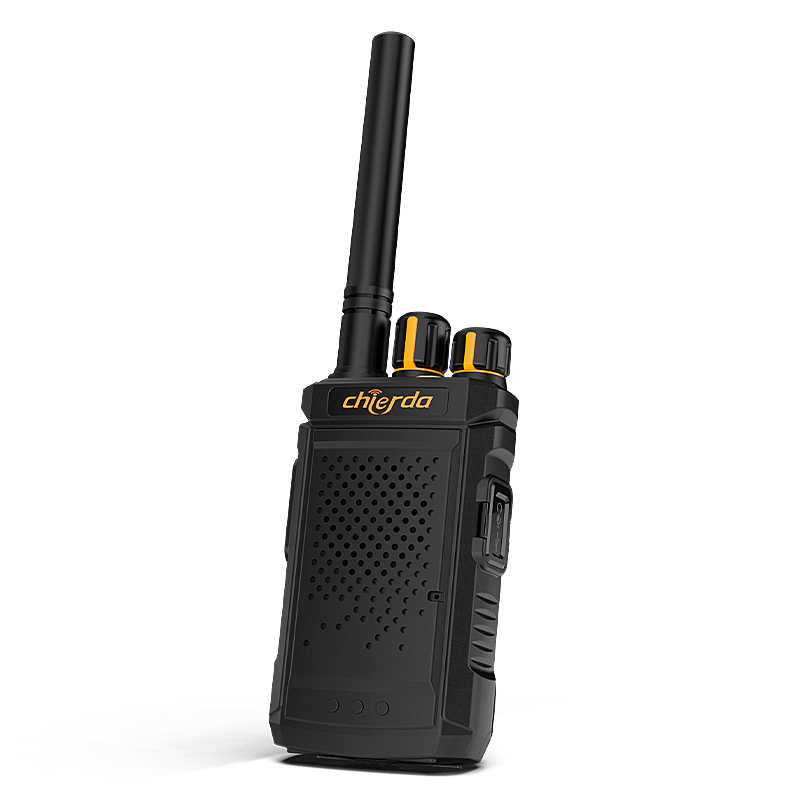

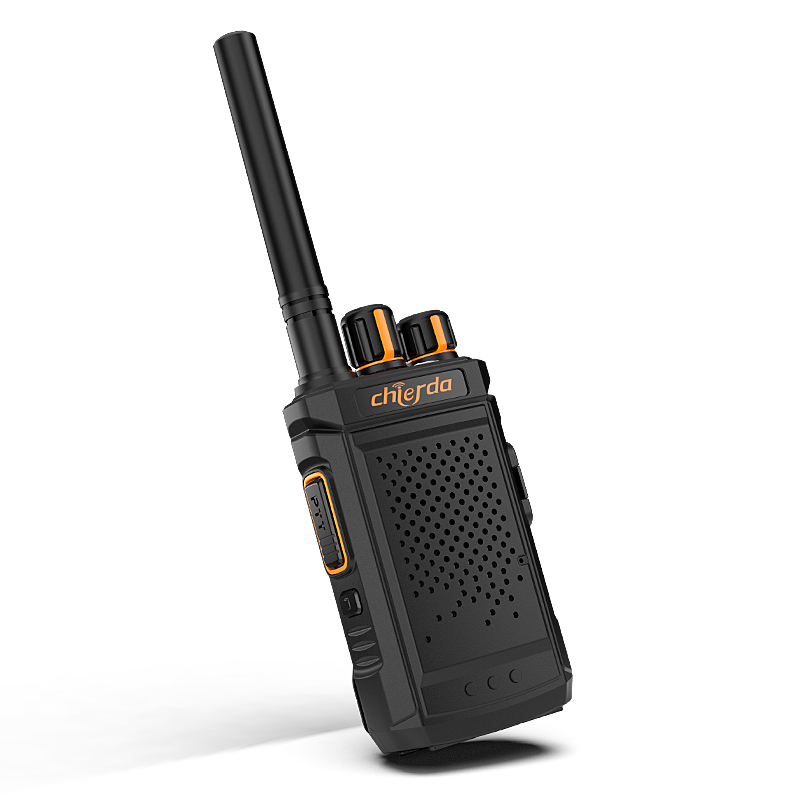

Chierda CD-08 Portable two-way radio is designed to be compact and portable. It’s easy to carry and hold, fit into one’s palm. CD-08 Walkie-Talkie features scrambler, frequency hopping function, etc.
One-key Wireless Copy:
This function helps you quickly communicate with the same type of walkie-talkie. CD-08 radio can efficiently eliminate communication interference, easily communicate with colleagues, and have a clear voice.

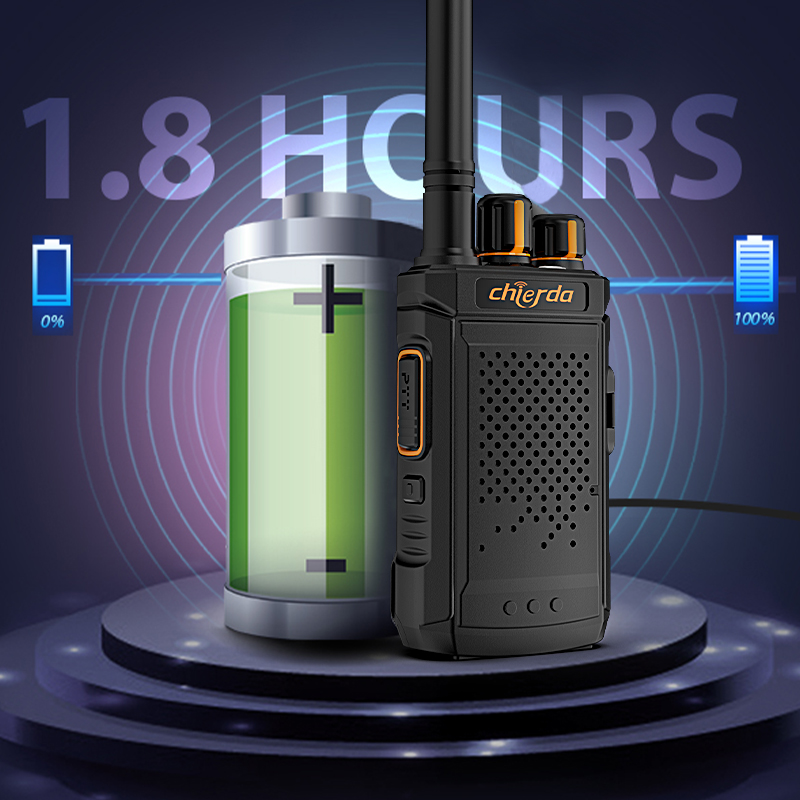

Power Saving Function:
When this function is on, CD-08 radio can efficiently help save battery power during working and standby time. This function can extend radio’s use time.

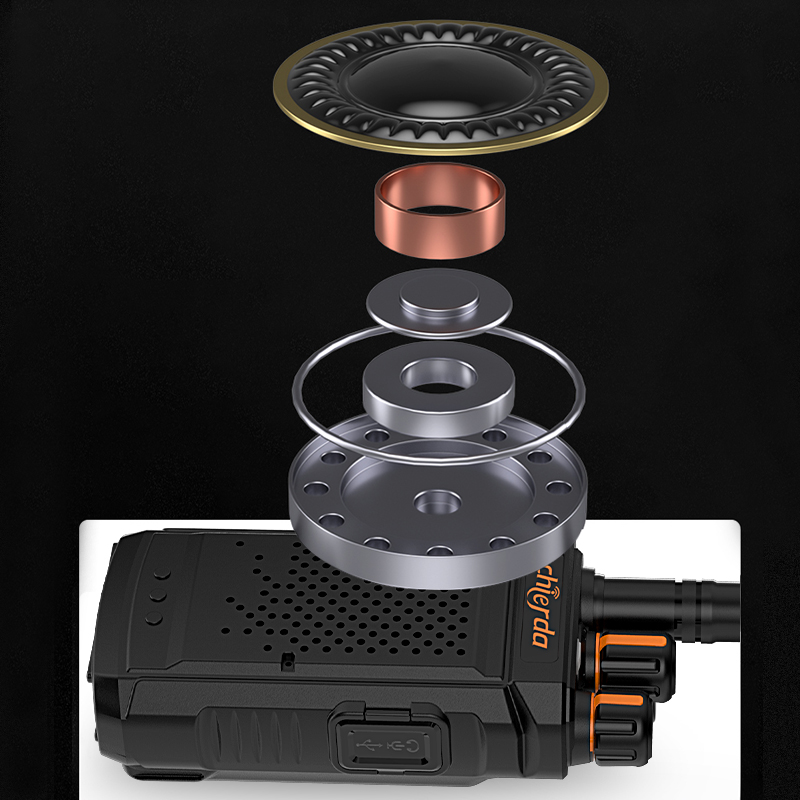

Voice Companding:
With an upgraded speaker and 9 levels of reducing noise, CD-08 radio can make your call much clearer even in wild environment.
|
SPECIFICATION |
|
|
Frequency Range |
VHF:136-174MHz or |
|
Channel Spacing |
16 |
|
Memory Channel |
12.5KHz/25 KHz |
|
Rated Voltage |
7.4V DC |
|
Battery Capacity |
1200mAh/1800mAh |
|
Frequency Sensitivity |
± 2.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
93x52x32mm |
|
TRANSMITTER |
|
|
Output Power |
≤ 5W |
|
Current |
≤1.3A |
|
Modulation Distortion |
<5%(300-3000Hz) |
|
Maximum Frequency |
≤5KHz/≤2.5KHz |
|
CTCSS Frequency |
0.75KHz±50Hz |
|
Remanent Radiation |
≤ 7uW |
|
Modulation Mode |
FM |
|
Remanent Modulation |
≤-35dB |
|
RECEIVER |
|
|
RF Sensitivity |
≤ 0.25uV/≤ 0.3uV |
|
Silent Sensitivity |
≤0.2uV/≤0.25uV |
|
Audio Frequency |
≥ 500mW |
|
Audio Distortion |
≤5% |
|
Spurious Rejection |
≥ 55dB |
|
Selectivity |
≥ 65dB |
|
Intermodulation |
≥ 60dB |

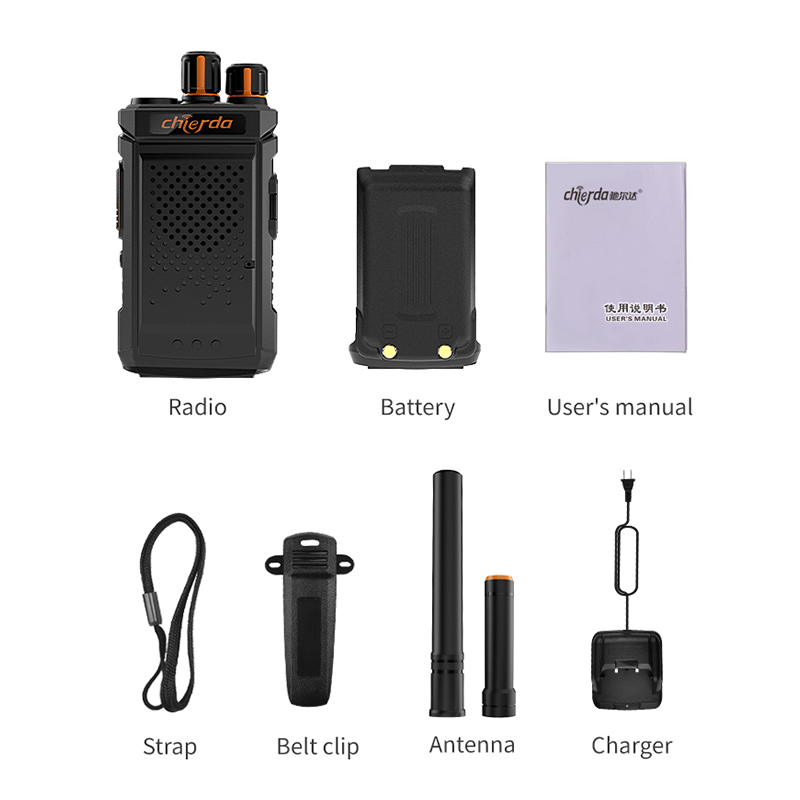

Whats in the Box
Product set
Radio*1
Antenna*2
Belt clip*1
Battery*1
Charger*1
Strap*1
User’s manual*1
