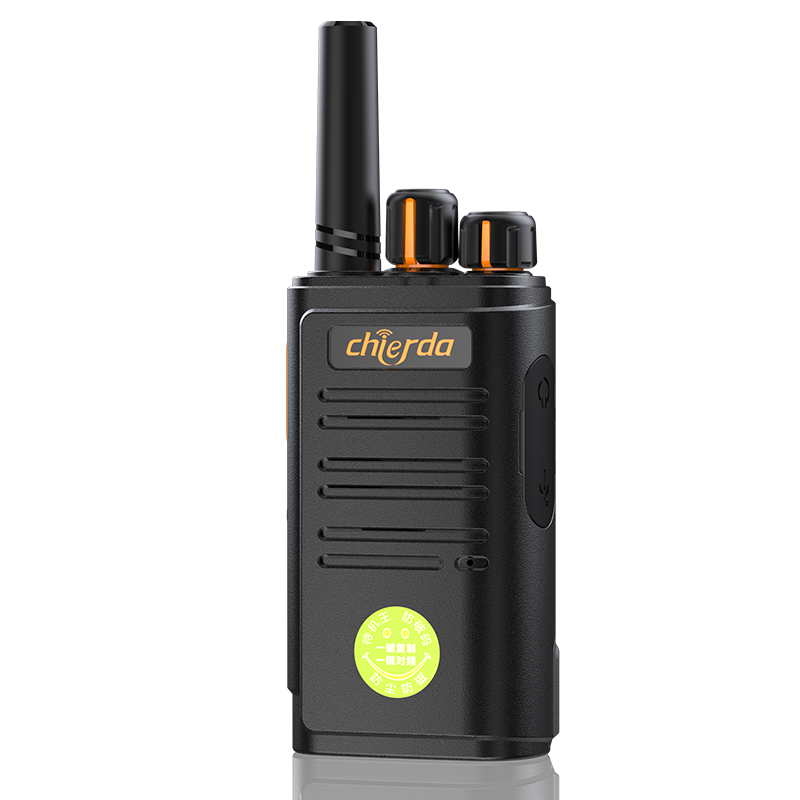

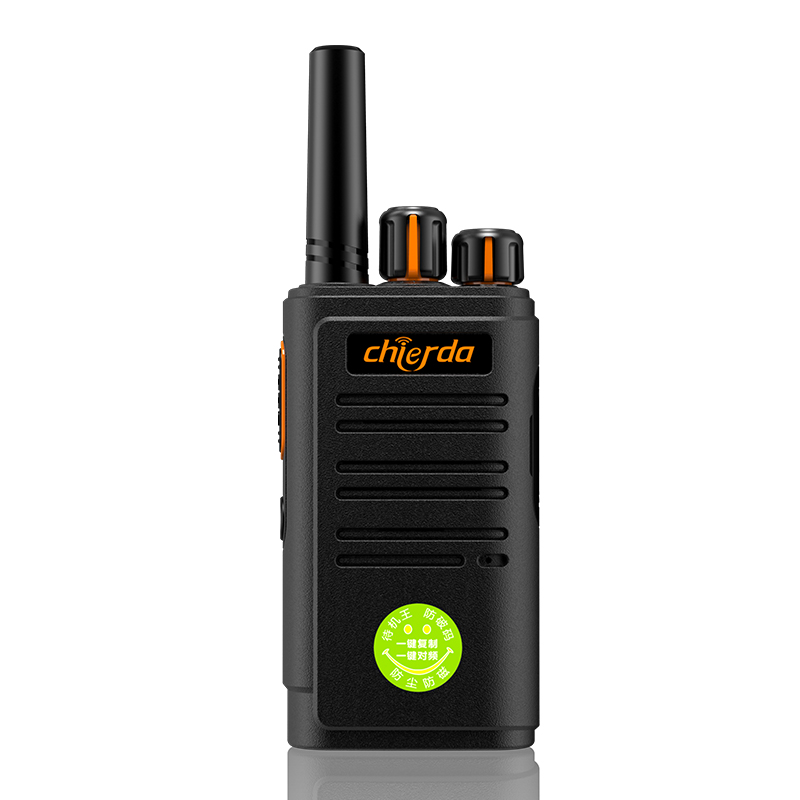

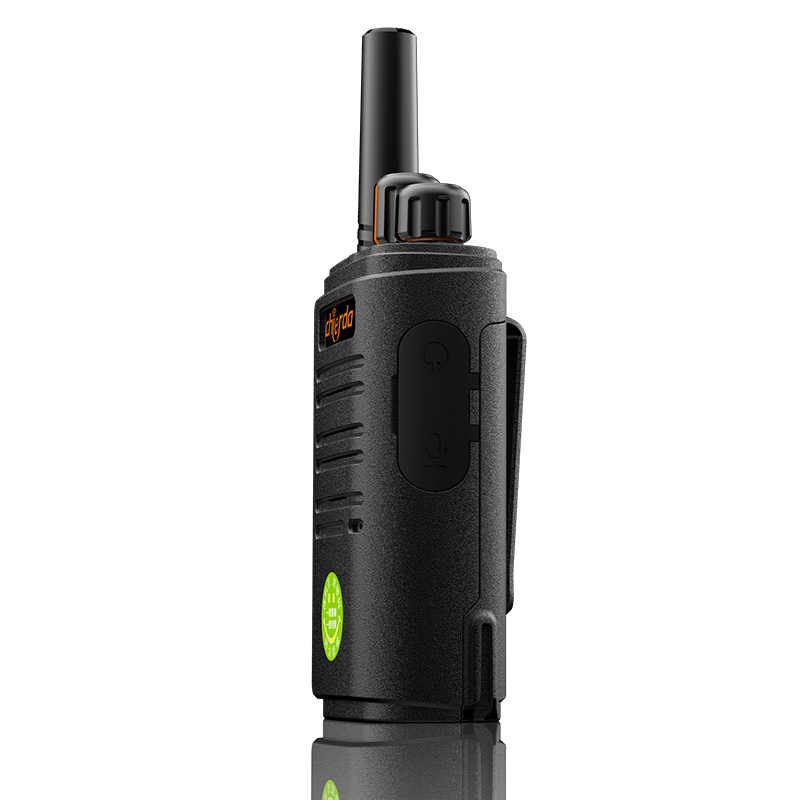

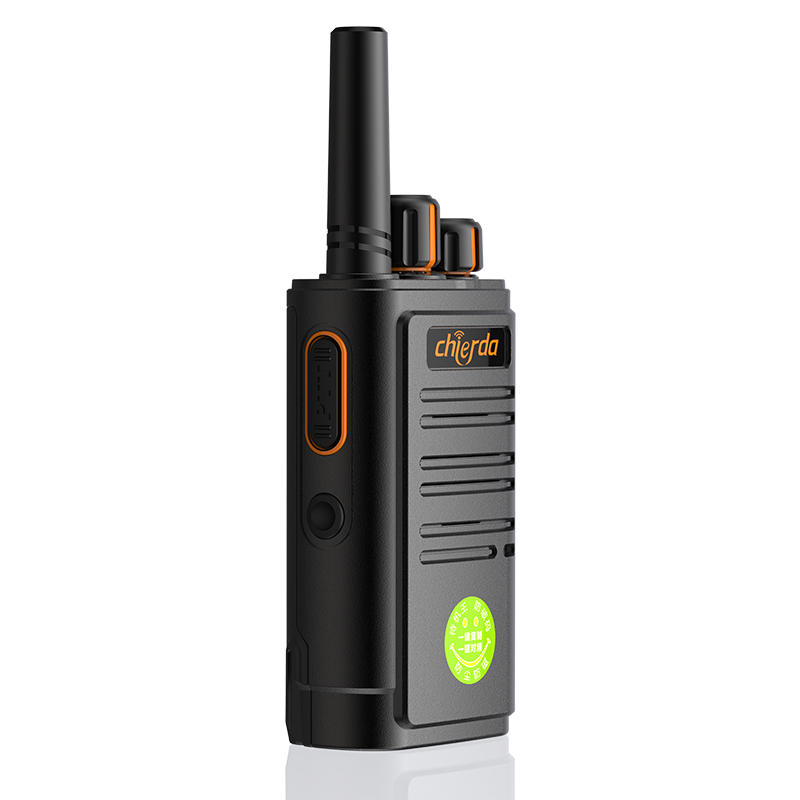

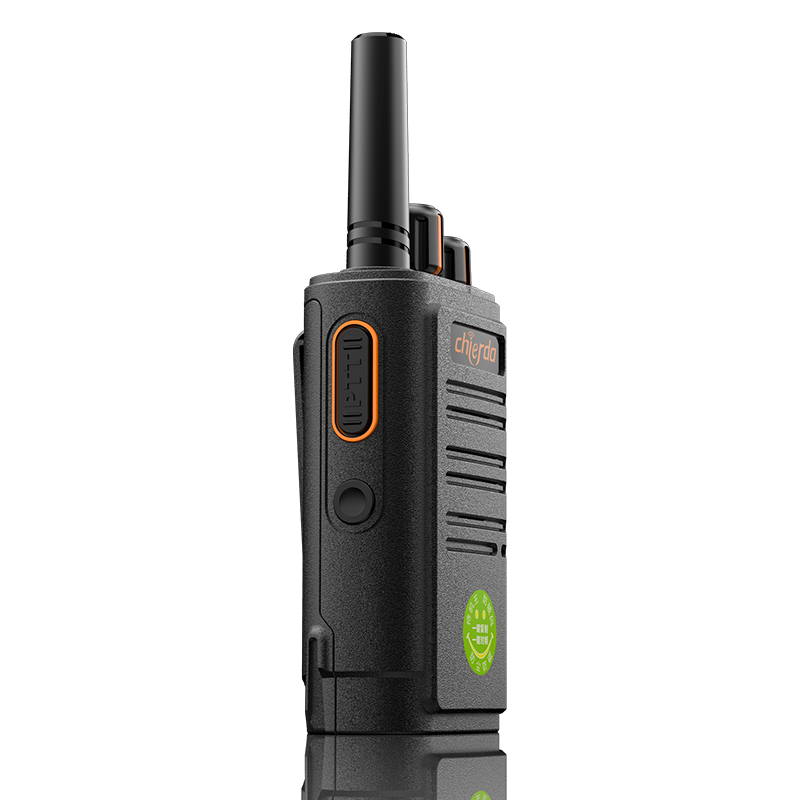

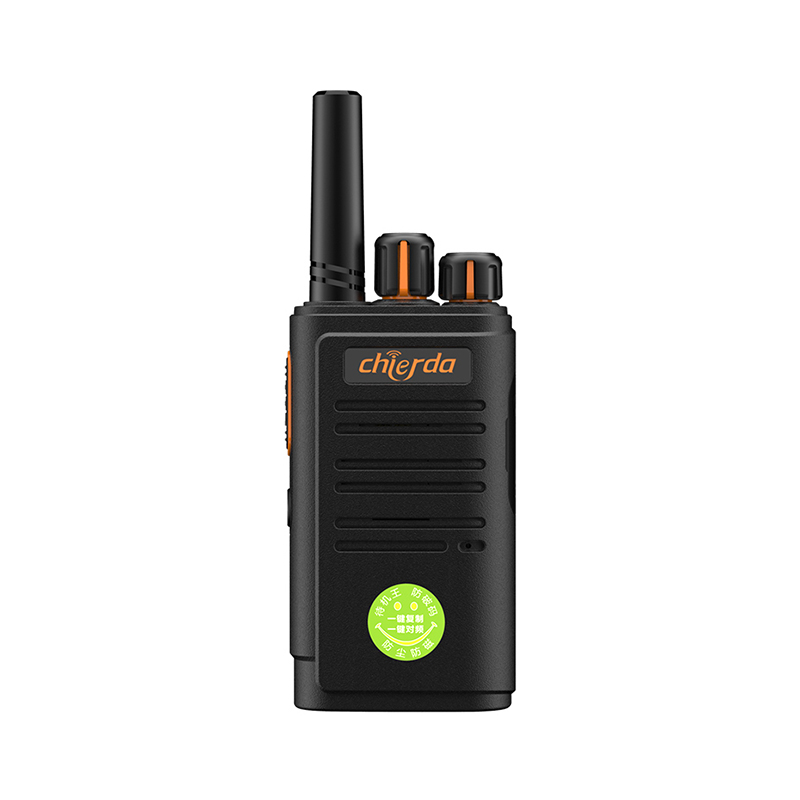

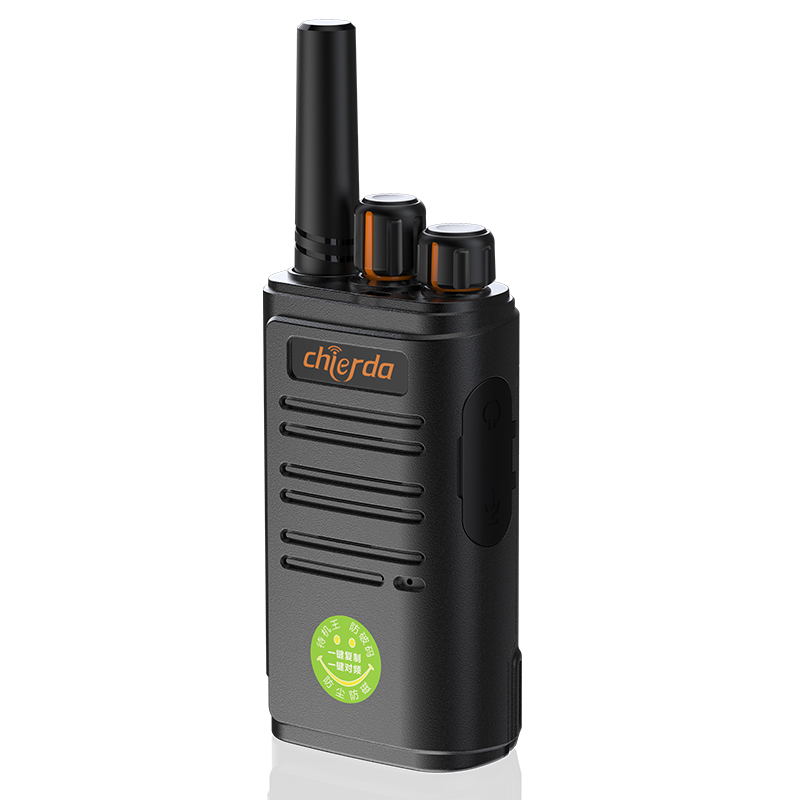

Chierda CD09 Lightweight Portable Business Two Way Radio

1. Lightweight Design, Easy to Carry with

2. Fashion Appearance

3. Optional Battery Capacity

Product Overview

Features



The Chierda CD09 is a lightweight portable business two way radio with a small, compact size that fits your palm. Easy to carry throughout a full shift, it is a practical option for daily communication in supermarkets, hotels, and warehouses.

Despite its small footprint, the CD09 includes a newly upgraded anti-magnetic speaker with 9 levels of noise reduction for clearer communication, plus a frequency hopping function that encrypts calls and protects your communication. With optional battery capacities, businesses can configure the radio around their shift length.



Key Features

  • Lightweight, Palm-Sized Design: The compact size fits your palm, and the lightweight body is easy to carry all day on the floor.
  • Fashion Appearance: A clean, modern look that suits customer-facing staff in retail and hospitality.
  • Anti-Magnetic Speaker with 9-Level Noise Reduction: The newly upgraded speaker, combined with 9 levels of noise reduction, lets the CD09 communicate much more clearly in busy environments.
  • Frequency Hopping Function: Hopping function can encrypt calls and effectively protect your communication from eavesdropping.
  • Optional Battery Capacity: Choose between 1000mAh and 2000mAh batteries to match your operating schedule.
  • 2W Output Power: Suitable for on-site, building-level business communication.
  • 16 Channels with CTCSS: Store key channels for different departments with CTCSS tone signaling.





Package Contents

  • Radio ×1
  • Battery ×1
  • Charger ×1
  • Antenna ×1
  • Belt Clip ×1
  • Strap ×1
  • User Manual ×1

whats in the Box

Functions and Performance

Compact Design for All-Day Carry
The CD09 is small enough to fit in a palm and light enough to carry on a belt or strap through long shifts. Staff in supermarkets, hotels, and warehouses can keep it within reach without fatigue.

Clearer Communication with Upgraded Audio
The newly upgraded anti-magnetic speaker works with 9 levels of noise reduction, so voice comes through much more clearly even around checkout lanes, kitchens, and loading areas.

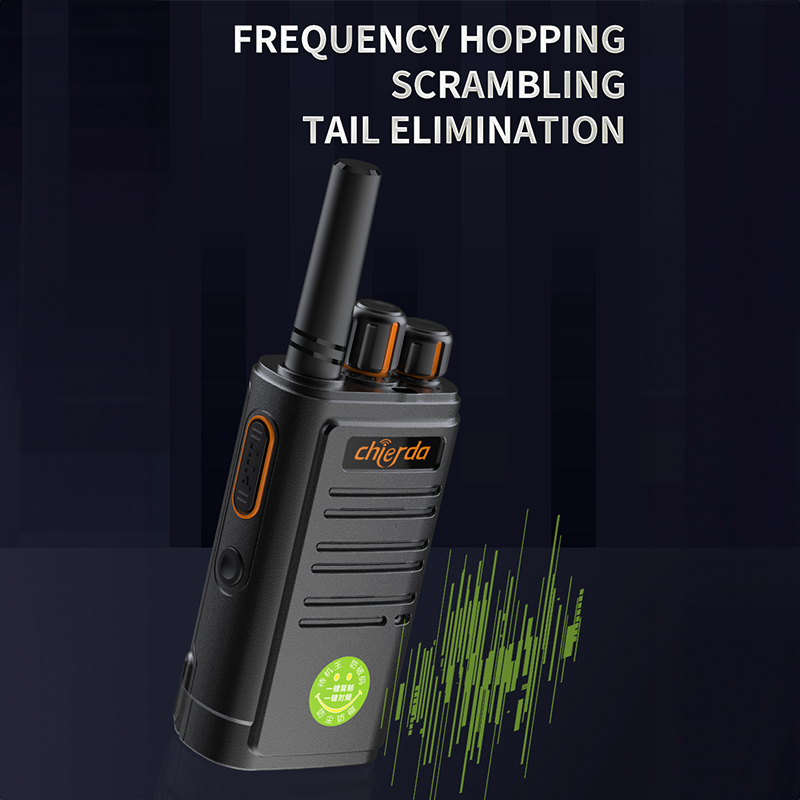

Frequency Hopping Call Encryption
The frequency hopping function encrypts calls and effectively protects your communication. Conversations about staffing, pricing, or security matters stay within your team.

Configurable Battery Options
With optional 1000mAh or 2000mAh batteries, businesses can balance weight against runtime according to shift patterns.

Reliable Reception
RF sensitivity of ≤0.25uV / ≤0.3uV and audio output of at least 300mW support dependable day-to-day reception and listening on site.

Applications

  • Supermarkets: Small, light radios that checkout and floor staff can carry through long shifts.
  • Hotels: A fashionable appearance suited to front desk, housekeeping, and event teams working in guest view.
  • Warehouses: 16 channels and CTCSS signaling keep different departments organized on one fleet.



Features

Technical Specifications

General

  • Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz
  • Memory Channels: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 3.7V DC
  • Battery Capacity: 1000mAh / 2000mAh (Optional)
  • Frequency Stability: ±2.5ppm
  • Antenna Impedance: 50Ω
  • Dimensions (without antenna): 119 × 57 × 41 mm

Transmitter

  • Output Power: 2W
  • Current: ≤1.2A
  • Modulation Distortion: <5% (300-3000Hz)
  • Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
  • CTCSS Frequency Deviation: 0.75kHz ± 50Hz
  • Remanent Radiation: ≤7uW
  • Modulation Mode: 16K∅F3E / 11K∅F3E
  • Remanent Modulation: ≤-35dB

Receiver

  • RF Sensitivity: ≤0.25uV / ≤0.3uV
  • Squelch Sensitivity: ≤0.2uV / ≤0.25uV
  • Audio Frequency Power: ≥300mW
  • Audio Distortion: ≤5%
  • Modulation Receiver Bandwidth: ±7kHz
  • Spurious Rejection: ≥55dB
  • Selectivity: ≥65dB
  • Intermodulation: ≥60dB
