Chierda CD101 Hiden Display Two Way Radio
1. Hidden Display
2. Type-C Charging
3. Shockproof and Drop-resistant
4. LED Flashlight
5. Anti-break Code
Product Overview

The Chierda CD101 is a handheld two way radio with a hidden display that shows the radio’s status, including power level and channel number. Each unit operates on a single band, available as a VHF version (136-174 MHz) or a UHF version (400-480 MHz). The housing is made of PPC+ABS material, and the radio charges through a standard Type-C port. The manufacturer positions it for outdoor enthusiasts.
Key Features
- Hidden Display: Shows radio status such as power level and channel number.
- PPC+ABS Housing: The manufacturer describes the housing as robust, durable, shock and drop resistant.
- Anti-Interference: The manufacturer states the radio has strong anti-interference ability against unknown walkie talkies.
- Type-C Charging: Standard Type-C port supports charging by cable, power bank, or car supply.
- High-Power Speaker: Upgraded speaker for voice clarity, per the manufacturer.
- One-Key Group Call: Starts a call to a preset group with one key press.
- One-Key Frequency Pairing: Pairs two radios on the same frequency with one key.
- Wireless Copy Function: Copies settings to other radios without a cable.
- VOX Hands-Free Function: Supports voice-activated transmission for hands-free operation.
- Power Saving Function: Extends operating time, per the manufacturer.
Functions and Performance

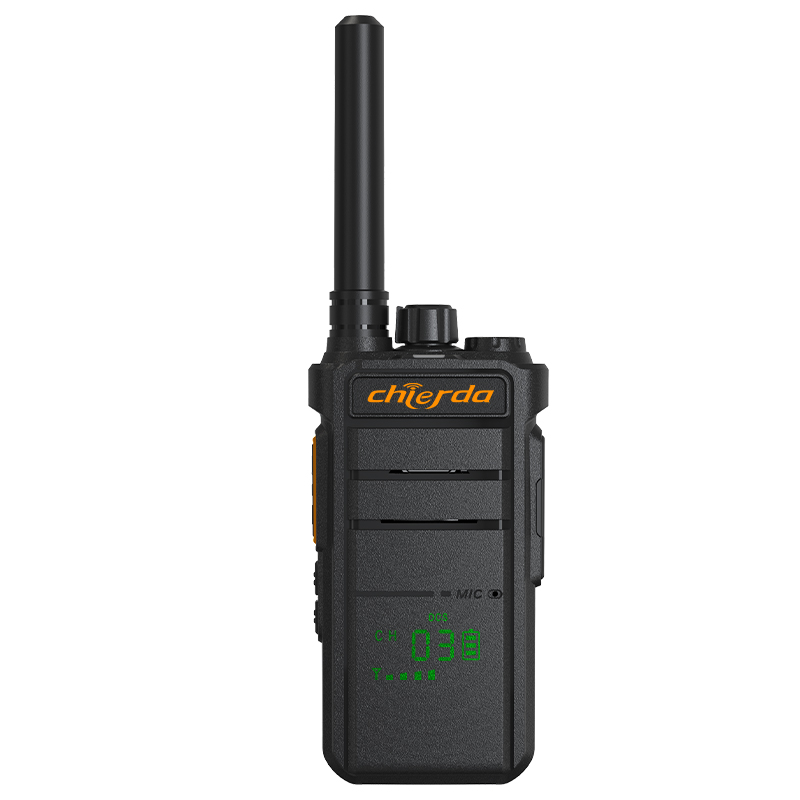

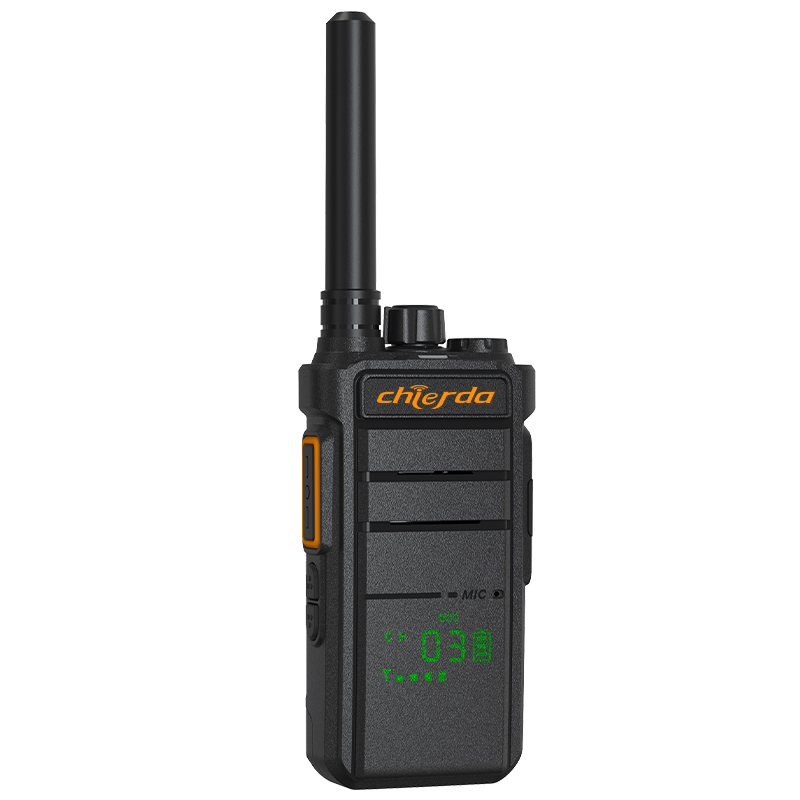

Hidden Display
The display sits hidden in the radio body and shows the working status, such as power level and channel number. Users can check the radio’s state without a permanently visible screen.

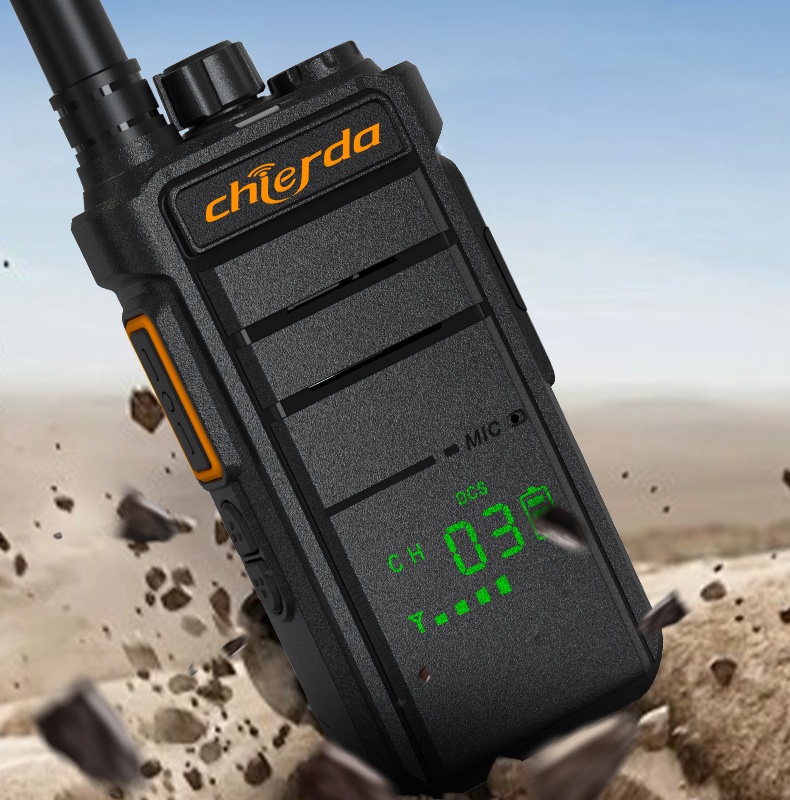

Durable Housing
The housing is made of PPC+ABS material. The manufacturer describes it as robust, durable, shock and drop resistant. No test standard or rating is stated in the supplied materials.

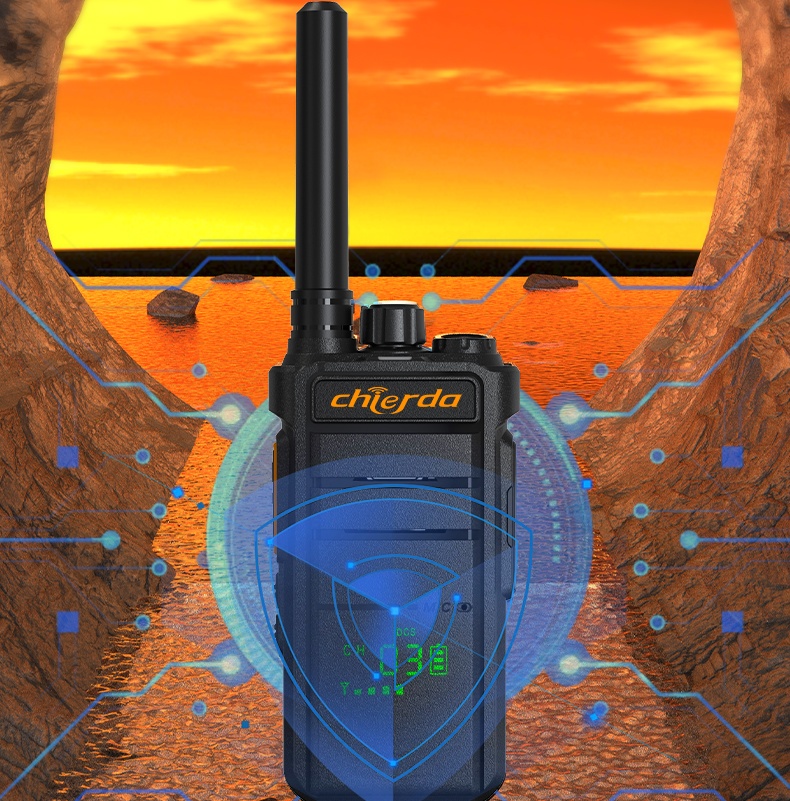

Anti-Interference
The manufacturer states the radio has strong anti-interference ability, and that users will no longer receive interference from unknown walkie talkies. No measured rejection figure for this claim is stated in the supplied materials.

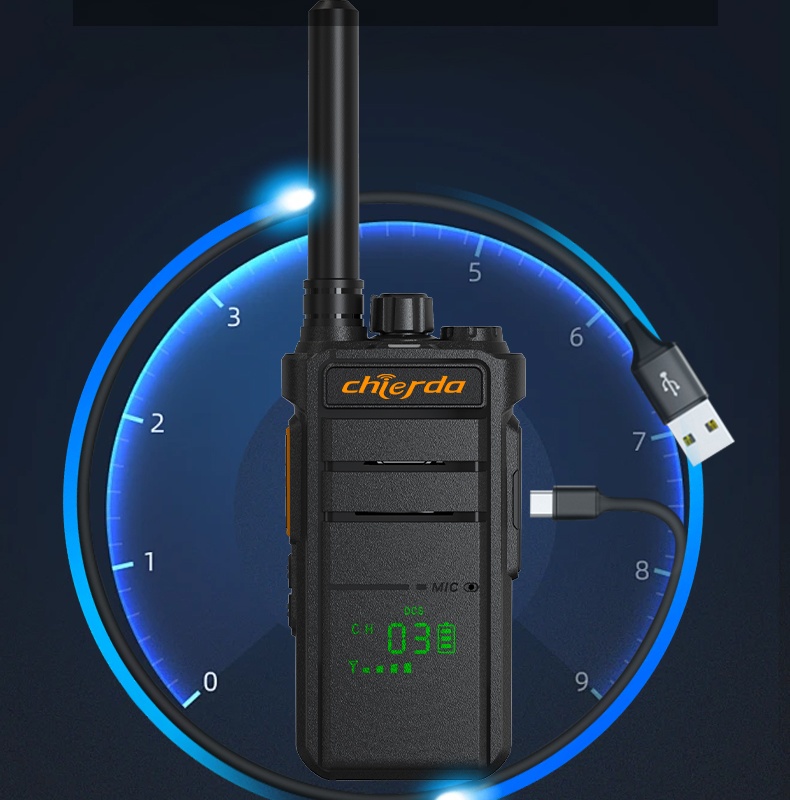

Type-C Charging
The radio adopts a standard Type-C charging port. The source lists direct charging cable, power bank, and car supply as charging methods. With the power saving function, the manufacturer states the radio outlasts for a long time.

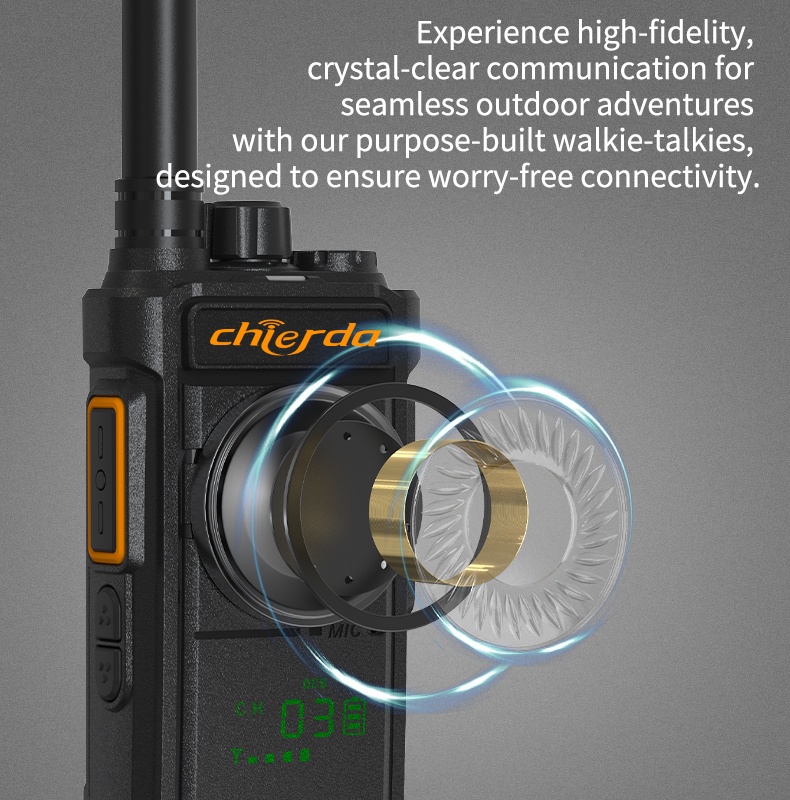

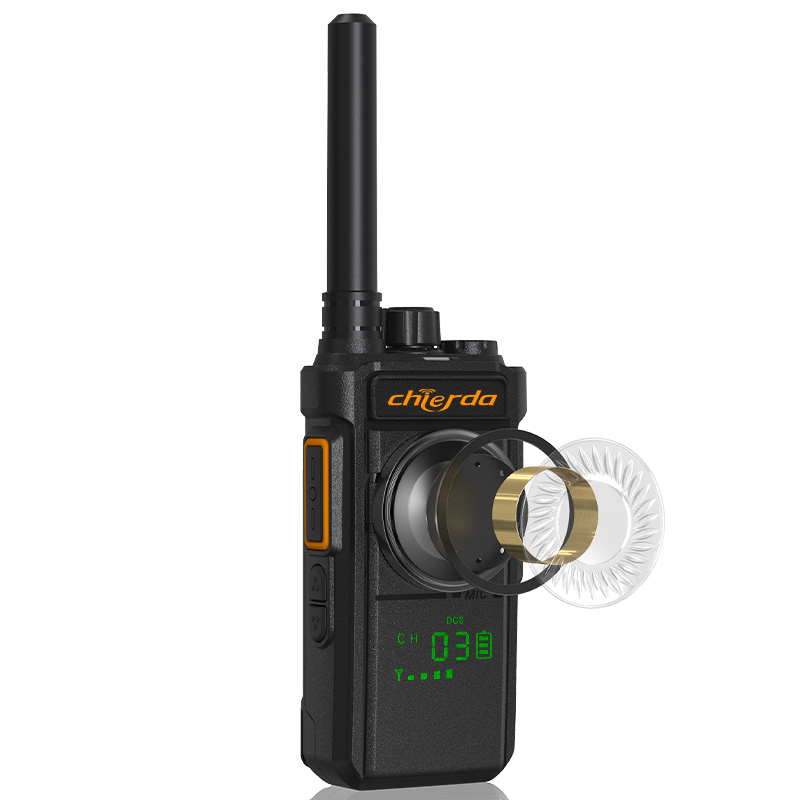

High Clarity
The manufacturer upgraded the radio with a high-power speaker to deliver clear voice.
One-Key Group Call
Users can set a group in advance and start a group call by pressing one key. For teams that reach the same group members repeatedly, this shortens the steps required to start a call.
One-Key Frequency Pairing
One-key frequency pairing sets two radios to the same frequency, which simplifies first-time setup.
Wireless Copy Function
The wireless copy function transfers settings between radios without a cable, which simplifies configuration for a fleet of radios.
VOX Hands-Free Function
VOX supports hands-free transmission. With VOX active, the user transmits by speaking, which suits tasks where both hands stay busy.
Applications
The manufacturer positions the CD101 as a partner for outdoor enthusiasts. No specific industry sectors are stated in the supplied materials.

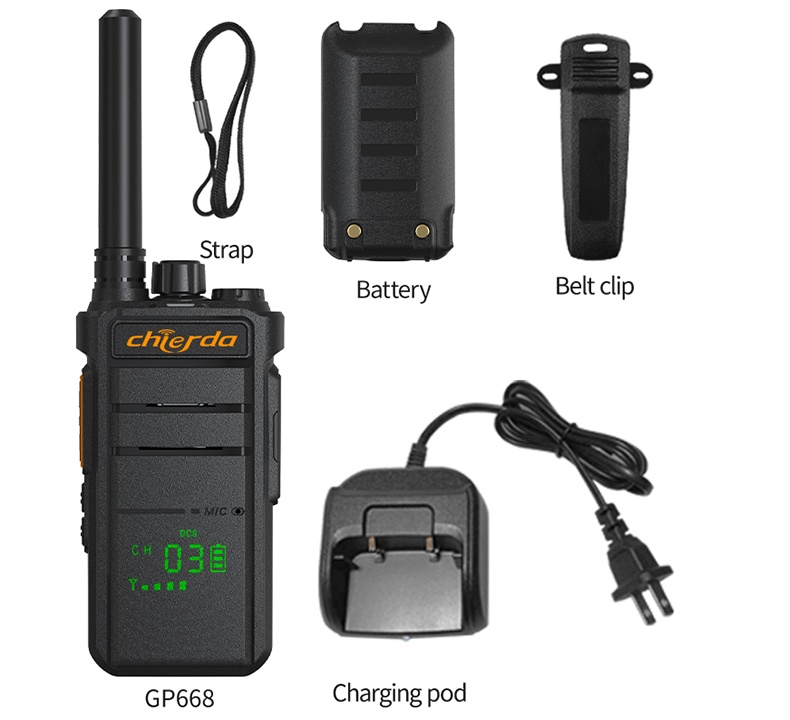

What’s in the Box
- Radio × 1
- Antenna × 1
- Battery × 1
- Belt clip × 1
- Charger × 1
- Strap × 1
- User’s manual × 1


Technical Specifications
General
- Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz (selectable band version)
- Channel Capacity: 16
- Channel Spacing: 12.5 kHz / 25 kHz
- Rated Voltage: 3.7 V DC
- Battery Capacity: 2000 mAh
- Frequency Stability: ± 2.5 ppm
- Antenna Impedance: 50 Ω
- Dimensions: 106 × 61 × 34 mm (without antenna)
Transmitter
- Output Power: 2 W
- Current: ≤ 1.3 A
- Modulation Mode: FM
- Modulation Distortion: < 5% (300-3000 Hz)
- Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
- CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
- Remanent Radiation: ≤ 7 µW
- Remanent Modulation: ≤ -35 dB
Receiver
- RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
- Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
- Audio Frequency Power: ≥ 300 mW
- Audio Distortion: ≤ 5%
- Modulation Receiver Bandwidth: ± 7 kHz
- Spurious Rejection: ≥ 55 dB
- Selectivity: ≥ 65 dB
- Intermodulation: ≥ 60 dB
