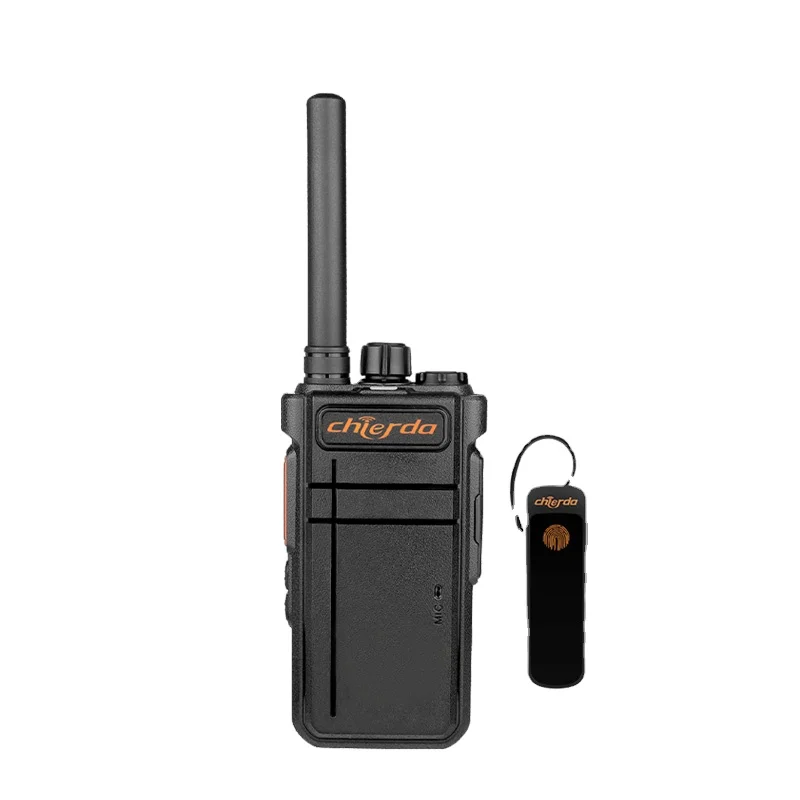

Chierda CD101plus Built-in-Bluetooth Radio with Earpiece
1.Built-in Bluetooth 5.0 Technology
2.Come with Bluetooth Earpiece
3.2000mAh Large Capacity Battery
4.IP54 Dustproof and Waterproof
5.license-free Walkie Talkie
6.VOX Function
Product Overview

The Chierda CD101plus is an analog FM handheld two-way radio supplied as a set with a Bluetooth headset. The radio has built-in Bluetooth 5.0, and the package includes one Bluetooth earpiece, one radio, and the standard accessories. The specification lists VHF 136-174 MHz / UHF 430-440 MHz, 16 memory channels, and a transmitter output of ≤ 2 W.
With VOX enabled, the radio transmits when the user speaks, so the headset can be used without pressing the PTT button. Chierda positions this combination for restaurants, hotels, events, and security operations, where staff often need both hands free. The headset uses an ear hook design for wearing and removal, and Chierda states that it can also connect to mobile phones and other walkie talkies.
Power comes from a 2000 mAh battery at a rated 3.7 V DC. The body measures 106 x 61 x 34 mm (without antenna). An IP54 rating is stated in the supplied short description and long description.
VHF 136-174 MHz and UHF 430-440 MHz are subject to frequency licensing and equipment approval rules in the destination market. No licensing, exemption basis, or certification data was supplied with this model, so buyers should confirm the applicable local requirements and band configuration before ordering.
Key Features
Built-in Bluetooth 5.0 with Supplied Earpiece
The CD101plus radio uses built-in Bluetooth 5.0, and a Bluetooth earpiece is included in the package. The set consists of one handheld two-way radio and one Bluetooth headset.
VOX Hands-Free Operation with the Headset
VOX enables voice-operated transmission, so users can speak without pressing the PTT button. Chierda describes using VOX together with the headset for staff who are busy during service.
IP54 Rating
An IP54 rating is stated for this model. IP54 covers limited dust ingress that does not interfere with operation and protection against splashing water. It is not an immersion rating, and an IP code does not cover drop or shock testing.
2000 mAh Battery
The specification lists a 2000 mAh battery at a rated voltage of 3.7 V DC.
VHF 136-174 MHz / UHF 430-440 MHz, 16 Channels
The specification lists VHF 136-174 MHz / UHF 430-440 MHz with 16 memory channels and FM modulation.
Ear Hook Headset Design
The Bluetooth headset uses an ear hook design, which Chierda describes as comfortable to wear and convenient to put on and take off.
Headset Connection Beyond the Radio
Chierda states that the Bluetooth headset can also be connected to mobile phones and other walkie talkies.
Compact 106 x 61 x 34 mm Body
The radio body measures 106 x 61 x 34 mm (without antenna), with a strap and belt clip included for carrying.

Functions and Performance
Hands-free workflow: the built-in Bluetooth 5.0 radio pairs with the supplied earpiece, and VOX switches transmit on by voice. Together these two confirmed functions let a user talk without holding the PTT button, which is the setup Chierda describes for restaurant, hotel, event, and security staff.
Headset use: the ear hook design supports wearing and removing the headset during a shift. Chierda states the headset can also connect to mobile phones and other walkie talkies. No specific phone models, radio models, or Bluetooth profiles are listed for this model, so compatibility should be confirmed for the intended devices.
Environmental rating: IP54 is the rating stated in the supplied description. It addresses limited dust ingress and splashing water from any direction. It does not cover immersion, and no drop test, shock test, IK rating, or housing material data is provided for this model.
RF and power: the specification lists ≤ 2 W output power, ≤ 1.2 A operating current, a 2000 mAh battery at 3.7 V DC, and FM modulation. Receiver audio output is ≥ 300 mW with ≤ 5% audio distortion, and the receiver lists ≥ 55 dB spurious rejection, ≥ 65 dB selectivity, and ≥ 60 dB intermodulation. No communication range figure, working time, standby time, or charging time is supplied.
Band configuration: the frequency range is listed as VHF 136-174 MHz / UHF 430-440 MHz. Local licensing and equipment approval requirements depend on the destination market, and no such documentation was supplied with the model.
Applications
- Restaurants: VOX with the supplied Bluetooth headset lets staff communicate while their hands are occupied during service.
- Hotels: the ear hook headset, VOX operation, and the 2000 mAh battery suit staff who carry the radio across a shift.
- Events: 16 channels and the IP54 rating support teams working between indoor and outdoor areas where splashing water or dust may be present.
- Security operations: hands-free transmission through the headset keeps the user’s hands available while staying on the team channel.

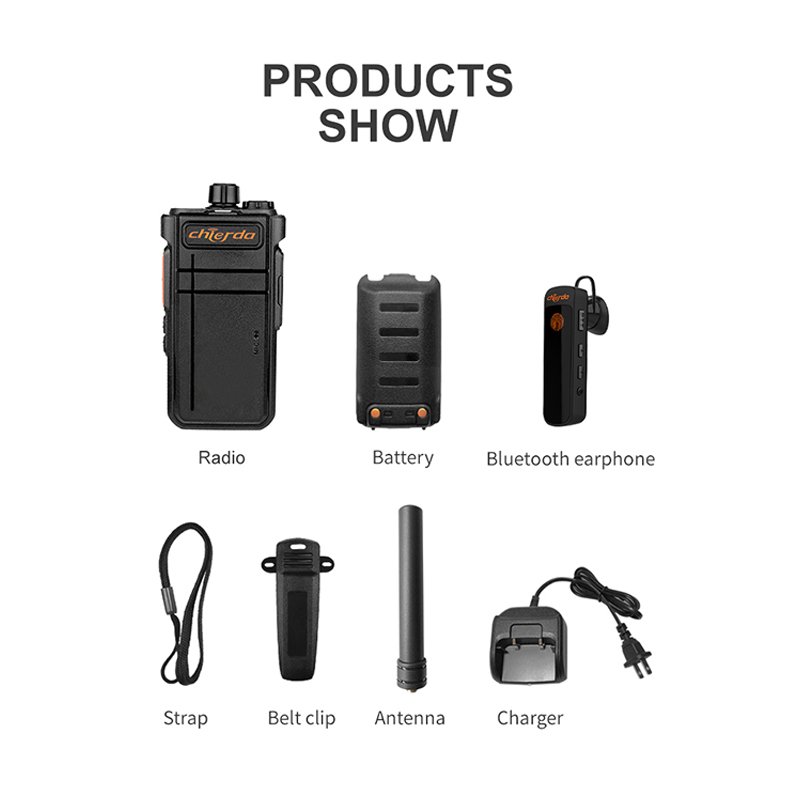

What’s in the Box
- Radio x 1
- Battery x 1
- Bluetooth earphone x 1
- Strap x 1
- Belt clip x 1
- Antenna x 1
- Charger x 1
- User’s Manual x 1

Technical Specifications
General
- Frequency Range: VHF 136-174 MHz / UHF 430-440 MHz
- Memory Channels: 16
- Channel Spacing: 12.5 kHz / 25 kHz
- Rated Voltage: 3.7 V DC
- Battery Capacity: 2000 mAh
- Frequency Stability: ± 2.5 ppm
- Antenna Impedance: 50 Ω
- Dimensions: 106 x 61 x 34 mm (without antenna)
- IP Rating: IP54
- Bluetooth: 5.0 (built into the radio)
Transmitter
- Output Power: ≤ 2 W
- Operating Current: ≤ 1.2 A
- Modulation Mode: FM
- Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
- CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
- Modulation Distortion: < 5% (300-3000 Hz)
- Residual Radiation: ≤ 7 µW
- Residual Modulation: ≤ -35 dB
Receiver
- RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
- Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
- Audio Output Power: ≥ 300 mW
- Audio Distortion: ≤ 5%
- Modulation Receiver Bandwidth: ± 7 kHz
- Spurious Rejection: ≥ 55 dB
- Selectivity: ≥ 65 dB
- Intermodulation: ≥ 60 dB
