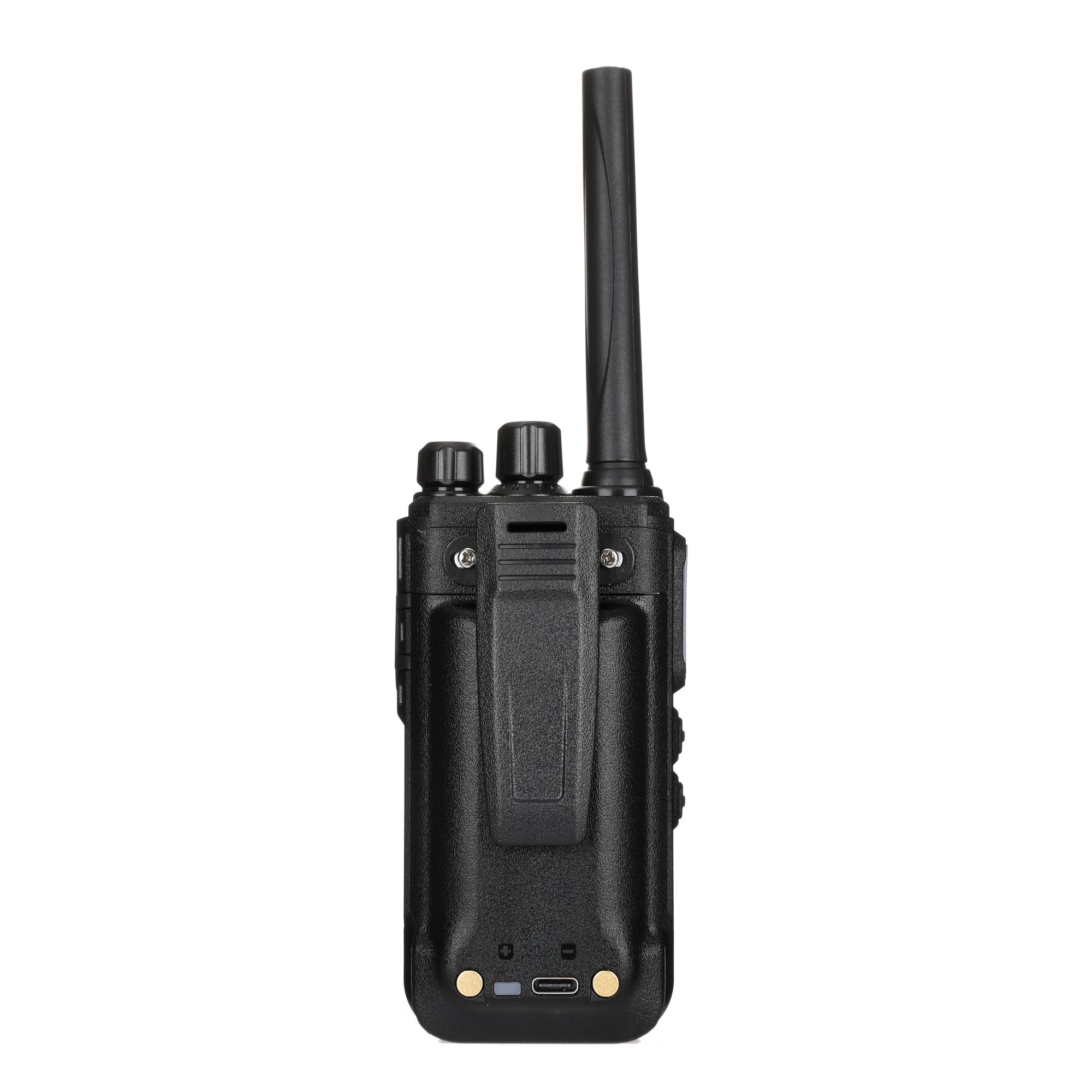

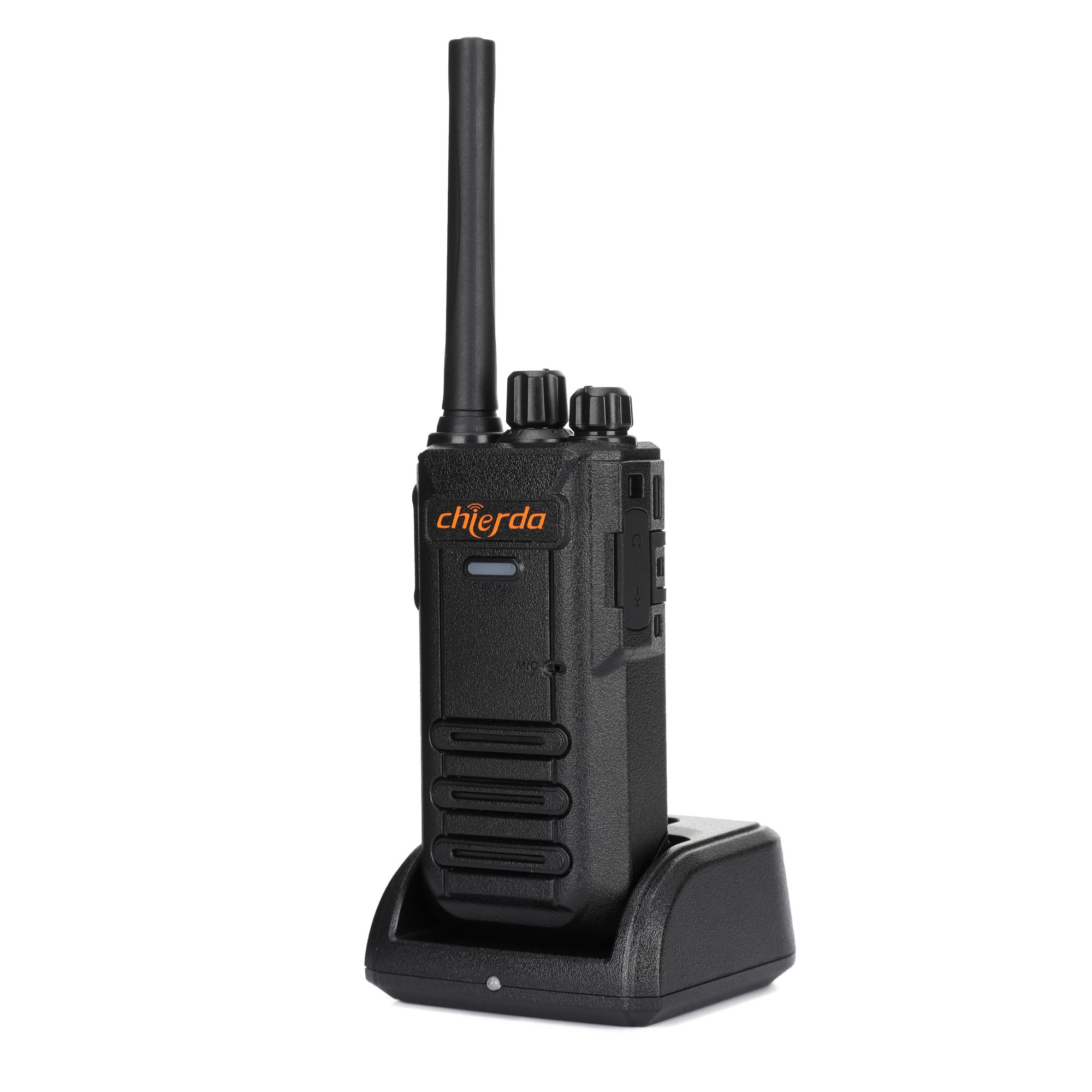

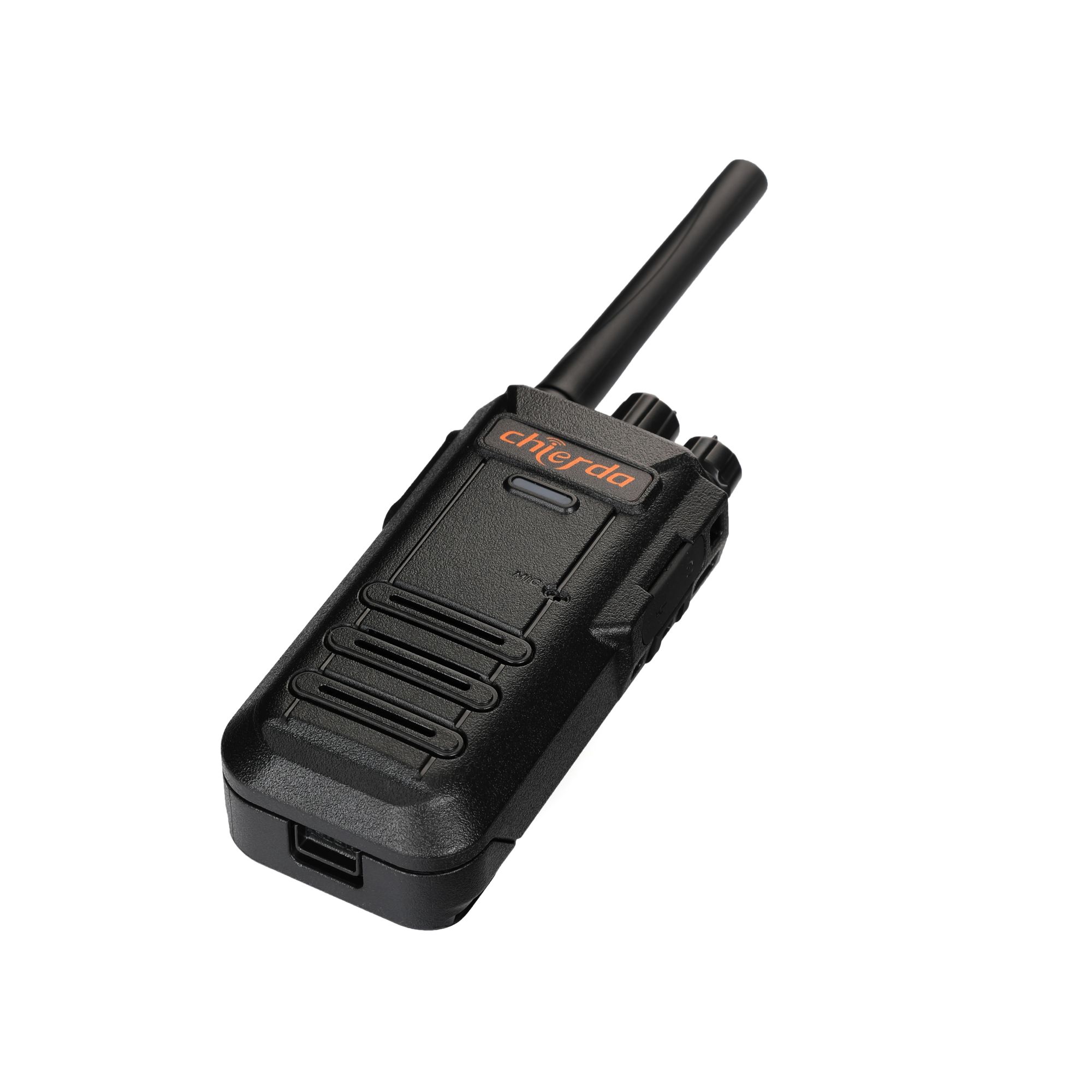

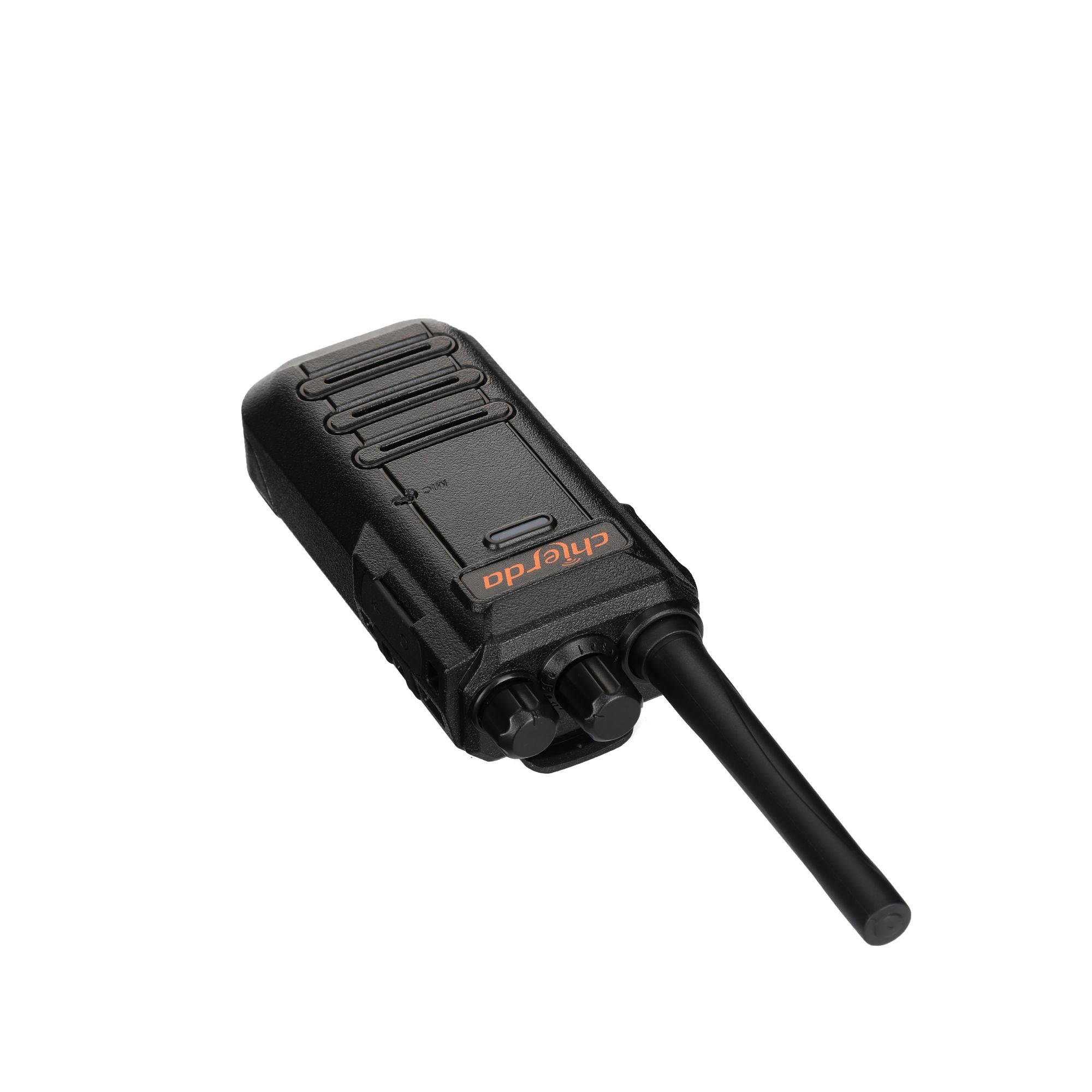

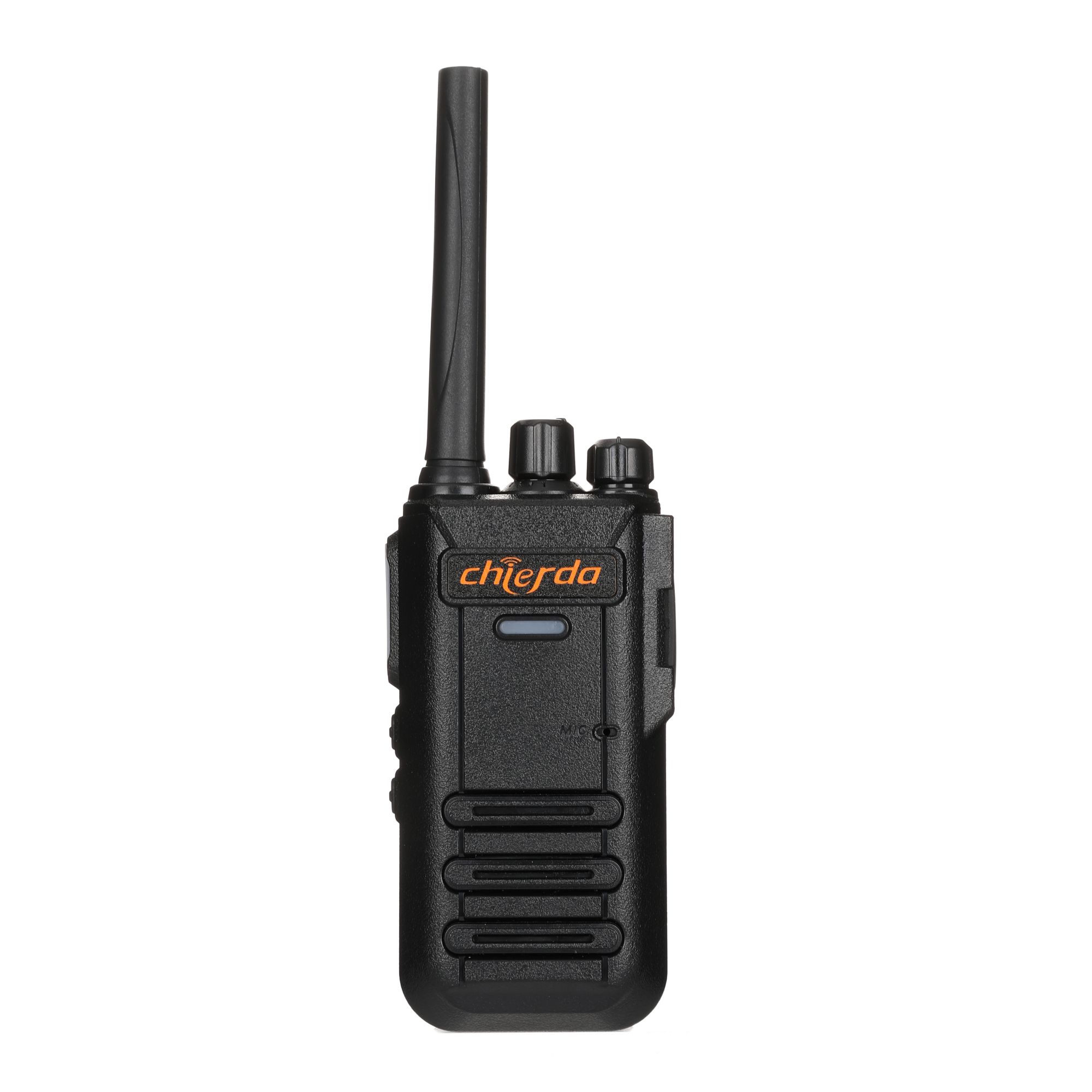

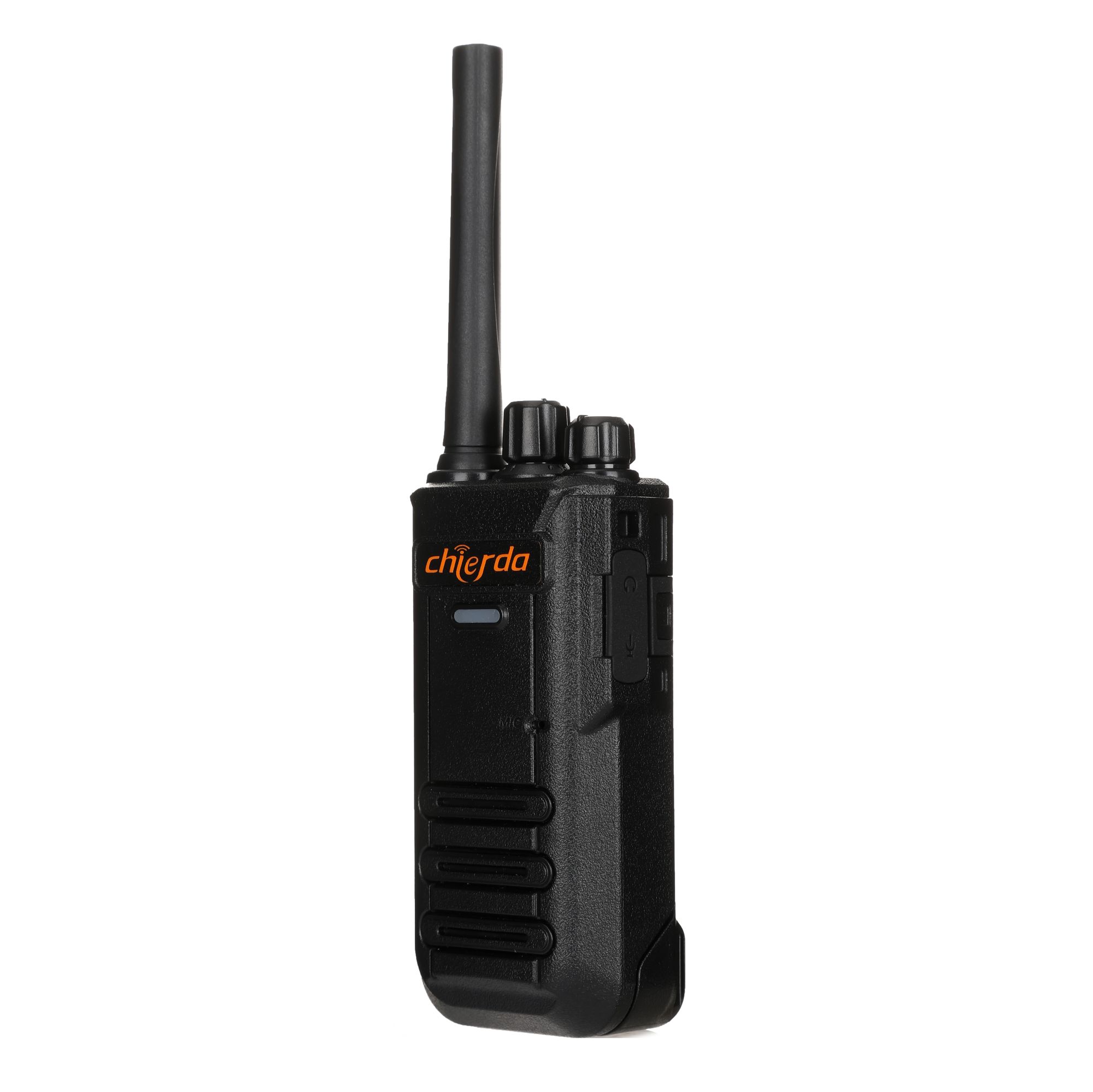

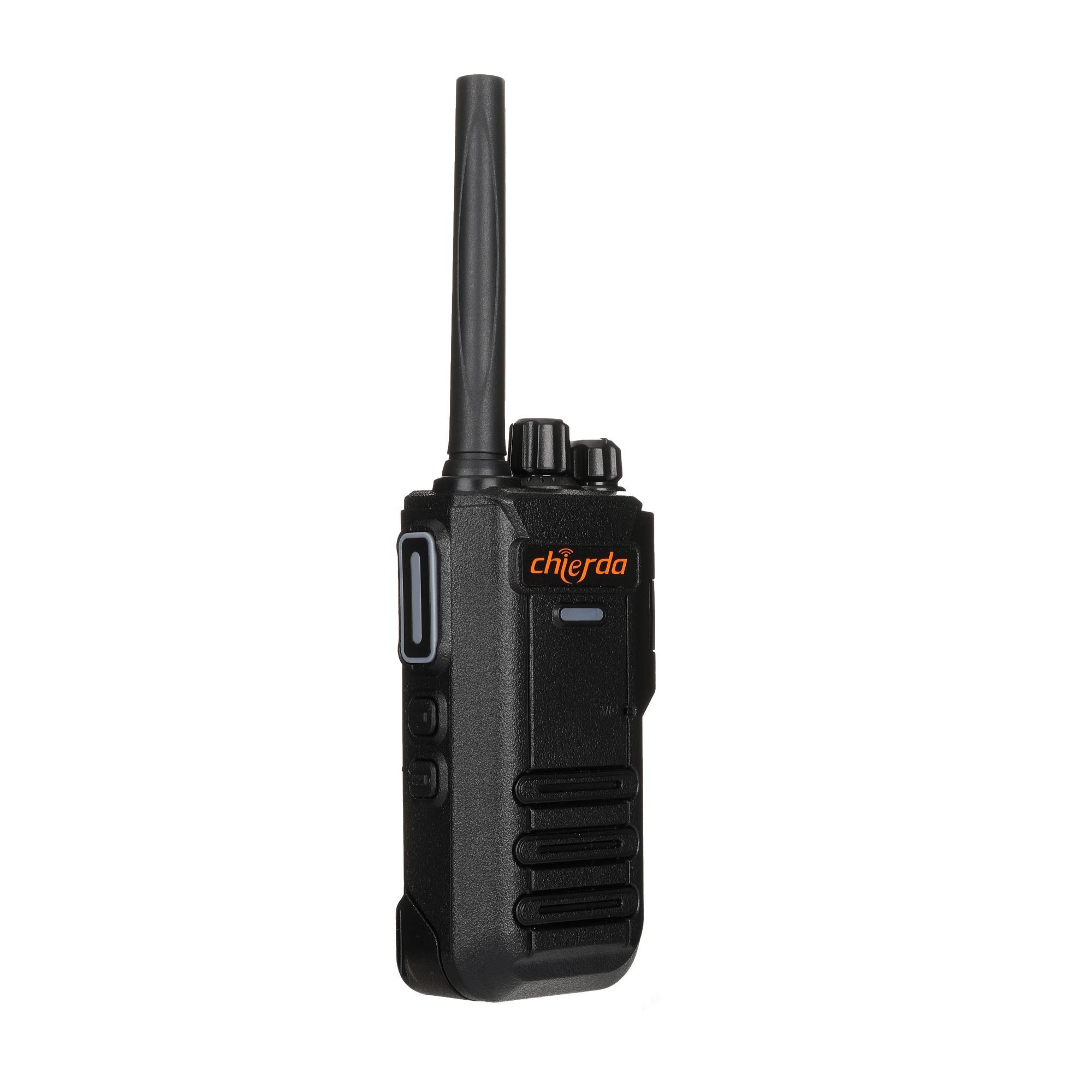

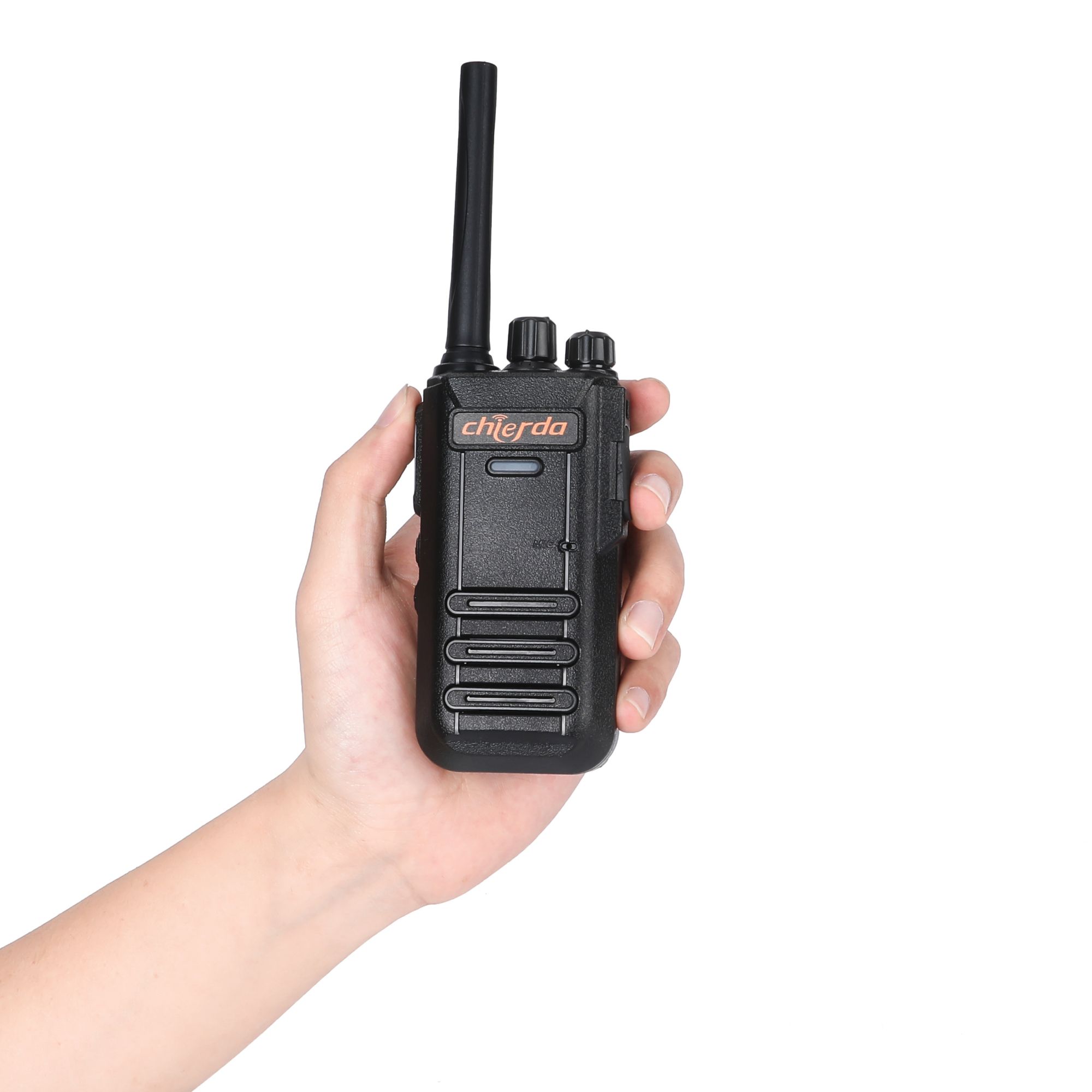

Chierda CD16 High Performance Durable Two-Way Radio
1. Long-time Standby Time
2. Type-C Charging
3. CTCSS/DCS
4. Powerful Flashlight
5. Voice Compander
6. One-key Frequency Pairing, One-key Channel Copy
Product Overview

The Chierda CD16 is a 16-channel handheld two-way radio built for daily team communication. An intelligent independent chip manages signal processing and keeps transmission stable across all 16 channels, while a magnetic horn enhances audio clarity so voices come through clearly on a busy job site. The radio is available in a VHF version (136-174 MHz) or a UHF version (400-480 MHz) and offers a choice of 4000 mAh or 5200 mAh batteries, which makes it a practical option for construction sites and other full-shift operations. Charging runs through a Type-C port, and one-key frequency pairing with one-key channel copy gets a fleet of radios ready for work without programming.
Key Features
Intelligent Independent Chip, 16 Channels
An intelligent independent chip handles signal processing and keeps the signal stable across up to 16 channels.
Magnetic Horn for Enhanced Audio Clarity
The CD16 is fitted with a magnetic horn that enhances audio clarity for both transmitted and received voice.
High Power for Wide-Range Communication
With high power, the radio supports communication over a wide range, so team members can stay in contact even when they are far apart on site.
One-Key Frequency Pairing and Channel Copy
Pressing one key copies the frequency and channel settings from radio to radio without any programming. This saves setup time and improves efficiency when preparing multiple radios.
Large-Capacity Battery Options
Choose between a 4000 mAh or a 5200 mAh battery. The large capacity supports long-time standby operation across a full working day.
Type-C Charging
The radio charges through a Type-C port, so you can recharge with widely available Type-C cables and chargers.
CTCSS/DCS Signaling
CTCSS and DCS tone signaling help your team hear its own transmissions on a shared frequency and reduce unwanted audio from other users.
Powerful Flashlight
A built-in powerful flashlight supports work in low-light conditions and at night.
Voice Compander
The voice compander processes audio on transmit and receive, helping voice communication stay clear and natural.
Functions and Performance
In daily operation, the CD16 is designed to reduce the two biggest sources of friction in radio fleet management: complicated setup and mid-shift battery drain.
Setup without programming: the one-key frequency pairing and one-key channel copy functions let a supervisor configure one radio and then clone the settings to the rest of the team by pressing a single key. No computer, no programming cable, and no software knowledge is required.
Full-shift operation: the 4000 mAh or 5200 mAh battery options provide long-time standby, and the Type-C charging port keeps recharging simple between shifts.
Reliable audio: the intelligent independent chip stabilizes the signal across 16 channels, the magnetic horn enhances audio clarity, the voice compander keeps processed voice natural, and CTCSS/DCS signaling filters out unrelated users on the same frequency. Audio output power of at least 300 mW keeps calls audible in noisy environments.
Low-light support: the built-in flashlight gives operators a light source for night work, equipment rooms, and evening site patrols.
What’s in the Box
- Radio x 1
- Battery x 1
- Charger x 1
- Antenna x 1
- Belt clip x 1
- Strap x 1
- User’s manual x 1
Applications
- Construction sites: long-time standby battery options and one-key channel copy make it easy to equip crews that work full shifts across wide sites, the environment the CD16 is designed for.
- Security and night patrols: the powerful flashlight supports guards moving between unlit areas.
- Warehouses and logistics: CTCSS/DCS signaling keeps separate teams on their own groups within the same facility.
- Property and facility management: 16 channels give different departments their own working channel without interference from other users.
- Outdoor activities: Type-C charging and simple one-key setup suit farms, camps, and event crews that need radios working quickly with minimal configuration.

Technical Specifications
General
- Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz
- Memory Channels: 16
- Channel Spacing: 12.5 kHz / 25 kHz
- Rated Voltage: 3.7V DC
- Battery Capacity: 4000 mAh / 5200 mAh (customer choice)
- Frequency Stability: ± 2.5 ppm
- Antenna Impedance: 50 Ω
- Dimensions: 109 x 57 x 41 mm (without antenna)
Transmitter
- Output Power: 2 W
- Operating Current: ≤ 1.2 A
- Modulation Mode: 16K∅F3E / 11K∅F3E
- Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
- CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
- Modulation Distortion: < 5% (300-3000 Hz)
- Residual Radiation: ≤ 7 µW
- Residual Modulation: ≤ -35 dB
Receiver
- RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
- Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
- Audio Output Power: ≥ 300 mW
- Audio Distortion: ≤ 5%
- Modulation Receiver Bandwidth: ± 7 kHz
- Spurious Rejection: ≥ 55 dB
- Selectivity: ≥ 65 dB
- Intermodulation: ≥ 60 dB
