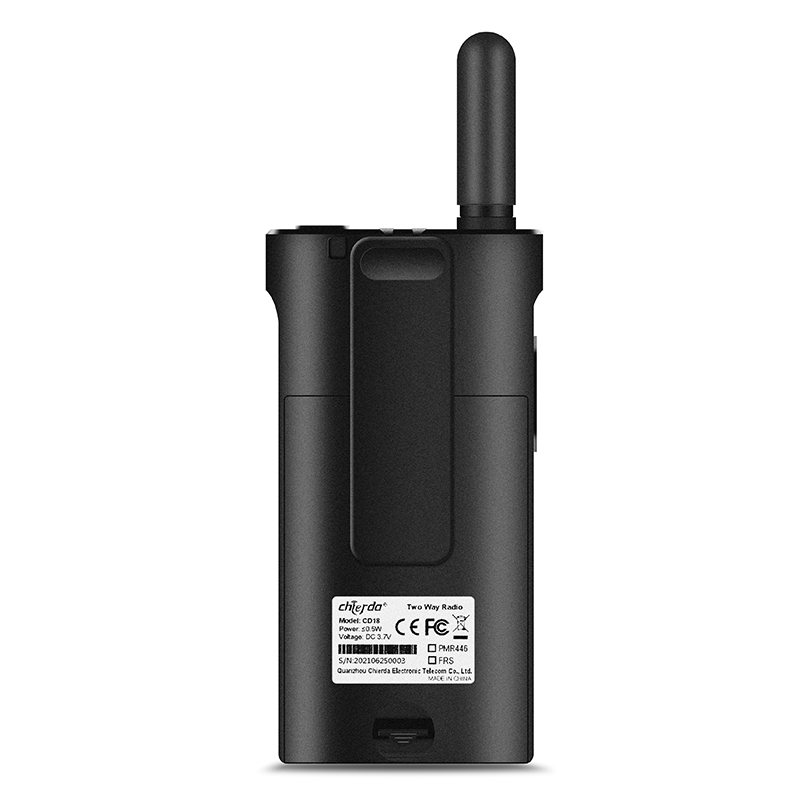

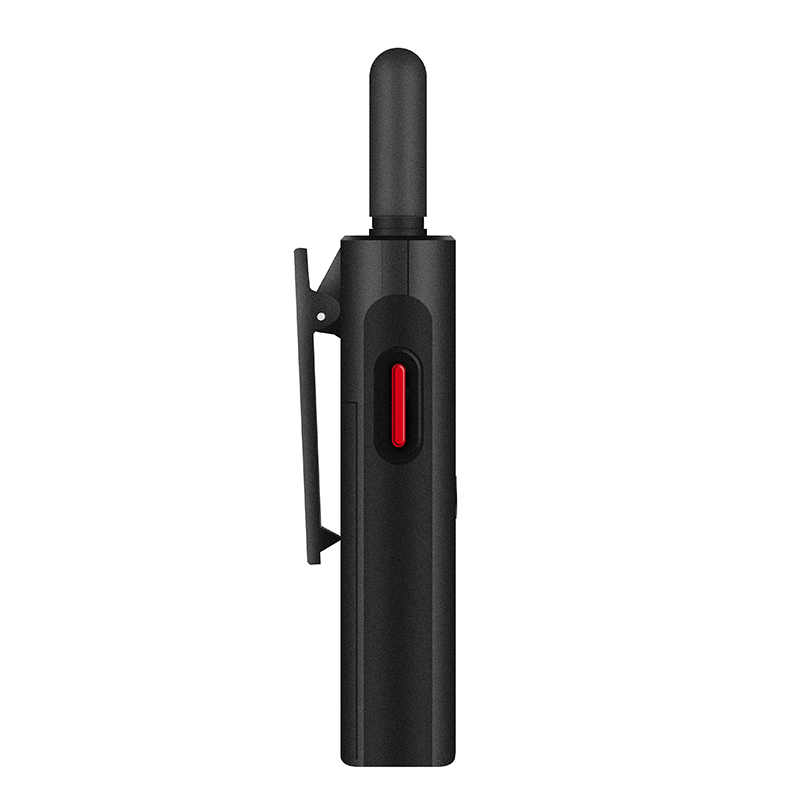

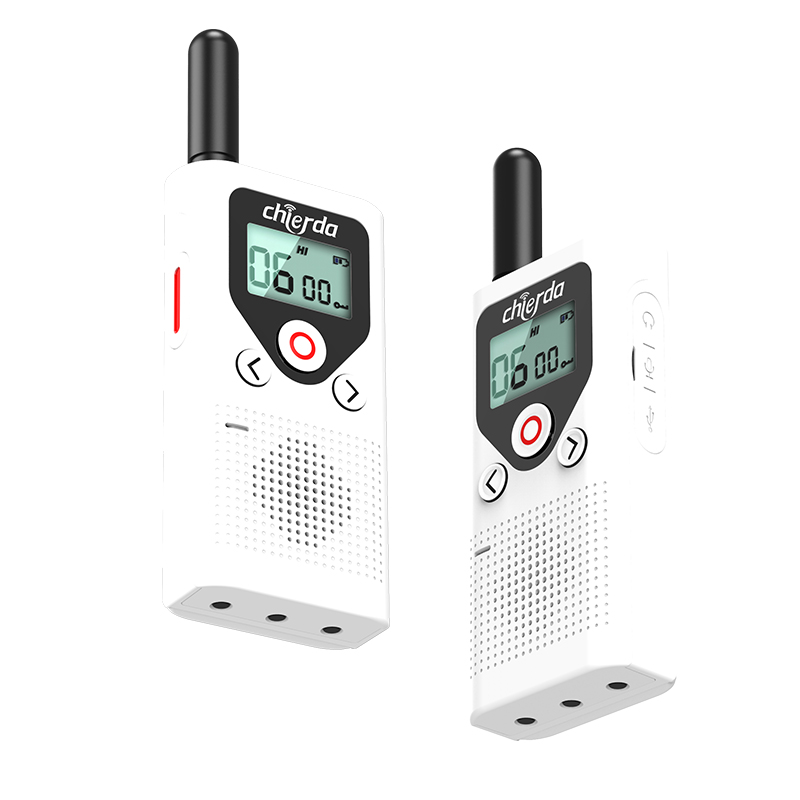

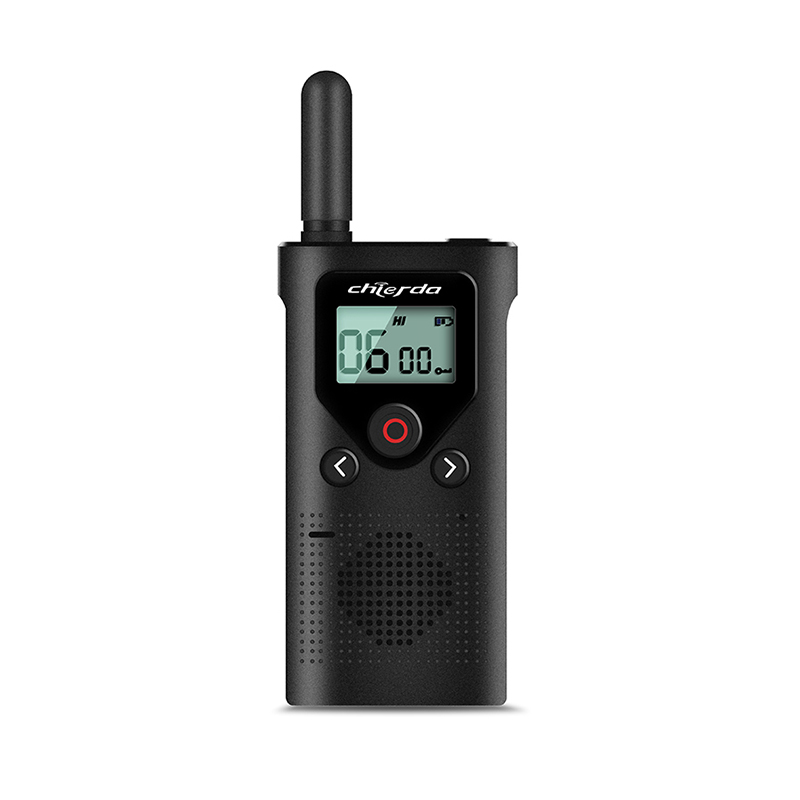

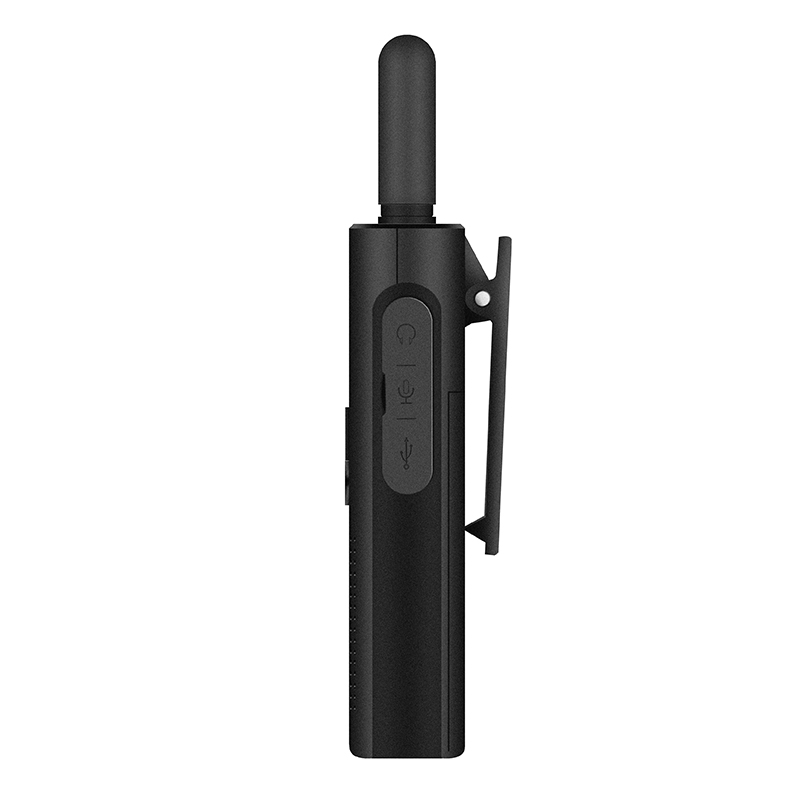

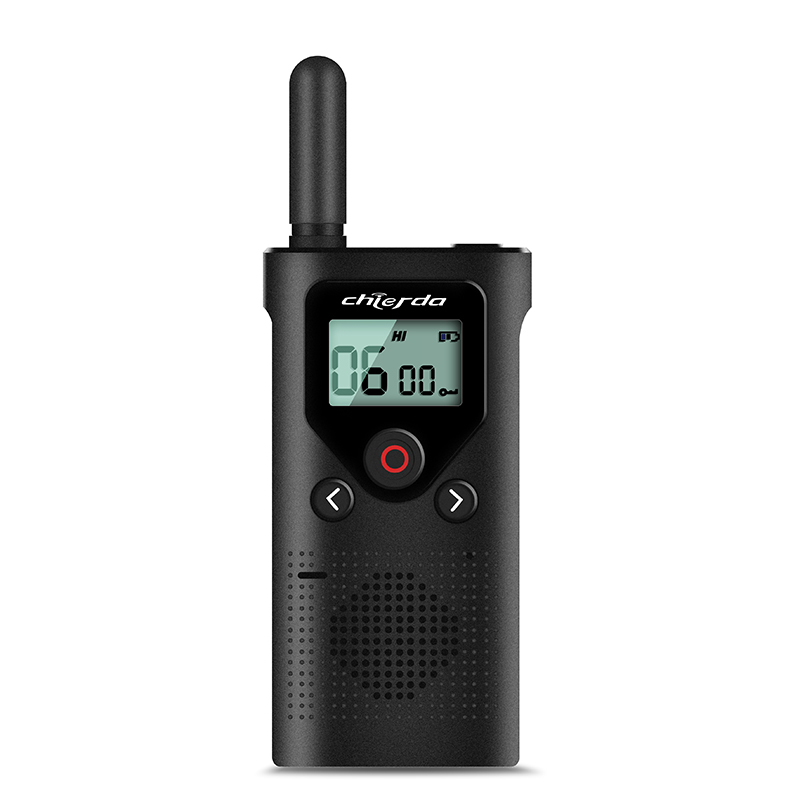

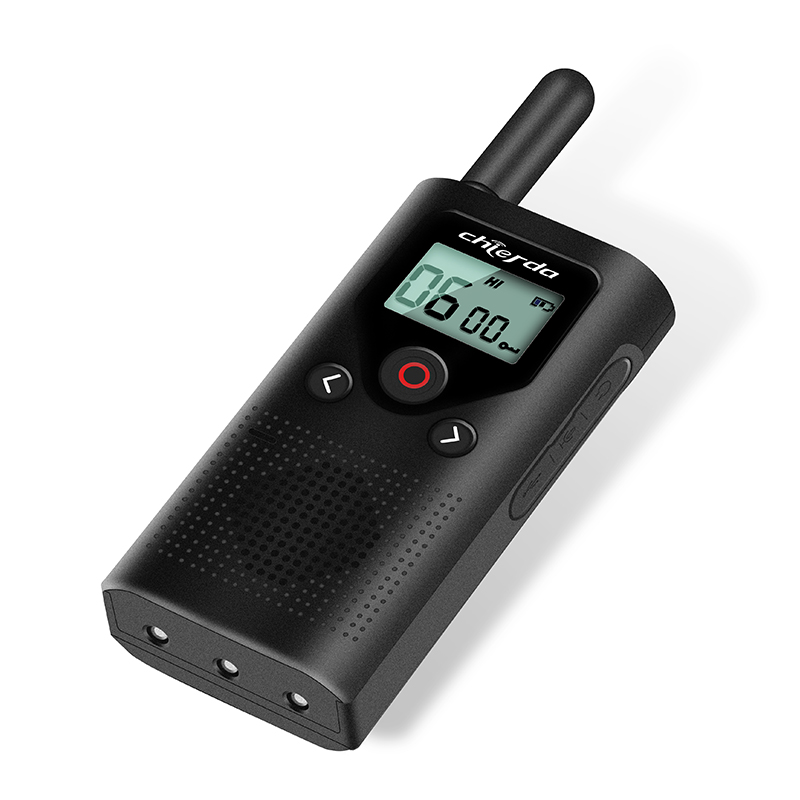

Chierda CD18P NOAA License-free FRS Two Way Radio

1. Monitor Function

2. License-free FRS walkie talkie

3. NOAA Function

4. 22 channels available

5. Lightweight Design

6. LCD Display

Product Overview

Features

The Chierda CD18P is a compact, lightweight, license-free FRS two way radio with 22 channels and a 1.28-inch LCD display for straightforward operation. It supports both push-to-talk and voice-operated transmission through its VOX function, and it adds channel management tools that matter on a busy floor: a monitor function, keyboard lock (Auto or Manual), Busy Channel Lockout, and a Time Out Timer.

Power comes from a 1500 mAh Li-ion battery with a power-saving function, rated for 100 hours of standby and enough for whole-day use after a full charge. A low power alarm reports the battery status. The body measures 106 x 55 x 23 mm (without antenna), and the design is kept simple and stylish.

Chierda positions the CD18P for supermarkets, hotels, catering, salons, and wild environments. FRS is a United States licensed-by-rule service and NOAA weather broadcasts are a US service, so the license-free statement applies to the market where FRS rules are in force. Confirm the applicable version and local requirements before ordering.

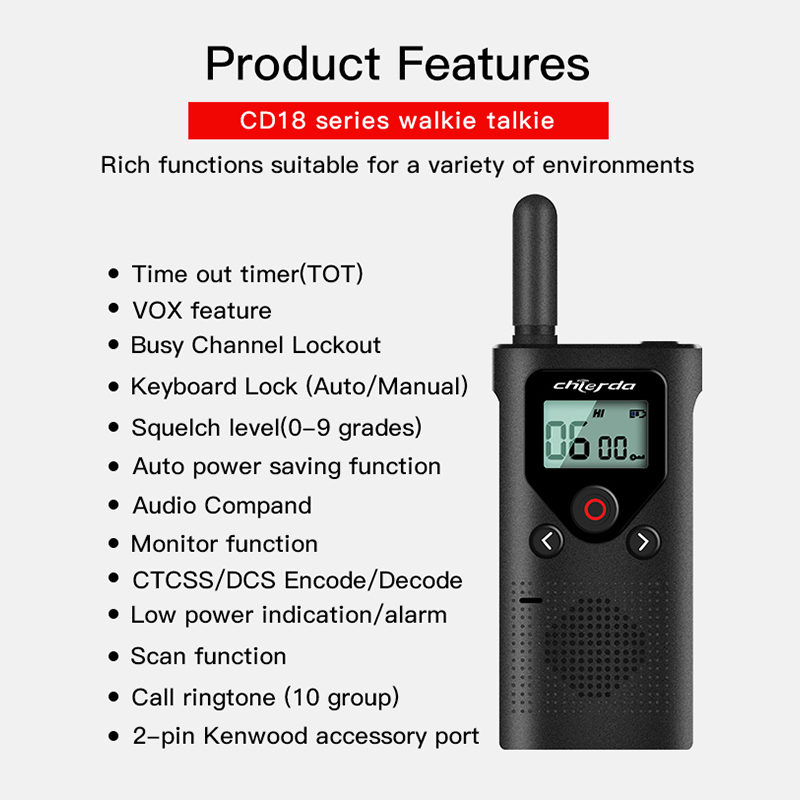

Key Features

License-Free FRS with 22 Channels

The CD18P operates on 22 FRS channels. As a license-free radio, it is ready to use without an individual license application in markets where FRS rules apply.

1.28-inch LCD Display

A 1.28-inch LCD display makes channel and status information visible at a glance and keeps operation simple for staff who rotate between shifts.

NOAA Weather Function

NOAA is included as a CD18P function, giving users access to weather information in areas where NOAA broadcasts are available.

VOX Hands-Free Operation

The VOX hands-free function supports both push-to-talk and voice-operated transmission, so the radio can be used with or without pressing the PTT button.

Monitor Function

The monitor function lets users check activity on the channel in use, including weak signals that would otherwise be masked by the squelch setting.

Keyboard Lock (Auto or Manual) and Busy Channel Lockout

Keyboard lock, available in Auto or Manual mode, helps prevent accidental setting changes. Busy Channel Lockout prevents transmission while the channel is occupied, reducing the chance of interrupting an ongoing call.

Time Out Timer (TOT)

The Time Out Timer limits continuous transmission, protecting the radio from misoperation and from occupying the same channel for a long period.

1500 mAh Li-ion Battery with Power Saving and Low Power Alarm

A 1500 mAh Li-ion battery and a power saving function deliver 100 hours of standby and whole-day use after a full charge. A low power alarm reminds the user of the remaining power status.

Lightweight, Compact Design

At 106 x 55 x 23 mm (without antenna), the CD18P is thin and light enough for pocket carry or a belt clip during a full shift.

Features

Functions and Performance

Simple daily operation: the 1.28-inch LCD display shows channel and status information, while keyboard lock in Auto or Manual mode keeps settings from changing in a pocket or during a busy shift. VOX adds a voice-operated option alongside standard push-to-talk, which helps when staff are carrying stock, trays, or tools.

Channel discipline: the monitor function lets a user check the channel before transmitting. Busy Channel Lockout blocks transmission on an occupied channel, and the Time Out Timer cuts off an overlong transmission so a stuck PTT cannot hold the channel. Together, these functions reduce misoperation on shared FRS channels where many users coexist.

Power management: the 1500 mAh Li-ion battery with a power-saving function is rated for 100 hours of standby and whole-day use after a full charge. The low power alarm gives a clear warning before the battery is depleted.

Audio: With a receiver audio output of at least 300 mW and audio distortion of no more than 5%, the CD18P covers voice communication in the indoor environments it is built for.

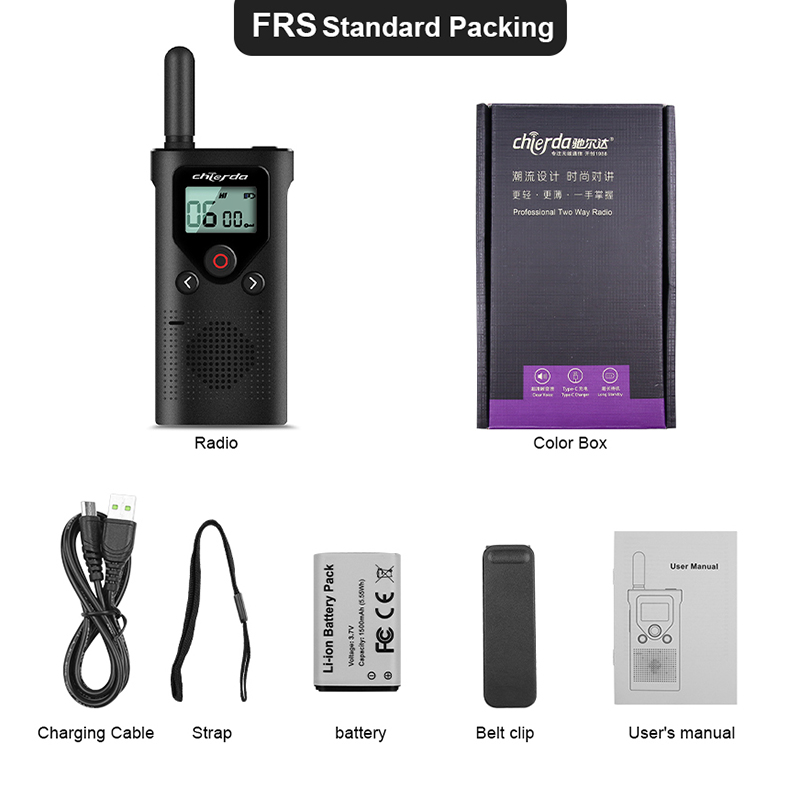

What’s in the Box (1-Radio Package)

  • Radio x 1
  • Charging cable x 1
  • Battery x 1
  • Belt clip x 1
  • Strap x 1
  • User’s manual x 1

whats in the Box

Applications

  • Supermarkets: 22 channels, keyboard lock, and Busy Channel Lockout help floor teams share channels without accidental changes or overlapping calls.
  • Hotels: the lightweight body, LCD display, and low power alarm suit staff who carry the radio for a whole shift.
  • Catering: VOX voice-operated transmission supports hands-free use when staff are handling trays and equipment.
  • Salons: compact size and a simple, stylish design fit front-of-house environments.
  • Wild environments: NOAA weather information and 100 hours of standby support outdoor use where NOAA broadcasts are available.



Features

Technical Specifications

General

  • Frequency Range: FRS
  • Memory Channels: 22
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 3.7V DC
  • Battery Capacity: 1500 mAh (Li-ion)
  • Frequency Stability: ± 2.5 ppm
  • Antenna Impedance: 50 Ω
  • Dimensions: 106 x 55 x 23 mm (without antenna)

Transmitter

  • Output Power: ≤ 2 W
  • Operating Current: ≤ 1.2 A
  • Modulation Mode: FM
  • Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
  • CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
  • Modulation Distortion: < 5% (300-3000 Hz)
  • Residual Radiation: ≤ 7 µW
  • Residual Modulation: ≤ -35 dB

Receiver

  • RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
  • Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
  • Audio Output Power: ≥ 300 mW
  • Audio Distortion: ≤ 5%
  • Modulation Receiver Bandwidth: ± 7 kHz
  • Spurious Rejection: ≥ 55 dB
  • Selectivity: ≥ 65 dB
  • Intermodulation: ≥ 60 dB
