Chierda CD3107 Large Capacity Battery Two Way Radio
1. 4000 Large Battery Capacity
2. High Clarity
3. One-key Frequency Pairing, One-key Channel Copy
4. Alarm Function
5. Type-C Charging Port
6. Voice Scrambler, Frequency Hopping
7. Strong Code-breaking
Product Overview

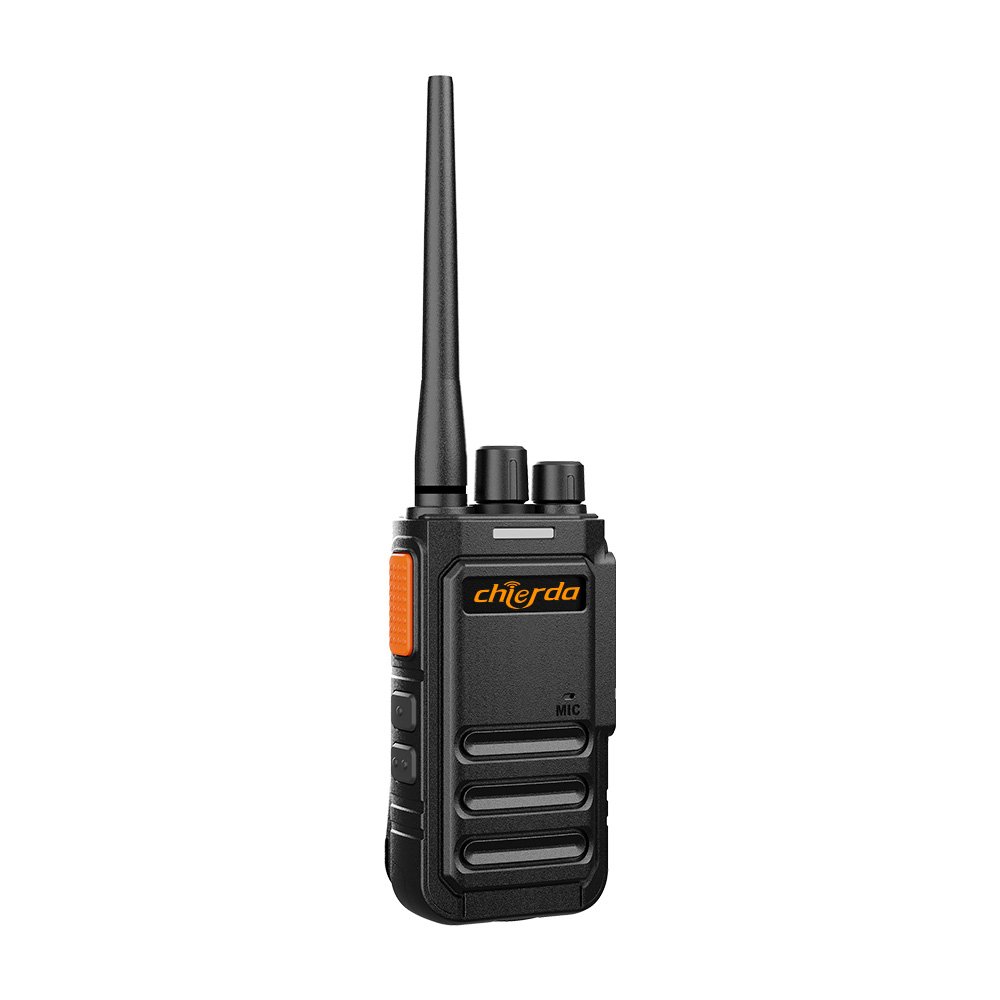

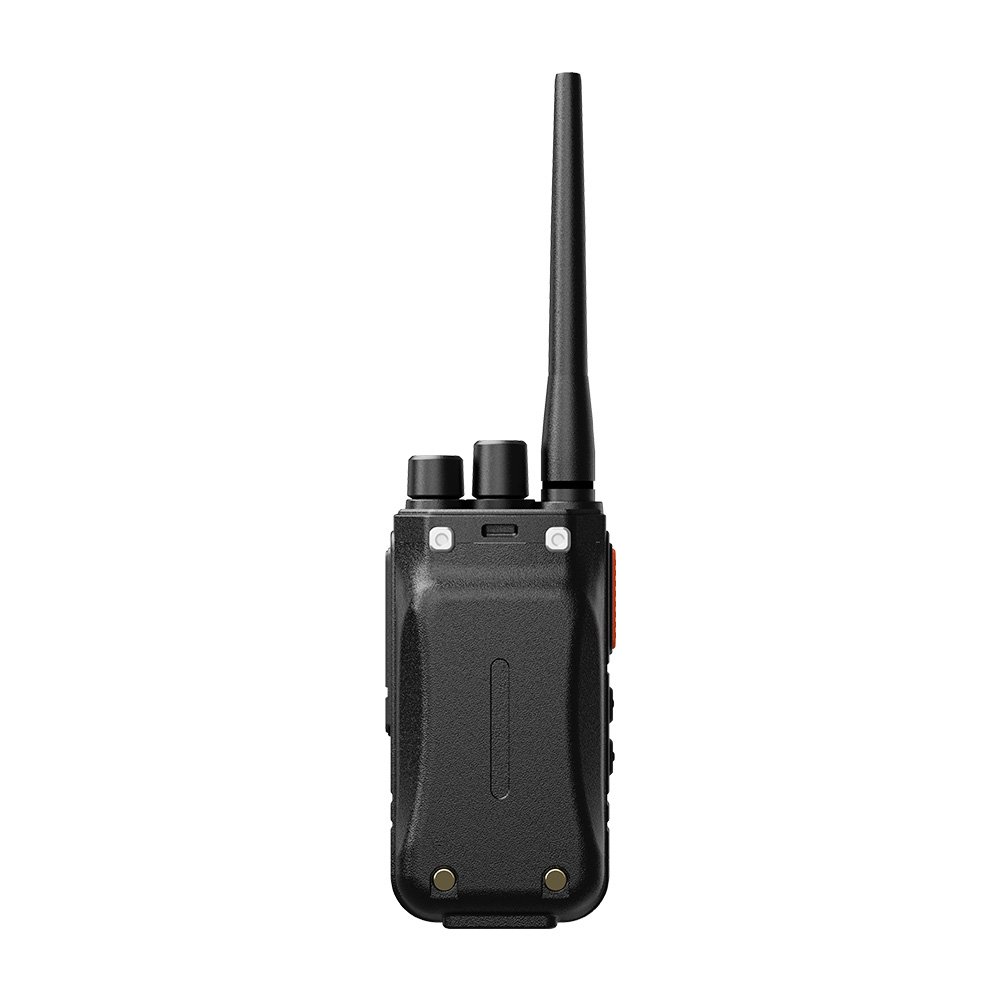

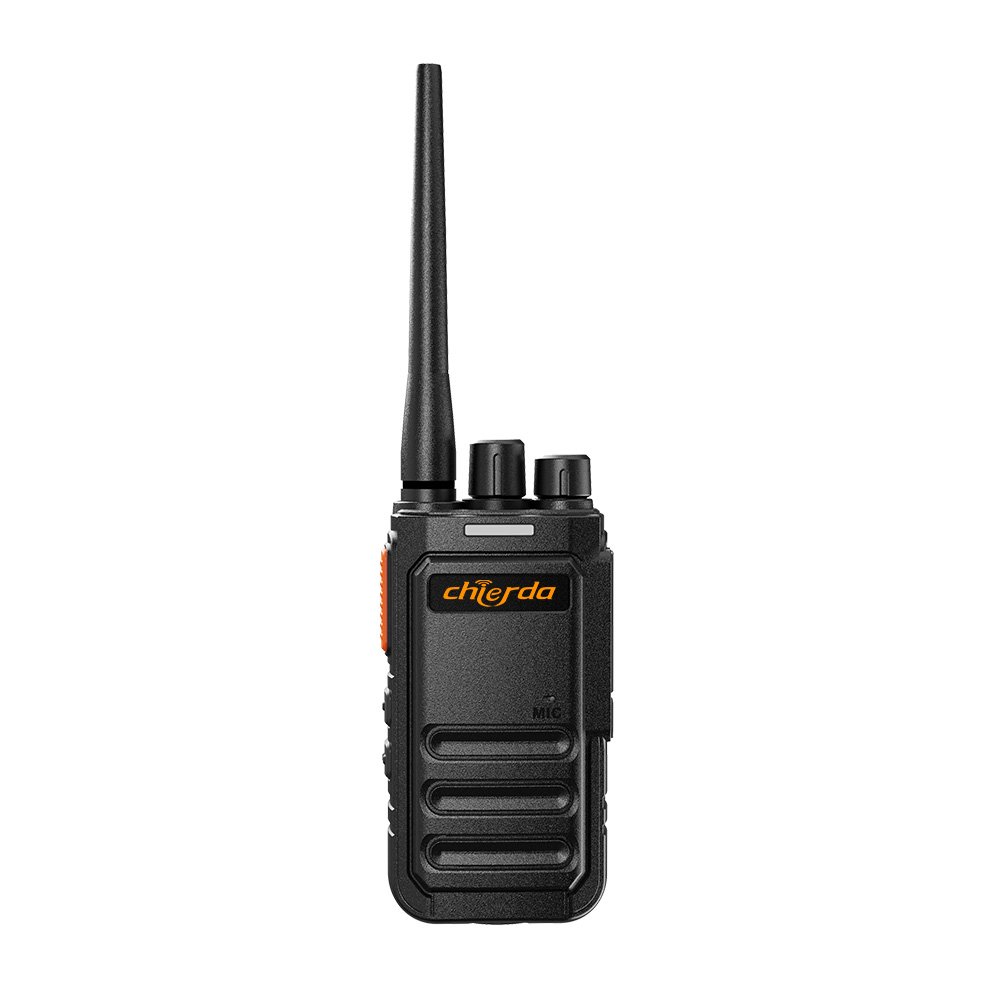

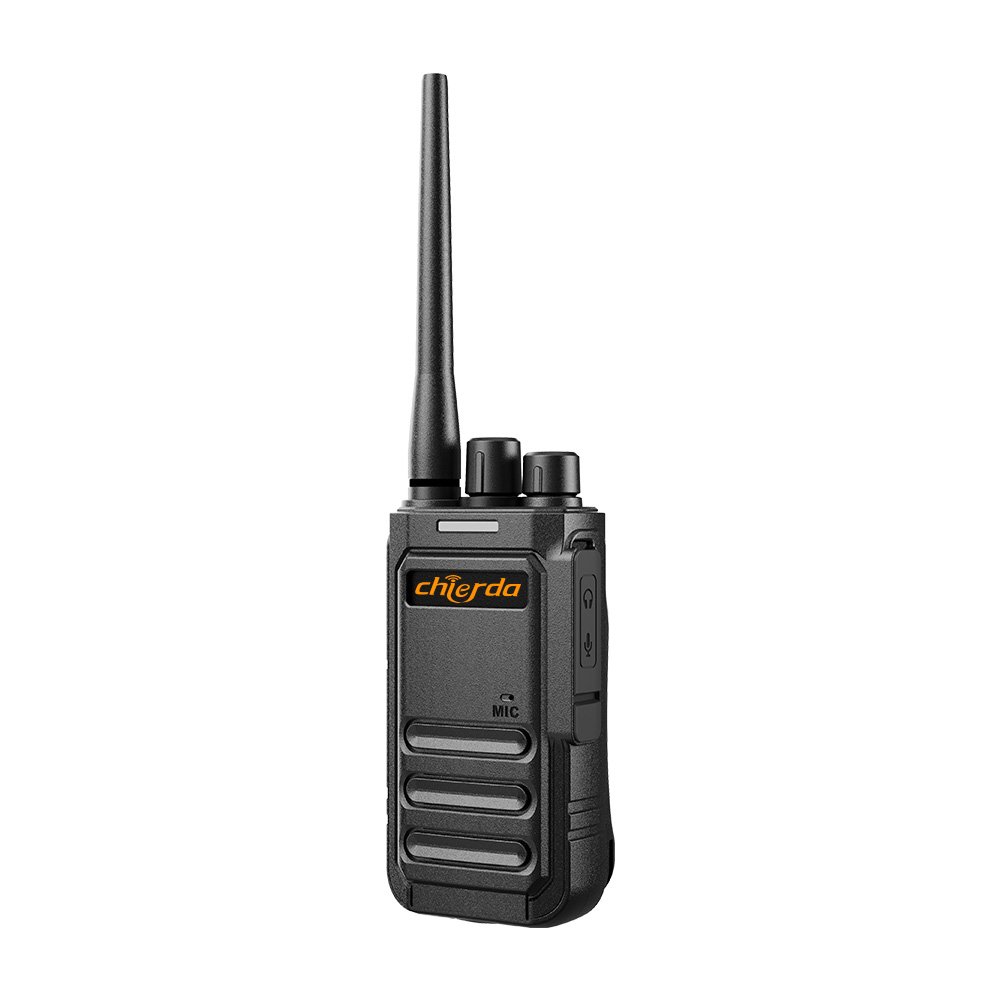

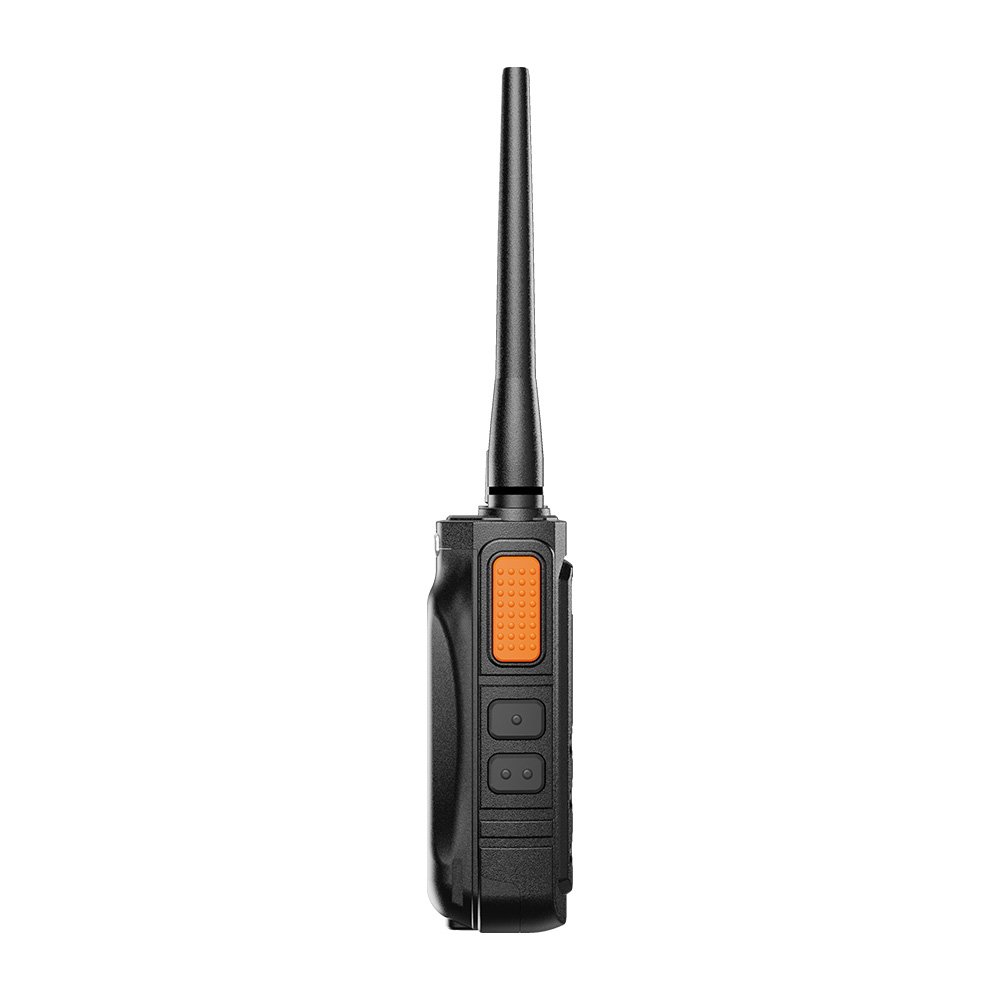

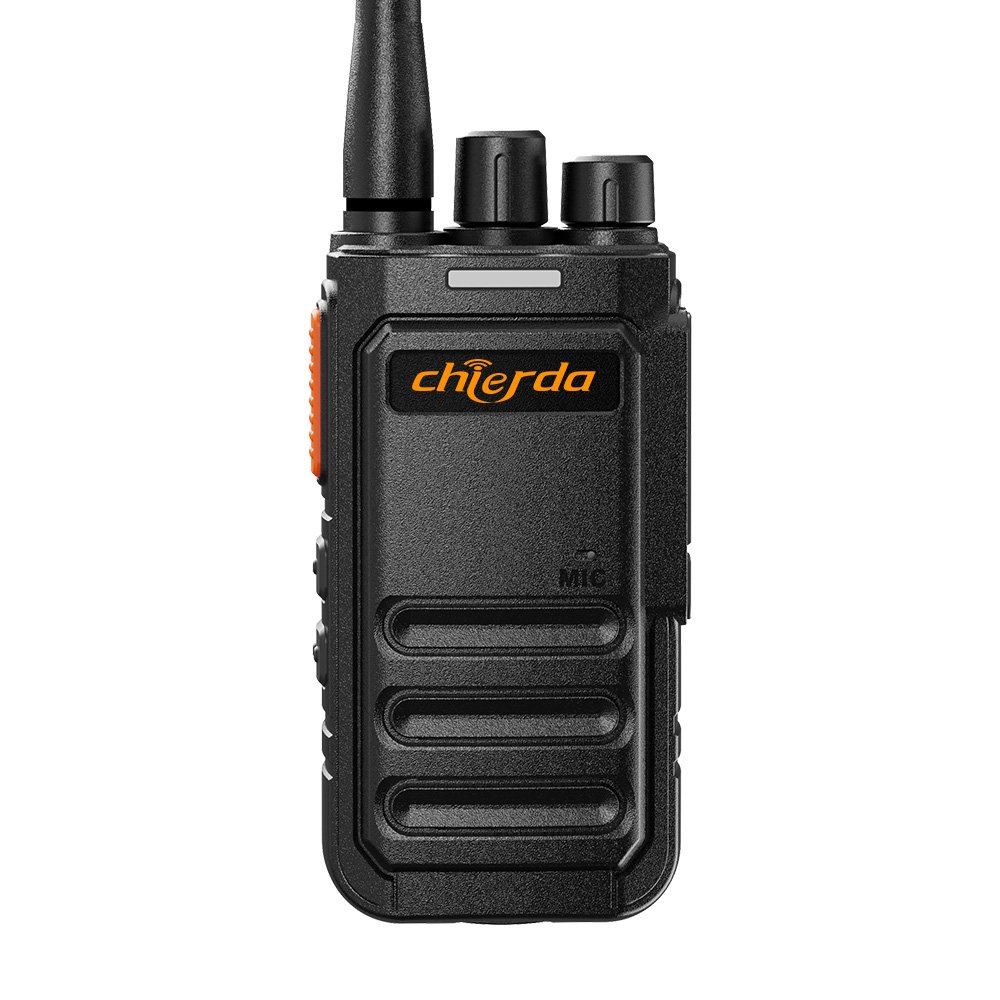

The Chierda CD3107 2W Two Way Radio is a practical communication solution designed for professional users who need reliable team communication and extended battery performance. Equipped with a 4000mAh rechargeable Li-ion battery, this portable walkie talkie is built to support extended operation in demanding working environments, including construction sites, warehouses, and industrial facilities.
The CD3107 features one-key frequency pairing and one-key channel copying, making it easier for users to synchronize radio settings and get connected quickly. Additional functions, including voice scrambler, frequency hopping, alarm, and Type-C charging, provide practical flexibility for daily communication.
With a compact body and cost-effective design, the Chierda CD3107 is suitable for distributors, wholesalers, and businesses looking for an affordable two-way radio solution.
Key Features of Chierda CD3107 Two Way Radio
1. 4000mAh Large-Capacity Battery
The CD3107 is equipped with a 4000mAh rechargeable lithium-ion battery to support extended working time and standby performance.
Its large battery capacity helps reduce the need for frequent recharging, making it suitable for users who rely on their radios throughout long shifts in construction sites, warehouses, and other professional environments.
2. Stable Signal Performance
The CD3107 is designed with signal processing technology to support stable two-way communication.
It is suitable for everyday team coordination where clear and consistent voice communication is important. Actual communication performance depends on the operating frequency, antenna configuration, terrain, buildings, and surrounding radio interference.
3. One-Key Frequency Pairing
The one-key frequency pairing function simplifies radio setup.
Users can quickly synchronize compatible radio frequency settings without going through complicated manual configuration. This feature helps reduce setup time when preparing multiple radios for team use.
4. One-Key Channel Copy
With the one-key channel copy function, users can conveniently copy channel settings from a compatible radio.
This makes it easier to configure multiple devices with consistent communication settings, especially when deploying radios for new teams or replacing existing units.
5. Type-C Charging Port

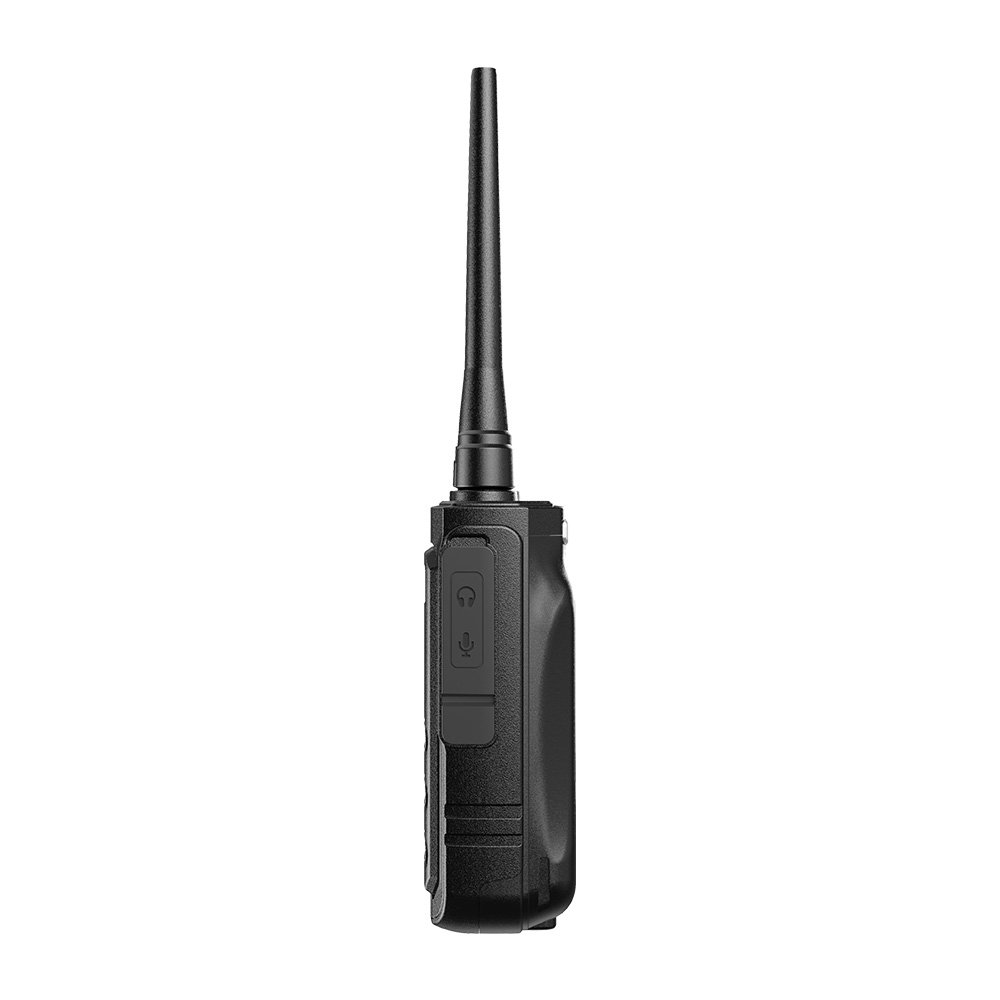

The CD3107 features a Type-C charging port for convenient daily charging.
Its modern charging interface provides a practical way to recharge the radio using compatible Type-C power sources, helping simplify charging arrangements in workplaces and outdoor environments.
6. Voice Scrambler and Frequency Hopping
The CD3107 supports voice scrambler and frequency hopping functions to provide additional communication options.
These features can help manage communication settings and reduce certain types of interference, depending on the implementation and configuration.
Note: A voice scrambler should not be considered equivalent to modern cryptographic encryption. Security performance depends on the actual scrambling implementation.
7. Alarm Function
The built-in alarm function provides an additional alert option for users in working environments.
It can support practical team communication and emergency alert scenarios, subject to the alarm mode and configuration supported by the device.
8. Compact and Practical Design
With dimensions of 98.5 × 53 × 35 mm (without antenna), the CD3107 features a compact portable design.
Its practical size makes it convenient to carry during daily work, while the included belt clip and strap provide additional carrying options.

Typical Applications
The Chierda CD3107 is designed for professional users who need practical and convenient two-way communication.
- Construction Sites: Support communication between construction workers, supervisors, and site managers.
- Warehouses: Help coordinate warehouse staff, inventory teams, and logistics operations.
- Industrial Facilities: Support daily communication between production teams and maintenance personnel.
- Hotels and Hospitality: Facilitate coordination among housekeeping, maintenance, and service teams.
- Property Management: Help security and maintenance teams stay connected across facilities.
- Retail and Commercial Operations: Improve communication between employees working in different departments.
What’s in the Box?
Each Chierda CD3107 product set includes:
- CD3107 Two Way Radio × 1
- Battery × 1
- Belt Clip × 1
- Charger × 1
- Strap × 1
- User Manual × 1

Technical Specifications
General Specifications
- Brand: Chierda
- Model: CD3107
- Radio Type: Analog Two Way Radio
- Frequency Range: VHF 136–174MHz or UHF 400–480MHz
- Channel Spacing: 16 (unit and definition to be confirmed)
- Memory Channel: 12.5kHz / 25kHz (field name to be confirmed)
- Rated Voltage: 3.7V DC
- Battery Capacity: 4000mAh
- Frequency Stability: ±2.5ppm
- Antenna Impedance: 50Ω
- Dimensions: 98.5 × 53 × 35 mm (without antenna)
Transmitter Specifications
- Output Power: 2W
- Current: ≤1.2A
- Modulation Distortion: <5% (300–3000Hz)
- Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
- CTCSS Frequency Deviation: 0.75kHz ±50Hz
- Residual Radiation: ≤7μW
- Modulation Mode: 16KØF3E / 11KØF3E
- Residual Modulation: ≤−35dB
Receiver Specifications
- RF Sensitivity: ≤0.25μV / ≤0.3μV
- Squelch Sensitivity: ≤0.2μV / ≤0.25μV
- Audio Output Power: ≥300mW
- Audio Distortion: ≤5%
- Receiver Modulation Bandwidth: ±7kHz
- Spurious Rejection: ≥55dB
- Selectivity: ≥65dB
- Intermodulation: ≥60dB

Company Profile
Founded in 1988, CHIERDA specializes in the R&D andmanufacturing of professional wireless communicationproducts, including two-way radios, mobile radios, andrepeaters. As a National High-Tech Enterprise, we arecommitted to “Quality First” and “Driven by Innovation.”
With ISO 9001 certification and SEDEX compliance, CHIERDA products meet CE, FCC, IC, RoHS, and other international requirements. Today, we serve customers in over 100 countries and regions, providing reliable wireless communication solutions for diverse markets and industries.
1988
ON-TIME DELIVERY
MANUFACTURING BASE
EMPLOYEES
TESTING INSTRUMENTS
GLOBAL MARKETS
FAQs
Do you support OEM/ODM services?
Yes! We are a manufacturer offering OEM and ODM services. We can design and customize products according to your specific requirements.
What is your MOQ?
For sample testing, we recommend starting with an order of 2 pieces. Please contact us for more information about bulk order requirements.
Can you offer free samples for testing?
Generally, customers need to pay the sample fee in advance. However, once your order reaches the required quantity, we will refund the sample fee.
Can I place a sample order to test product quality?
Absolutely! You are welcome to place a sample order to evaluate our product quality before making a bulk purchase.
Can I get a better price for large orders?
Yes! We offer more competitive pricing for bulk orders. Generally, the larger your order quantity, the better the price.
How long does it take to ship my order after payment?
Our typical order processing and dispatch times are:
Sample orders: 1–3 days
Bulk orders: 5–8 days
Custom production: 15–30 days
When can I track my shipment online?
We usually provide the tracking number within 2 days. Once you receive it, you can check your shipment status and updates online.
What payment methods do you accept?
We generally accept bank transfers, Western Union, MoneyGram, Trade Assurance, and other payment methods. If you prefer a different payment option, please contact us. We will do our best to accommodate your needs.
How do you ensure product quality?
We use an MES production management system to track the manufacturing process of every product. All products undergo 5 inspections before shipment, and our First Pass Yield (FPY) exceeds 99.4%.
What is your warranty policy?
Radios: 12-month warranty
Accessories: 6-month warranty
We also provide remote technical support. Please contact us if you have any questions or need assistance.
