Chierda CD318 Durable Rugged Handheld Radio (6 packs)
Additional information
1.6 Radios in the Package
2W Walkie Talkie
2.Six-Way Charger
Features

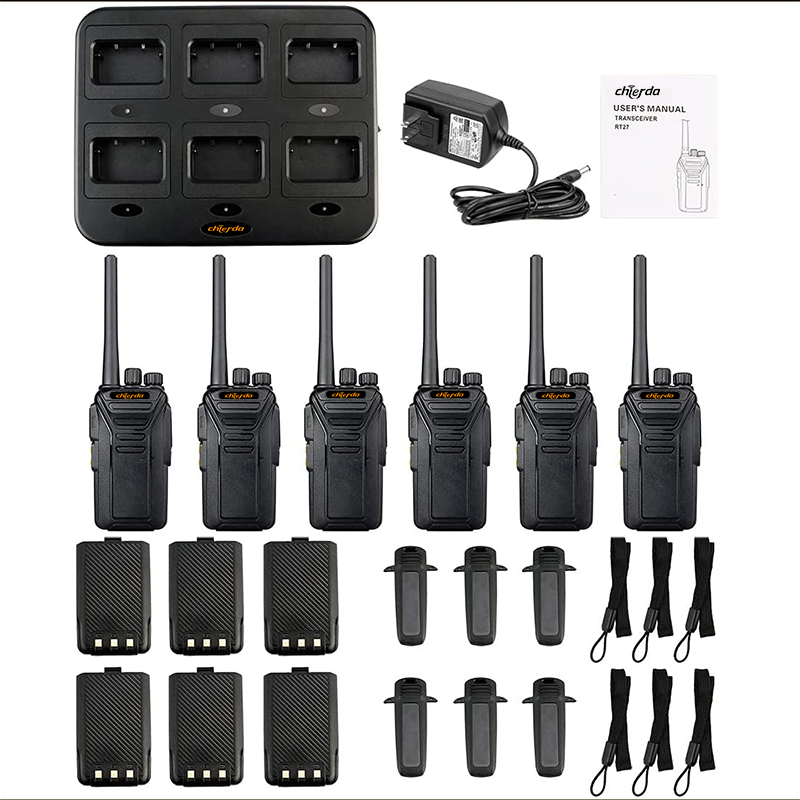

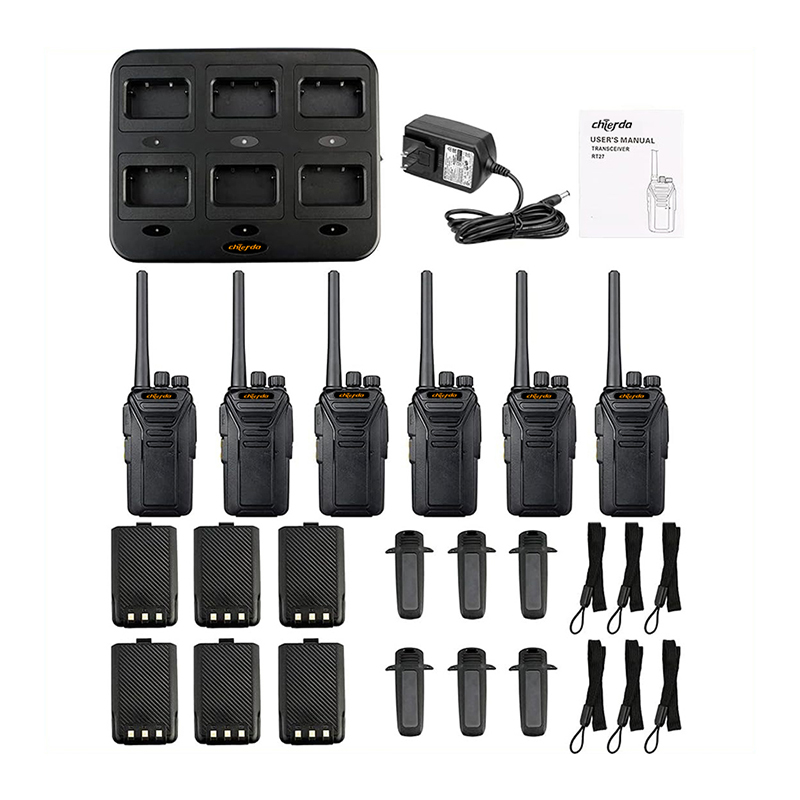

Chierda CD318 Durable Rugged Handheld Radio provides long-range communication to keep you connected during work. This bundle contains 6 packs of CD318 radios and 1 six-way charger. It is enough for team use.
Built-in 1000mAh Lithium Battery:
Chierda CD318 walkie talkie can support a long time of working. Plus, it has a battery save function to extend the standby time of your walkie-talkies. CD318 comes with a desktop charger, making it easy to charge anytime.
VOX Function:
VOX enables normal calls without the need for PTT keys.
Frequency Hopping:
Hopping Function can encrypt calls and effectively protect your communication.
Busy Channel Lockout:
BCLO function can protect from occupying the same channel for a long time.
The channel lock function effectively helps to maintain an efficient connection.
Specification
| SPECIFICATION | |
| Frequency Range | VHF:136-174MHz UHF:400-480MHz |
| Channel Spacing | 16 |
| Memory Channel | 12.5 kHz / 25 kHz |
| Rated Voltage | 3.7V DC |
| Battery Capacity | 1200mAh/2900mAh |
| Frequency Sensitivity | ± 2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 104x58x33mm (Excluding Antenna) |
| TRANSMITTER | |
| Output Power | 2W |
| Current | ≤1.4A |
| Modulation Distortion | <5%(300-3000Hz) |
| Maximum Frequency Deviation |
≤ 5KHz/≤ 2.5KHz |
| CTCSS Frequency Deviation |
0.75KHz± 50Hz |
| Remanent Radiation | ≤7uW |
| Modulation Mode | 16K∅F3E/11K∅F3E |
| Remanent Modulation | ≤-35dB |
| RECEIVER | |
| RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
| Silent Sensitivity | ≤0.2uV/≤0.25uV |
| Audio Frequency Power | ≥500mW |
| Audio Distortion | ≤5% |
| Modulation Receiver Bandwidth |
±7KHz |
| Spurious Rejection | ≥55dB |
| Selectivity | ≥65dB |
| Intermodulation | ≥60dB |
Whats in the Box
Product set
Radio*1
Battery*1
Charger*1
Belt clip*1
Strap*1
Antenna*1
User’s manual*1
