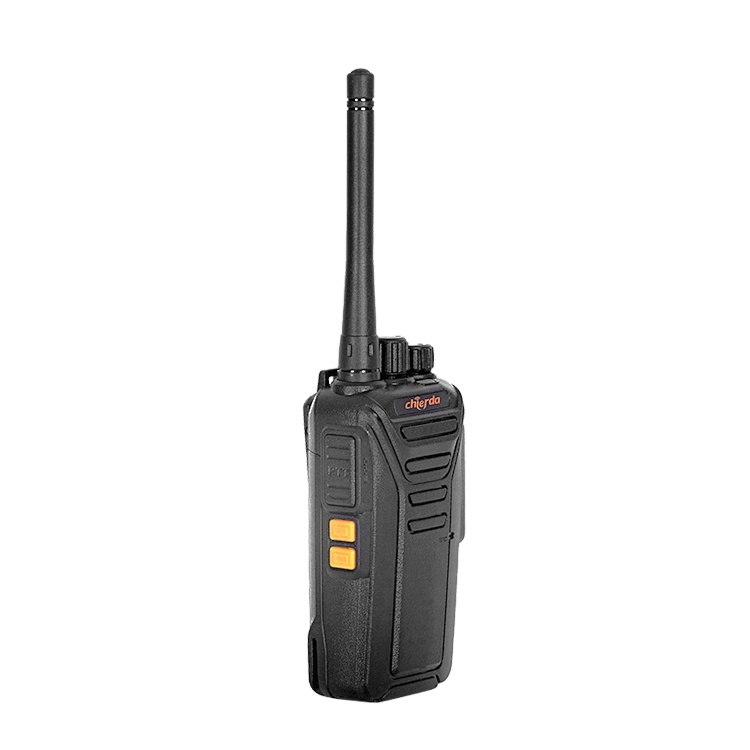

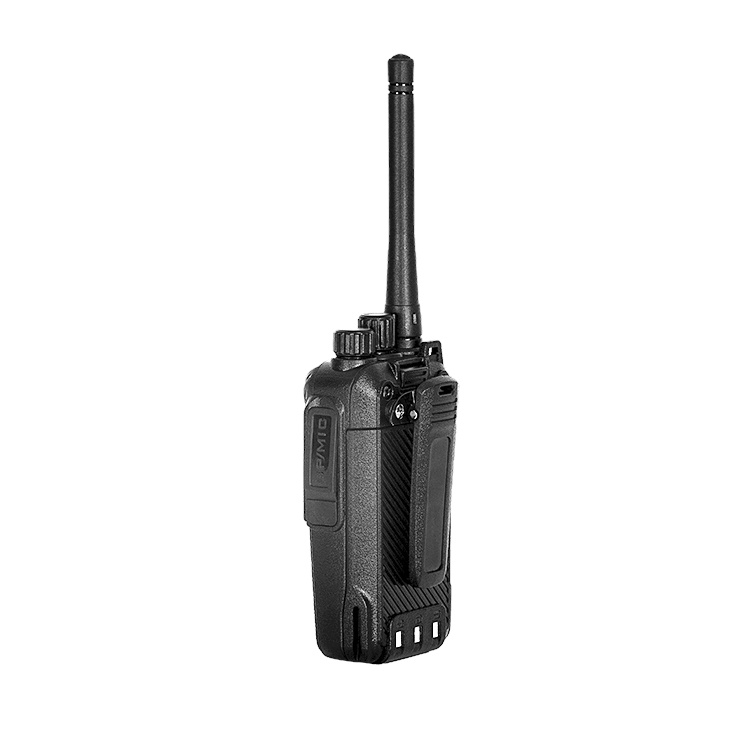

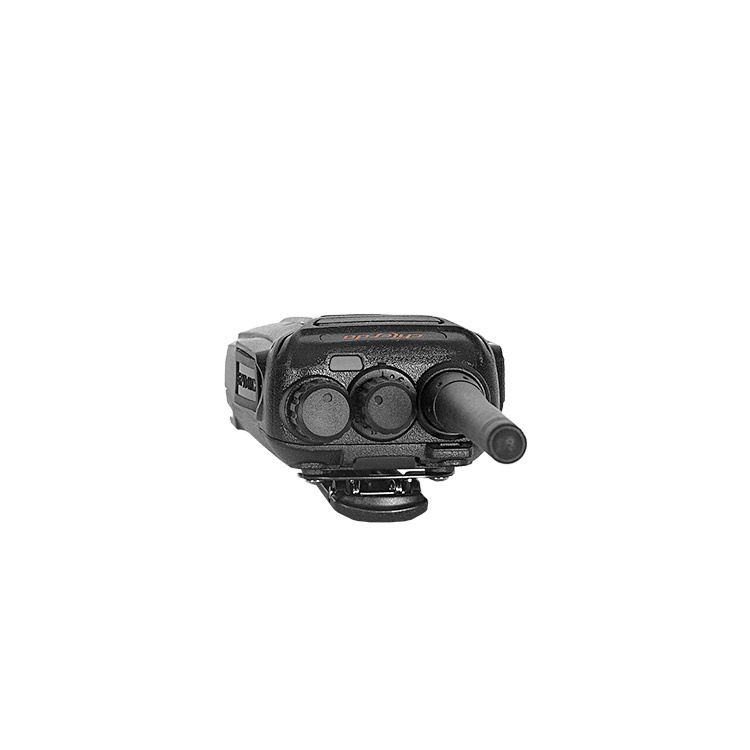

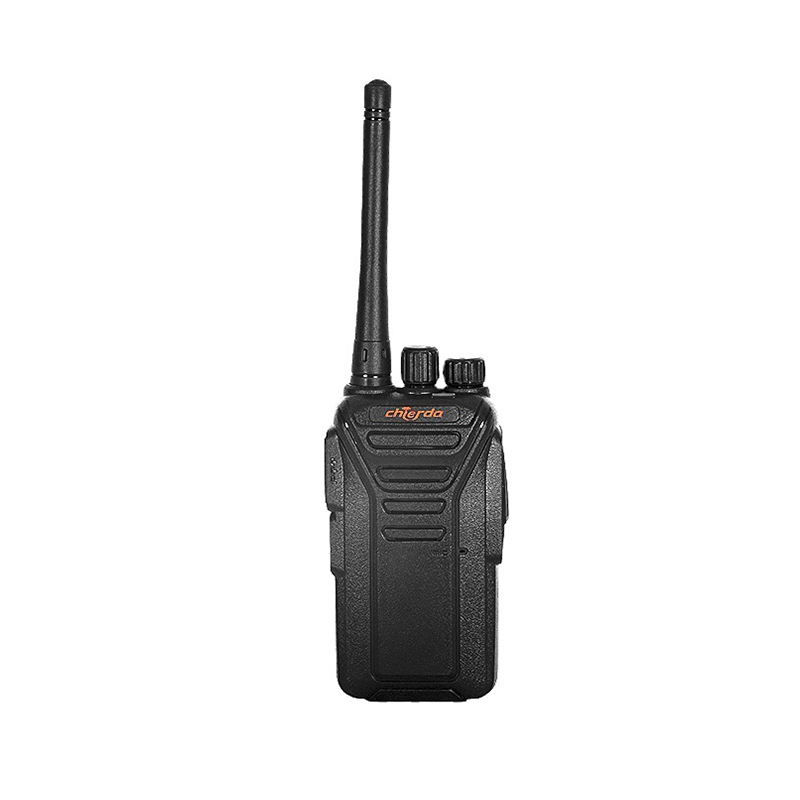

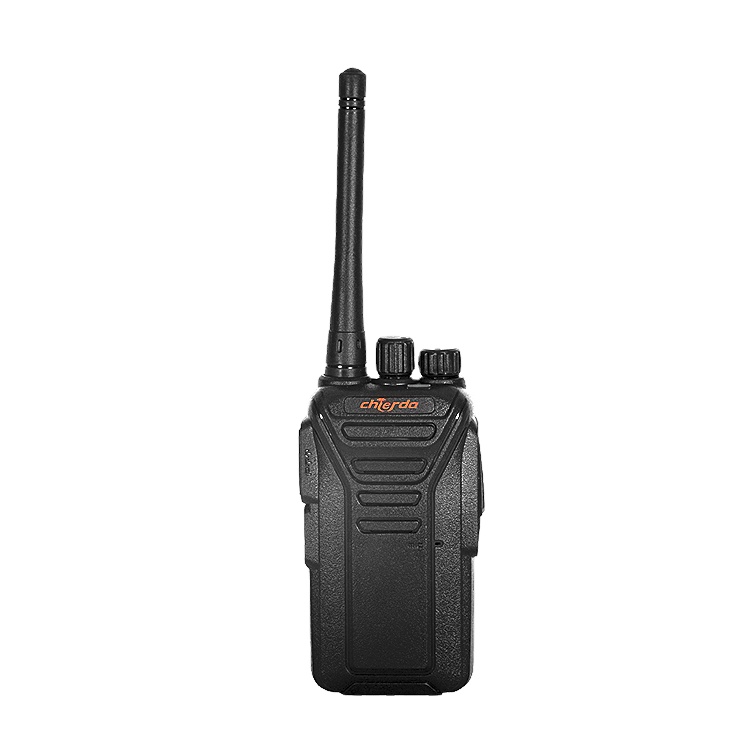

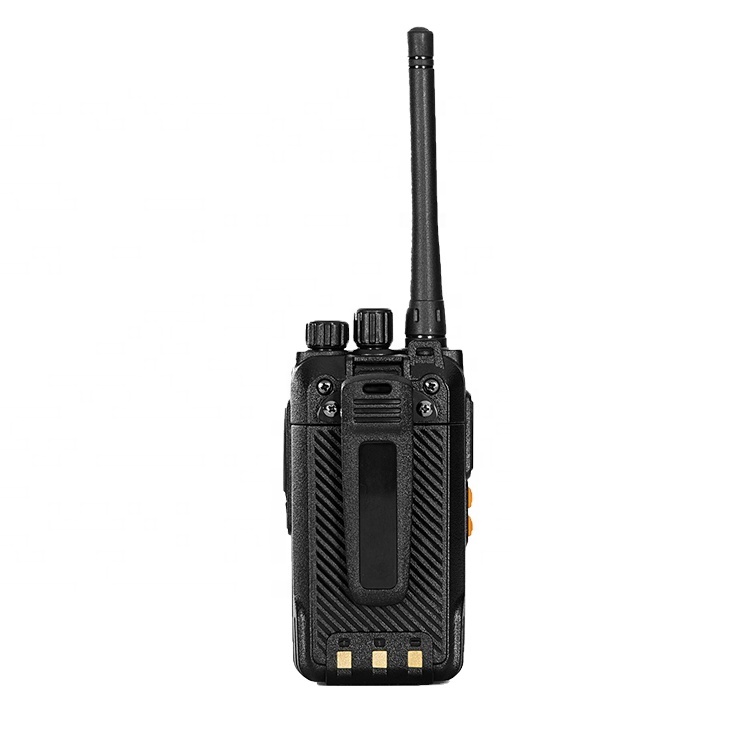

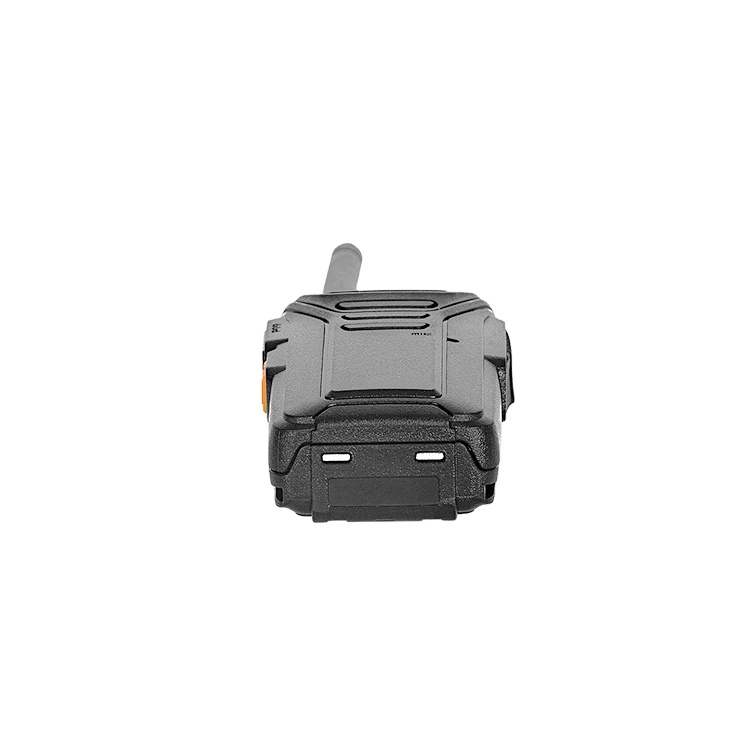

Chierda CD318 Durable Rugged Handheld Radio
1.VOX Hand-free Function
2.Battery Save Function
3.Come with Desktop Charger
4.Compact and Ergonomics Design
The Chierda CD318 Durable Rugged Handheld Radio is a compact and lightweight communication solution designed for convenient everyday use. Featuring 2W output power, VOX hands-free operation, battery save functionality, and a desktop charger, it provides practical communication capabilities in a portable design.
With its ergonomic construction and multiple communication functions, the CD318 is suitable for users who need a convenient handheld two-way radio for daily operations.
Key Features of Chierda CD318 Walkie Talkie

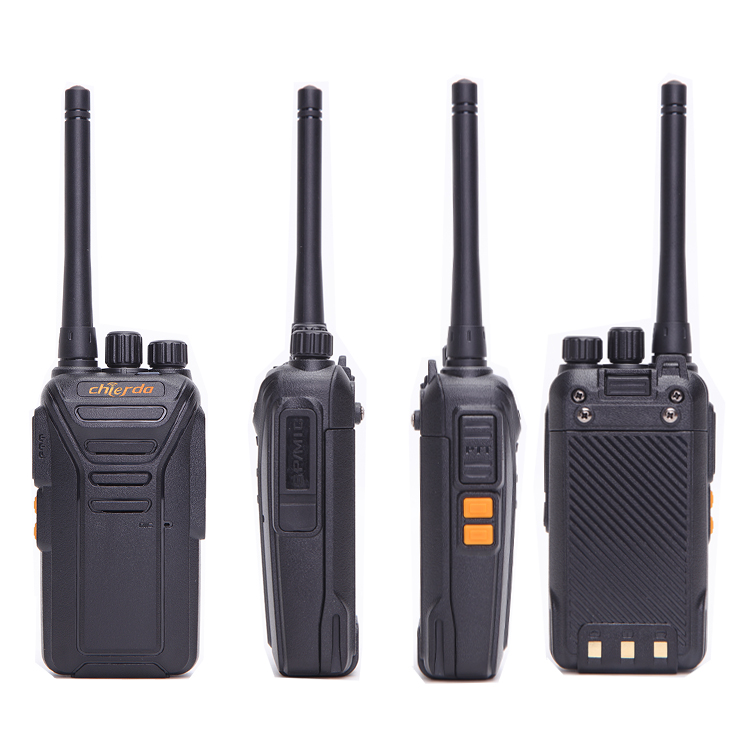

1. Compact and Ergonomic Design:
The CD318 features a compact and lightweight design that makes it easy to carry and operate. Its ergonomic construction supports comfortable handling during daily communication.

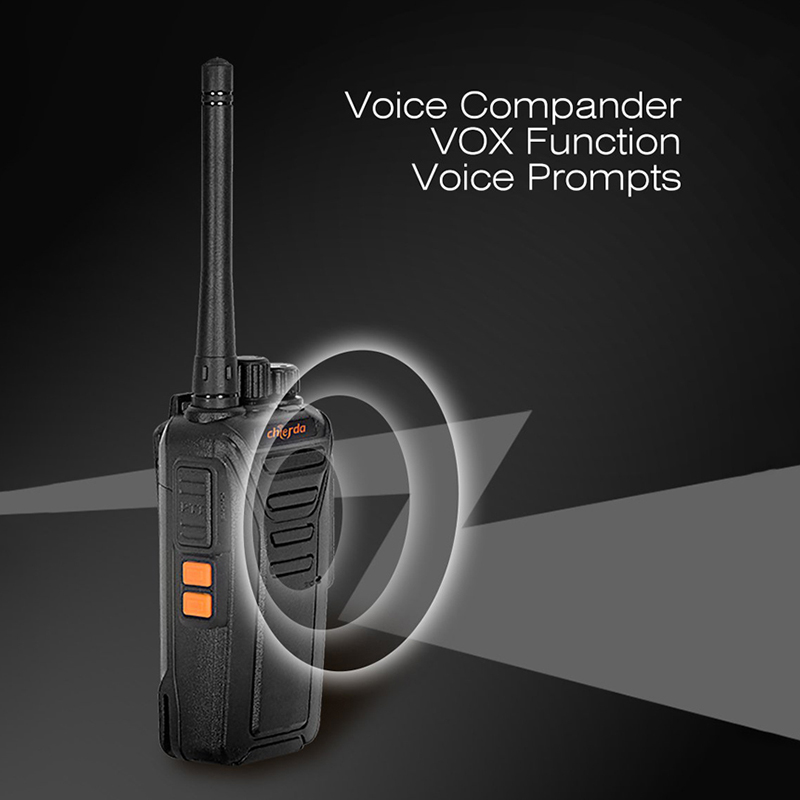

2. VOX Hands-Free Function:
The VOX function enables voice-activated transmission without manually pressing the PTT button, providing a convenient hands-free communication option.

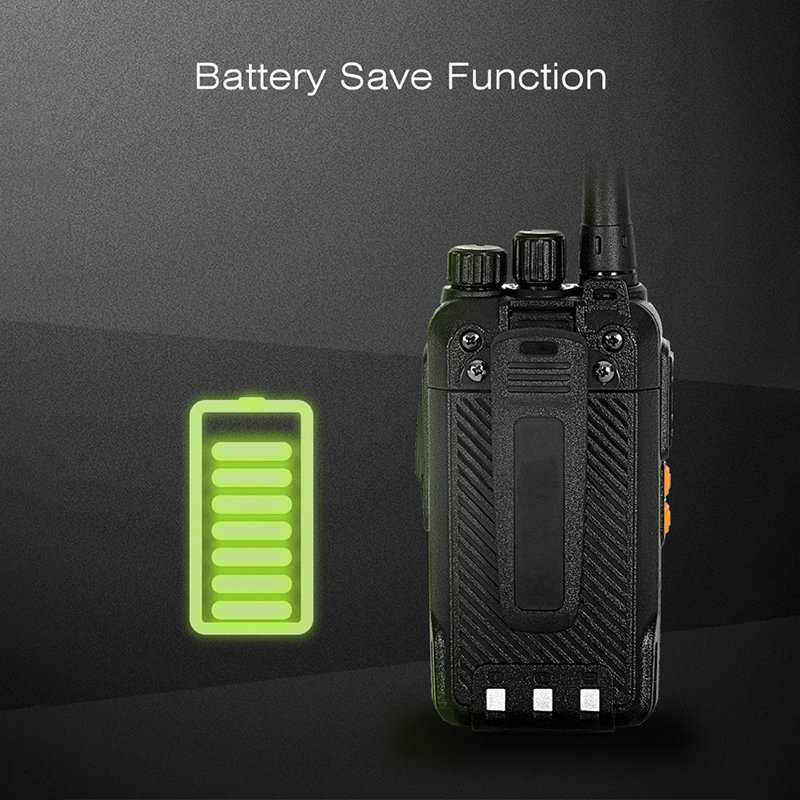

3. Built-in Battery Save Function:
The battery save function helps reduce power consumption during standby, supporting extended standby time.
4. Desktop Charger Included:
The CD318 comes with a desktop charger for convenient charging. Its charging design helps users keep the radio ready for daily communication.
5. CTCSS and 210 DCS Codes:
The CD318 supports 50 CTCSS tones and 210 DCS codes to help users reduce unwanted conversations from other users sharing the same channel.
6. Time-Out Timer (TOT):
The Time-Out Timer function helps prevent continuous transmission for an excessive period, reducing the risk of inadvertent prolonged operation.

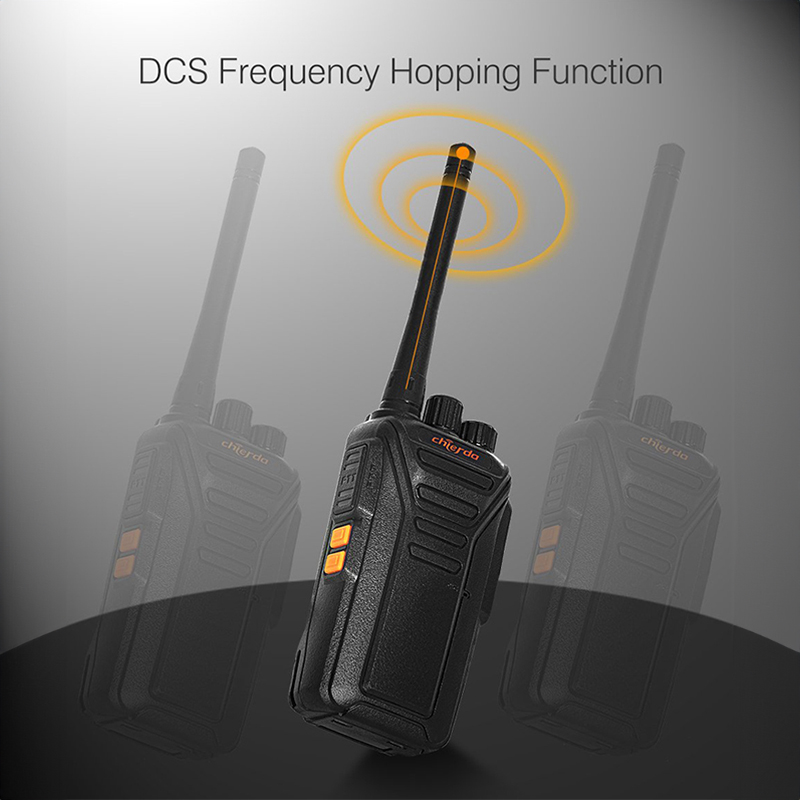

7. Frequency Hopping Function:
The frequency hopping function is designed to help protect communication privacy. Actual performance depends on the radio configuration and operating conditions.

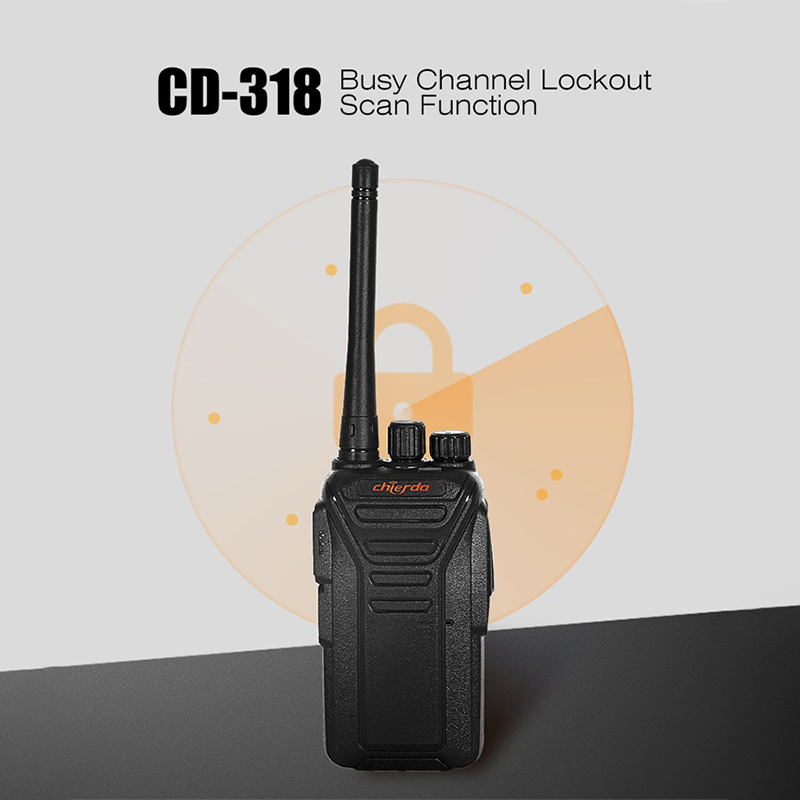

8. Busy Channel Lockout (BCLO):
Busy Channel Lockout helps prevent transmission on an occupied channel, supporting more orderly channel usage.

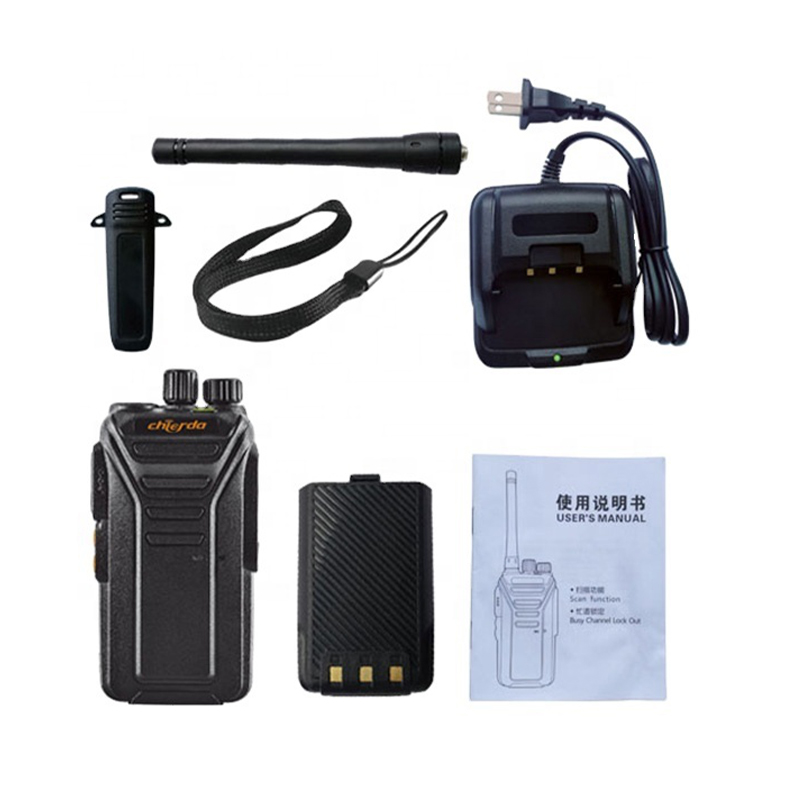

Package Contents

The standard Chierda CD318 package includes:
- Radio × 1
- Battery × 1
- Charger × 1
- Belt Clip × 1
- Strap × 1
- Antenna × 1
- User Manual × 1
Applications
The Chierda CD318 handheld radio can be used in various everyday communication environments, including:
- Retail and hospitality
- Warehousing and logistics
- Security and facility management
- Construction and maintenance
- Event coordination
- Commercial team communication




Technical Specifications
General Specifications
- Model: CD318
- Radio Type: Analog Handheld Two Way Radio
- Frequency Range: VHF 136–174 MHz / UHF 400–480 MHz
- Channel Spacing: 16 (as listed in the supplied specifications; confirmation recommended)
- Memory Channel: 12.5 kHz / 25 kHz (as listed in the supplied specifications; confirmation recommended)
- Rated Voltage: 3.7V DC
- Battery Capacity: 1200mAh / 2900mAh (configuration to be confirmed)
- Frequency Stability: ±2.5 ppm
- Antenna Impedance: 50Ω
- Dimensions: 104 × 58 × 33 mm (excluding antenna)
Transmitter Specifications
- Output Power: 2W
- Current: ≤1.4A
- Modulation Distortion: <5% (300–3000Hz)
- Maximum Frequency Deviation: ≤5KHz / ≤2.5KHz
- CTCSS Frequency Deviation: 0.75KHz ±50Hz
- Residual Radiation: ≤7μW
- Modulation Mode: 16KØF3E / 11KØF3E
- Residual Modulation: ≤-35dB
Receiver Specifications
- RF Sensitivity: ≤0.25μV / ≤0.3μV
- Squelch Sensitivity: ≤0.2μV / ≤0.25μV
- Audio Output Power: ≥500mW
- Audio Distortion: ≤5%
- Receiver Modulation Bandwidth: ±7KHz
- Spurious Rejection: ≥55dB
- Selectivity: ≥65dB
- Intermodulation: ≥60dB
