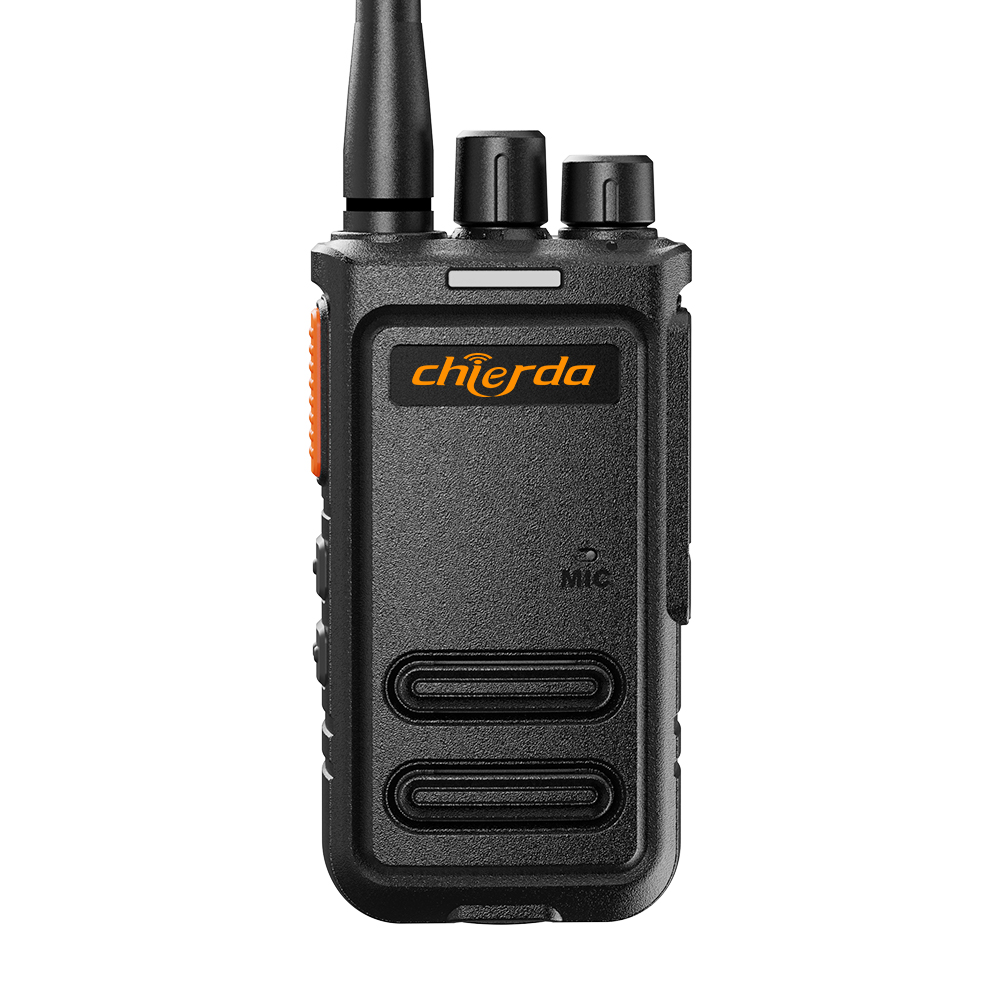

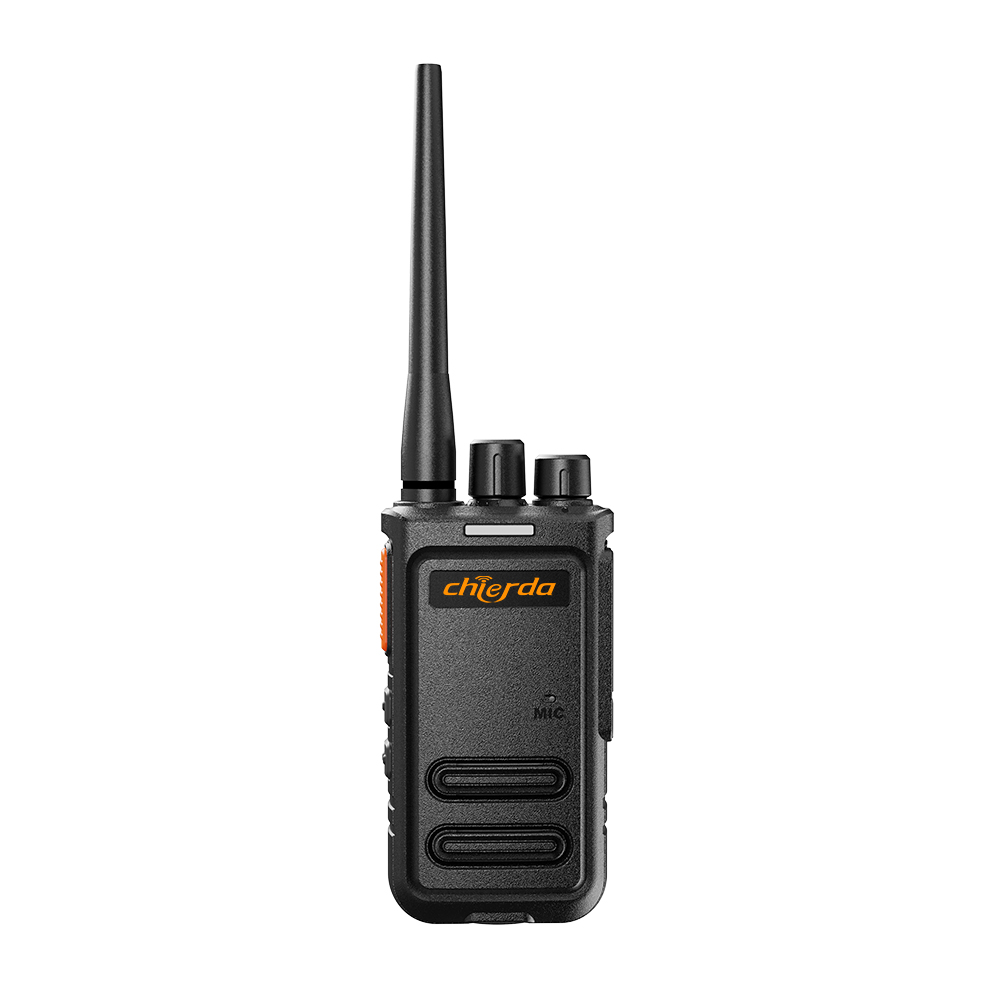

Chierda CD3208 Long-lasting Battery Walkie Talkie

1. 4000mAh Long Battery Life

2. High Clarity

3. One-key Frequency Pairing, One-key Channel Copy

4. Alarm Function

5. Type-C Charging Port

6. Voice Scrambler, Frequency Hopping

7. Strong Code-breaking

Product Overview

Features

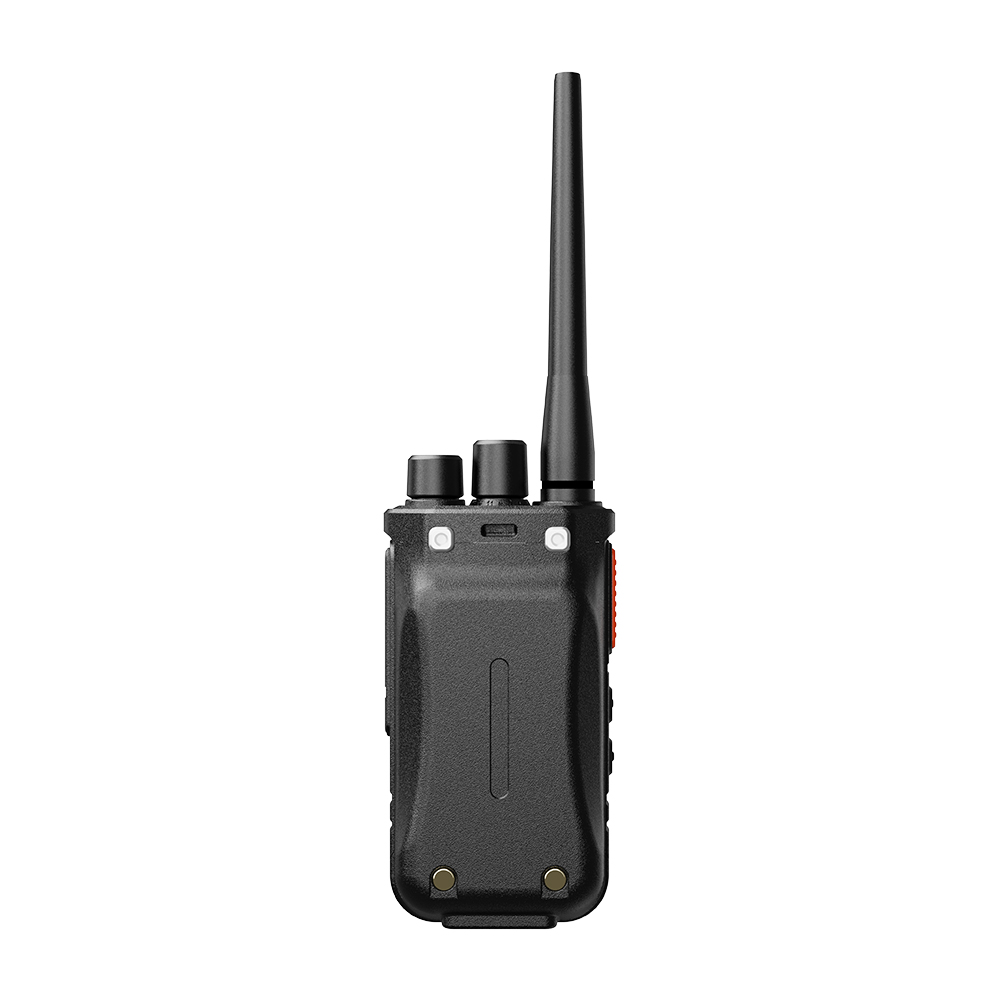

The Chierda CD3208 Long Battery Life Two Way Radio is designed for professional users who need dependable communication in demanding working environments. Equipped with a 4000mAh rechargeable Li-ion battery and a rugged body, this portable walkie talkie is suitable for construction sites, warehouses, industrial facilities, and other challenging workplaces.

The CD3208 features one-key frequency pairing and one-key channel copying, making it easier to configure multiple radios for team communication. Its emergency alarm function allows users to send an audible alert by pressing and holding a designated button, providing an additional alert option when assistance is needed.

With 2W output power, Type-C charging, voice scrambler, and frequency hopping functions, the CD3208 combines practical communication features with a durable design for everyday professional use.

Key Features of Chierda CD3208 Two Way Radio

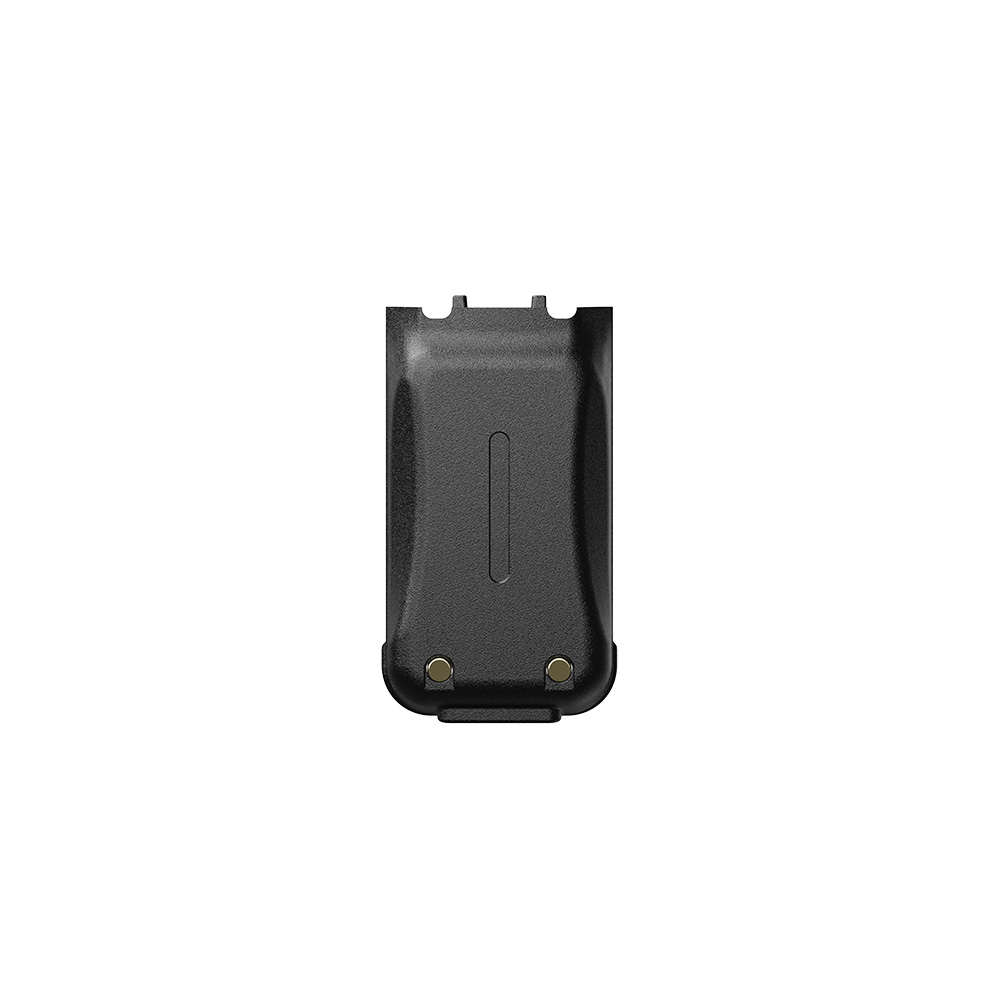

1. 4000mAh Large-Capacity Battery

The CD3208 is equipped with a 4000mAh rechargeable lithium-ion battery, designed to support extended operation during demanding work shifts.

Its large battery capacity helps reduce frequent recharging and provides a practical power solution for construction workers, warehouse staff, and other professional users who rely on two-way radios throughout the day.

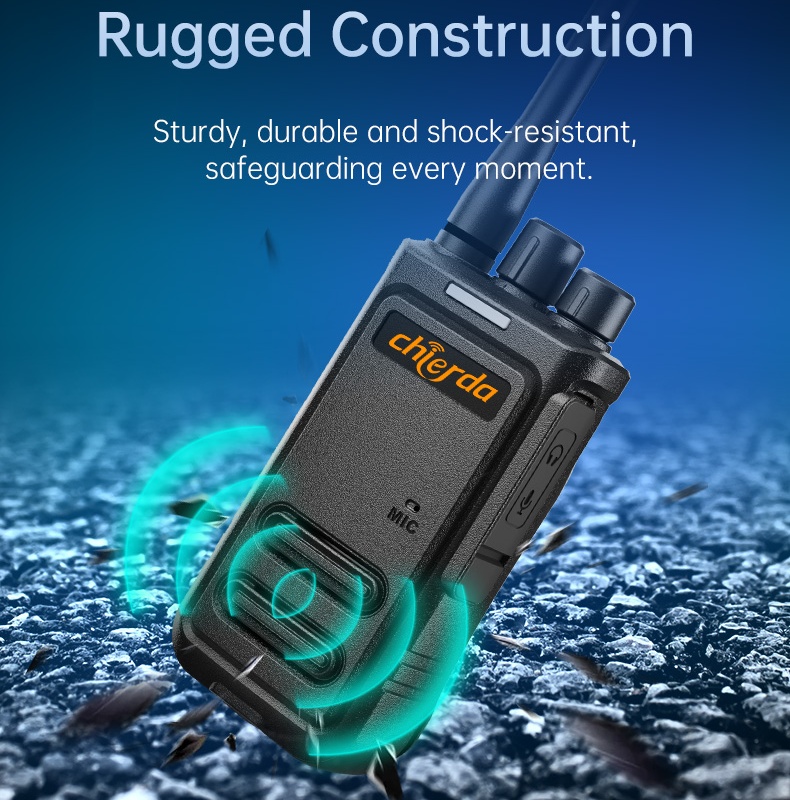

2. Rugged and Durable Construction

Designed for challenging working environments, the CD3208 features a rugged body made for everyday professional use.

Its durable construction helps the radio withstand the demands of busy workplaces, including construction sites and industrial facilities, where portable communication equipment may be exposed to accidental knocks and rough handling.

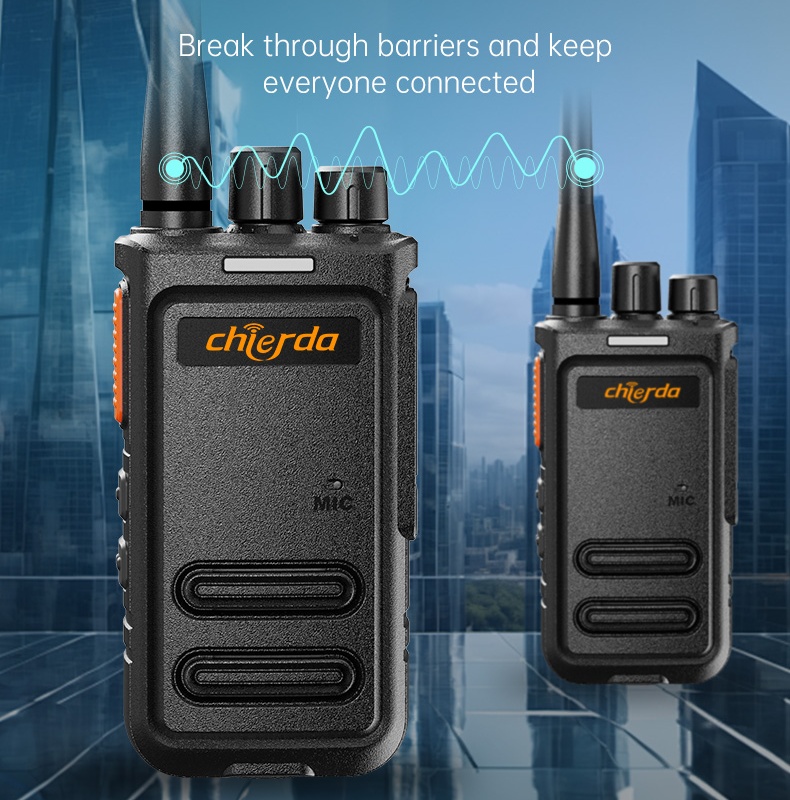

3. Clear Communication and Signal Performance

The CD3208 is designed to support clear voice communication and stable signal performance for daily team coordination.

Its radio communication performance depends on the operating frequency, antenna configuration, terrain, buildings, and surrounding radio interference. Actual communication distance may vary across different environments.

4. One-Key Frequency Pairing

The one-key frequency pairing function simplifies radio setup and helps users synchronize compatible devices more efficiently.

Instead of configuring each radio manually, users can quickly pair frequency settings with a compatible device, reducing setup time when preparing multiple radios for team use.

5. One-Key Channel Copy

The CD3208 supports one-key channel copying, allowing users to conveniently copy channel settings from a compatible radio.

This feature is particularly useful when deploying multiple radios for a team, replacing existing units, or configuring additional devices with consistent communication settings.

6. One-Key Emergency Alarm Function

The CD3208 features an emergency alert function. Users can press and hold the designated button to send a loud audible alert when they need assistance.

This function provides an additional alert option in workplaces such as construction sites, warehouses, and industrial facilities.

7. Type-C Charging Port

The CD3208 features a Type-C charging interface for convenient daily charging.

It provides a practical charging option when used with compatible Type-C power sources, helping simplify power management for professional users.

8. Voice Scrambler and Frequency Hopping

The CD3208 supports voice scrambler and frequency hopping functions, offering additional communication configuration options.

Depending on the implementation, these functions can help manage communication settings and reduce certain types of interference.

Note: Voice scrambling is not equivalent to modern cryptographic encryption. Do not treat it as AES encryption or a guaranteed secure communication solution unless supported by verified technical documentation.



Features

Typical Applications

The Chierda CD3208 is suitable for professional teams working in environments where durable equipment and convenient communication are important.

  • Construction Sites: Support communication between workers, supervisors, and site managers, with an additional audible alert function.
  • Warehouses: Help coordinate warehouse staff, inventory teams, and logistics operations.
  • Industrial Facilities: Support communication between production teams, maintenance personnel, and supervisors.
  • Property Management: Help security and maintenance teams coordinate daily tasks.
  • Hotels and Hospitality: Facilitate communication among housekeeping, maintenance, and service staff.
  • Outdoor Work Environments: Provide portable team communication for field operations where compatible radio coverage is available.

whats in the Box

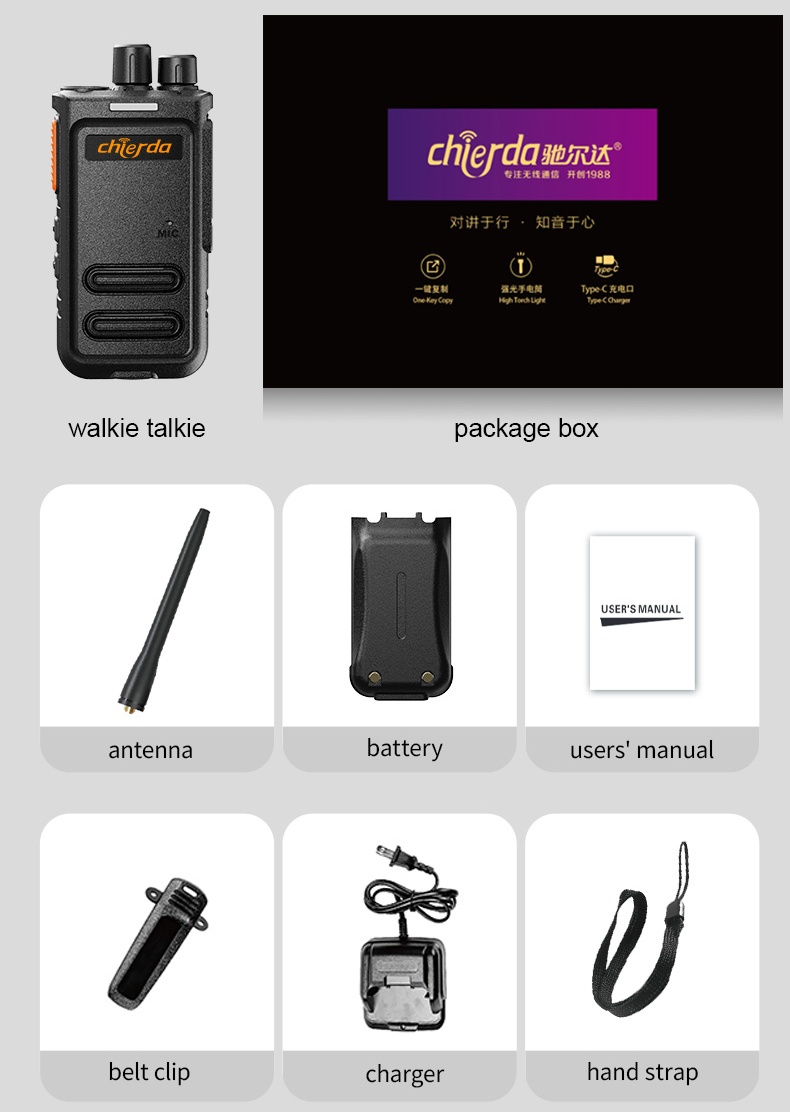

What’s in the Box?

Each Chierda CD3208 product set includes:

  • CD3208 Two Way Radio × 1
  • Battery × 1
  • Belt Clip × 1
  • Charger × 1
  • Strap × 1
  • User Manual × 1



Features

Technical Specifications

General Specifications

  • Brand: Chierda
  • Model: CD3208
  • Radio Type: Analog Two Way Radio
  • Frequency Range: VHF 136–174MHz or UHF 400–480MHz
  • Channel Spacing: 16 (unit and definition to be confirmed)
  • Memory Channel: 12.5kHz / 25kHz (field name to be confirmed)
  • Rated Voltage: 3.7V DC
  • Battery Capacity: 4000mAh
  • Frequency Stability: ±2.5ppm
  • Antenna Impedance: 50Ω
  • Dimensions: 98.5 × 53 × 35 mm (without antenna)

Transmitter Specifications

  • Output Power: 2W
  • Current: ≤1.2A
  • Modulation Distortion: <5% (300–3000Hz)
  • Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
  • CTCSS Frequency Deviation: 0.75kHz ±50Hz
  • Residual Radiation: ≤7μW
  • Modulation Mode: 16KØF3E / 11KØF3E
  • Residual Modulation: ≤−35dB

Receiver Specifications

  • RF Sensitivity: ≤0.25μV / ≤0.3μV
  • Squelch Sensitivity: ≤0.2μV / ≤0.25μV
  • Audio Output Power: ≥300mW
  • Audio Distortion: ≤5%
  • Receiver Modulation Bandwidth: ±7kHz
  • Spurious Rejection: ≥55dB
  • Selectivity: ≥65dB
  • Intermodulation: ≥60dB
