Two Way Radio Solutions – Chierda Walkie Talkie Manufacturer

Portable Professional Radios

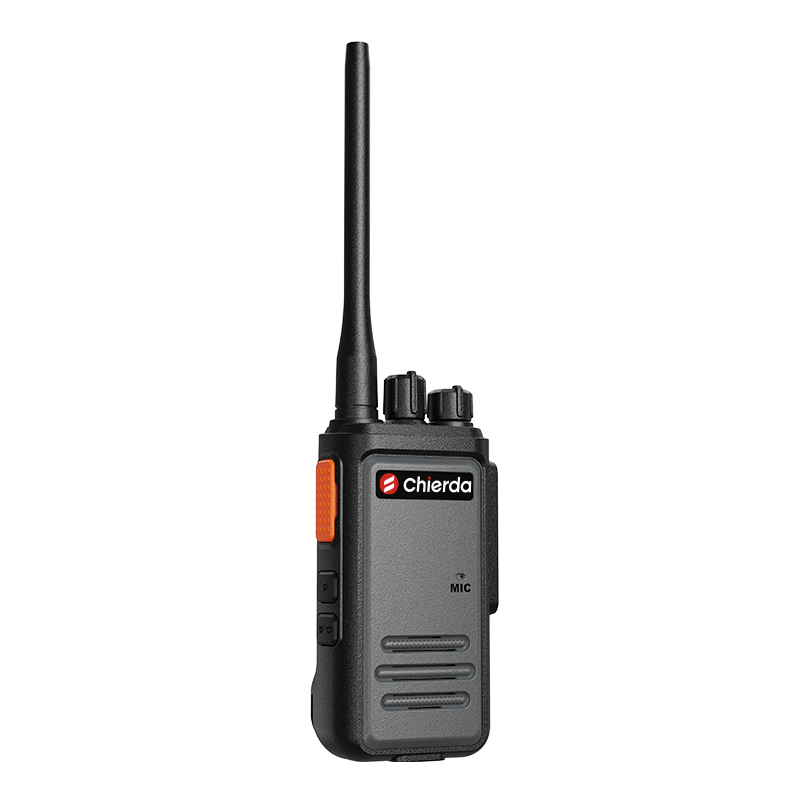

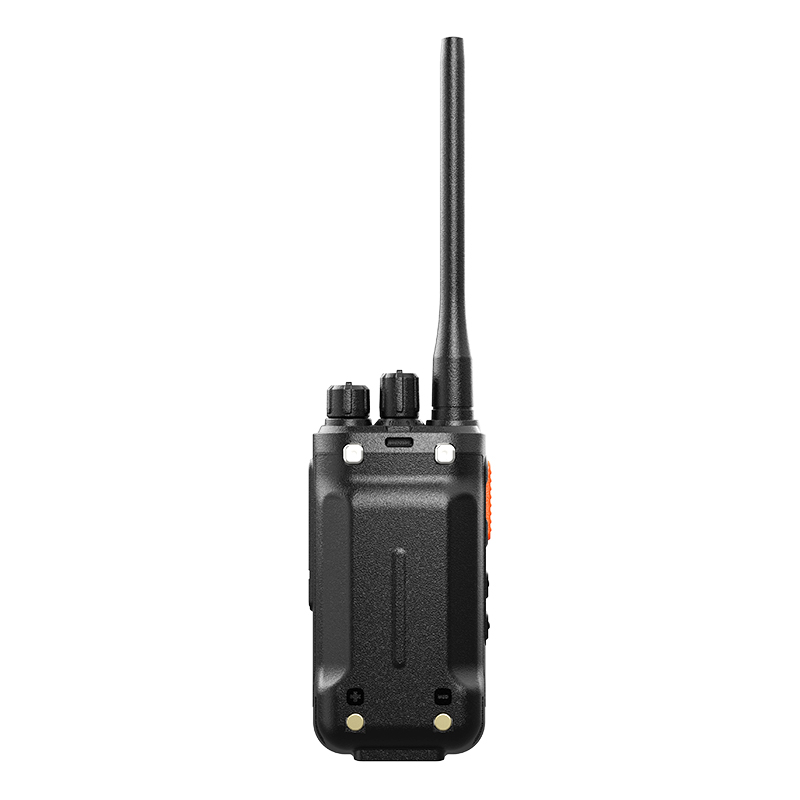

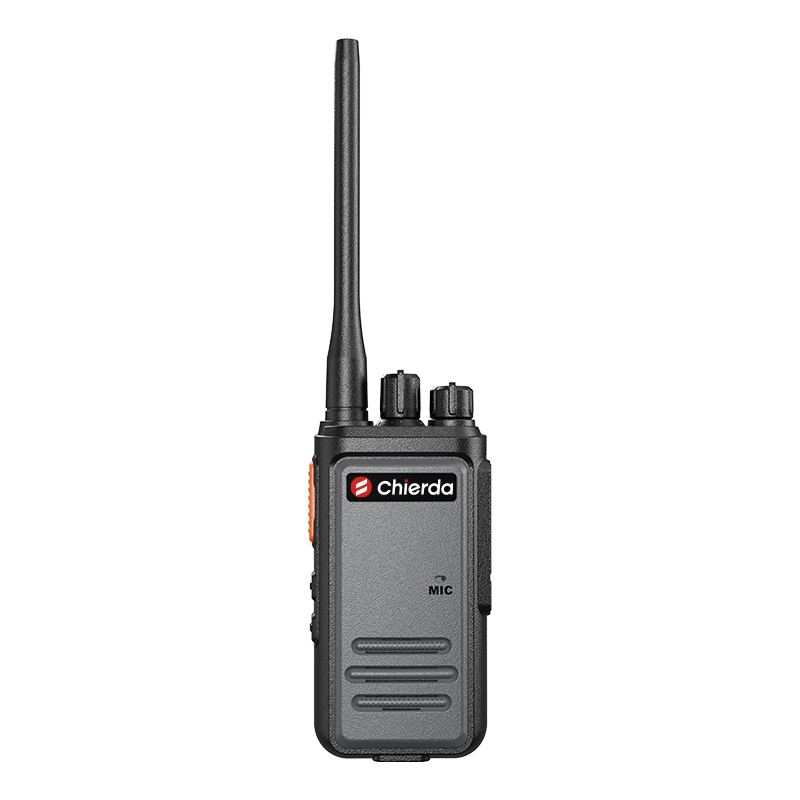

Chierda CD350 Encrypted Walkie Talkie

1. Optional battery capacity: 1500mAh or 2600mAh

2. High Clarity

3. One-key Frequency Pairing, One-key Channel Copy

4. Type-C Charging Port

5. Voice Scrambler, Frequency Hopping

6. Strong Code-breaking

Product Overview

Features

The Chierda CD350 is a handheld analog two way radio offered in two band versions: VHF 136-174 MHz and UHF 400-480 MHz. Each unit carries 16 memory channels with 12.5 kHz or 25 kHz channel spacing and delivers 2 W of RF output power from a 3.7 V DC supply.

Two battery capacities are available, 1500 mAh and 2600 mAh, so a buyer can pick the pack that fits the shift length of the crew using the radio. Charging runs through a Type-C port. For privacy on shared frequencies the CD350 provides a voice scrambler and frequency hopping, and the manufacturer lists a code-breaking function alongside them.

Fleet setup uses two single-key operations: one-key frequency pairing and one-key channel copy. The manufacturer quotes a maximum communication distance of 3 km under ideal conditions with no obstacles between the units. The body measures 98.5 × 53 × 35 mm without the antenna, which keeps the radio small enough to carry on a belt through a working day.

Key Features

  • 1500 mAh or 2600 mAh Battery: Two capacity options, with the 2600 mAh pack holding more charge per cycle for longer shifts.
  • Voice Scrambler: Scrambles the voice signal before transmission for privacy on shared channels.
  • Frequency Hopping: Changes the working frequency during communication, listed by the manufacturer as part of the radio’s privacy feature set.
  • Strong Code-Breaking: The manufacturer lists a code-breaking function as one of the model’s strong points.
  • One-Key Frequency Pairing: Sets the radio’s frequency from another unit with a single key press.
  • One-Key Channel Copy: Copies channel settings from a configured radio with one key.
  • Type-C Charging Port: Charges through a Type-C connector shared with common handheld devices.
  • 16 Memory Channels: Enough channel slots to separate departments, floors, or work groups.
  • 2 W Output Power: Rated transmit power for site-level coverage, with a quoted maximum of 3 km under ideal conditions.
  • Compact Housing: 98.5 × 53 × 35 mm without the antenna, with a matte finish the manufacturer describes as resistant to daily wear.
  • Audio Output: At least 300 mW of audio frequency power with distortion of 5% or less.

Features

Functions and Performance

Privacy Functions: Scrambler, Hopping and Code-Breaking

The CD350 scrambles voice audio before it leaves the transmitter, and it changes its working frequency during communication. Both are listed as privacy features for this model, aimed at keeping a conversation less exposed on a shared channel. The manufacturer also claims a strong code-breaking function; the supplied material does not describe its mechanism or scope. Buyers who need a specific scrambling standard, hop rate, or code-breaking behaviour should confirm the requirement with our sales team before ordering.

One-Key Frequency Pairing and Channel Copy

Once one radio is programmed, the rest of the fleet can pick up its settings without a computer. One-key frequency pairing sets a radio’s frequency from another unit, and one-key channel copy replicates the channel list. For a supervisor issuing radios to a new crew at the start of a shift, this removes the cable and software step from routine deployment.

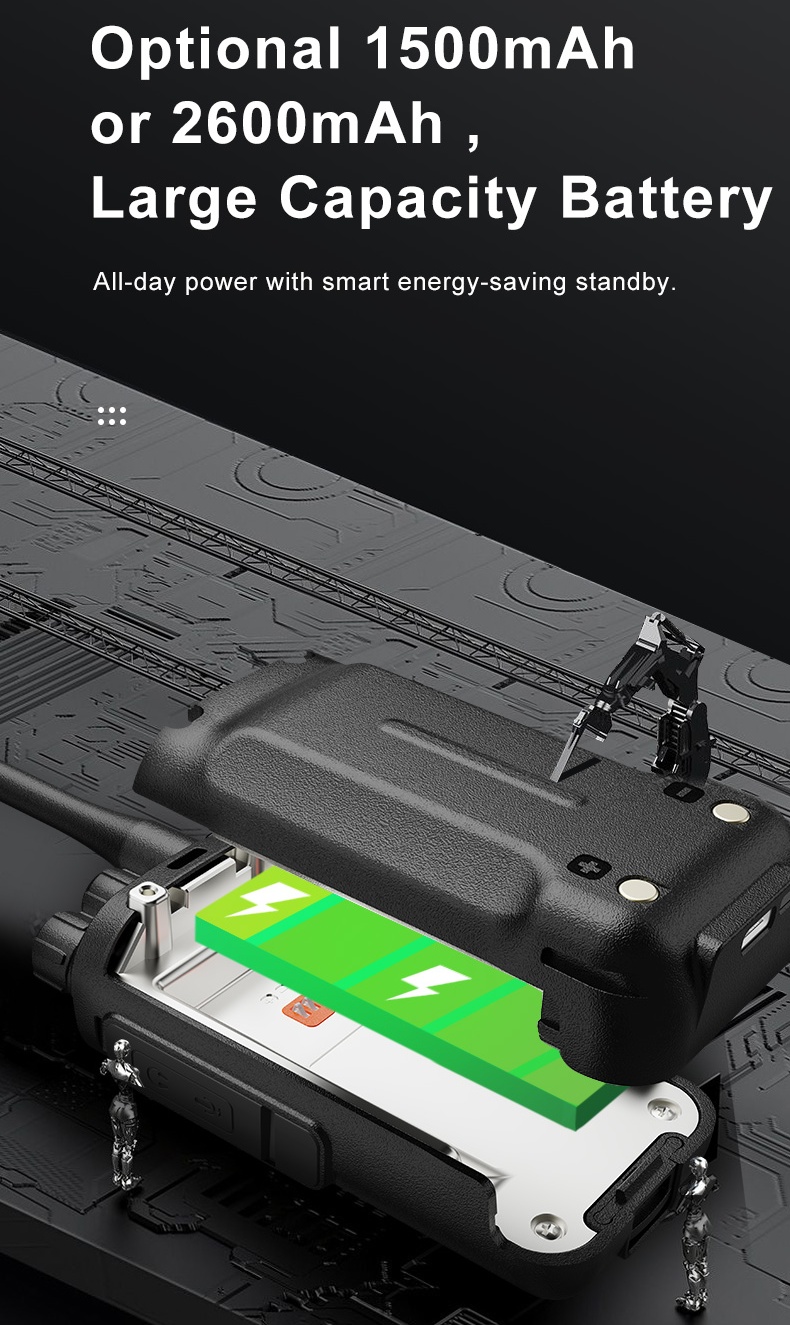

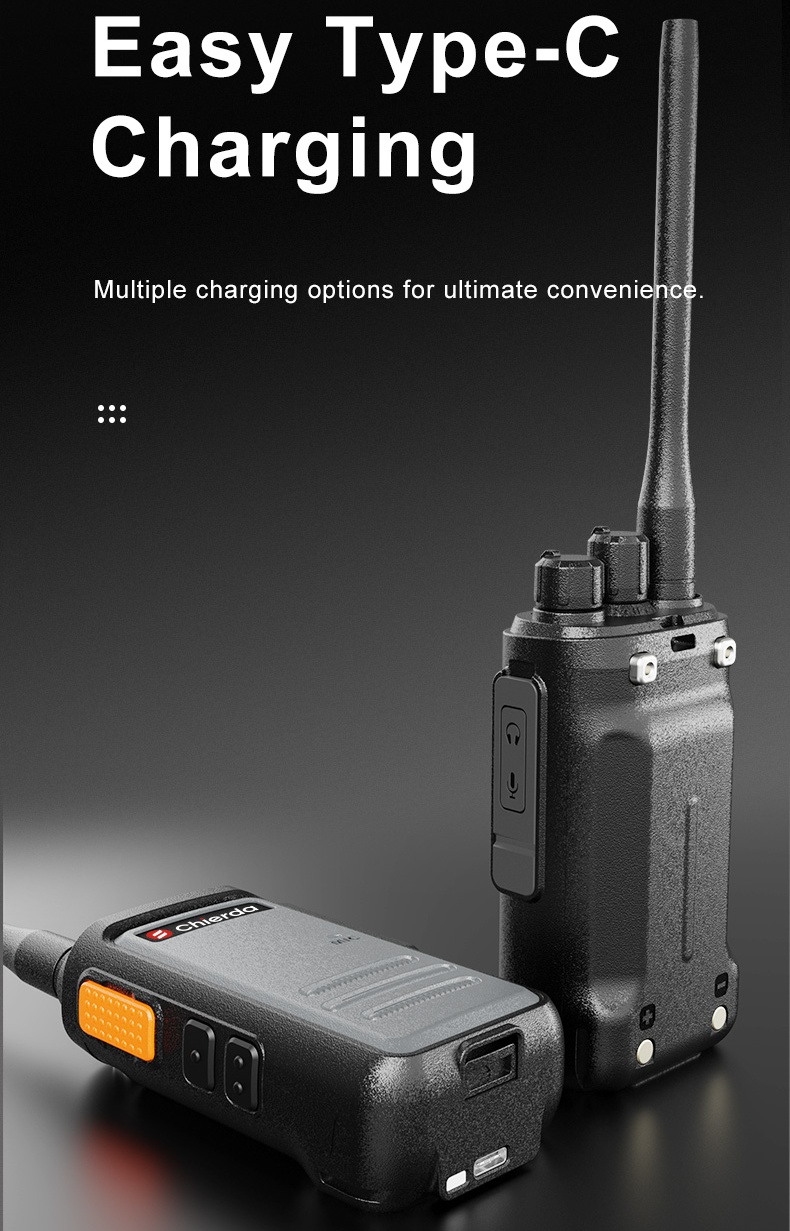

Two Battery Capacities and Type-C Charging

The radio accepts a 1500 mAh or a 2600 mAh battery, and both charge through the Type-C port, which lets it share cables and adapters with other Type-C equipment on site. The manufacturer states that the radio can last all day and across multiple shifts with smart power saving. No runtime hours are published, so actual duration depends on transmit duty cycle, speaker volume, and how often the privacy functions are used.

Audio Output

The receiver delivers at least 300 mW of audio frequency power with audio distortion of 5% or less. That output level is what supports intelligible received audio in a working environment, and it is the measurable basis for the clarity the manufacturer claims for this model. Audio distortion in the transmitter is held below 5% across 300-3000 Hz, so the transmitted voice signal stays within the rated deviation limits.

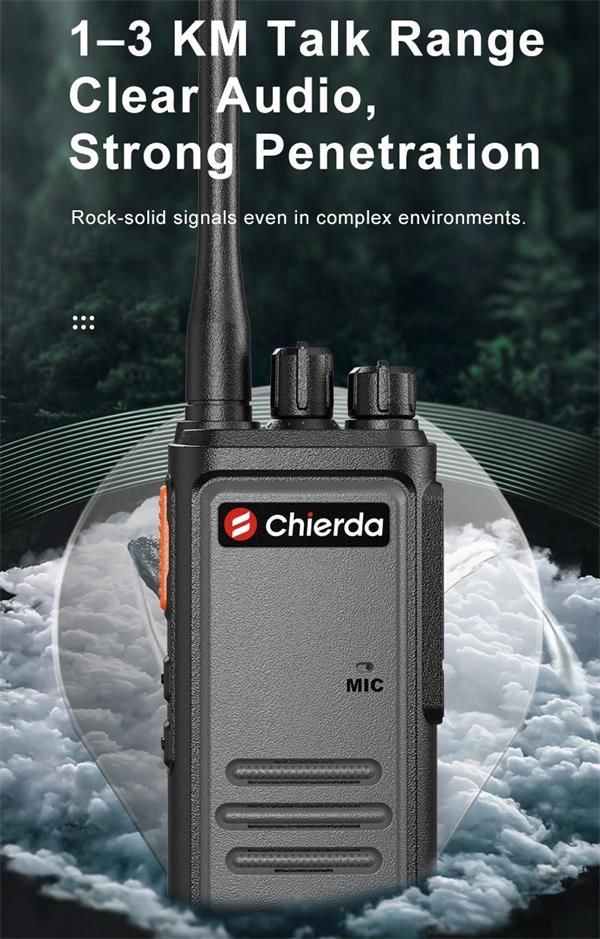

Signal and Range

The manufacturer describes the signal as ultra-stable and quotes a maximum of 3 km under ideal conditions with no obstacles between radios. Real-world distance will be shorter indoors, inside vehicles, or where buildings, shelving, and terrain block the path. A UHF version at 400-480 MHz and a VHF version at 136-174 MHz behave differently against walls and open ground, so the band version should be chosen to match the site.

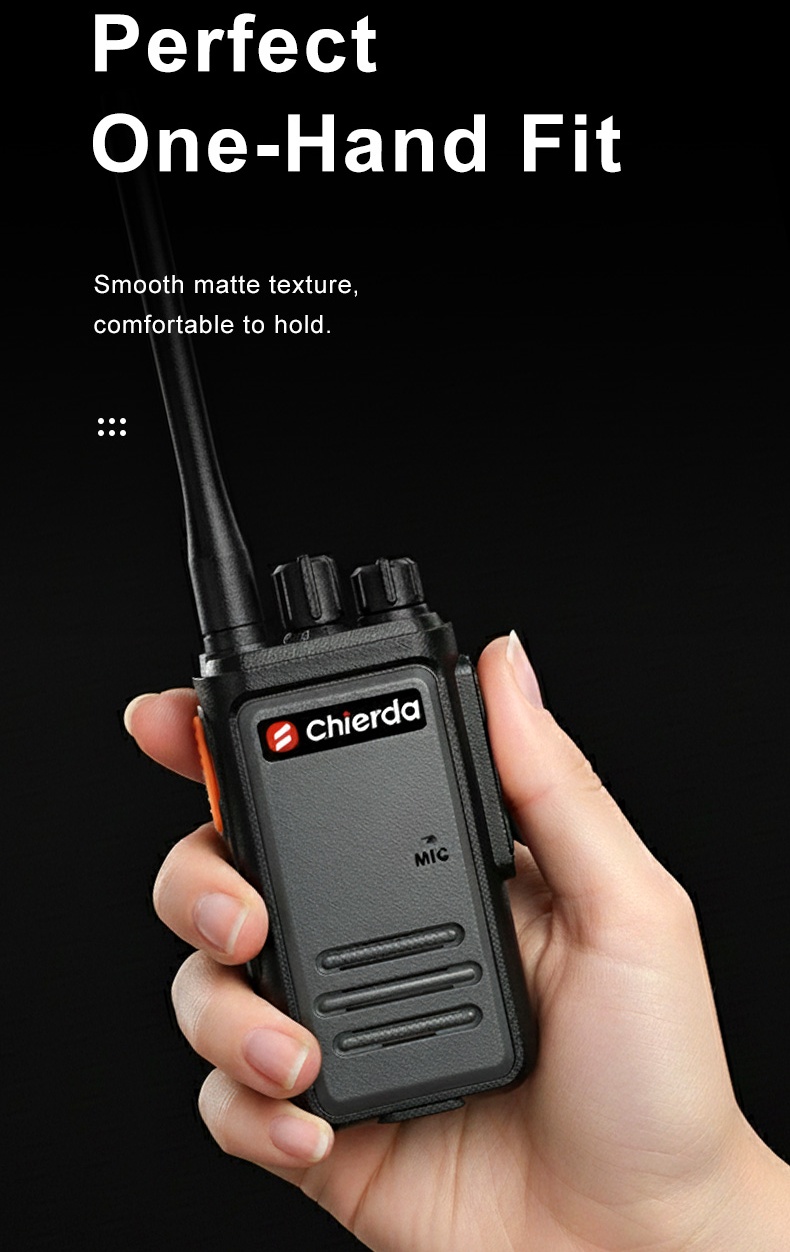

Body and Handling

At 98.5 × 53 × 35 mm without the antenna, the CD350 is small enough for a belt clip or a jacket pocket. The manufacturer describes the matte housing finish as resistant to daily wear, which matters for radios that are handed out and returned every shift.

Applications

With 16 channels, 2 W output, and a body sized for belt carry, the CD350 suits teams that coordinate in and around a single site.

  • Retail and hospitality: staff moving between floors, back rooms, and service areas stay on one channel plan.
  • Property and facility management: maintenance crews share a small set of channels and copy settings across new units.
  • Security patrols and gate duty: the scrambler and frequency hopping add privacy on shared channels.
  • Warehouses and logistics yards: channel copy shortens the time needed to hand radios to new or temporary staff.
  • Construction and light outdoor job sites: the 2600 mAh option gives more capacity between charges for crews working away from a socket.



Features



Features

Technical Specifications

General

  • Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz (separate band version)
  • Memory Channels: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 3.7 V DC
  • Battery Capacity: 1500 mAh / 2600 mAh
  • Frequency Stability: ± 2.5 ppm
  • Antenna Impedance: 50 Ω
  • Dimensions: 98.5 × 53 × 35 mm (without antenna)

Transmitter

  • Output Power: 2 W
  • Current: ≤ 1.2 A
  • Modulation Distortion: < 5% (300-3000 Hz)
  • Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
  • CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
  • Remanent Radiation: ≤ 7 µW
  • Modulation Mode: 16K∅F3E / 11K∅F3E
  • Remanent Modulation: ≤ -35 dB

Receiver

  • RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
  • Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
  • Audio Frequency Power: ≥ 300 mW
  • Audio Distortion: ≤ 5%
  • Modulation Receiver Bandwidth: ± 7 kHz
  • Spurious Rejection: ≥ 55 dB
  • Selectivity: ≥ 65 dB
  • Intermodulation: ≥ 60 dB
