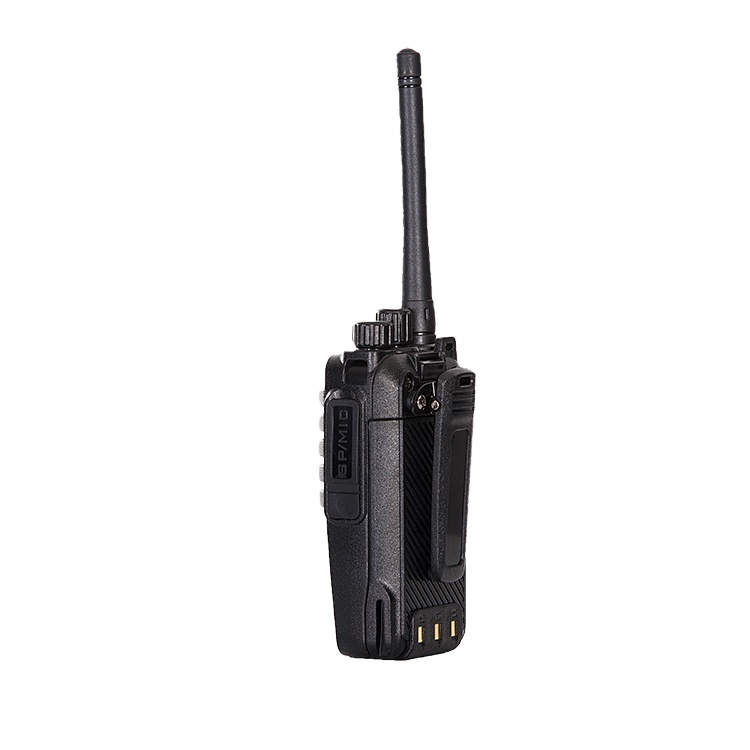

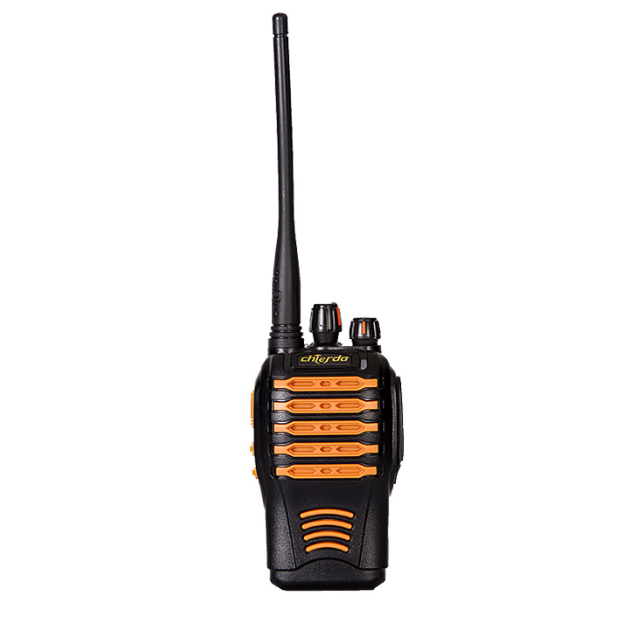

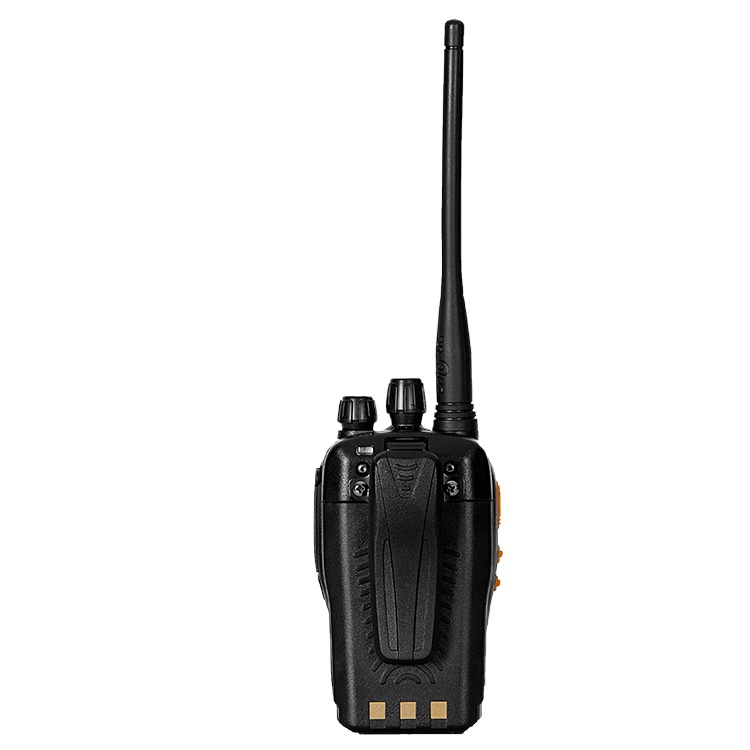

Chierda CD728 5W Durable IP66 Waterproof Two-way Radio

1.IP66 Waterproof, multiple colors

2.Power Saving Function

3.Scrambler Function

4.VOX Hands-free Function

5.TOT

Product Overview

Features

The Chierda CD728 5W Durable IP66 Waterproof Two-Way Radio is designed for professional communication in demanding work environments. Featuring IP66-rated protection, up to 16 channels, and a compact portable body, it helps teams stay connected in a variety of indoor and outdoor applications.

The CD728 supports VOX hands-free operation, a battery-saving function, an emergency alarm, and a scrambler function. Available in multiple colors, it offers flexible options for businesses and communication equipment distributors.



Key Features of Chierda CD728 Two-Way Radio

IP66 Waterproof and Dustproof Protection

The Chierda CD728 features an IP66 protection rating, providing protection against dust ingress and powerful water jets under specified test conditions.

It is suitable for users who require a durable communication device in challenging working environments. The IP66 rating does not mean the radio is designed for underwater use.

5W Output Power

With 5W transmitter output power, the CD728 supports team communication across a variety of work environments.

Actual communication range depends on terrain, buildings, antenna configuration, interference, and local operating conditions.

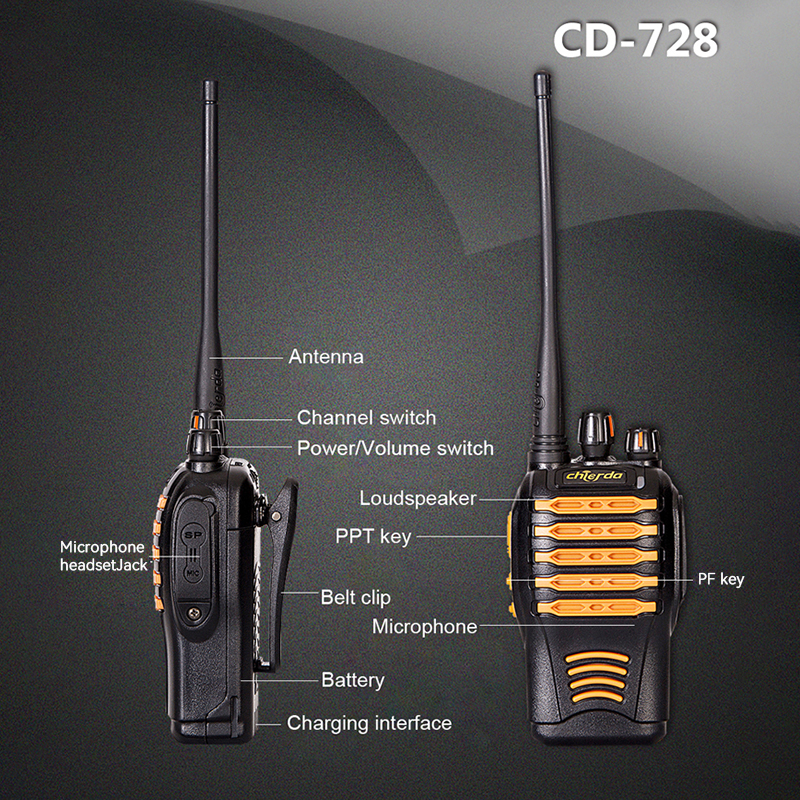

Compact and Portable Design

The CD728 features a compact body measuring 99 × 55 × 32mm without the antenna. Its portable design makes it convenient for users who need to carry a radio throughout the workday.

Multiple Color Options

The CD728 is available in multiple colors to support different customer preferences and customization requirements.

Color availability and customization options should be confirmed with the supplier.

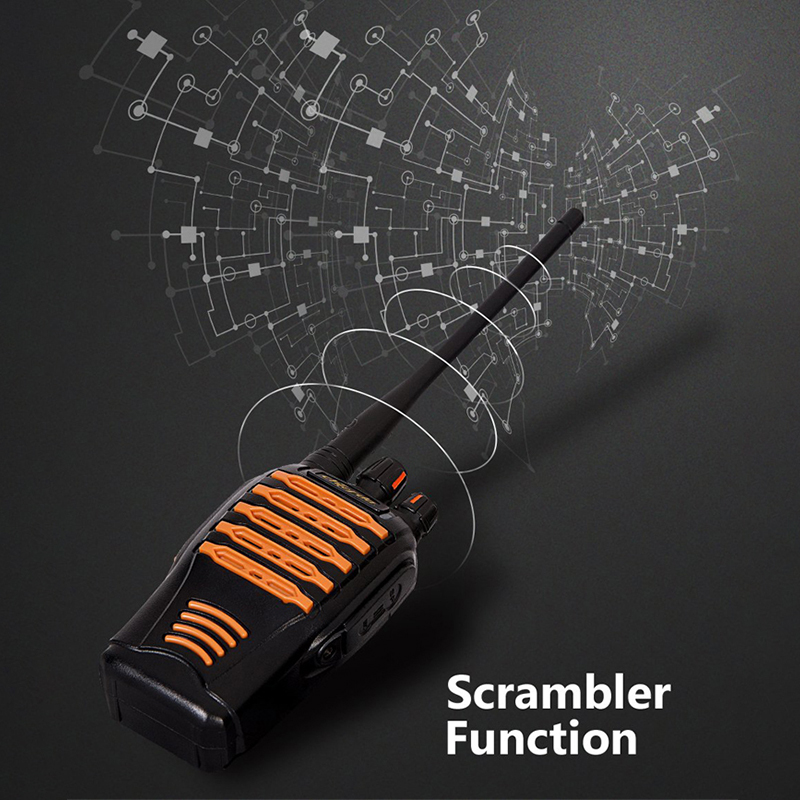

Scrambler Function

The CD728 includes a voice scrambler function designed to make transmitted audio less intelligible to listeners without compatible settings.

Note: A voice scrambler is not equivalent to modern cryptographic encryption and should not be marketed as military-grade or AES encryption.

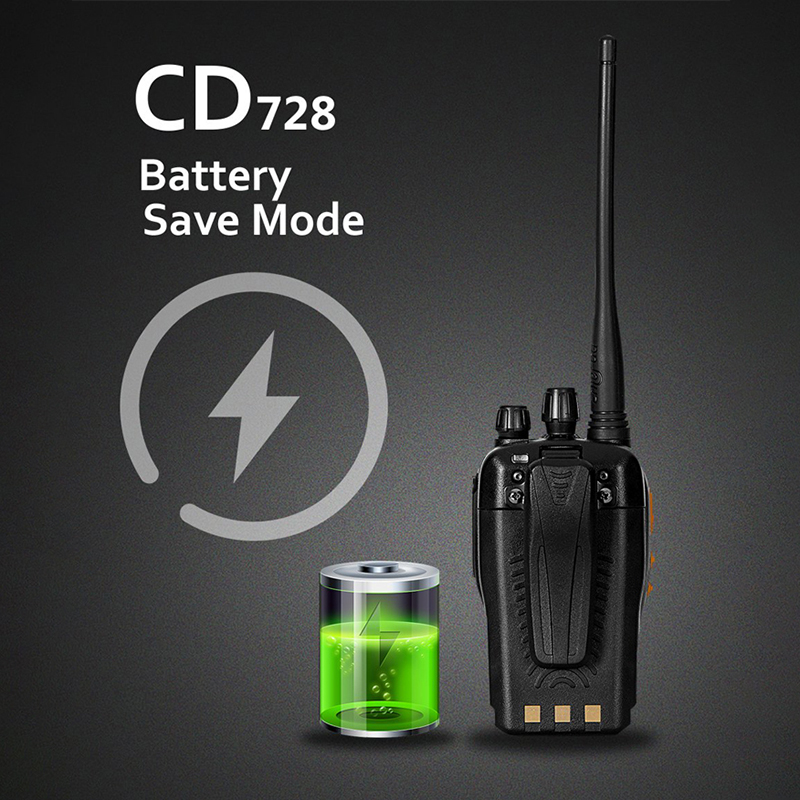

Battery Saving Function

The battery saving mode helps reduce power consumption during operation, potentially extending working time between charges.

Actual battery life depends on battery capacity, transmit/receive ratio, settings, and usage conditions.

VOX Hands-Free Function

The VOX function supports voice-activated transmission, allowing users to communicate without manually pressing the PTT button when configured appropriately.

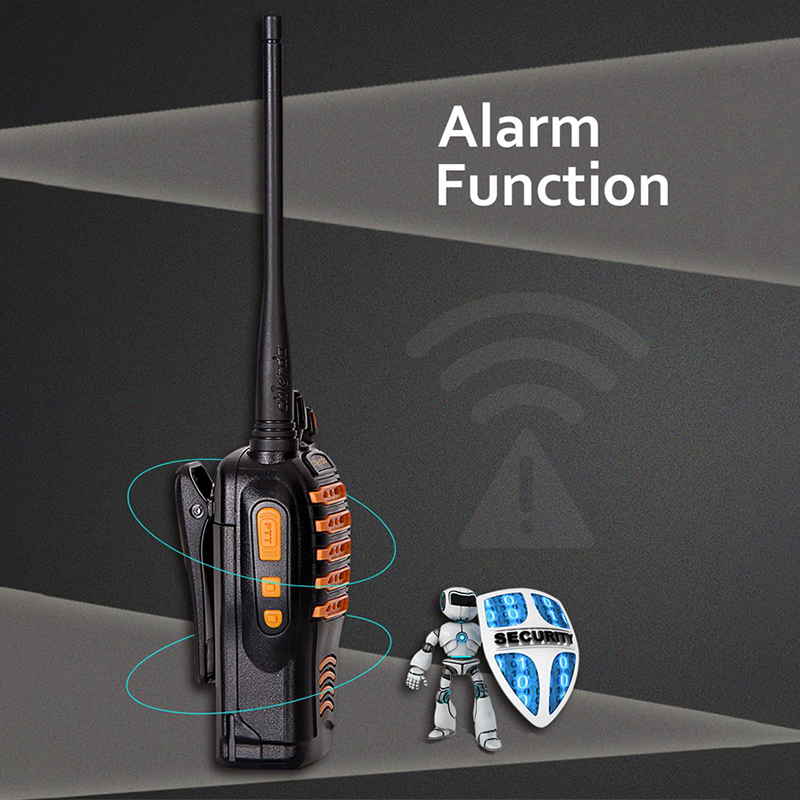

Emergency Alarm Function

The CD728 features an emergency alarm function that can help users signal for assistance in emergency situations.

The exact alarm behavior and whether it alerts nearby radios or other systems should be confirmed before publication.

TOT (Time-Out Timer)

The TOT function helps limit continuous transmission time, supporting more controlled radio operation and helping prevent prolonged transmission.



Features

Applications

The Chierda CD728 IP66 waterproof two-way radio is suitable for a range of professional environments, including:

  • Construction and industrial sites
  • Warehouses and logistics
  • Outdoor work teams
  • Security and facility management
  • Hotels and hospitality
  • Retail and commercial operations
  • Event coordination
  • Maintenance and field services

whats in the Box

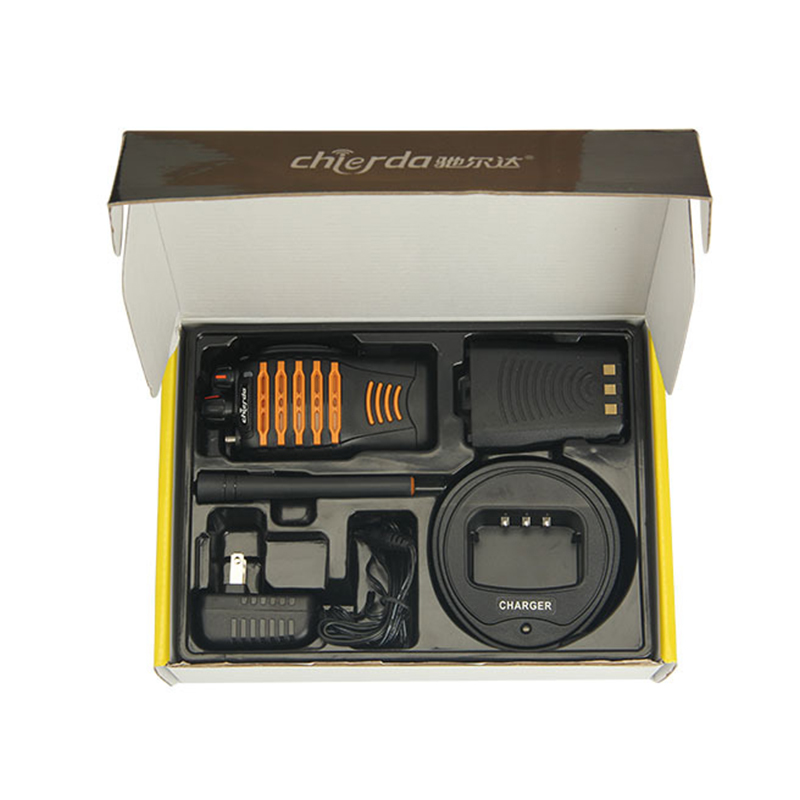

What’s in the Box

  • Chierda CD728 Radio × 1
  • Battery × 1
  • Belt Clip × 1
  • Charger × 1
  • Strap × 1
  • Antenna × 1
  • User Manual × 1

B2B Wholesale, OEM & ODM Inquiries

Looking for a durable waterproof two-way radio for your business or distribution network?

The Chierda CD728 is designed for professional users and B2B buyers seeking practical communication equipment for demanding environments.

We welcome inquiries from:

  • Two-way radio distributors
  • Wholesale buyers
  • Importers and brand owners
  • Security and industrial communication suppliers
  • OEM/ODM customers



Features
Features

Technical Specifications

General Specifications

  • Model: Chierda CD728
  • Frequency Range: VHF 136–174MHz or UHF 400–480MHz
  • Channel Capacity: Up to 16 channels (based on product description; confirm)
  • Rated Voltage: 7.4V DC
  • Battery Capacity: 1200mAh / 1600mAh
  • Frequency Stability: ±2.5ppm
  • Antenna Impedance: 50Ω
  • Dimensions: 99 × 55 × 32mm (without antenna)
  • Protection Rating: IP66

Transmitter

  • Output Power: 5W
  • Current: ≤1.6A
  • Modulation Distortion: <5% (300–3000Hz)
  • Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
  • CTCSS Frequency Deviation: 0.75kHz ±50Hz
  • Residual Radiation: ≤7μW
  • Modulation Mode: FM
  • Residual Modulation: ≤−35dB

Receiver

  • RF Sensitivity: ≤0.25μV / ≤0.3μV
  • Squelch Sensitivity: ≤0.2μV / ≤0.25μV
  • Audio Output Power: ≥500mW
  • Audio Distortion: ≤5%
  • Receiver Bandwidth: ±7kHz
  • Spurious Rejection: ≥55dB
  • Selectivity: ≥65dB
  • Intermodulation: ≥60dB
