Chierda CDQ6 Noise Cancelling Compact Two Way Radio

1. Two-way Noise Cancelling

2. Type-C Charging Port

3. Frequency Hopping

4. One-key Channel Copy

5. Alarm Function

6. Long Battery Life



Product Overview

Features

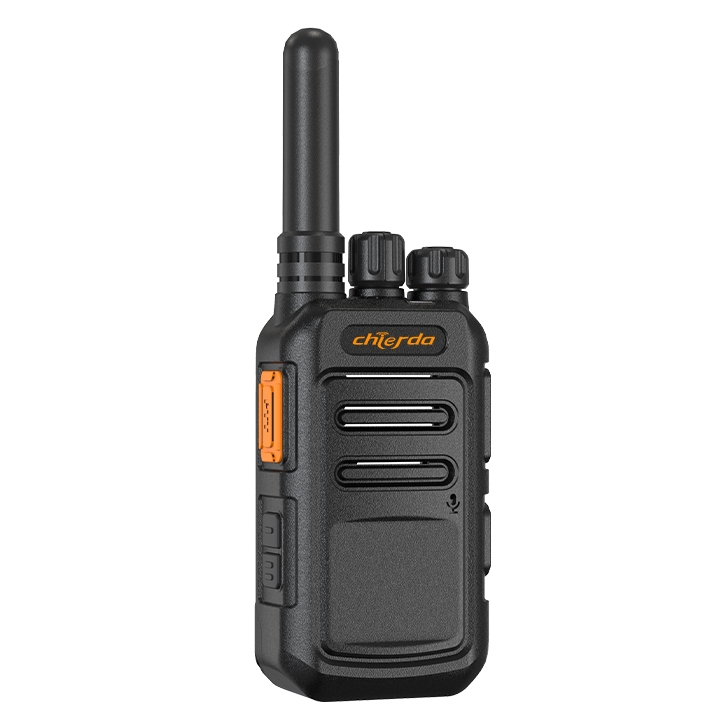

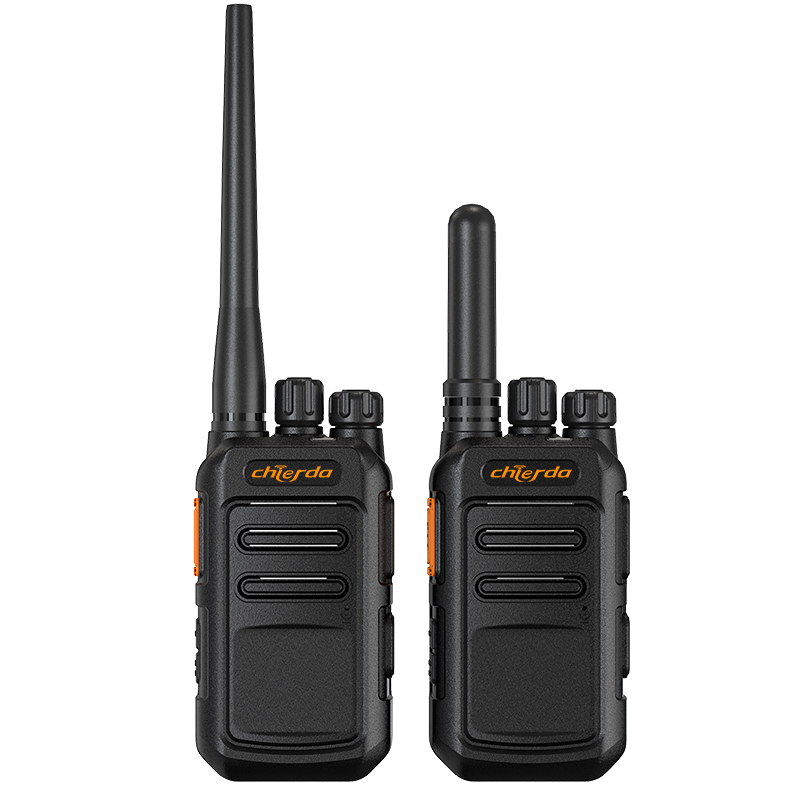

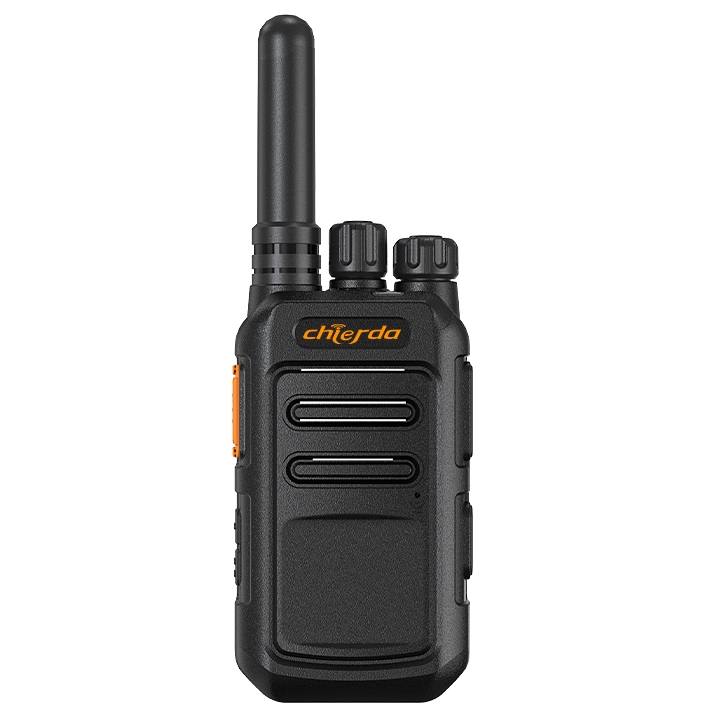

The Chierda CDQ6 is a compact handheld two way radio with 5 W output power and two-way noise cancelling. Each unit operates on a single band, available as a VHF version (136-174 MHz) or a UHF version (400-480 MHz). The radio adds voice encryption, frequency hopping, and one-key frequency pairing, which keeps day-to-day team communication simple to set up and use.

Key Features

  • Two-Way Noise Cancelling: Reduces background noise on the receiving side and on the transmitting side.
  • Compact Design: Body measures 93 × 54 × 34.6 mm without antenna, easy to carry.
  • Voice Encryption: Anti-break code and voice encryption protect communication privacy.
  • Frequency Hopping: Supports frequency hopping.
  • One-Key Frequency Pairing: Pairs the radio’s frequency by pressing one key.
  • One-Key Channel Copy: Copies channel settings between radios with one key.
  • Type-C Charging Port: Charges through a Type-C port.
  • Battery Saving Function: Extends working time, per the manufacturer.
  • Alarm Function: Provides an audible alert for team members.

Features

Functions and Performance

Two-Way Noise Cancelling

The CDQ6 applies noise cancelling on the receiving side and on the transmitting side. The manufacturer describes the noise reduction as AI-based and states that it suits use in noisy environments.

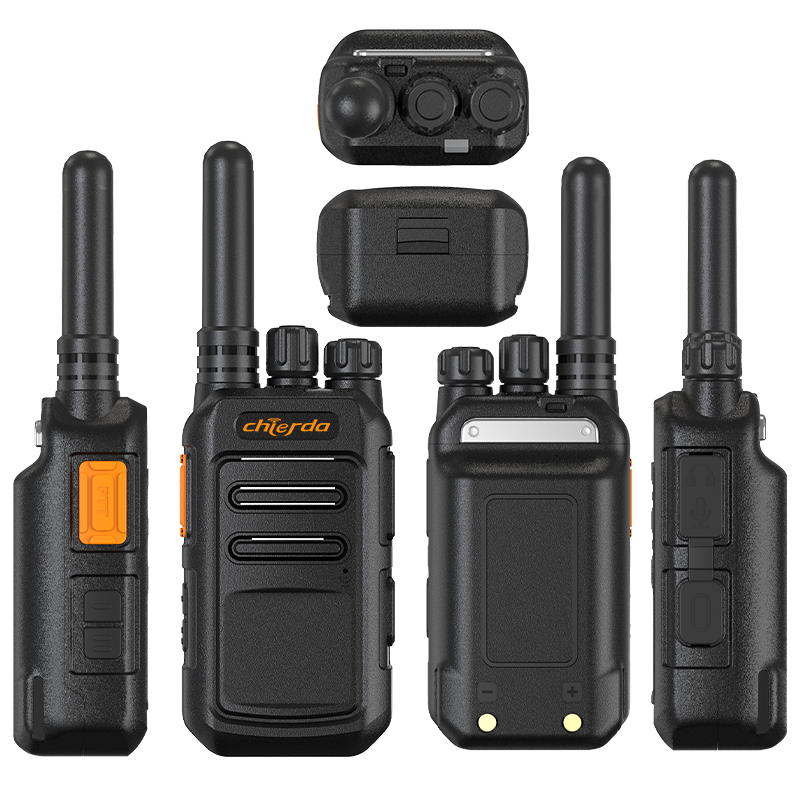

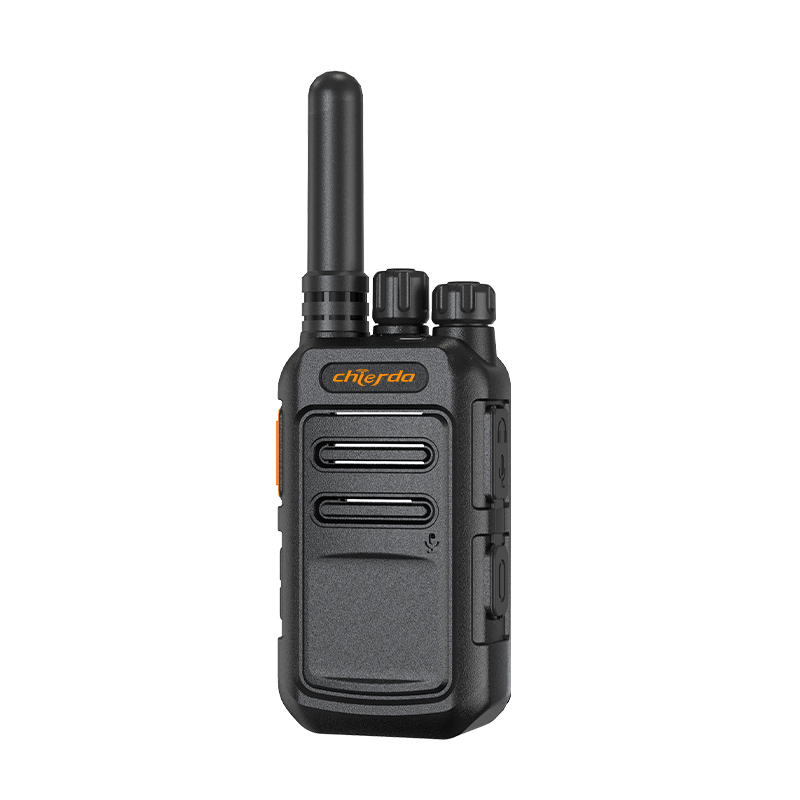

Compact Design

At 93 × 54 × 34.6 mm without the antenna, the radio stays easy to carry. The compact body targets users who move around during work.

Voice Encryption

The radio supports anti-break code and voice encryption. Per the manufacturer, these functions protect the privacy of team conversations.

Frequency Hopping

The radio supports frequency hopping as listed in the manufacturer’s feature set.

One-Key Frequency Pairing

Pressing one key pairs the radio’s frequency with another unit. This shortens the setup steps when preparing a fleet of radios.

One-Key Channel Copy

One-key channel copy transfers channel settings between radios, which simplifies configuration when several units need the same channel plan.

Type-C Charging Port

The radio charges through a Type-C port. With a common cable standard, charging matches the accessories many teams already carry.

Battery Saving Function

The radio carries a 1200 mAh battery at 3.7 V DC. The manufacturer states that the large battery capacity supports continuous talking, and that the battery saving function extends working time.

Communication Range

The manufacturer states a communication range of 1-5 km for the 5 W output. Actual range depends on terrain and site conditions, which the source does not specify.

Alarm Function

The alarm function provides an audible alert for team members.

Applications

The manufacturer positions the CDQ6 for use in noisy environments, with the compact body and encryption functions covering general team communication needs. No specific industry sectors are stated in the supplied materials.

whats in the Box

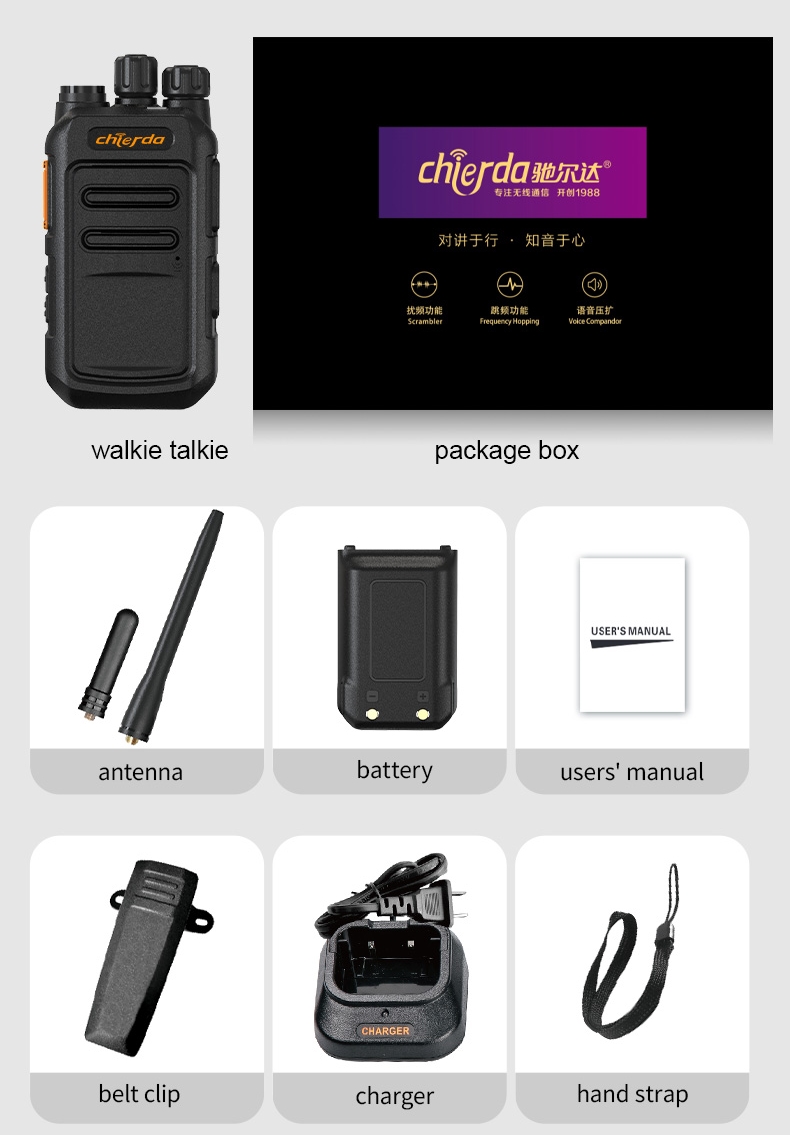

What’s in the Box

  • Radio × 1
  • Battery × 1
  • Belt clip × 1
  • Charger × 1
  • Strap × 1
  • User’s manual × 1



Features



Features

Technical Specifications

General

  • Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz (selectable band version)
  • Channel Capacity: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 3.7 V DC
  • Battery Capacity: 1200 mAh
  • Frequency Stability: ± 2.5 ppm
  • Antenna Impedance: 50 Ω
  • Dimensions: 93 × 54 × 34.6 mm (without antenna)

Transmitter

  • Output Power: 5 W
  • Current: ≤ 1.3 A
  • Modulation Mode: FM
  • Modulation Distortion: < 5% (300-3000 Hz)
  • Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
  • CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
  • Remanent Radiation: ≤ 7 µW
  • Remanent Modulation: ≤ -35 dB

Receiver

  • RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
  • Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
  • Audio Frequency Power: ≥ 300 mW
  • Audio Distortion: ≤ 5%
  • Modulation Receiver Bandwidth: ± 7 kHz
  • Spurious Rejection: ≥ 55 dB
  • Selectivity: ≥ 65 dB
  • Intermodulation: ≥ 60 dB
