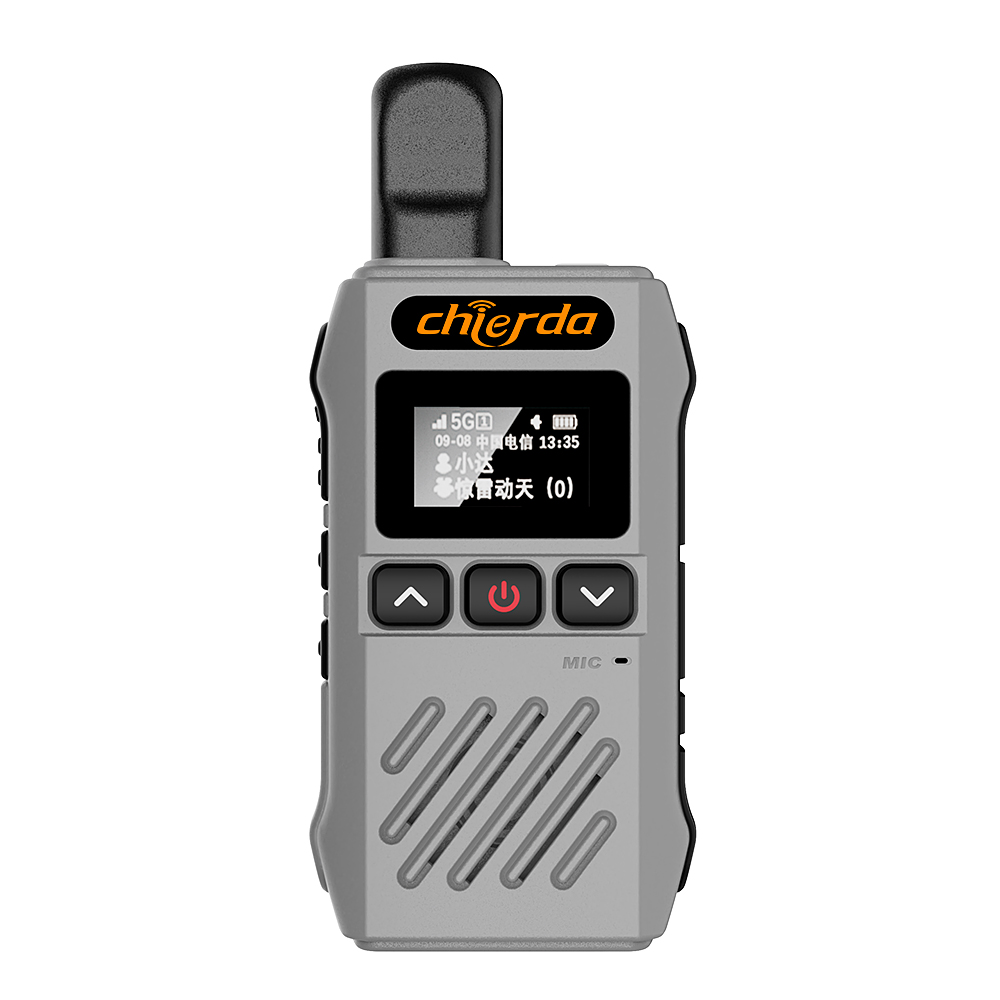

Product Overview

The Chierda NBM1 is a compact, ultrathin push-to-talk over cellular (PoC) network radio. Chierda describes the height as only 80 mm, small enough to fit into a pocket, and the supplied specification lists the body as 81 x 44 x 21 mm (without antenna).
Two Type-C charging ports are fitted, and both can be used for charging. Call handling covers single call, group call, and all call, with one-key starting of a group communication. The specification lists FDD-LTE / TDD-LTE as the frequency range, dual SIM card support, a 1500 mAh battery at 3.7 V, audio power of at least 500 mW, and a working temperature range of -20 to 50 °C.
As a PoC radio, the NBM1 carries calls over cellular networks rather than a direct radio-to-radio RF link, so coverage follows network availability. The supplied specification does not include LTE band numbers or a carrier compatibility list, so buyers should confirm band support for their market before ordering.
Key Features

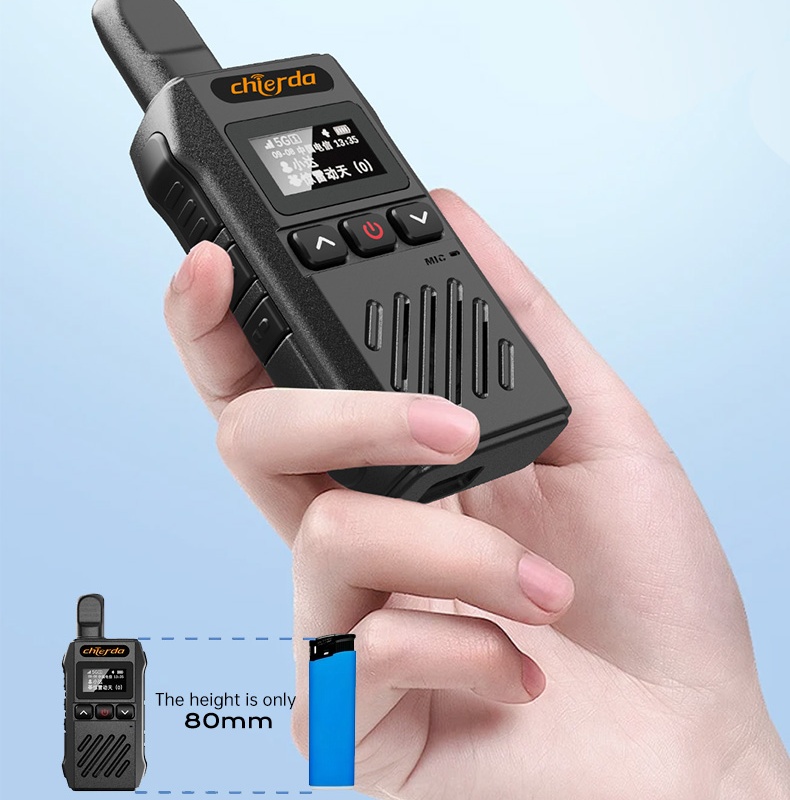

Pocket-Size Ultrathin Body
Chierda describes the NBM1 as compact and ultrathin, with a height of only 80 mm that makes it portable and easy to fit into a pocket. The specification lists the body as 81 x 44 x 21 mm (without antenna).

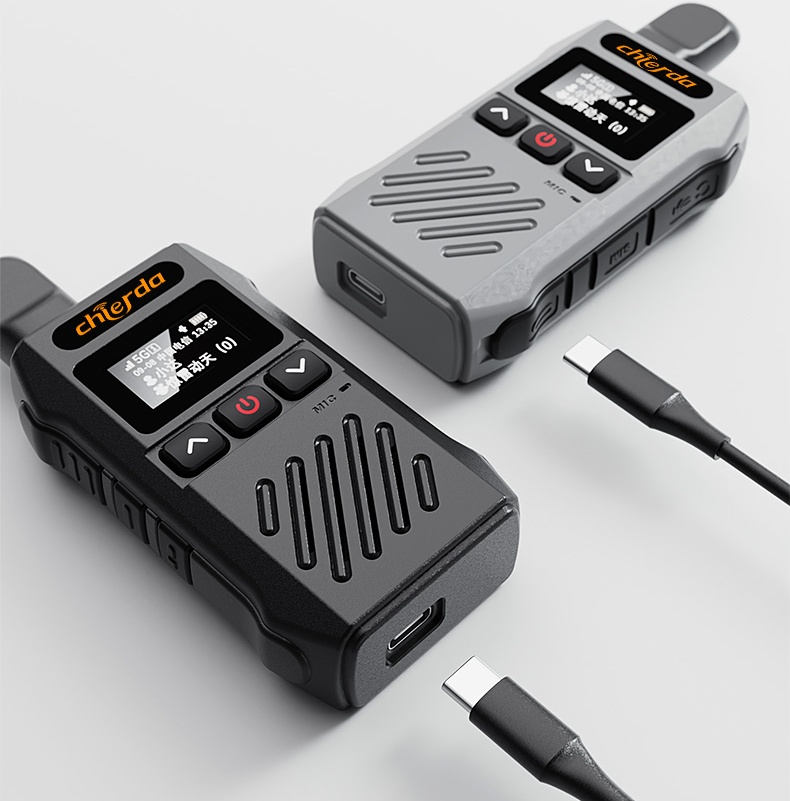

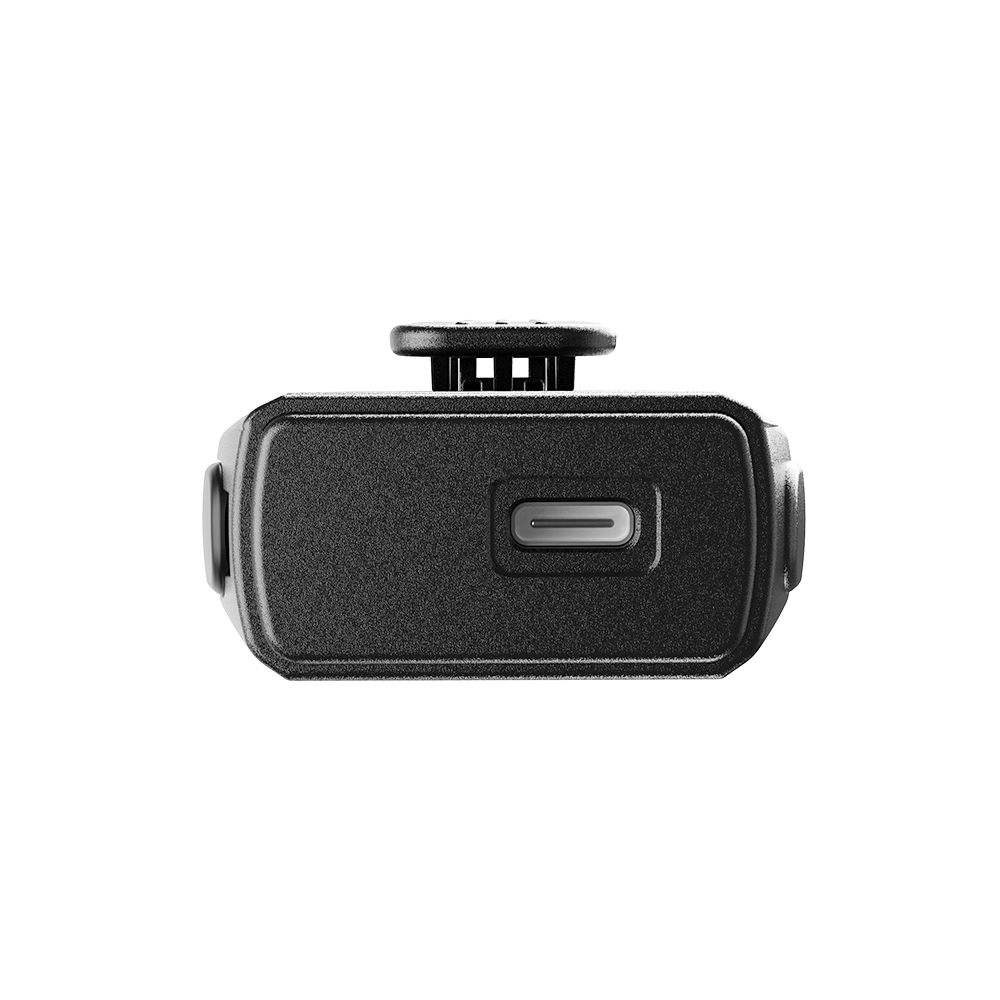

Two Type-C Charging Ports
Two Type-C ports are fitted and both allow charging. With a second port available, a charging failure at one port after long-term use does not have to put the radio out of service.
PoC Network Operation with Dual SIM
The NBM1 is a PoC network radio, and the specification lists support for dual SIM cards.
FDD-LTE / TDD-LTE Frequency Range
FDD-LTE and TDD-LTE are the frequency systems listed for this model.
Single, Group and All Call Modes
Three call modes are available: single call, group call, and all call. A group communication can be started quickly by pressing one key.
Audio Power of at Least 500 mW
The specification lists audio power of ≥ 500 mW.
-20 to 50 °C Working Temperature
The listed working temperature range is -20 to 50 °C, covering both cold and hot operating conditions.

Functions and Performance
Network-based coverage: the product designation carries a 5000 km communication figure and the specification lists talk range as infinite distance. Both reflect the same thing, since a PoC radio carries calls over LTE networks rather than by its own RF link. Actual reach follows FDD-LTE / TDD-LTE network coverage, not a fixed radio-to-radio distance. The 23 ± 3 dBm value is the specified transmitted power of the cellular module, not a conventional radio output power rating.
Charging redundancy: two Type-C ports are fitted and both support charging. A single charging port may wear out after long-term use; with two ports, a failure at one port does not have to end the radio’s service life. The two ports and the dual SIM card support are separate features, and no simultaneous charging claim is made.
Call modes: single call supports one-to-one communication, group call reaches a defined team, and all call addresses the whole group. One-key starting of a group communication reduces the steps needed to reach a team during time-sensitive work.
Pocket portability: Chierda describes the height as only 80 mm and the design as compact and ultrathin, so the radio can be carried in a pocket. The specification lists 81 x 44 x 21 mm (without antenna). The two values are kept as supplied.
Audio and operating limits: audio power is specified at ≥ 500 mW. The specification also lists -20 to 50 °C working temperature, 3.7 V operating voltage, and a 1500 mAh battery. No working time, standby time, charging time, or audio distortion figure is provided for this model.
Applications
The supplied material does not name specific industries for this model. The following usage scenarios follow directly from its confirmed functions and stated limits:
- Teams working across separate sites: group call and all call over LTE networks support coordination between users who are not within direct radio range.
- Cold or hot operating conditions: the listed -20 to 50 °C working temperature range covers both low and high temperature environments.
- Frequent charging over a long service life: dual Type-C ports keep a second charging option available if one port fails.
- Staff who carry the radio in a pocket: the 80 mm height described by Chierda and the compact ultrathin body suit mobile users who need both hands free.

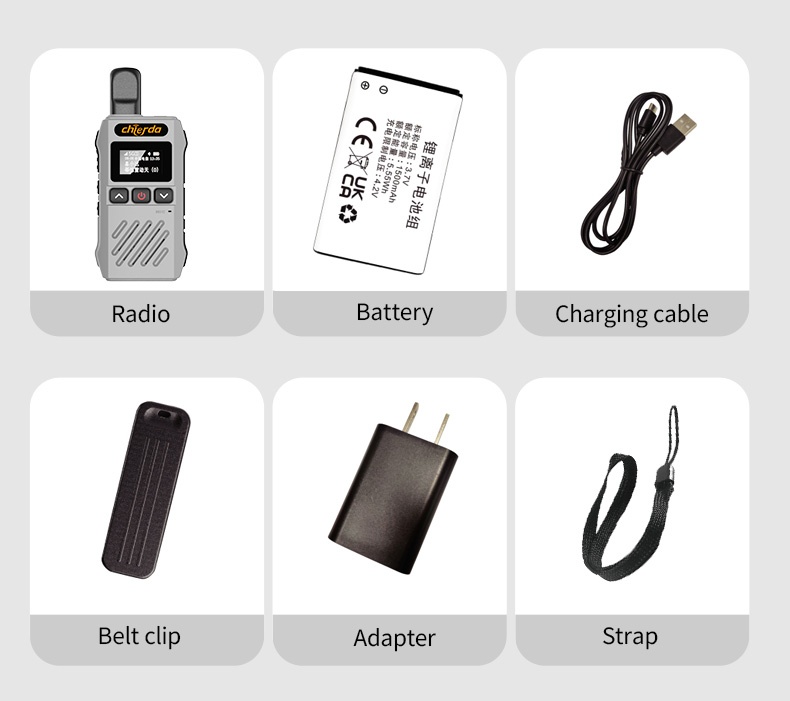

What’s in the Box
- Radio x 1
- Battery x 1
- Strap x 1
- Charger x 1
- User’s manual x 1
- Belt clip x 1

Technical Specifications
General
- Brand Name: Chierda
- Walkie Talkie Type: 5G POC
- Frequency Range: FDD-LTE / TDD-LTE
- Function: Support dual sim card
- Storage Channel: none
- Talk Range: infinite distance
- Working Temperature: -20 to 50 °C
- Operating Voltage: 3.7 V
- Battery Capacity: 1500 mAh
- Audio Power: ≥ 500 mW
- Transmitted Power: 23 ± 3 dBm
- Dimensions: 81 x 44 x 21 mm (without antenna)
- Height as described by Chierda: only 80 mm
