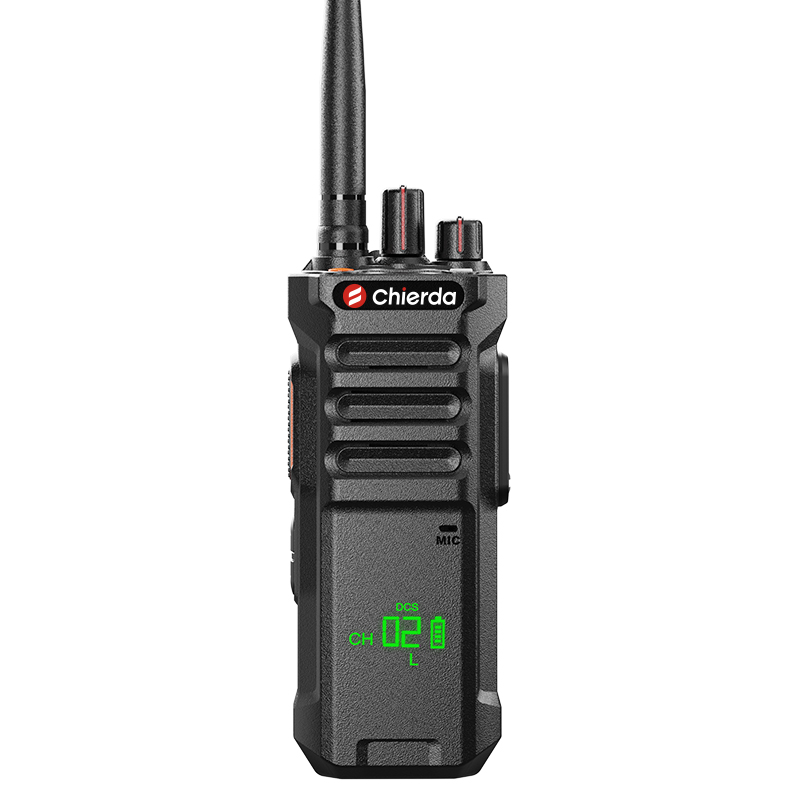

Chierda T168Pro 15W High Power Long Range Walkie Talkie
1. 15W High Power, Long Range Walkie Talkie
2. PC Material Made, Exceptional Durability
3. Anti-magnetic Speaker, Advanced Audio Quality
4. Hidden Display, Quick Pairing, Wireless copy
5. Alarm Function (Local & Remote)
6. Upgraded Belt Clip design, Dual Type-C Charging port
7. Dual Antenna in One Pack (Long and short)
8. 2800mAh Long Battery Life
9. Optional Function: IP67 Waterproof, AI-based Noise Reduction, Bluetooth Compatible
Product Overview

The Chierda T168Pro is a 15W UHF handheld radio for teams that need more transmit power than a standard 5W handset. It works on UHF 400-480 MHz with 16 memory channels and 12.5 kHz or 25 kHz channel spacing. The housing is molded from high-strength PC material, and Chierda supplies two antennas in the box, one long and one short, so the same radio can be configured for range or for compact carry.
Chierda builds the audio path around an anti-magnetic speaker. That design targets workplaces where airborne metal particles or fine dust would otherwise collect on a conventional speaker magnet, which is why steel mills and flour processing plants appear in the manufacturer’s own description of the model.
Setup is handled without a programming cable. The radio supports one-key channel copy and frequency pairing, and it carries a concealed display that keeps the channel readout out of sight when the unit is worn on a belt. A 2800mAh battery powers the set, and charging runs through a dual Type-C port or the supplied cradle.
This is an analog FM handheld. If your fleet runs DMR or a digital trunking system, the T168Pro is not the model for that requirement.
Key Features
15W Transmit Power on UHF 400-480 MHz
Output is rated at 15W, with current draw quoted at 3A or less. UHF 400-480 MHz with 16 channels covers the usual business band allocations, and 12.5 kHz or 25 kHz channel spacing lets the same radio sit in a narrowband or wideband fleet.

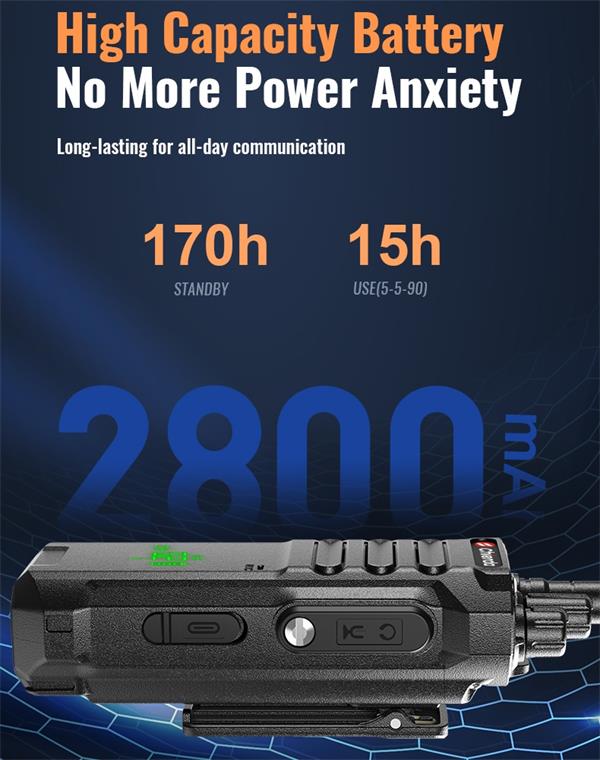

2800mAh Battery with 170 Hours Standby
Chierda specifies 2800mAh at 11.1V DC, quoted as up to 170 hours standby and 15 hours working. Both figures come from the manufacturer and depend on how much time the radio spends transmitting.
Anti-Magnetic Speaker
The speaker is built to resist magnetic attraction, which Chierda presents as protection against iron filings in steel works and flour dust in processing plants. A grille that stays clear of ferrous debris keeps the audio path open in those environments.
Hidden Display and Wireless Channel Copy
The display is concealed rather than exposed on the front face. Channel copy and frequency pairing work without manual programming, so a supervisor can duplicate a working radio onto a spare in the field.
Local and Remote Alarm
The alarm function can be triggered on the radio itself or remotely. Chierda lists it as a standard feature of the model.
Dual Type-C Charging and Charging Cradle
The battery charges over a Type-C port, and Chierda fits two such ports to the set. A charging cradle is included for desk or shelf charging.

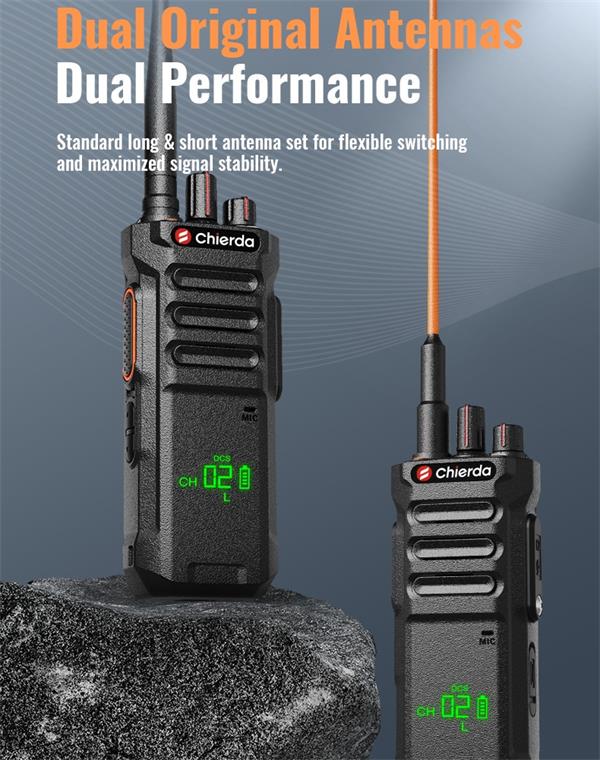

Two Antennas in the Box
A long antenna and a short antenna ship with every radio. The long one is for maximum reach, the short one for a lower profile on the belt.

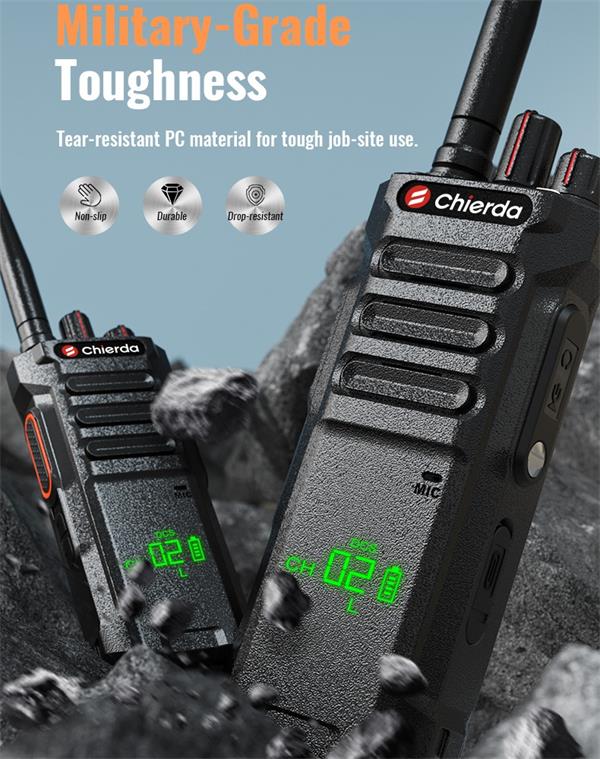

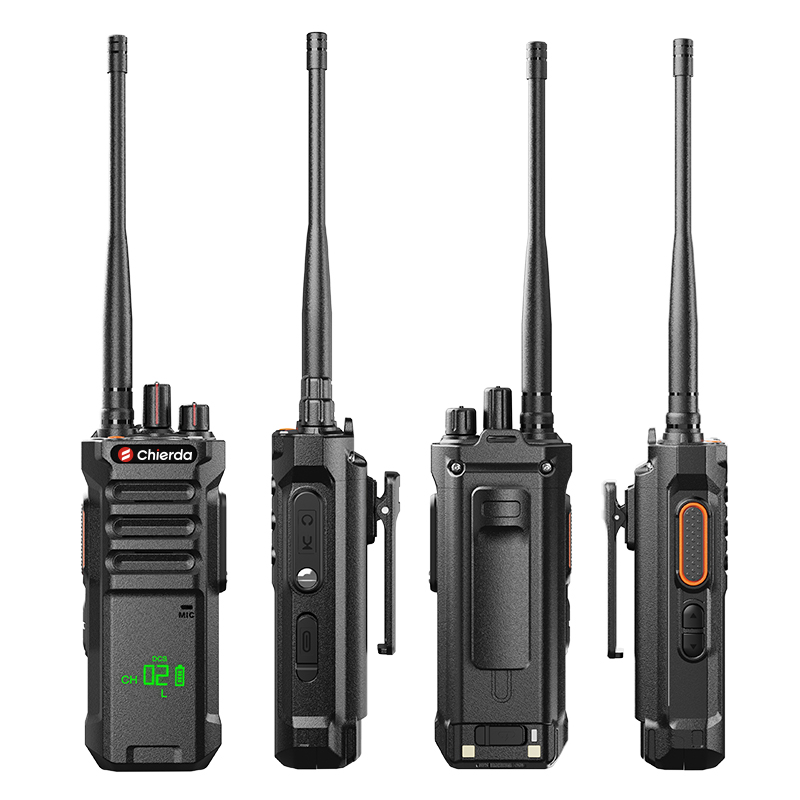

PC Housing with Upgraded Belt Clip
The body is high-strength PC material with a non-slip finish. Chierda describes the housing as drop resistant, and the belt clip is a revised design rather than the older clip used on earlier models.
Optional IP67, AI Noise Reduction and Bluetooth
Three functions are available as options on this model: an IP67 rated version, AI-based noise reduction, and Bluetooth compatibility. They are not part of the standard configuration.
Functions and Performance
Transmit Path
At 15W the T168Pro sits well above the 5W class of handheld that most sites issue by default, which is the reason buyers specify it for coverage across a large plant or a multi-building campus. Maximum deviation is 5 kHz on a 25 kHz channel and 2.5 kHz on a 12.5 kHz channel, and CTCSS deviation is held to 0.75 kHz ±50 Hz for sub-audible signalling. Remanent radiation is quoted at 7 µW or below, and remanent modulation at -35 dB or better, both of which describe how clean the transmitter stays when it is not carrying voice.
Receiver and Audio
Sensitivity is quoted at 0.25 µV, or 0.3 µV on the narrow channel, with squelch sensitivity at 0.2 µV and 0.25 µV respectively. Selectivity is 65 dB, intermodulation 60 dB, and spurious rejection 55 dB. Audio output is 300 mW or more into the speaker, which matters on a machine floor where the ambient noise floor is high. Distortion is held below 5%.
Battery and Duty Cycle
The 2800mAh pack at 11.1V DC gives roughly 31Wh of stored energy. Chierda’s 15 hour working figure is a manufacturer rating, and real runtime follows the transmit ratio of your traffic. A team that talks in short bursts will see closer to the rated number than a team that keeps the pressel down.
Pairing and Cloning Workflow
Read the channel data out of a configured radio, then push it to the next unit. Because the copy and pairing steps run without a programming cable, a fleet can be re-keyed on site when a channel plan changes or when a replacement radio has to match its neighbours before a shift starts.
Environmental Rating
The standard configuration carries no IP code. IP67 is listed as an optional function, which in the usual scale means dust tight and protected against temporary immersion in water up to 1 m for 30 minutes. Confirm whether the units in your order are the IP67 build before writing it into a tender document.
Applications
- Steel mills and metal processing plants, where the anti-magnetic speaker is intended to resist iron filings
- Flour and food processing plants, where fine dust is present
- Manufacturing floors and large plant sites that need 15W coverage
- Construction and infrastructure projects with long site distances
- Security patrols across warehouses, yards and perimeter roads
- Event and venue operations where radios are issued for a single shift
What’s in the Box
- Radio x 1
- Antenna x 2 (long and short)
- Battery x 1
- Belt clip x 1
- Charging cradle x 1
- Hand strap x 1
- User’s manual x 1




Technical Specifications
General
- Frequency Range: UHF 400-480 MHz
- Memory Channel: 16
- Channel Spacing: 12.5 kHz / 25 kHz
- Rated Voltage: 11.1V DC
- Battery Capacity: 2800mAh
- Frequency Stability: ±2.5 ppm
- Antenna Impedance: 50Ω
- Dimension: 141 x 55 x 40 mm (without antenna)
Transmitter
- Output Power: 15W
- Current: ≤3A
- Modulation Mode: FM
- Maximum Frequency Deviation: ≤5 kHz / ≤2.5 kHz
- CTCSS Frequency Deviation: 0.75 kHz ±50 Hz
- Modulation Distortion: <5% (300-3000 Hz)
- Remanent Radiation: ≤7 µW
- Remanent Modulation: ≤-35 dB
Receiver
- RF Sensitivity: ≤0.25 µV / ≤0.3 µV
- Squelch Sensitivity: ≤0.2 µV / ≤0.25 µV
- Selectivity: ≥65 dB
- Intermodulation: ≥60 dB
- Spurious Rejection: ≥55 dB
- Modulation Receiver Bandwidth: ±7 kHz
- Audio Frequency Power: ≥300 mW
- Audio Distortion: ≤5%
