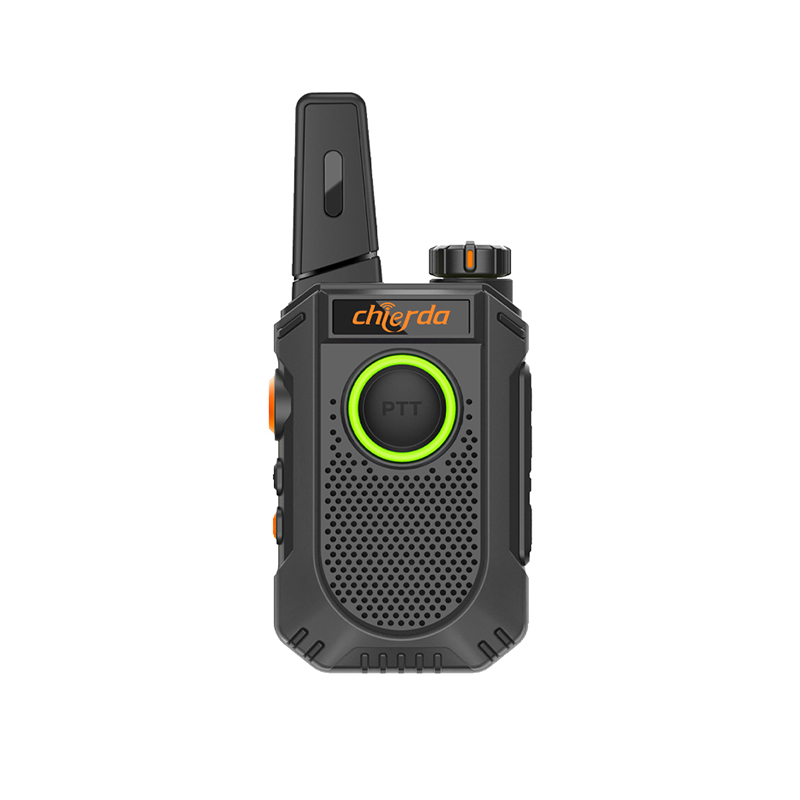

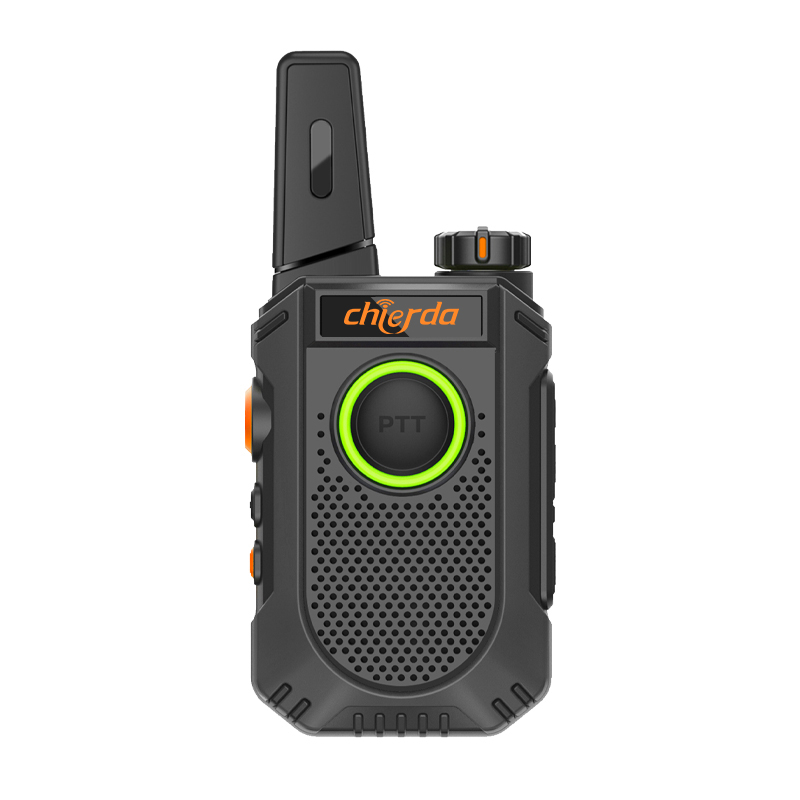

Chierda TC18 Dual PTT Portable Lightweight Two-way Radio

1. Double PTT Operation

2. Mini body, portable

3. Support Type-C Charging

4. Circle Breathing Indicator

Product Overview

Features

The Chierda TC18 is a compact UHF handheld radio built around a two-button PTT layout. The body measures 83 x 54 x 32 mm without the antenna, which puts it in the palm-sized class of handheld rather than the full-size duty radio class. It works on UHF 400-480 MHz with 16 memory channels and 12.5 kHz or 25 kHz channel spacing.

The feature set fits service work where staff stay inside one building or a single site. A circular breathing indicator on the body shows working status from across a counter, the battery charges over a Type-C port, and the shell is molded in PC material. Chierda lists restaurants, salons and bars among the intended settings, and the same profile suits any team that issues a radio for a shift and expects it back at the end of the day.

Audio privacy is handled by voice encryption plus an anti-break code. This is an analog FM radio on UHF, so it does not interoperate with DMR or digital trunking systems.

Key Features

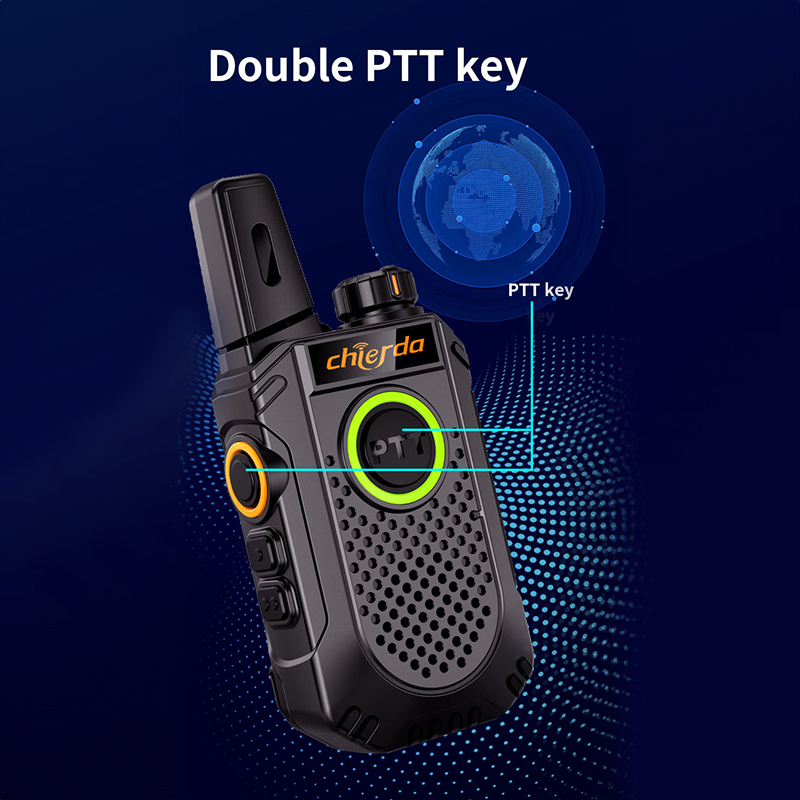

Two PTT Buttons

The TC18 carries two PTT buttons on the housing instead of one. Chierda presents the double layout as an easier operating arrangement for staff who pick the radio up without looking at it.

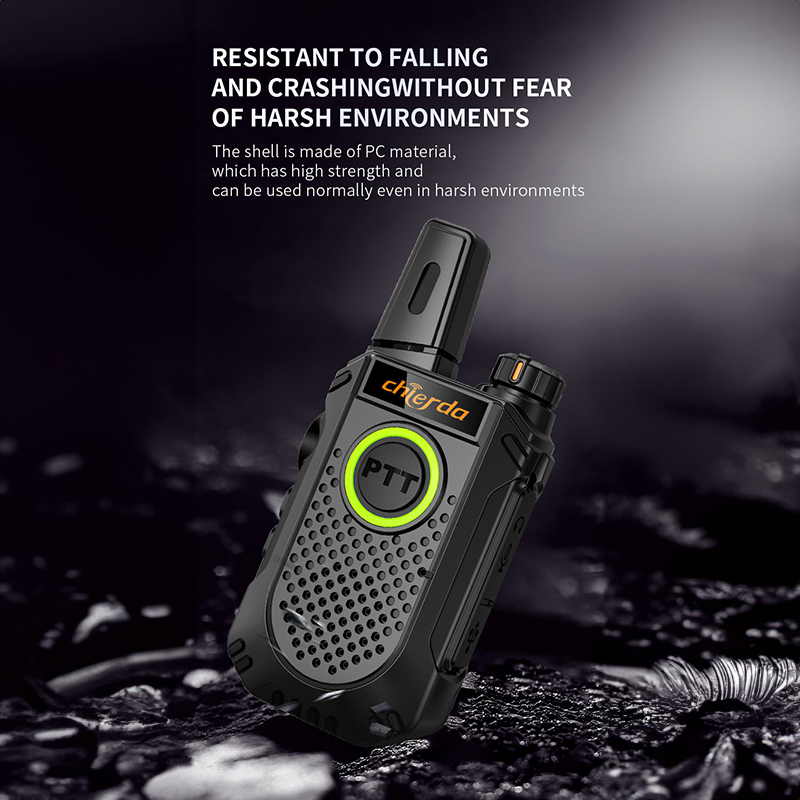

Palm-Size PC Body

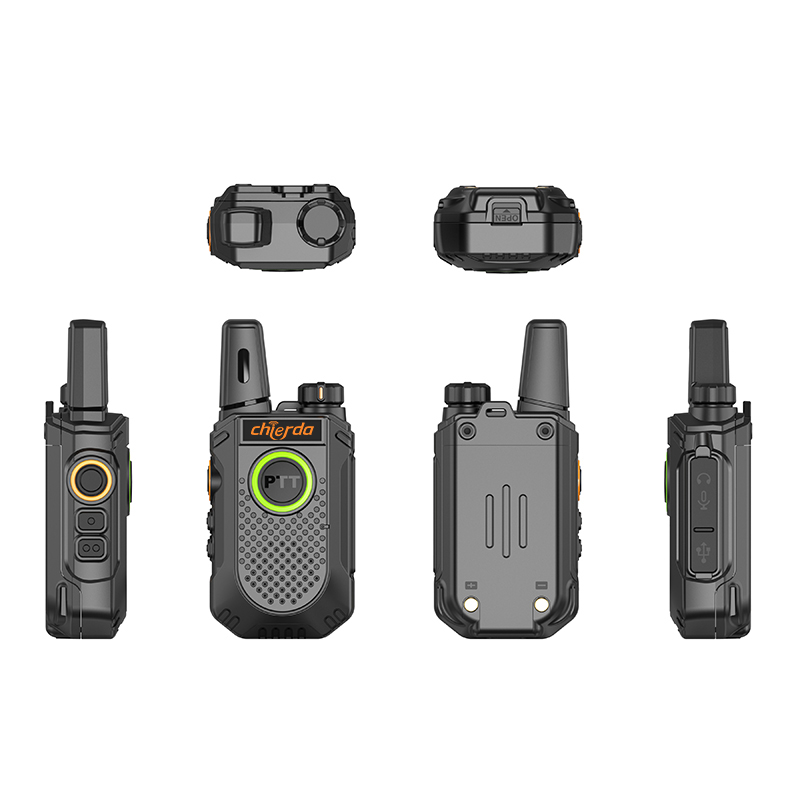

Dimensions are 83 x 54 x 32 mm without antenna. The shell is high-strength PC material, and the small footprint leaves room on a belt or apron pocket where a full-size handheld would get in the way.

Circular Breathing Indicator

A ring indicator pulses on the body to show working status. Staff at a counter or behind a bar can read whether the radio is idle or in use without picking it up.

Type-C Charging

The battery charges through a Type-C port, so one cable covers the radio and the phones already on the premises. A charger is included in the box.

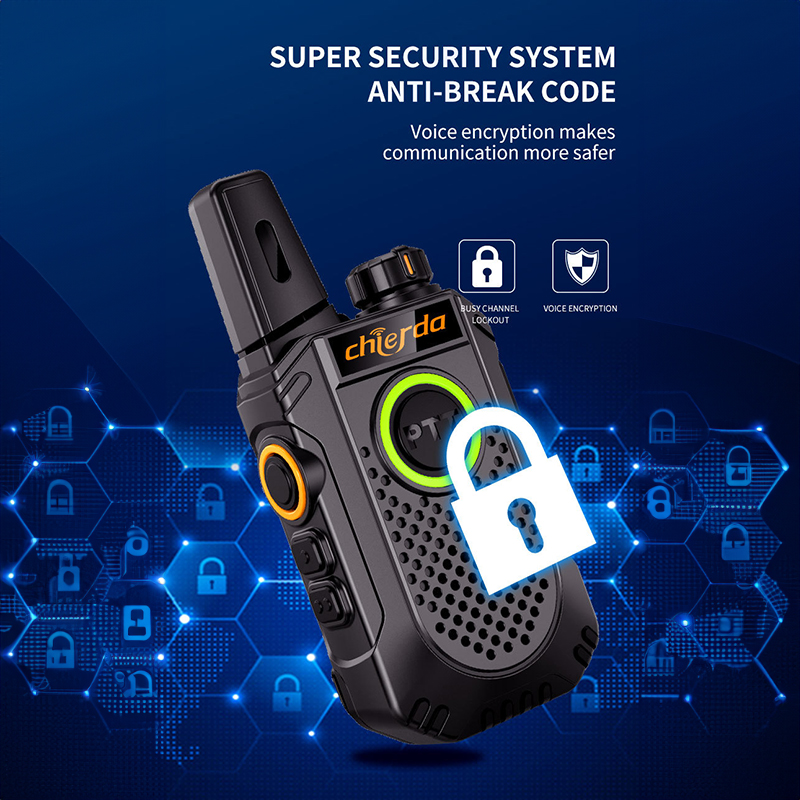

Voice Encryption and Anti-Break Code

Chierda lists voice encryption and an anti-break code for privacy on this model. The published specification does not name the algorithm or key length, so treat the feature as voice privacy for routine business traffic rather than a security-grade cipher.

16 Channels on UHF 400-480 MHz

Sixteen memory channels with 12.5 kHz or 25 kHz spacing cover the usual split between narrowband and wideband fleets. Frequency stability is ±2.5 ppm and antenna impedance is 50Ω.

1000mAh Battery

The pack is rated 1000mAh at 3.7V DC. Runtime depends on how much of the shift is spent transmitting, and Chierda does not publish a duty cycle figure for this model.

Features

Functions and Performance

Transmit and Receive Figures

Output power is listed as 5W or less, with current draw at 1.3A or below on a 3.7V supply. Maximum deviation runs to 5 kHz on a 25 kHz channel and 2.5 kHz on a 12.5 kHz channel, and CTCSS deviation sits at 0.75 kHz ±50 Hz. On the receive side, RF sensitivity is 0.25 µV wideband and 0.3 µV narrowband, selectivity is 65 dB, intermodulation 60 dB, and spurious rejection 55 dB. Audio output reaches 300 mW or more into the speaker, and distortion stays below 5%.

Battery and Charging Routine

A 1000mAh pack at 3.7V DC suits a radio that lives in a charging cradle or on a Type-C cable between shifts. Chierda does not publish standby or working hours for the TC18, so plan the charging routine around your own shift length rather than a quoted figure.

Indicator and Daily Handling

The breathing indicator is the part of the design that gets used most. In a busy service setting the staff member needs to know whether the channel is clear before speaking, and a visible ring state does that job without a display. A belt clip and hand strap ship with each radio.

Channel Planning Before Issue

The supplied description does not list a front keypad or a numeric display for the TC18, so the channel plan is written in software before the radios are handed out. Agree that layout with your dealer at order stage, particularly if the two PTT buttons are going to be assigned to different groups. Fixing the plan before dispatch saves a second programming round once staff are already using the radios.

Applications

  • Restaurant and cafe floor teams, where the radio rides in an apron pocket
  • Salons and barbershops, for front desk to stylist coordination
  • Bars and clubs, where a compact body stays out of the way during service
  • Retail shops and small stores covering a single floor
  • Hotels and guest service teams working between floors
  • Event and venue staff on short assignments with issued equipment

whats in the Box

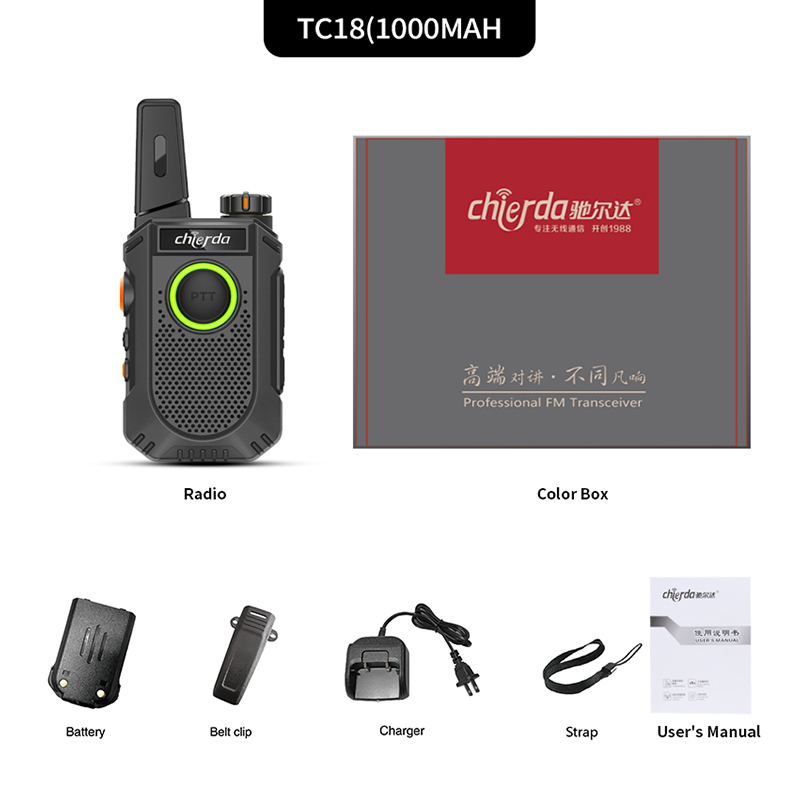

What’s in the Box

  • Radio x 1
  • Battery x 1
  • Belt clip x 1
  • Charger x 1
  • Strap x 1
  • User’s manual x 1



Features

Technical Specifications

General

  • Frequency Range: 400-480 MHz
  • Memory Channel: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 3.7V DC
  • Battery Capacity: 1000mAh
  • Frequency Stability: ±2.5 ppm
  • Antenna Impedance: 50Ω
  • Dimension: 83 x 54 x 32 mm (without antenna)

Transmitter

  • Output Power: ≤5W
  • Current: ≤1.3A
  • Modulation Mode: FM
  • Maximum Frequency Deviation: ≤5 kHz / ≤2.5 kHz
  • CTCSS Frequency Deviation: 0.75 kHz ±50 Hz
  • Modulation Distortion: <5% (300-3000 Hz)
  • Remanent Radiation: ≤7 µW
  • Remanent Modulation: ≤-35 dB

Receiver

  • RF Sensitivity: ≤0.25 µV / ≤0.3 µV
  • Squelch Sensitivity: ≤0.2 µV / ≤0.25 µV
  • Selectivity: ≥65 dB
  • Intermodulation: ≥60 dB
  • Spurious Rejection: ≥55 dB
  • Modulation Receiver Bandwidth: ±7 kHz
  • Audio Frequency Power: ≥300 mW
  • Audio Distortion: ≤5%
