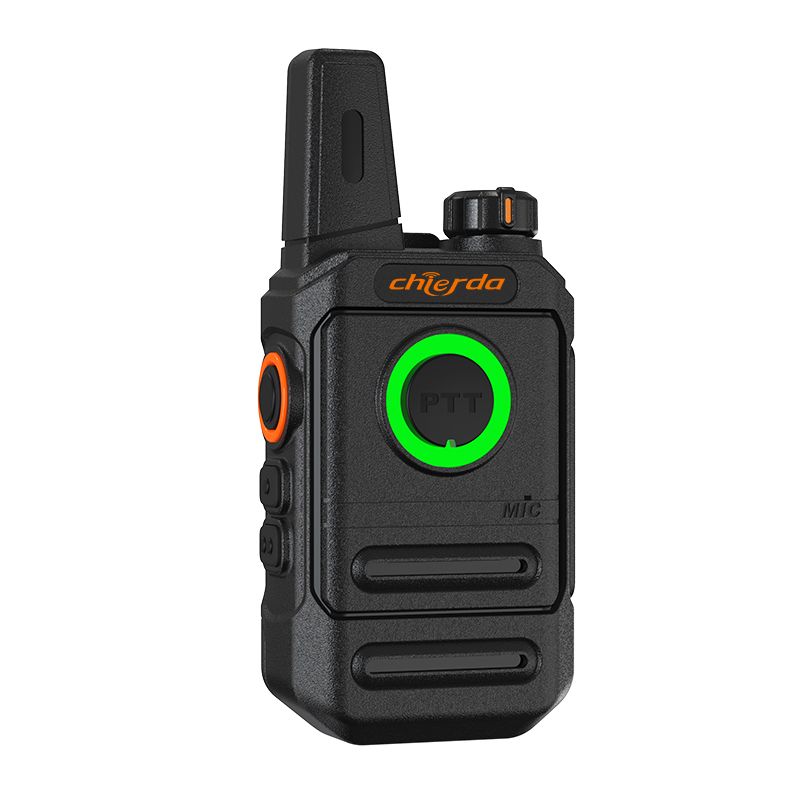

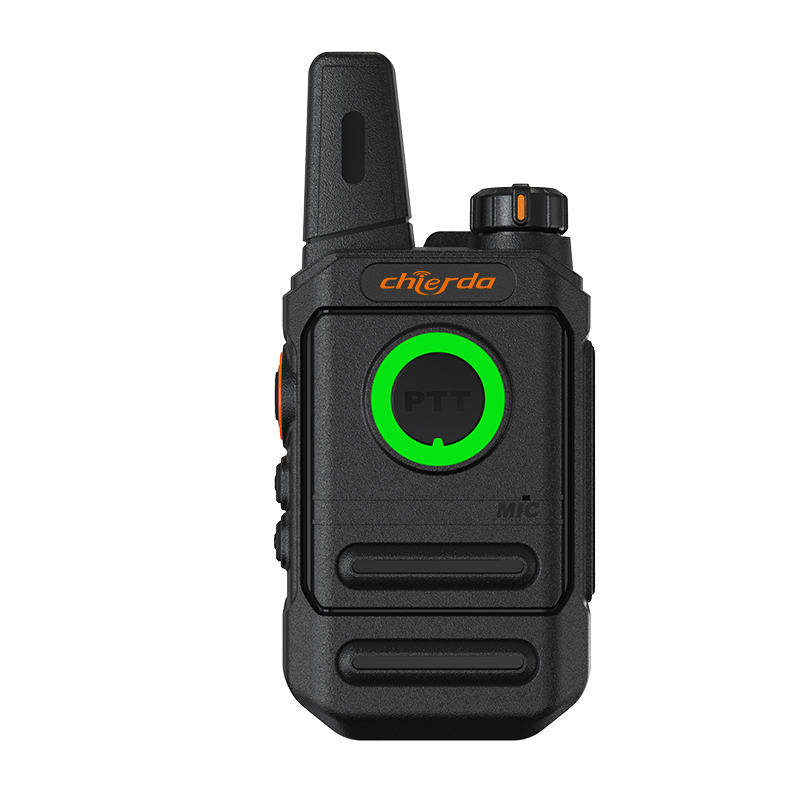

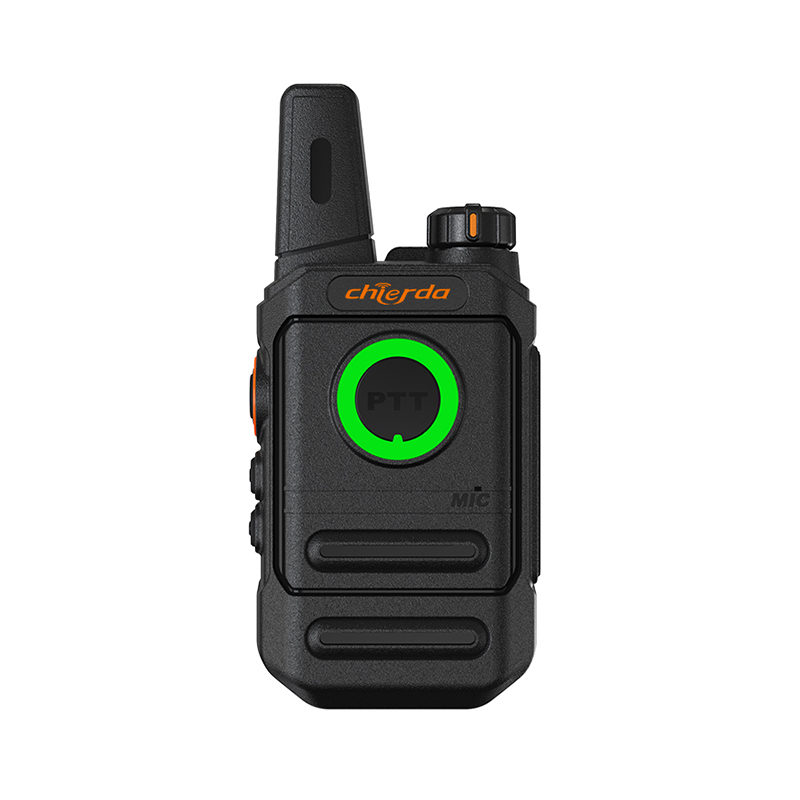

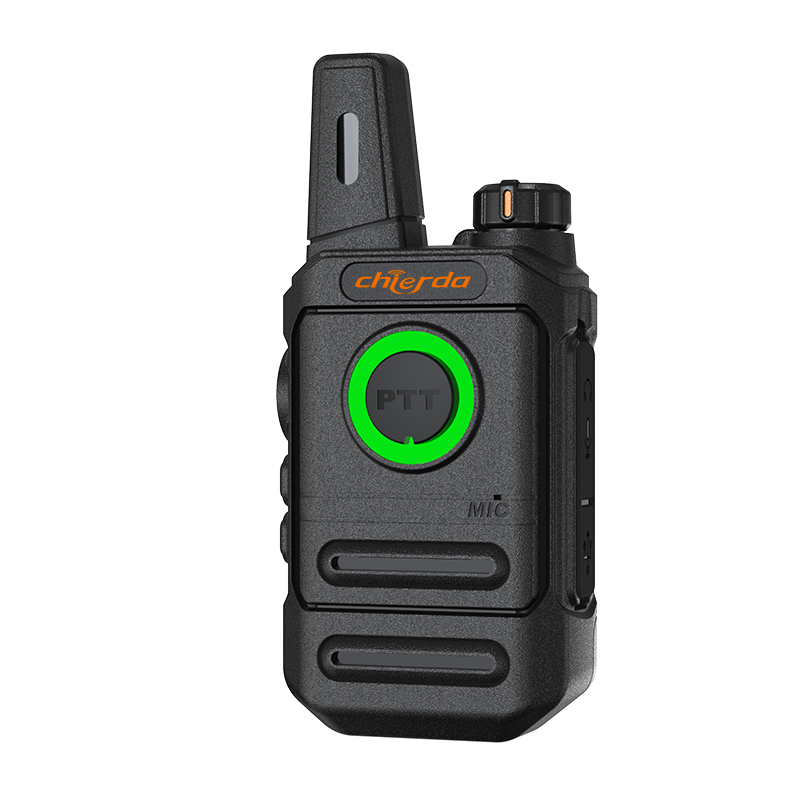

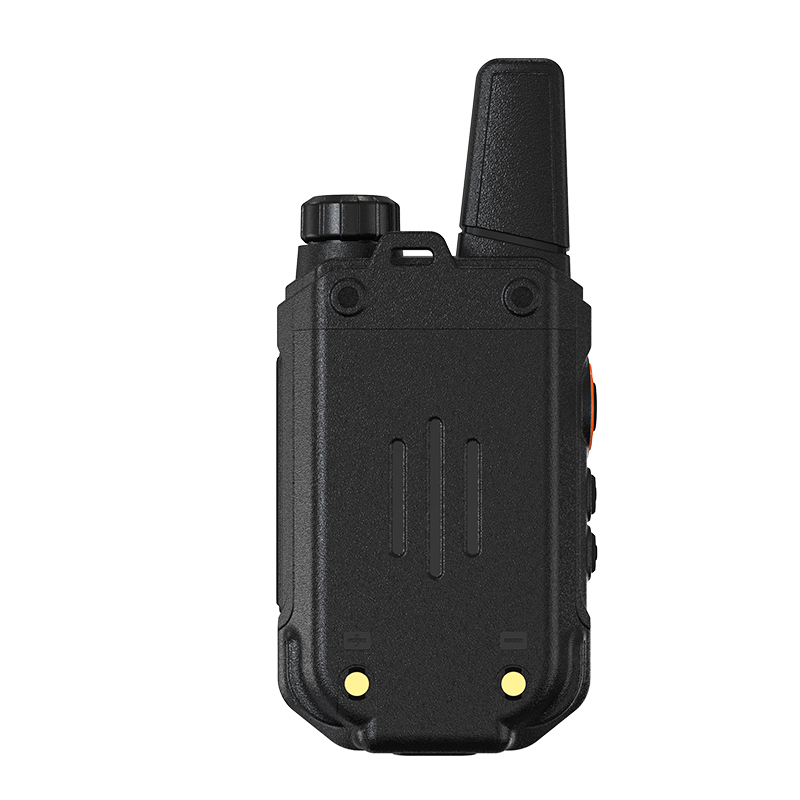

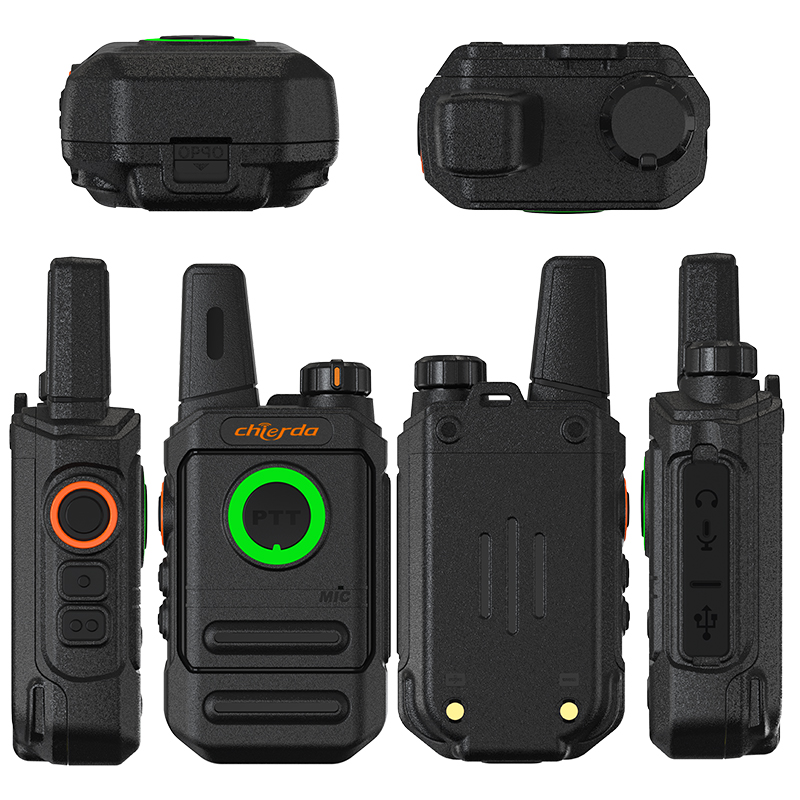

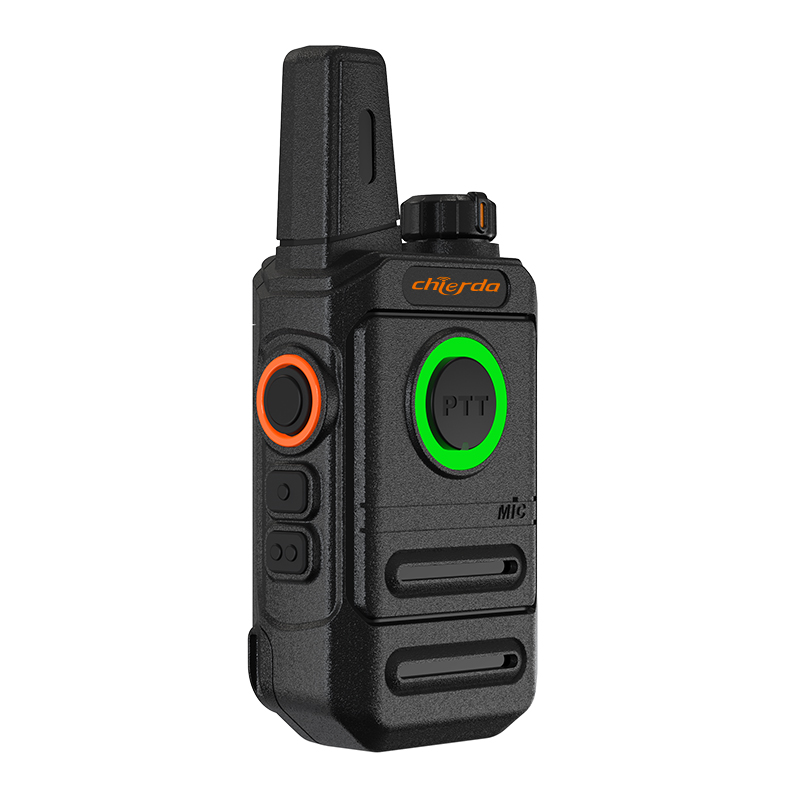

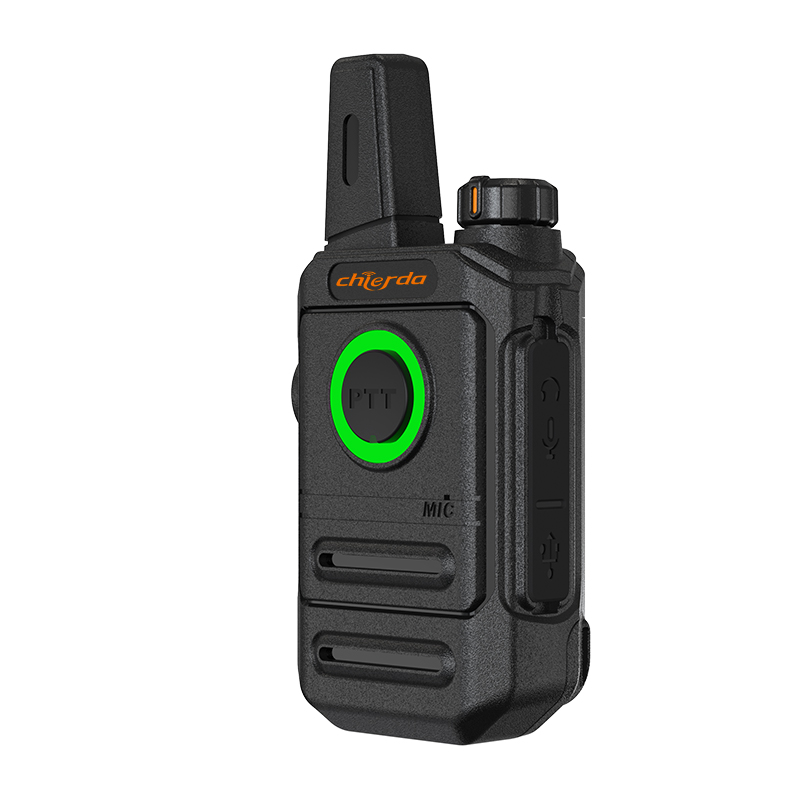

Chierda TC28 Dual PTT 2W Portable Two Way Radio

1.Double PTT Operation

2.Support Type-C Charging

3.Anti-break code, Much safer

4.Circle Breathing Indicator

Product Overview

Features

The Chierda TC28 Dual PTT Portable Lightweight Two-Way Radio is designed for convenient communication in professional and commercial environments.

Featuring a compact body made from PC material, the TC28 is lightweight and easy to carry throughout the workday.

With dual PTT operation, a circular breathing indicator, Type-C charging, and battery-saving functionality, the TC28 offers practical communication features for businesses such as restaurants, salons, clubs, and other service-oriented workplaces.

The product also features anti-break code and voice encryption functions, designed to support communication privacy.

Features

Key Features

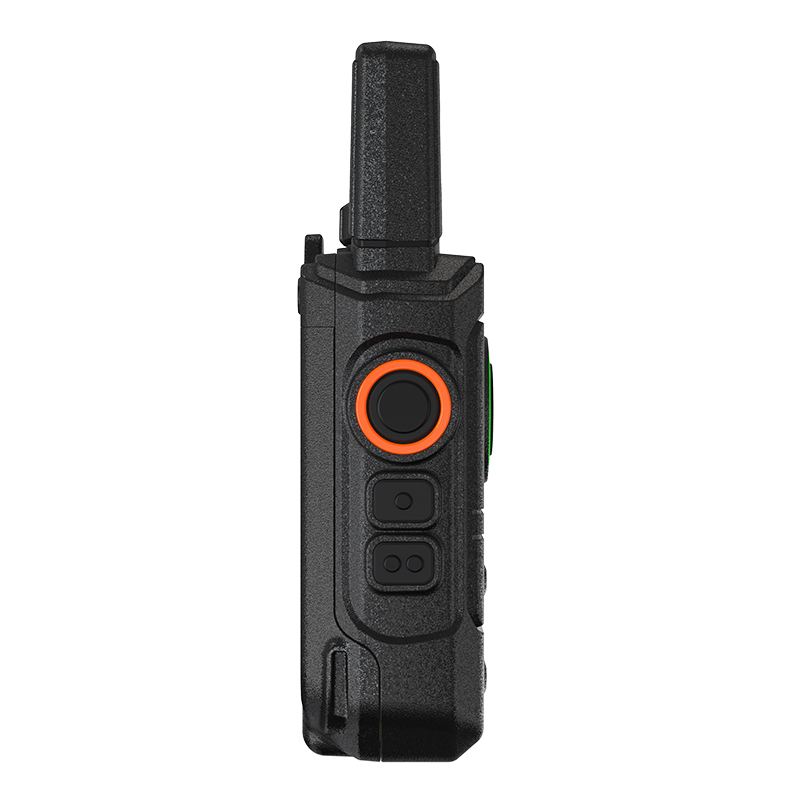

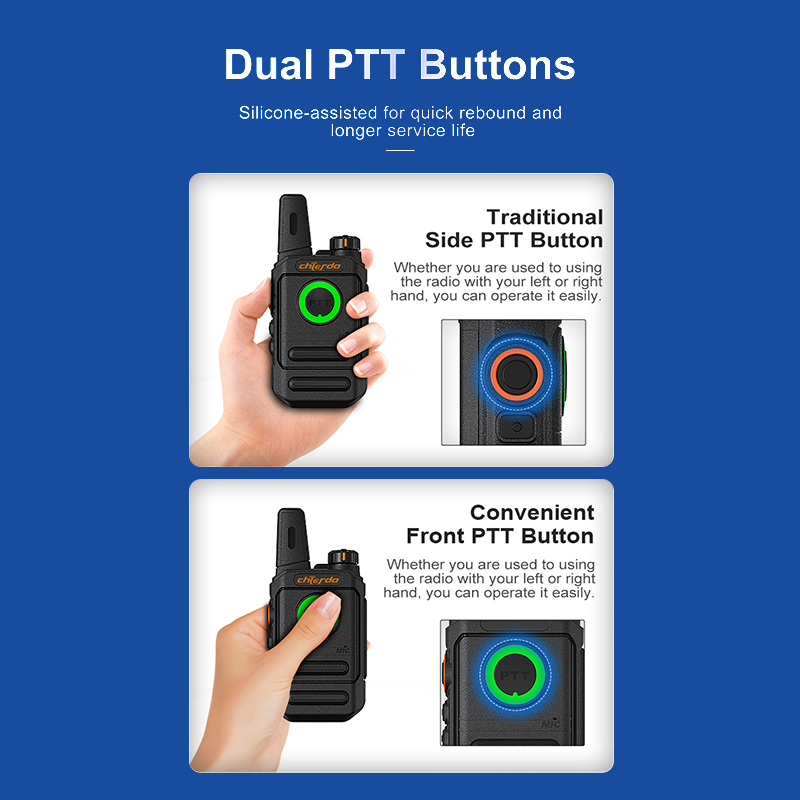

1. Dual PTT Operation

The TC28 features a dual PTT design for convenient push-to-talk operation.

The built-in silicone PTT button is designed for quick rebound and extended service life, supporting frequent operation during daily use.

2. Circular Breathing Indicator

The circular breathing indicator allows users to check the radio’s working status easily.

Its distinctive indicator design helps users recognize device status during operation.

3. Anti-Break Code and Voice Encryption

The TC28 supports anti-break code and voice encryption functions.

These features are designed to help protect communication privacy. Please contact us for detailed information about the supported encryption method and technical specifications.

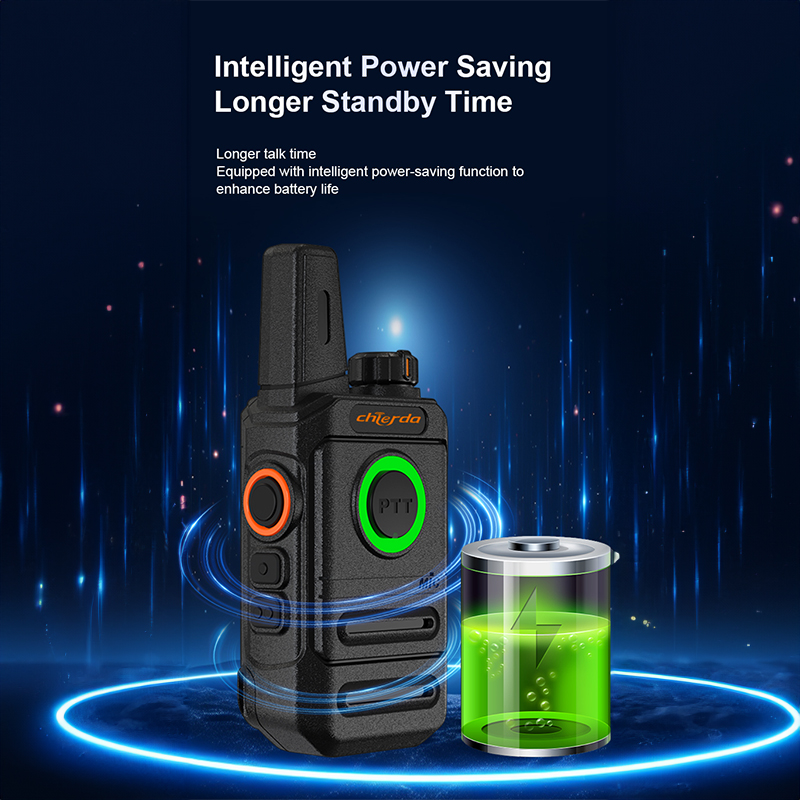

4. Battery-Saving Function

The TC28 supports 1000mAh and 2400mAh battery configurations.

Its battery-saving function helps reduce power consumption and extend operating time.

Actual working time depends on battery configuration and usage conditions.

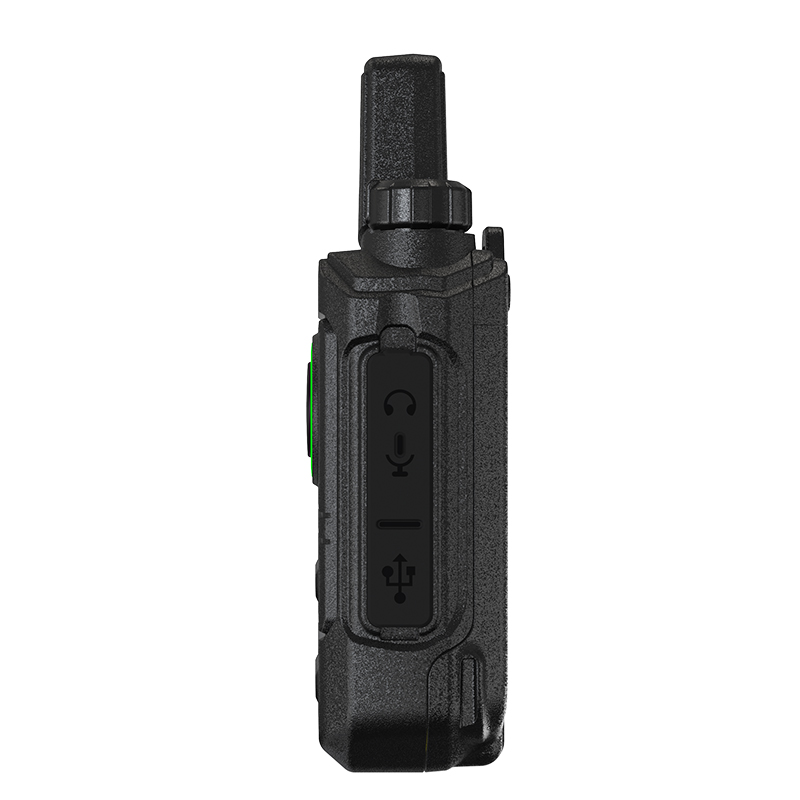

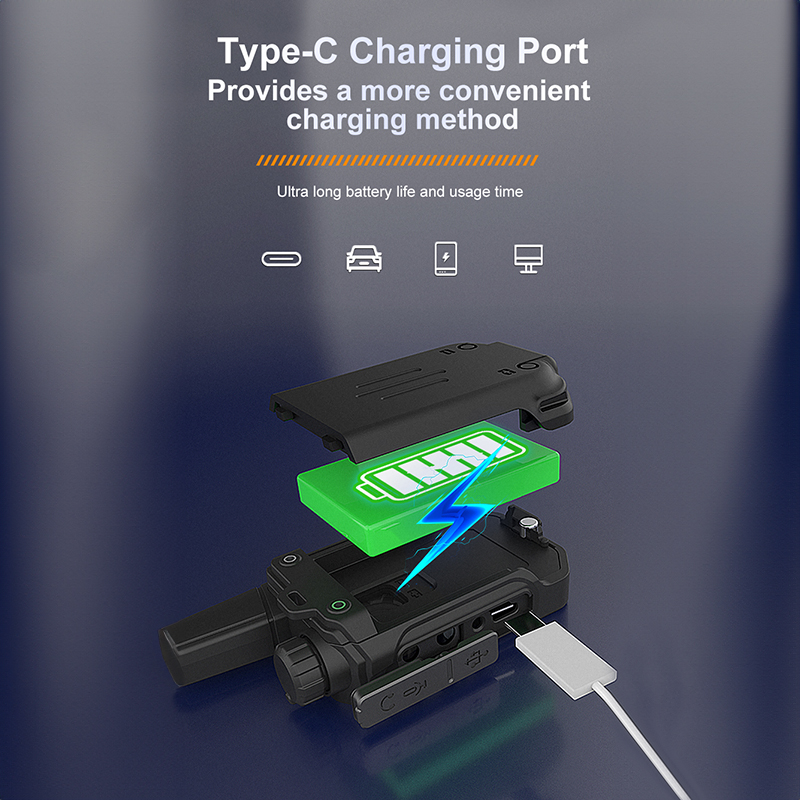

5. Type-C Charging

The TC28 features a Type-C charging port, providing convenient charging options for everyday use.

6. Compact and Lightweight Design

The TC28 is designed to be small and portable. Its PC housing provides a compact form factor for convenient carrying and handling.

This makes it suitable for users who need communication equipment throughout their working day.

Applications

The Chierda TC28 portable two-way radio is designed for communication in various commercial and service environments, including:

  • Restaurants
  • Salons and barbershops
  • Clubs and entertainment venues
  • Hotels and hospitality businesses
  • Retail stores
  • Commercial service teams
  • Staff coordination and daily operations

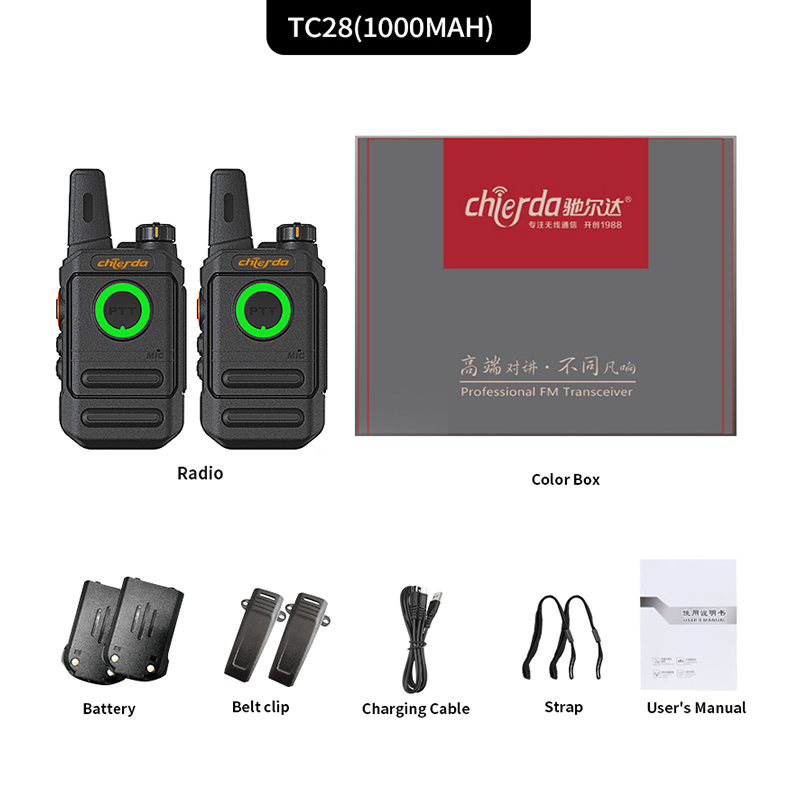

Standard Package Contents

whats in the Box

The standard TC28 package includes:

  • Radio × 2
  • Battery × 2
  • Belt Clip × 2
  • Charger × 2
  • Strap × 2
  • User’s Manual × 1







Features
Features

Technical Specifications

General

  • Model: Chierda TC28
  • Radio Type: Portable Two Way Radio
  • Frequency Range: VHF 136–174MHz / UHF 400–480MHz
  • Channel Spacing: 16 (as provided; please confirm)
  • Memory Channel: 12.5KHz / 25KHz (as provided; please confirm)
  • Rated Voltage: 3.7V DC
  • Battery Capacity: 1000mAh / 2400mAh
  • Frequency Sensitivity: ±2.5ppm
  • Antenna Impedance: 50Ω
  • Dimensions: 83 × 54 × 32mm (without antenna)

Transmitter

  • Output Power: 2W
  • Current: ≤1.3A
  • Modulation Distortion: <5% (300–3000Hz)
  • Maximum Frequency Deviation: ≤5KHz / ≤2.5KHz
  • CTCSS Frequency Deviation: 0.75KHz ±50Hz
  • Remanent Radiation: ≤7μW
  • Modulation Mode: FM
  • Remanent Modulation: ≤-35dB

Receiver

  • RF Sensitivity: ≤0.25μV / ≤0.3μV
  • Silent Sensitivity: ≤0.2μV / ≤0.25μV
  • Audio Frequency Power: ≥300mW
  • Audio Distortion: ≤5%
  • Modulation Receiver Bandwidth: ±7KHz
  • Spurious Rejection: ≥55dB
  • Selectivity: ≥65dB
  • Intermodulation: ≥60dB
