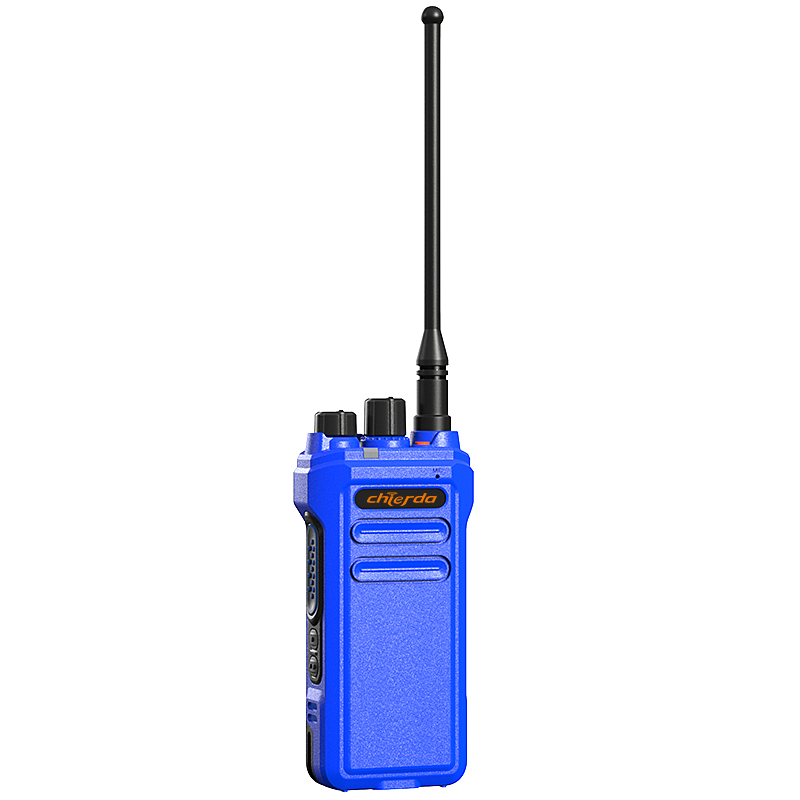

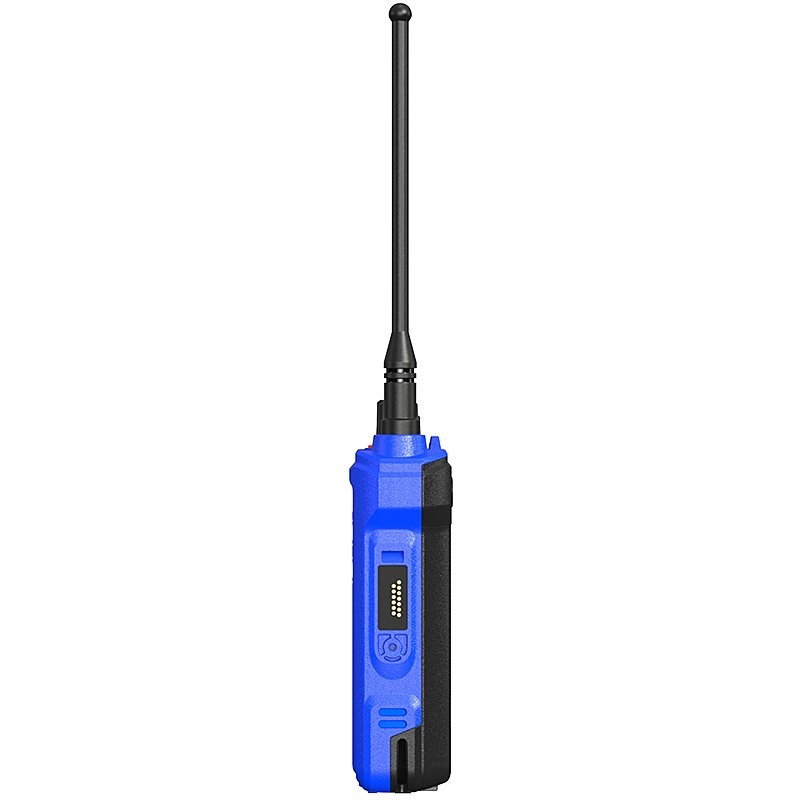

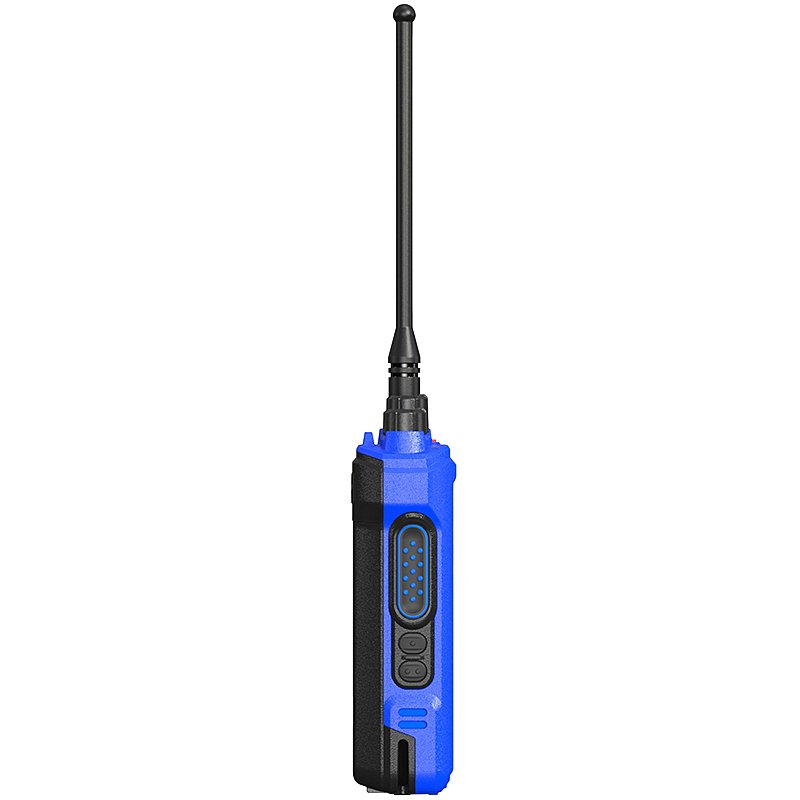

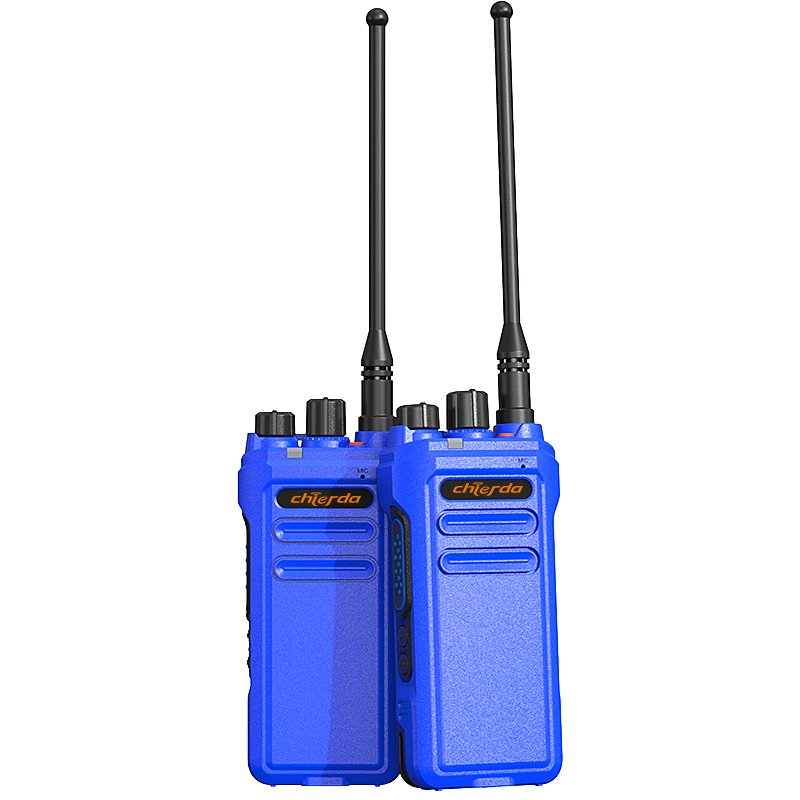

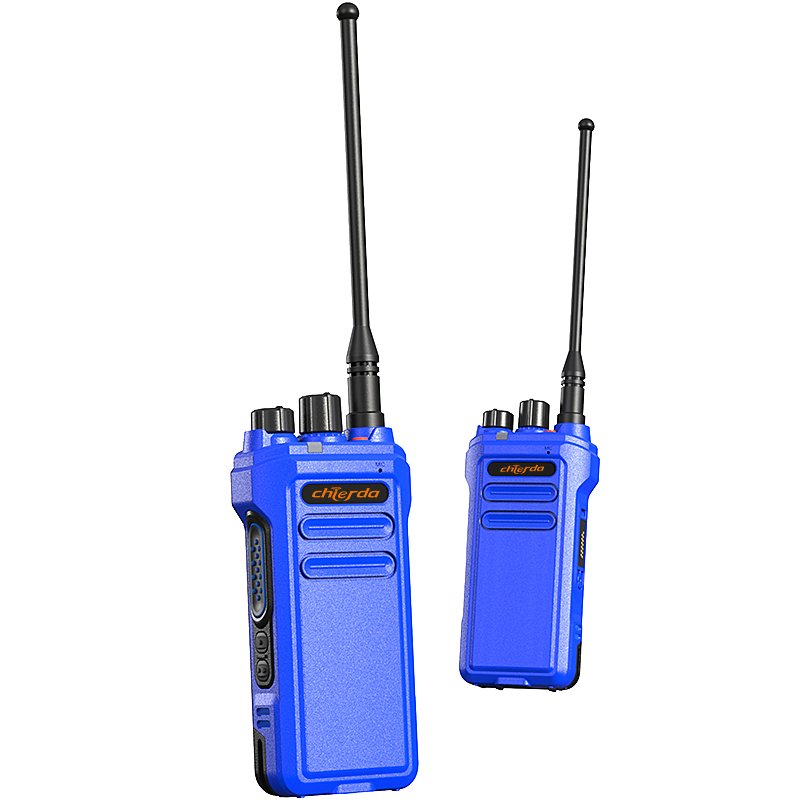

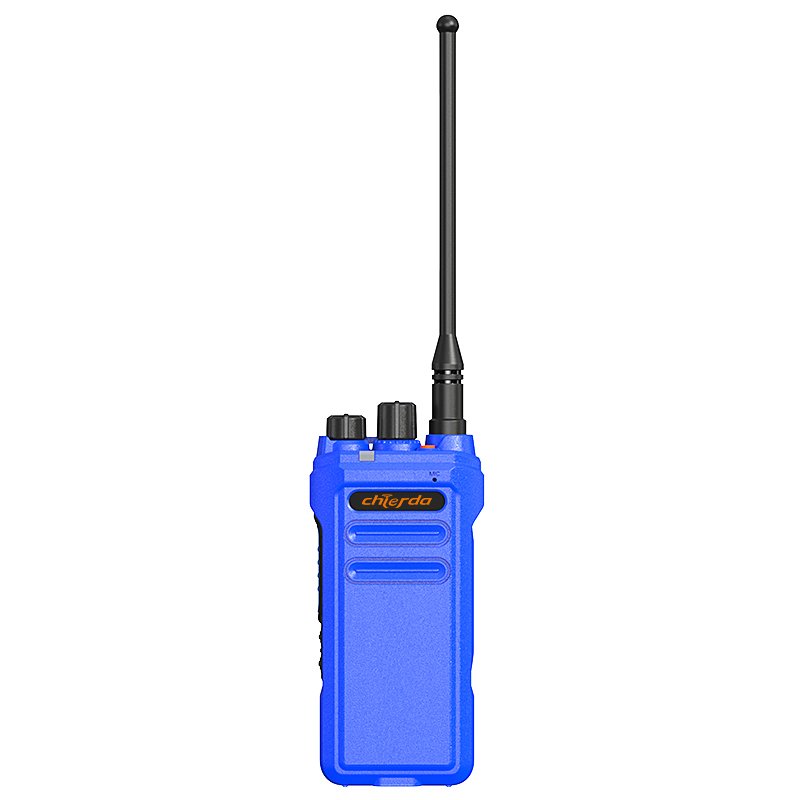

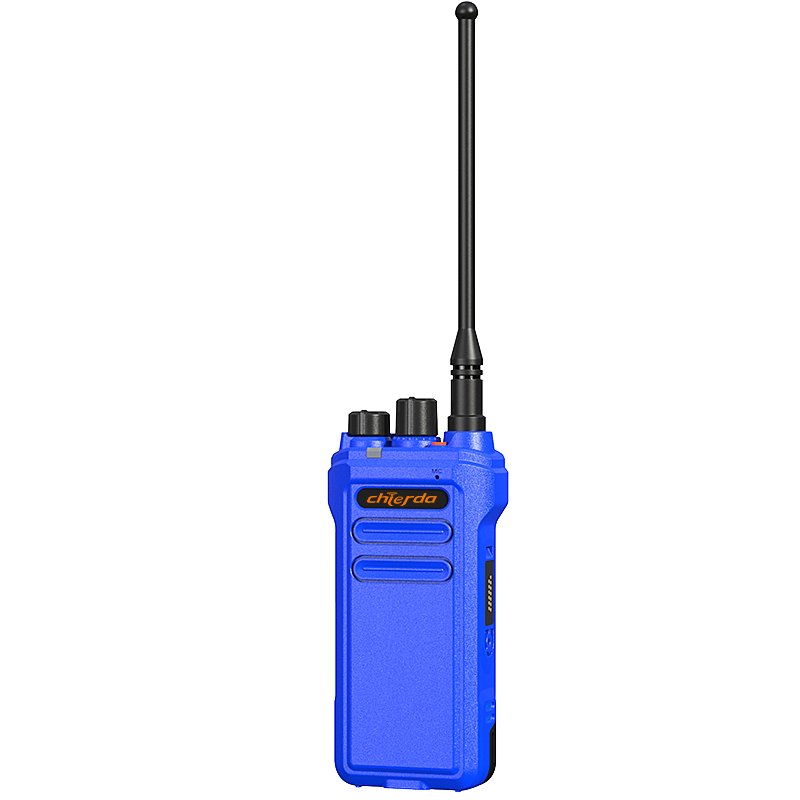

Chierda TC328D Explosion-proof DMR Radio

1. Explosion-proof DMR Radio, Ex ib II B T4 Gb

2. IP67 Waterproof

3. Recording and Playback Function

4. Remote Monitoring

5. ARC4 & AES256 Encryption

6. VOX Hands-free Function, Voice Compander

7. Type-C Charging

8. VCH/EN Voice

Product Overview

Features

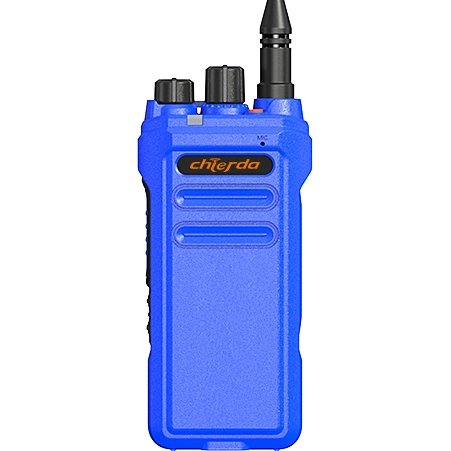

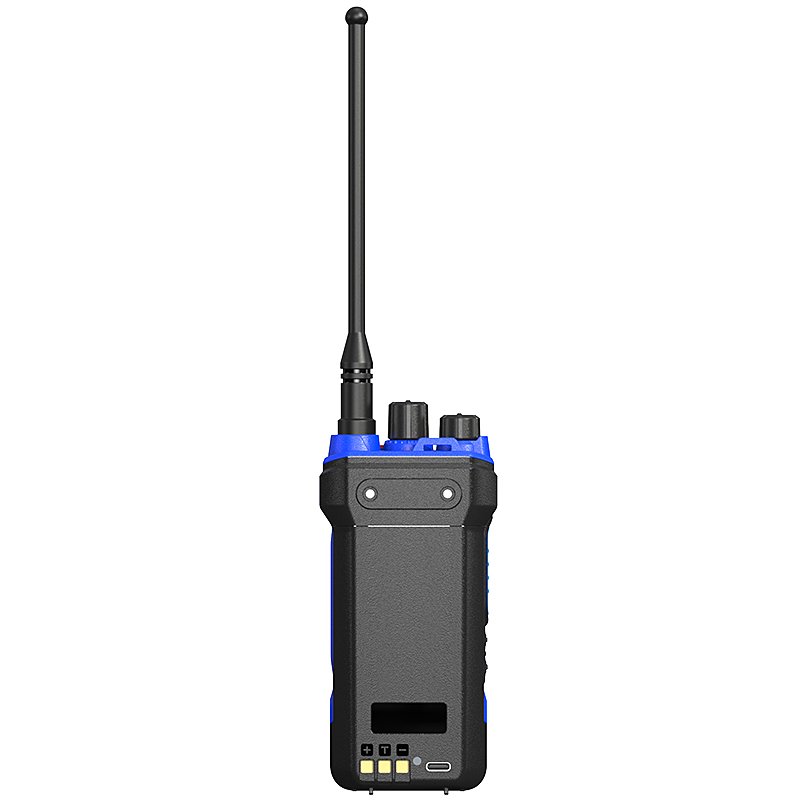

Chierda TC328D is an explosion-proof DMR radio built for workers in dangerous environments such as oil and gas facilities and mines. It is certified intrinsically safe to Ex ib IIB T4 Gb, which permits its use in specified explosive gas atmospheres. The radio pairs a safety-focused structural design with a durable body. A high power speaker delivers clear sound in noisy work areas, and the 2800mAh Li-ion battery supports extended working time.

The radio operates in analog FM mode and digital DMR mode following the ETSI TS 102 361-1, -2, -3 protocol, and covers VHF 136-174MHz and UHF 400-480MHz. With 128 channels organized in 8 zones, it provides enough capacity for daily dispatch and team communication.



Key Features

  • Ex ib IIB T4 Gb Intrinsic Safety Certification: The TC328D obtains explosion-proof certificates through rigorous testing, which reduces the risk of accidents in hazardous areas and protects users.
  • IP67 Waterproof and Dustproof: With an IP67 rating, the radio can submerge in water 1 meter deep for 30 minutes. It resists water splashes and wet weather, and it survives temporary submersion.
  • More Than 500 Hours of Recording and Playback: The radio stores more than 500 hours of recordings and supports playback, so teams can review communications whenever needed.
  • Remote Monitoring: One beep means the function starts. Two beeps mean the function ends. Operation is simple.
  • ARC4 and AES256 Encryption: Encryption protects voice transmission on digital channels.
  • Battery Level Broadcasting: The radio announces the current power level and sends an active notification when the battery is running low.
  • VOX Hands-free and Voice Compander: The VOX function enables hands-free transmission without pressing the PTT key. The voice compander keeps speech clear.
  • Type-C Charging: The Type-C charging interface accepts commonly available cables.
  • Chinese and English Voice Prompts (VCH/EN): Voice announcements in two languages serve teams across different regions.

Features

What’s in the Box

  • Radio × 1
  • Battery × 1
  • Belt clip × 1
  • Desk charger × 1
  • Strap × 1
  • Antenna × 1
  • User’s manual × 1

Functions and Performance

  • Clear Audio in Noisy Work Areas: The high power speaker delivers an audio output of 500mW or above, and the voice compander keeps speech clear during transmission.
  • Active Battery Management: The 2800mAh Li-ion battery supports longer operation during shifts. When power runs low, battery level broadcasting sends an active notification so staff can charge or swap the battery before communication drops.
  • Records of Important Communications: Storage for more than 500 hours of recordings with playback support lets teams review work instructions and verify voice communications whenever needed.
  • Remote Monitoring: The function allows a radio to be monitored remotely. One beep turns it on, and two beeps turn it off, so supervisors can check field conditions without complicated settings.
  • Encrypted Communication: ARC4 and AES256 encryption protect voice communication from interception, which matters in sensitive sites such as oil and gas operations.
  • Hands-free Operation: The VOX function supports hands-free transmission, so workers can talk without putting down their tools to hold the radio.
  • Dual-mode Operation: The radio works in analog FM mode and digital DMR mode (ETSI TS 102 361-1, -2, -3), so it fits existing analog systems and digital dispatch networks.
  • Convenient Charging: The Type-C charging interface lets the radio be charged with commonly available cables.

Applications

The TC328D suits hazardous work sites, including oil and gas facilities with explosive gas atmospheres and mining operations that require intrinsically safe radios rated Ex ib IIB T4 Gb.



Features



Features
Features

Technical Specifications

General

  • Frequency Range: UHF 400-480MHz; VHF 136-174MHz
  • Channels: 128 (8 zones)
  • Channel Spacing: 12.5kHz / 25kHz
  • Antenna Impedance: 50Ω
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Operating Voltage: DC 7.4V
  • Battery: 2800mAh Li-ion
  • Dimensions (excluding antenna and knob): 126.5 × 57 × 37.9mm

Transmitter

  • Output Power: 5W
  • Frequency Stability: ±1.0ppm
  • Adjacent Channel Power: -60dBm @ 12.5kHz
  • Modulation Mode: FM
  • Modulation Limits: 2.5kHz @ 12.5kHz; 5kHz @ 25kHz
  • Audio Distortion: ≤5%
  • Vocoder Type: AMBE+2™
  • 4FSK Digital Modulation: 12.5kHz (data only); 12.5kHz (data + voice)
  • Digital Protocol: ETSI TS 102 361-1, -2, -3
  • FM Noise: -40dBm @ 12.5kHz
  • Spurious Emissions: < -36dBm below 1GHz; < -30dBm above 1GHz

Receiver

  • Analog Receiver Sensitivity: 0.35μV / -116dBm (20dB SINAD); 0.22μV / -120dBm (typical)
  • Digital Receiver Sensitivity: 0.3μV / -117.4dBm (BER 5%); 0.7μV / -110dBm (BER 1%)
  • Blocking: 84dB
  • Adjacent Channel Selectivity: TIA603C: -65dB; ETSI: -60dB
  • Audio Frequency Power: ≥500mW
  • Audio Response: +1dB ~ -3dB
  • Receiver Spurious Emission: ≤-57dBm @ 30MHz1GHz; ≤-47dBm @ 1GHz12.75GHz
  • Audio Distortion: ≤3% (typical)
