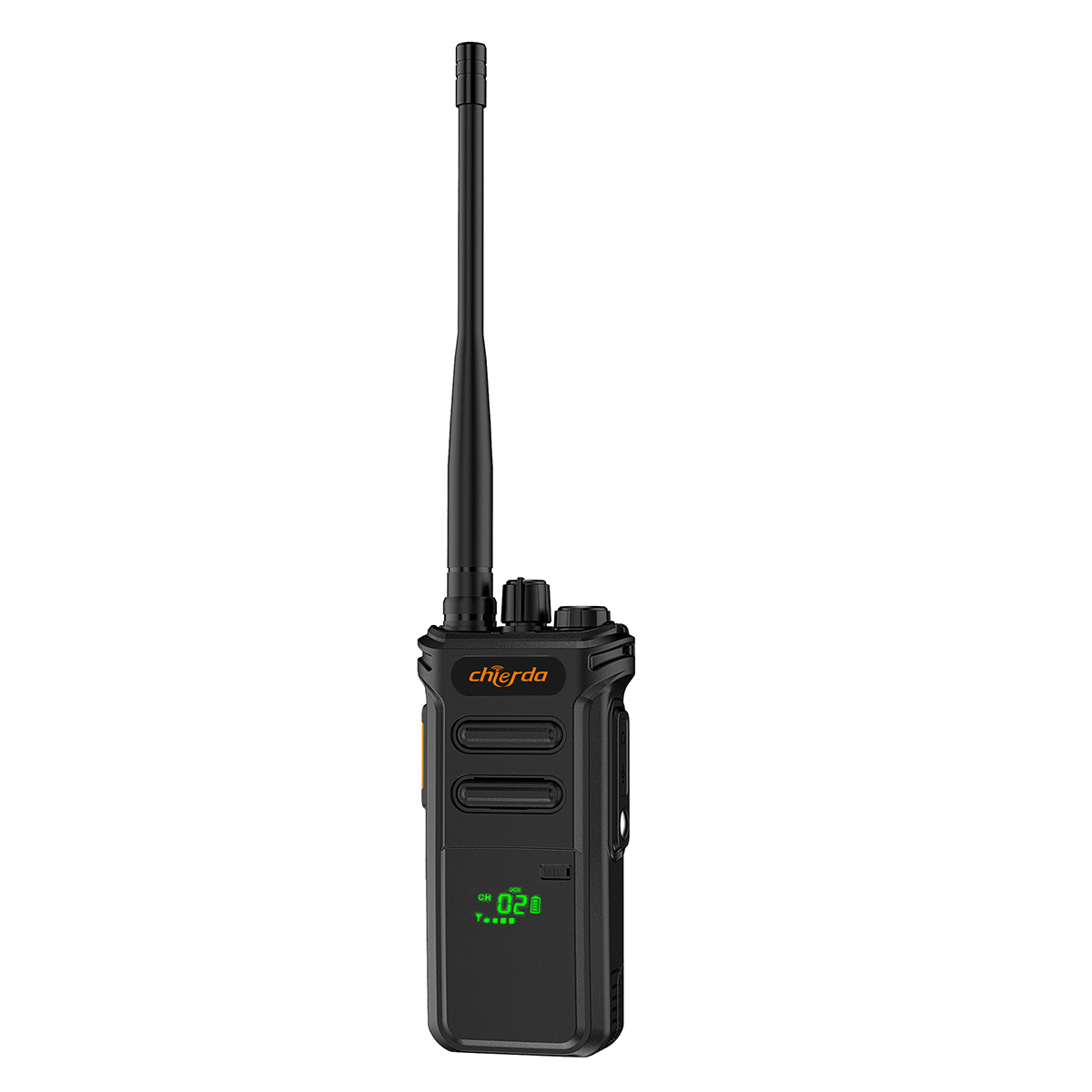

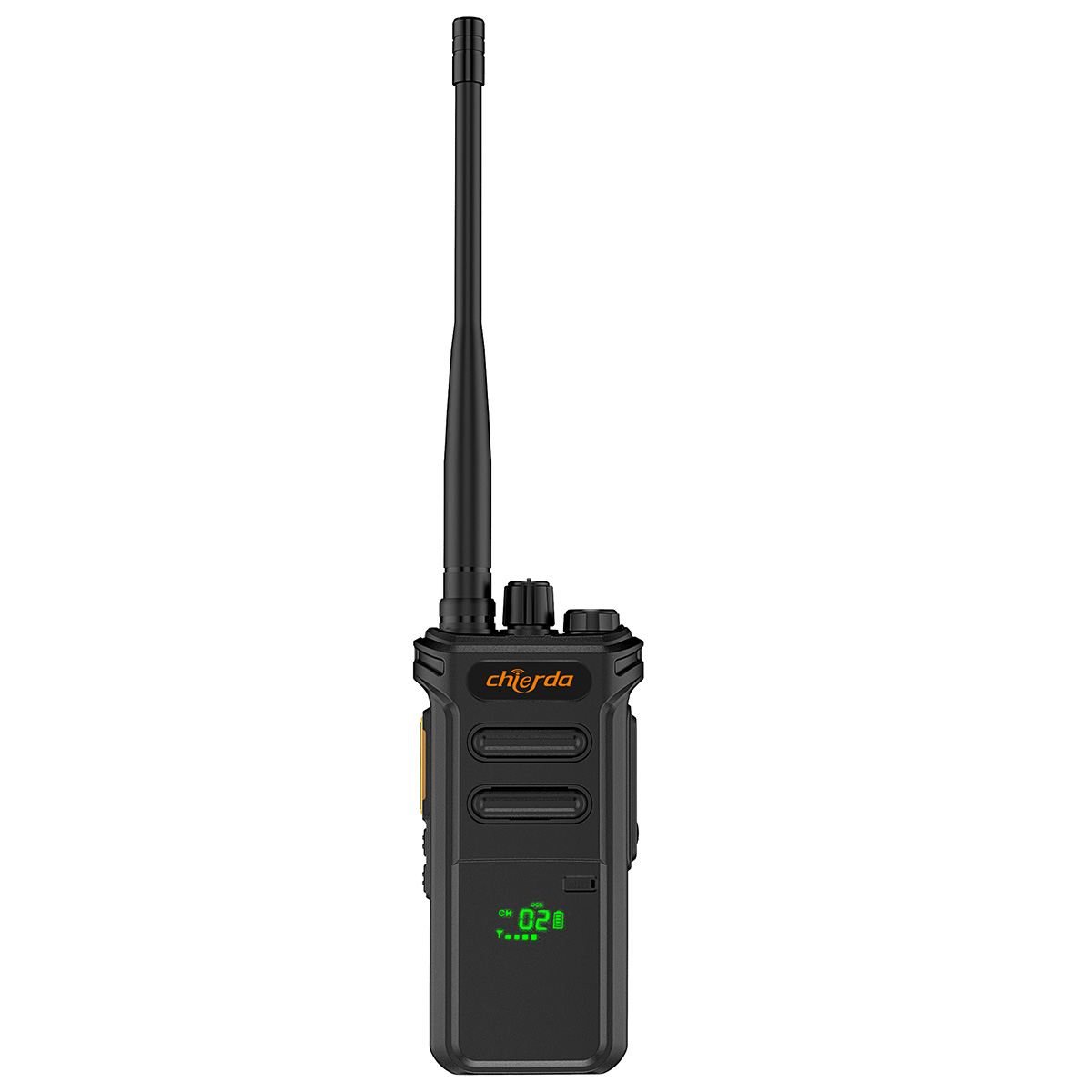

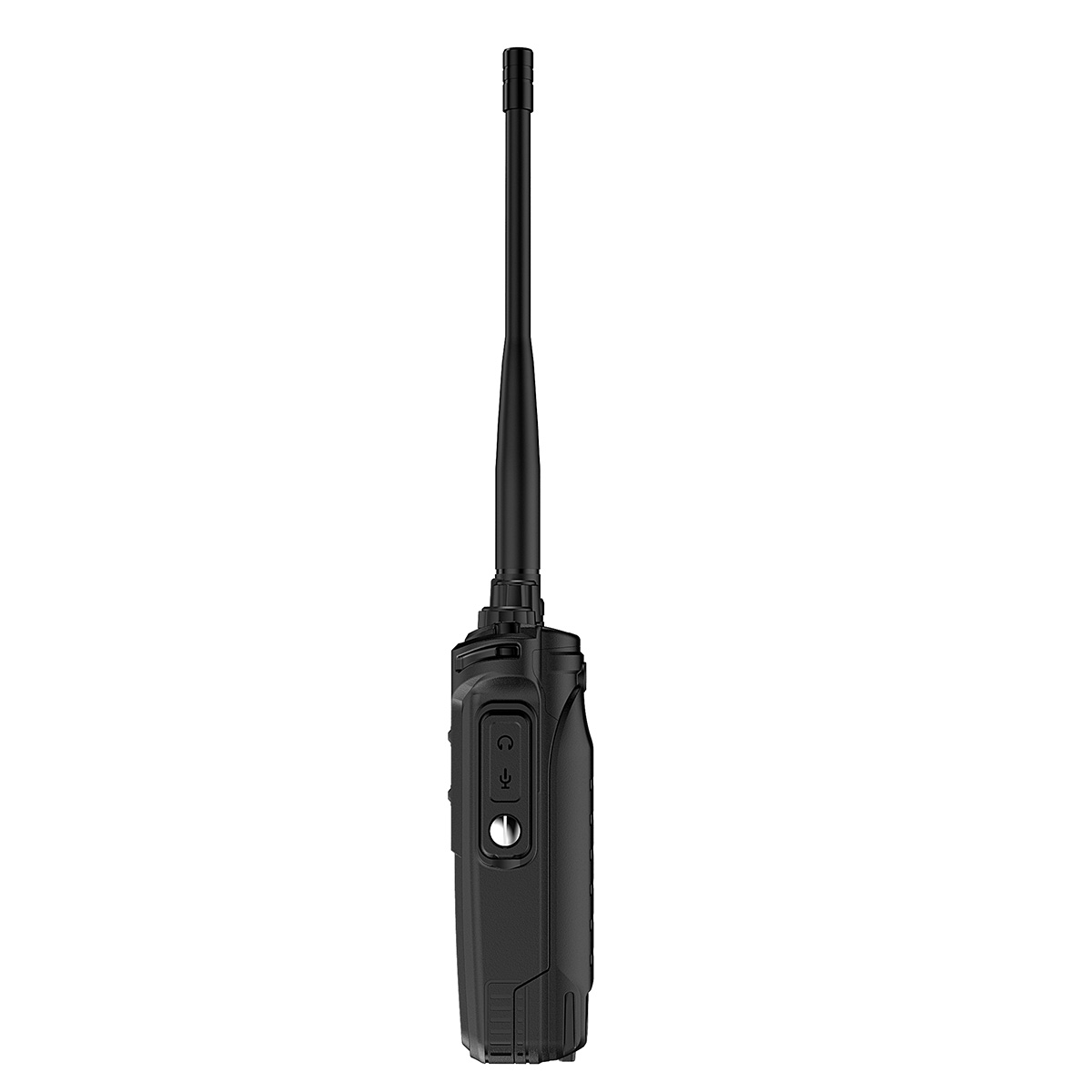

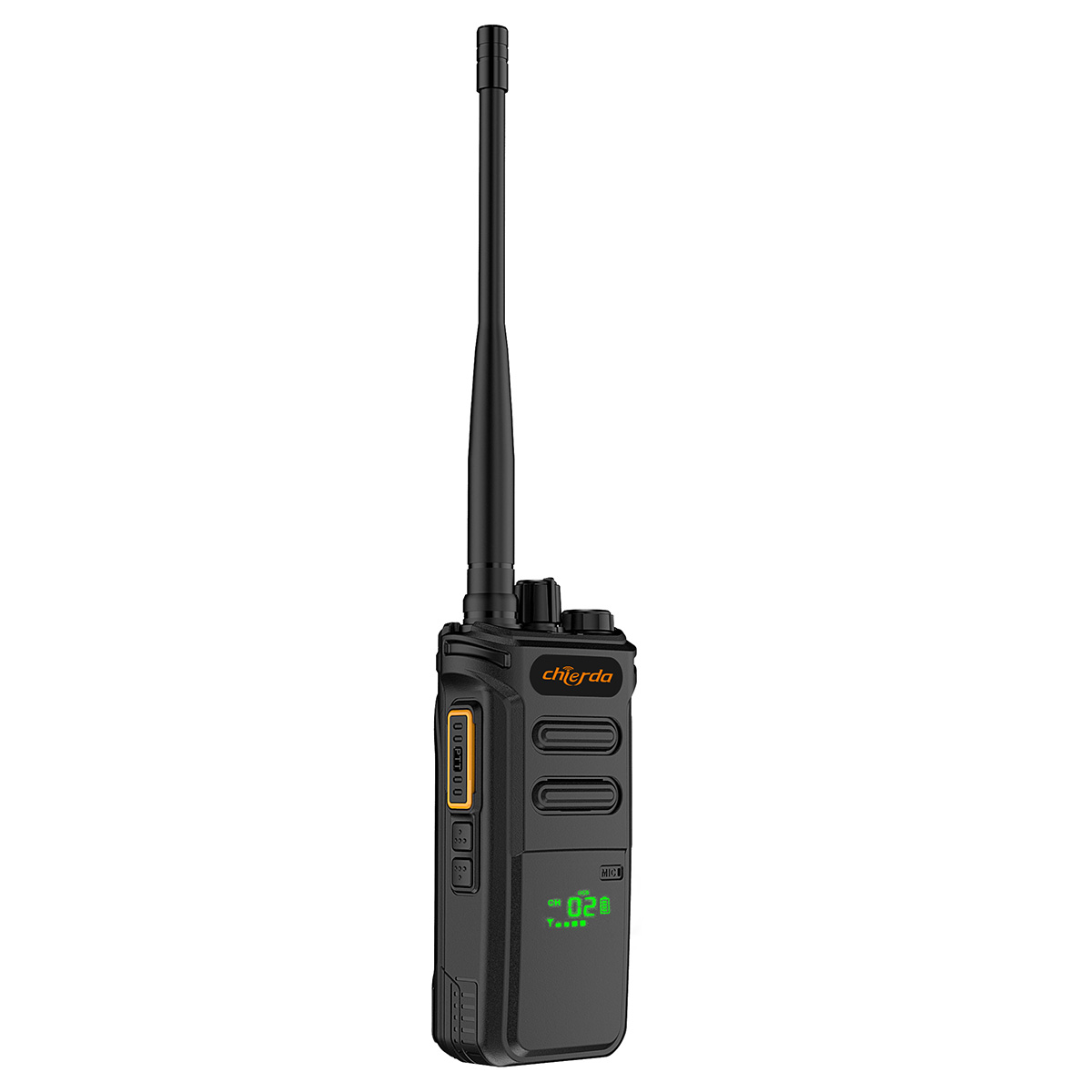

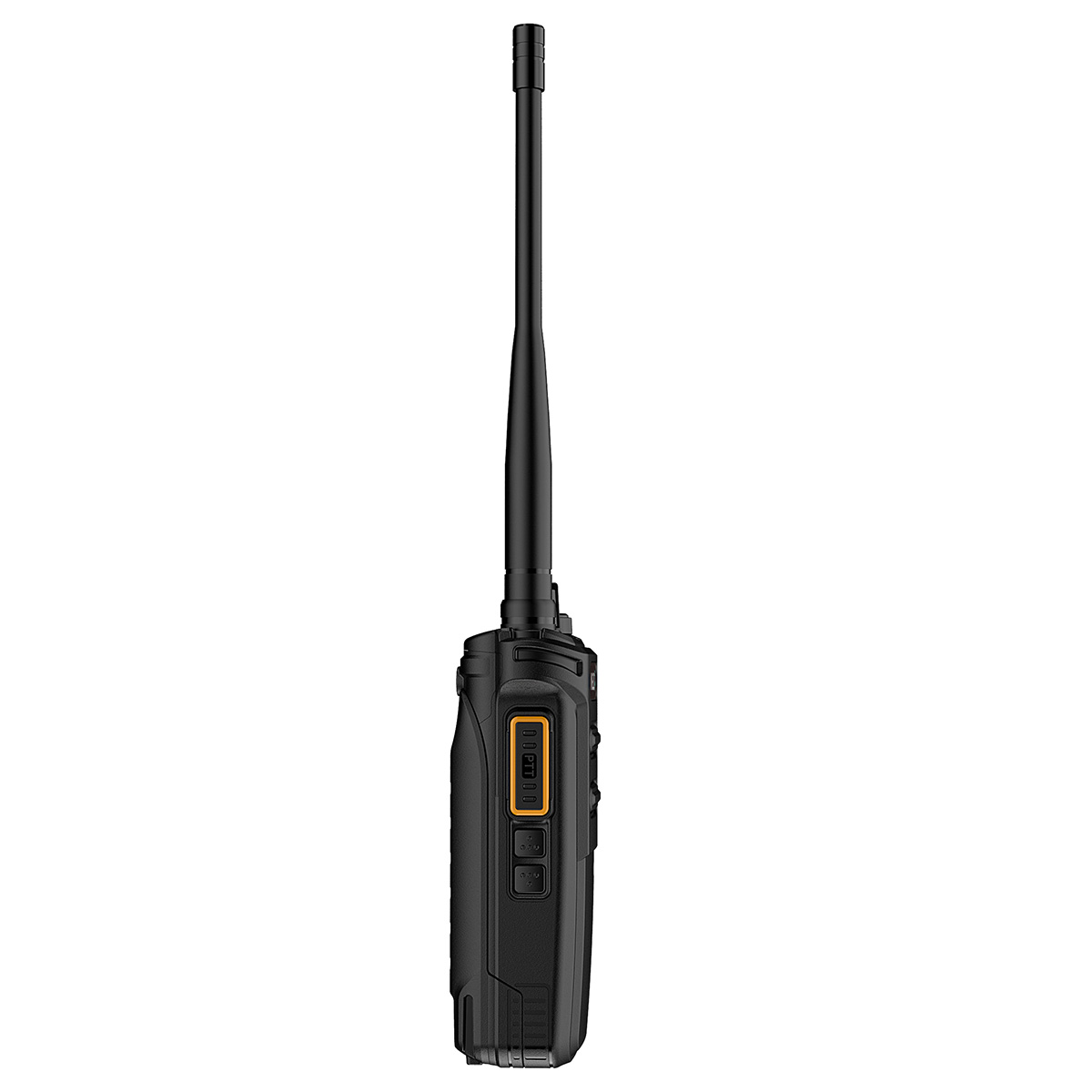

Chierda TC358plus walkie talkie features high power and powerful signal penetration. It is durable and rugged, shockoroof and drop-resistant. You can use it in harsh environments, such as construction sites.
Wide Coverage:
With a built-in antenna and high output power, TC358plus can cover a long range. It can reach 1-10km on ideal occasion.

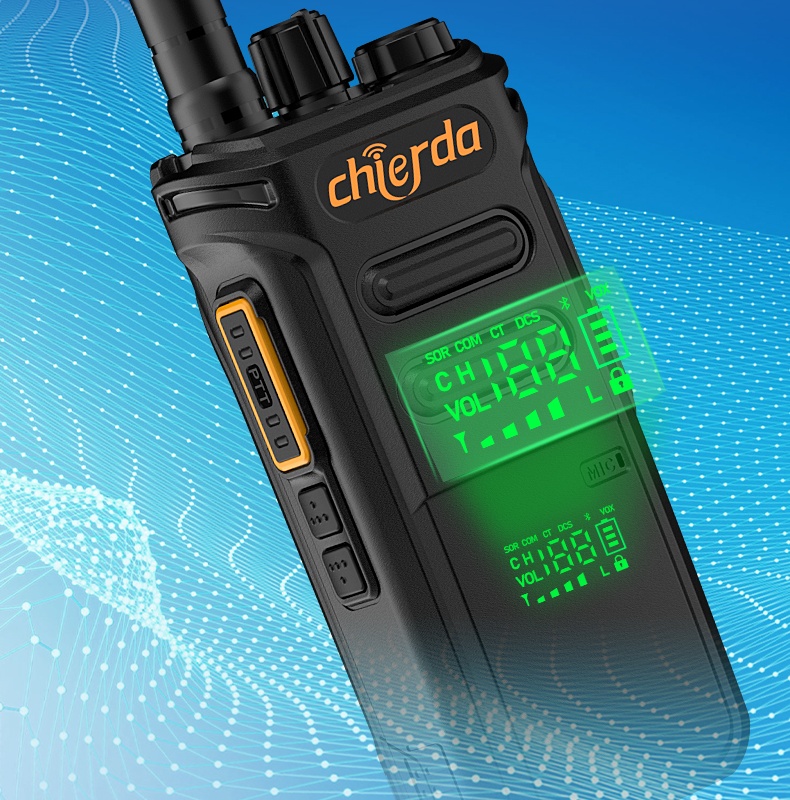

Hidden Display:
TC358plus walkie talkie is equipped with a LED hidden display. You can easily get the information of battery life, channel, and other.

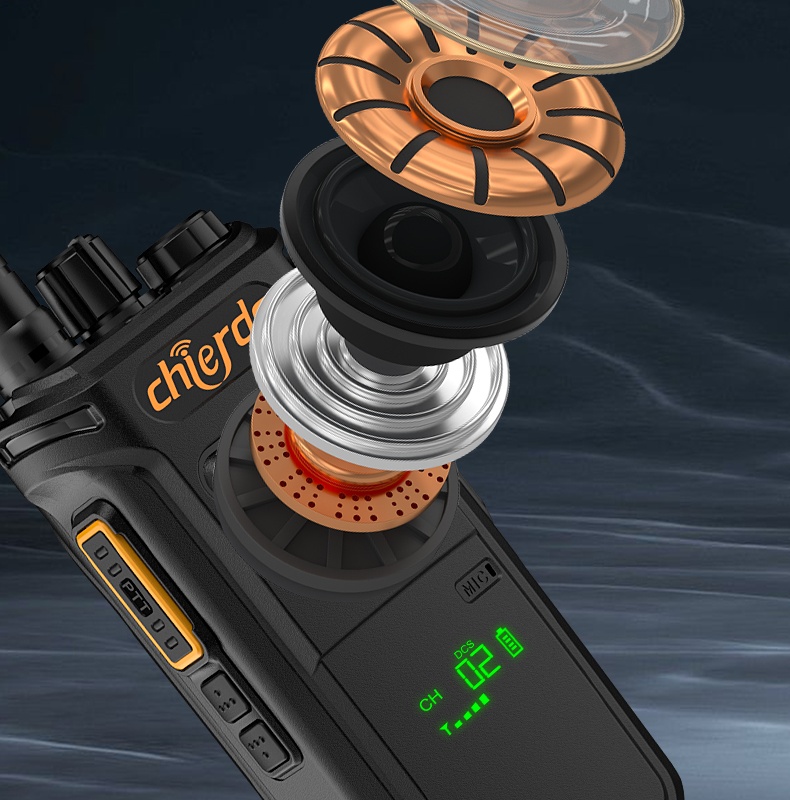

Anti-magnetic Speaker:
Anti-magnetic speaker can greatly enhance the penetration ability of TC358plus, making communication much clearer.
|
SPECIFICATION |
|
|
Frequency Range |
136-174MHz or 400-480MHz |
|
Channel Spacing |
16 |
|
Memory Channel |
12.5 KHz / 25 KHz |
|
Rated Voltage |
7.4V DC |
|
Battery Capacity |
2500mAh |
|
Frequency Sensitivity |
± 2.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
119x54x37mm |
|
TRANSMITTER |
|
|
Output Power |
10W |
|
Current |
≤2.5A |
|
Modulation Distortion |
<5%(300-3000Hz) |
|
Maximum Frequency |
≤ 5KHz/≤ 2.5KHz |
|
CTCSS Frequency |
0.75KHz± 50Hz |
|
Remanent Radiation |
≤7uW |
|
Modulation Mode |
16K∅F3E/11K∅F3E |
|
Remanent Modulation |
≤-35dB |
|
RECEIVER |
|
|
RF Sensitivity |
≤ 0.25uV/ ≤ 0.3uV |
|
Silent Sensitivity |
≤0.2uV/≤0.25uV |
|
Audio Frequency Power |
≥500mW |
|
Audio Distortion |
≤5% |
|
Modulation Receiver |
±7KHz |
|
Spurious Rejection |
≥55dB |
|
Selectivity |
≥65dB |
|
Intermodulation |
≥60dB |

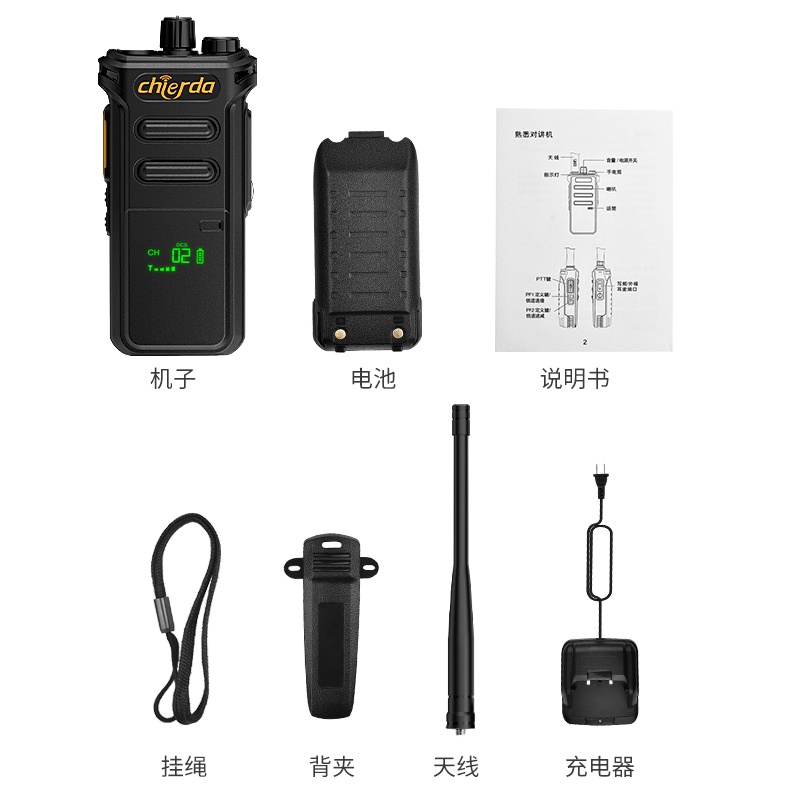

Whats in the Box
Product set
Radio*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User’s manual*1
