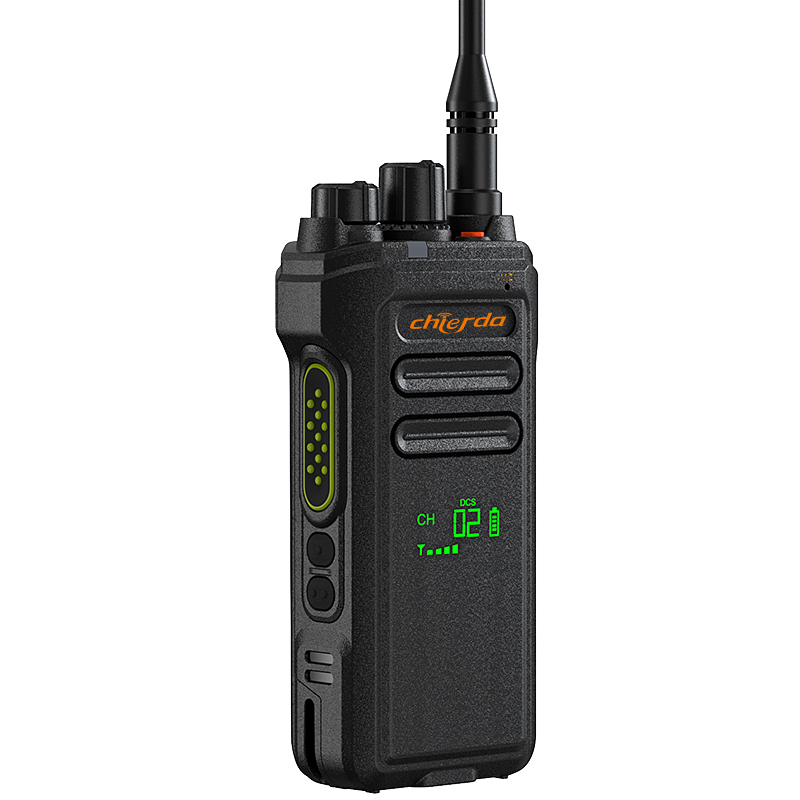

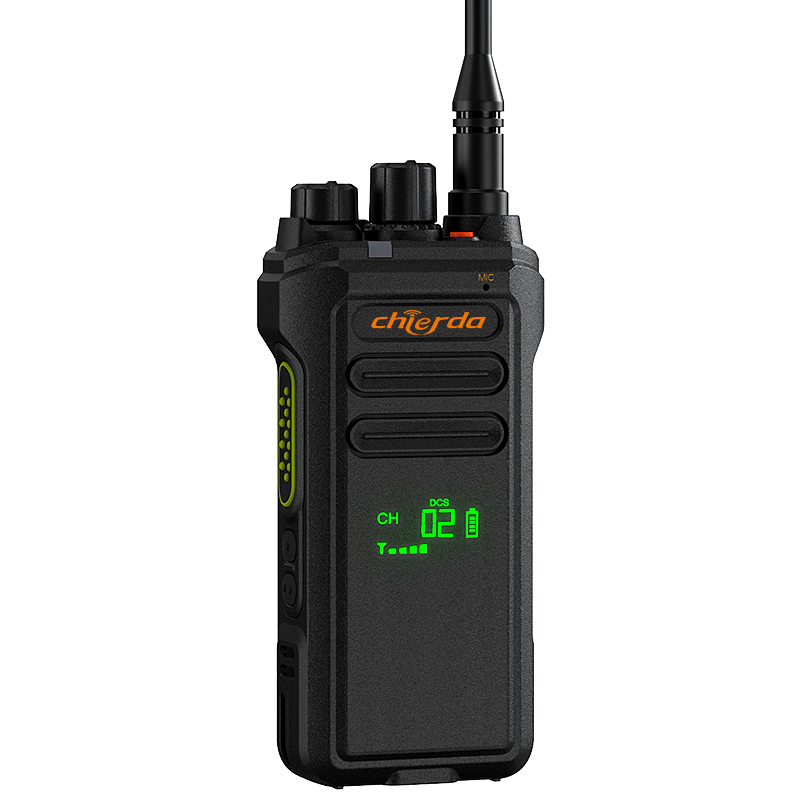

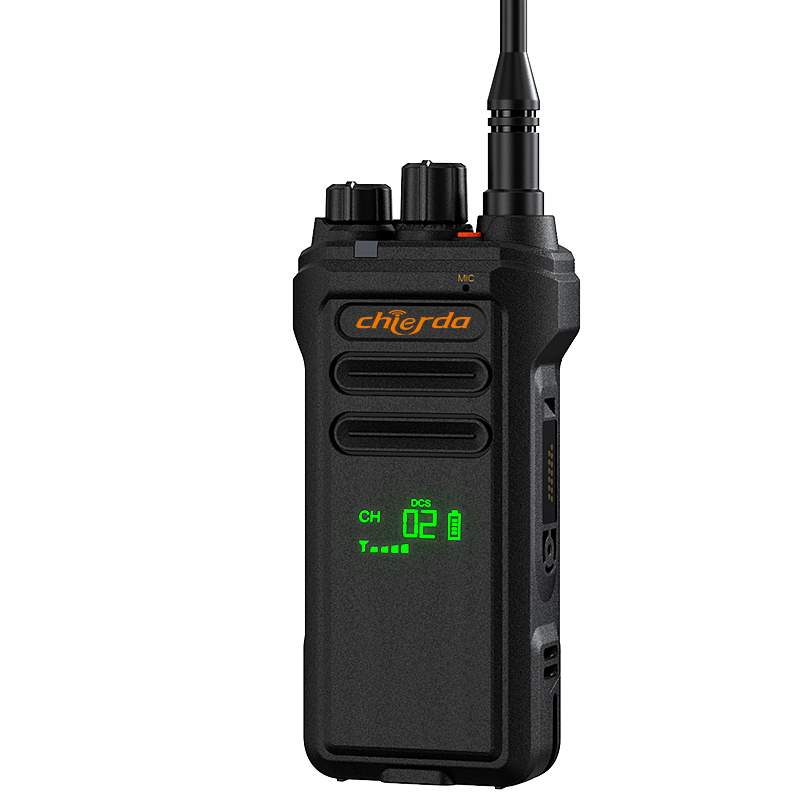

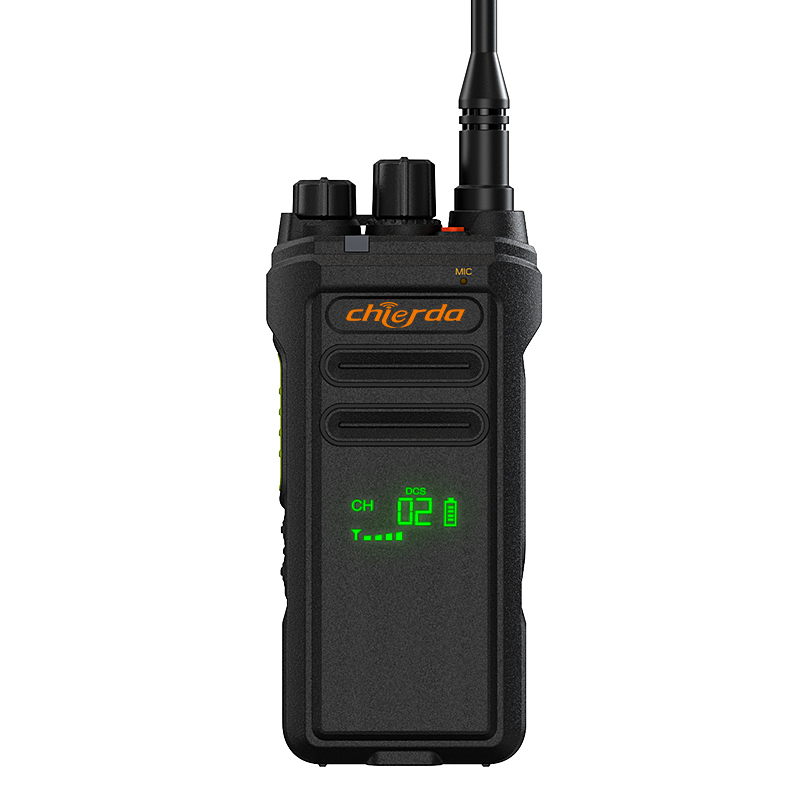

Chierda TC368plus High Power Waterproof Radio with Hidden Display supports long-distance communication and can easily connect with repeaters. solving communication problems among construction sites, large tourist attractions, and other large places. This radio can automatically recognize ambient noise. It can deal with noise more efficiently.

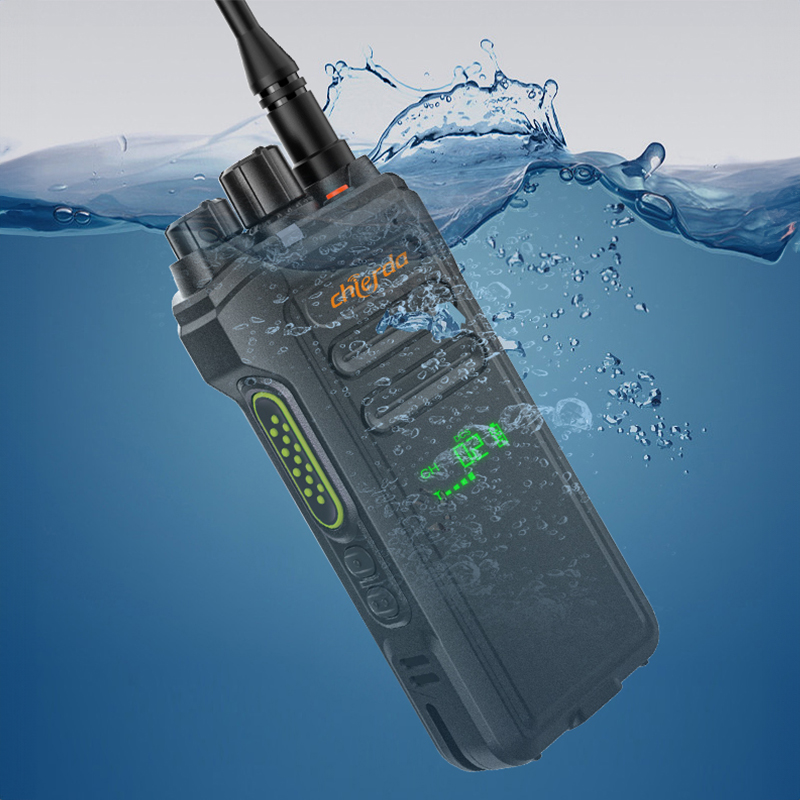

IP67 waterproof:
TC368 Plus has IP67 waterproof rating, which means it can be submerged in 1 meter depth of water for 30 minutes without any damage.
Two-way AI noise reduction:
Two-way AI noise reduction unique function makes sure your communication is anti-interference.

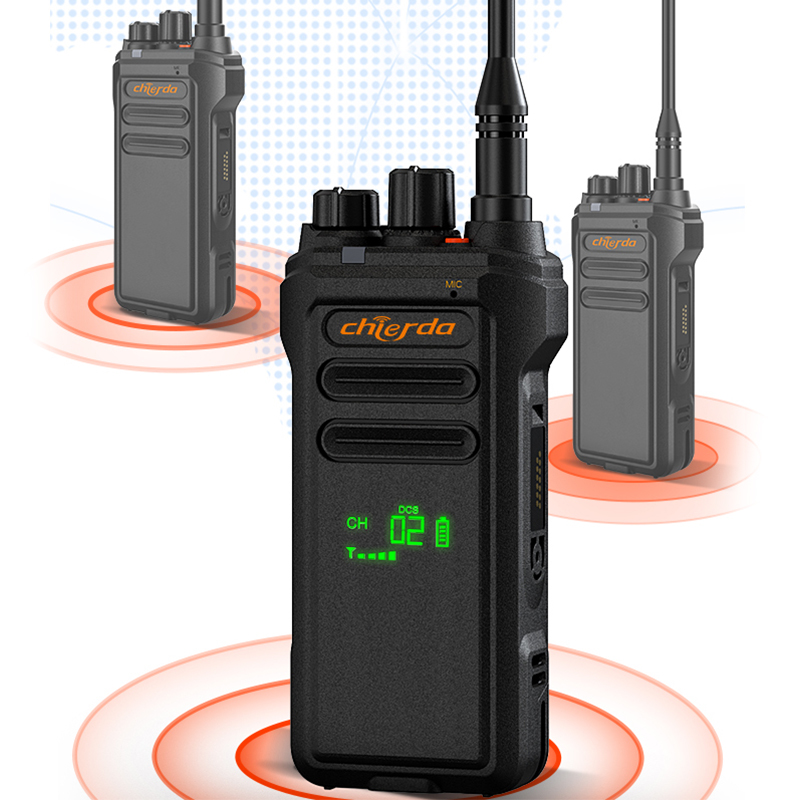

Group call:
One-key group call function greatly meets the needs of different occasions.
|
SPECIFICATION |
|
|
Frequency Range |
VHF:136-174MHz or |
|
Channel Spacing |
16 |
|
Memory Channel |
12.5 KHz / 25 KHz |
|
Rated Voltage |
7.4V DC |
|
Battery Capacity |
2800mAh |
|
Frequency Sensitivity |
± 2.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
126.5×66.6×37.9mm |
|
TRANSMITTER |
|
|
Output Power |
10W |
|
Current |
≤2.5A |
|
Modulation Distortion |
<5%(300-3000Hz) |
|
Maximum Frequency |
≤ 5KHz/≤ 2.5KHz |
|
CTCSS Frequency |
0.75KHz± 50Hz |
|
Remanent Radiation |
≤7uW |
|
Modulation Mode |
16KøF3E/ 11KøF3E |
|
Remanent Modulation |
≤-35dB |
|
RECEIVER |
|
|
RF Sensitivity |
≤ 0.25uV/ ≤ 0.3uV |
|
Silent Sensitivity |
≤0.2uV/≤0.25uV |
|
Audio Frequency Power |
≥500mW |
|
Audio Distortion |
≤5% |
|
Modulation Receiver |
±7KHz |
|
Spurious Rejection |
≥55dB |
|
Selectivity |
≥65dB |
|
Intermodulation |
≥60dB |

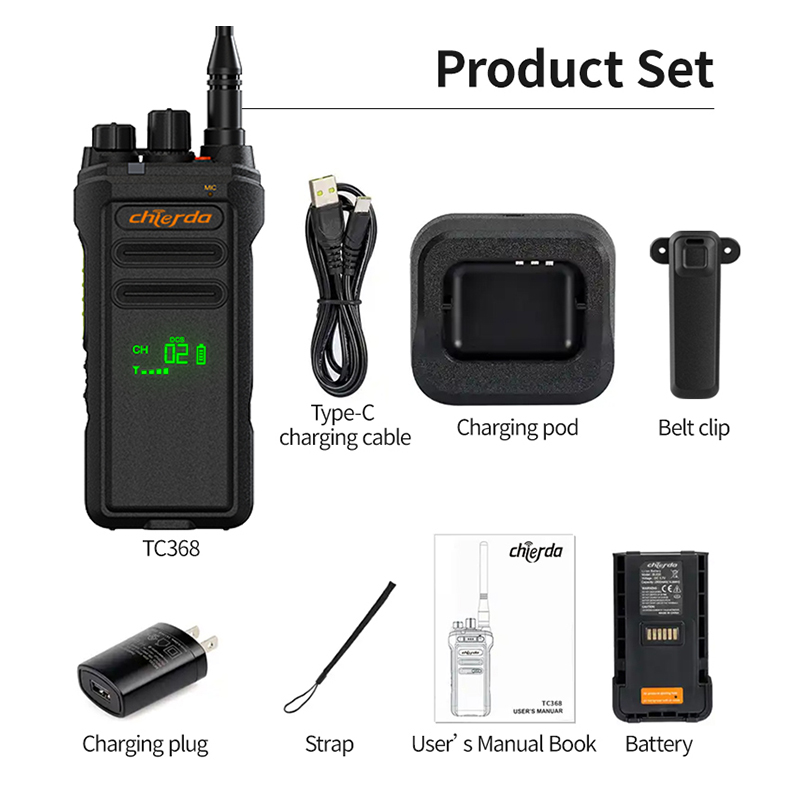

Whats in the Box
Product set
Radio*1
Antenna *1
Strap*1
Type-C charging cable*1
User’s manual book*1
Belt clip*1
Charging plug*1
Battery*1
Charging pod*1
