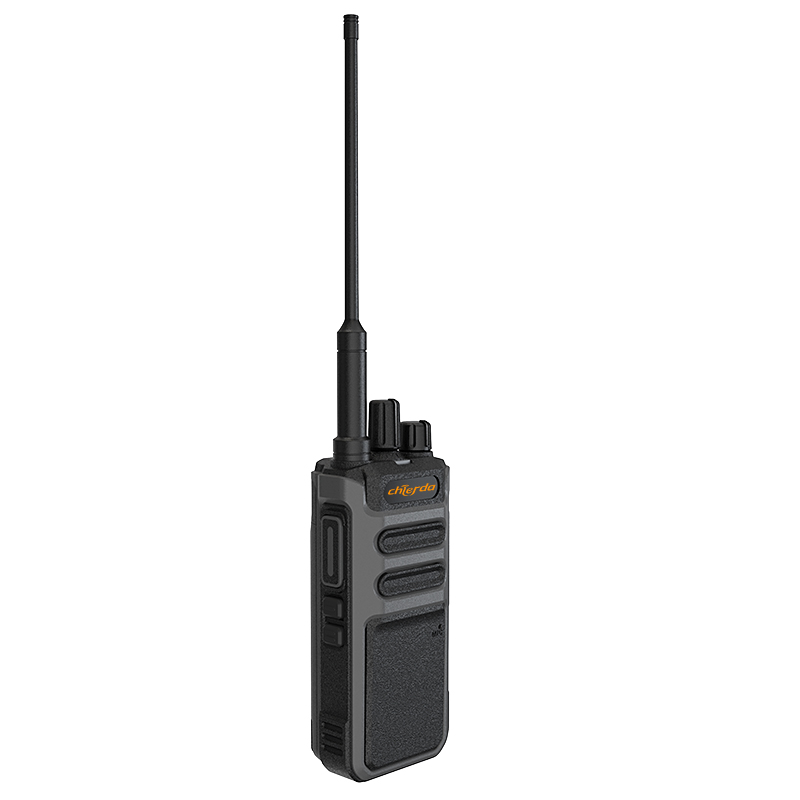

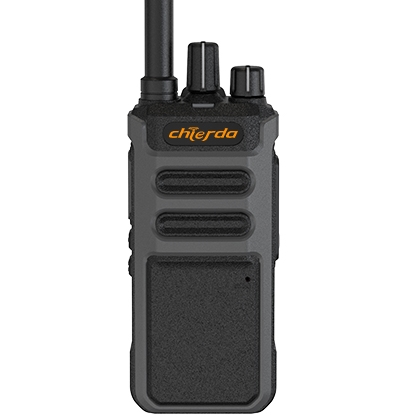

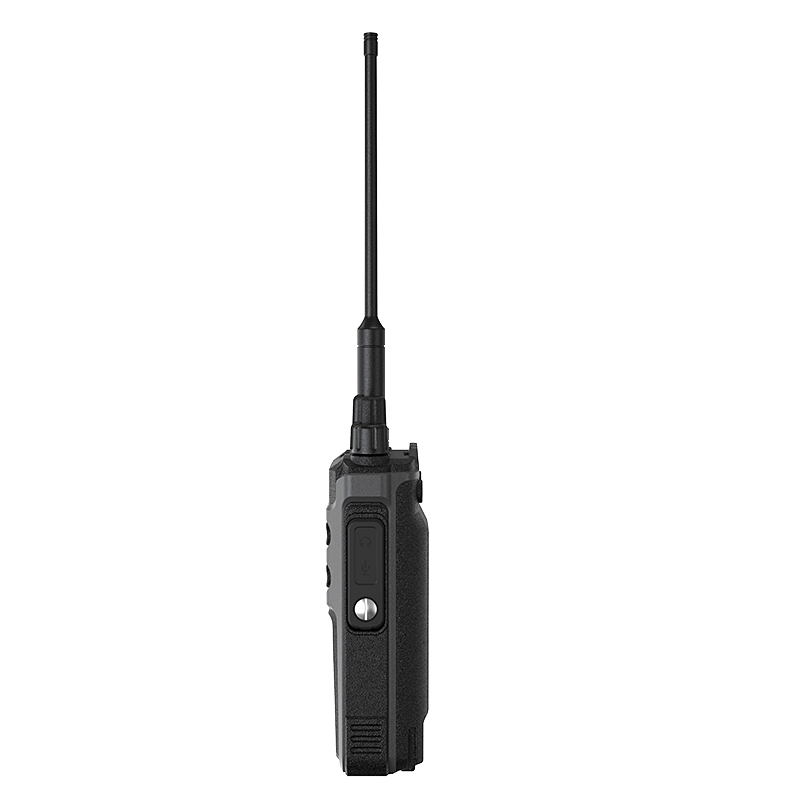

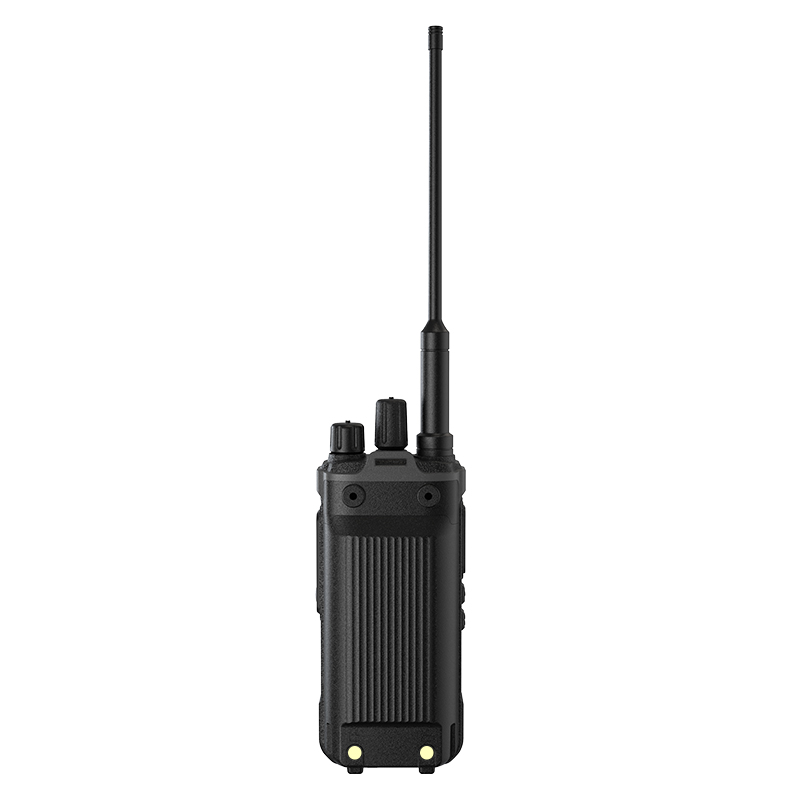

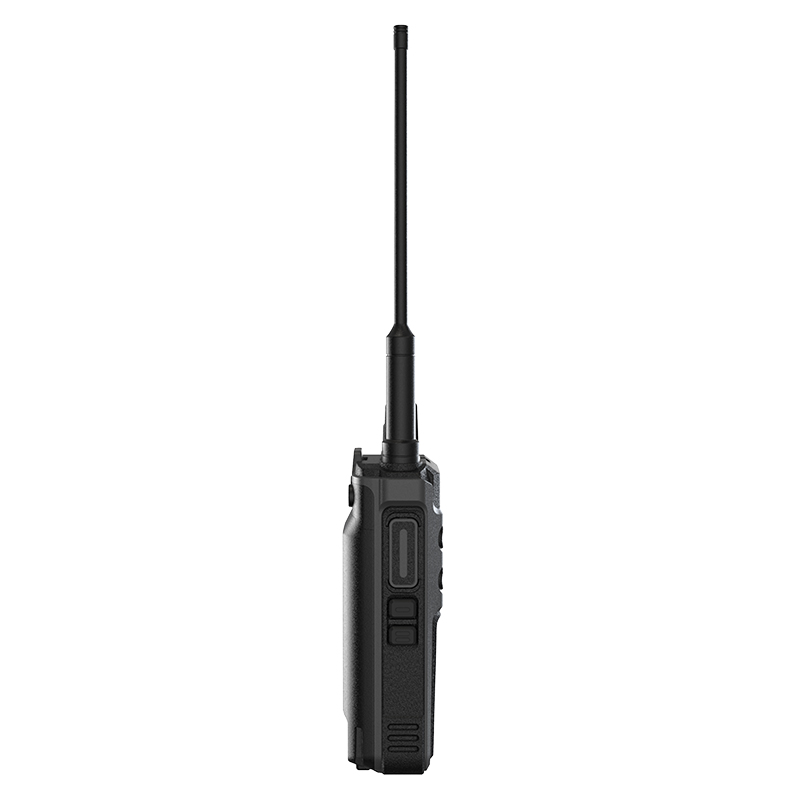

Chierda TC378 Long Range Rugged Two Way Radio

1. High Power, Long Range

2. One-key Group Call

3. Wireless Copy Function

4. One-key Frequency Pairing

5. Powerful Clarity

6. VOX Hands-free Function

Product Overview

Features

The Chierda TC378 is a high power handheld two way radio with 10 W output and a 2600 mAh rechargeable battery. Each unit operates on a single band, available as a VHF version (136-174 MHz) or a UHF version (400-480 MHz). The housing uses ABS material in a black and grey mixed color, and the radio carries a high-power speaker, one-key group call, and one-key frequency pairing.

Key Features

  • 10 W High Power Output: High power output with strong penetration, per the manufacturer, to help keep the signal stable.
  • Long Range: Manufacturer-stated communication range of 1-10 km in good condition.
  • High-Power Speaker: Upgraded speaker designed to restore the human voice, per the manufacturer.
  • One-Key Group Call: Starts a call to a preset group with one key press.
  • One-Key Frequency Pairing: Pairs two radios on the same frequency using the PTT button and PF1 key.
  • Wireless Copy Function: Copies settings to other radios without a cable.
  • VOX Hands-Free Function: Supports voice-activated transmission for hands-free operation.
  • 2600 mAh Rechargeable Battery: Manufacturer states the battery supports long operating time at high output power.
  • ABS Housing: Black and grey mixed color housing made of ABS material, described as durable by the manufacturer.

Features

Functions and Performance

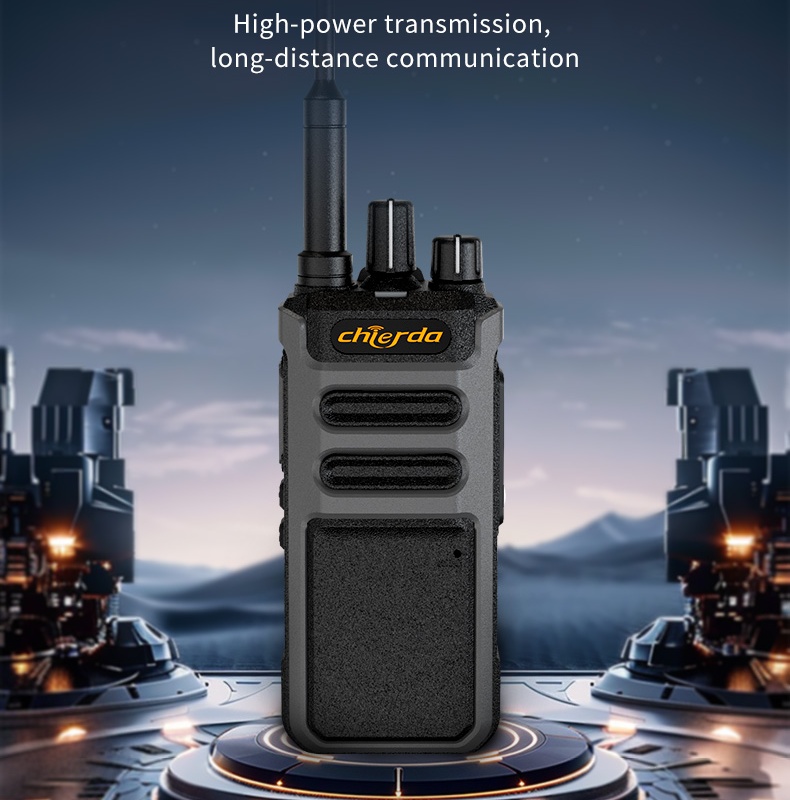

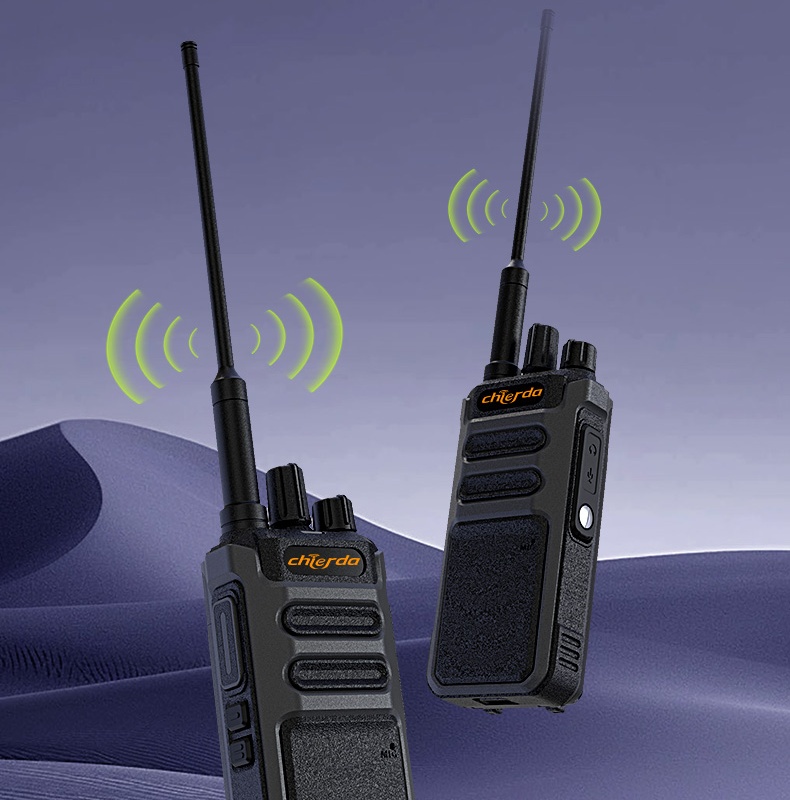

10 W High Power Output

The TC378 transmits at 10 W. Per the manufacturer, the high power and strong penetration help keep the signal stable, and the radio reaches 1-10 km in good condition. Actual range depends on terrain and site conditions, which the source does not specify.

One-Key Frequency Pairing

Press the PTT button and the PF1 key, then turn on the radio to enter pairing mode. Press the PTT button on the second radio, and the two radios pair on the same frequency within a few seconds.

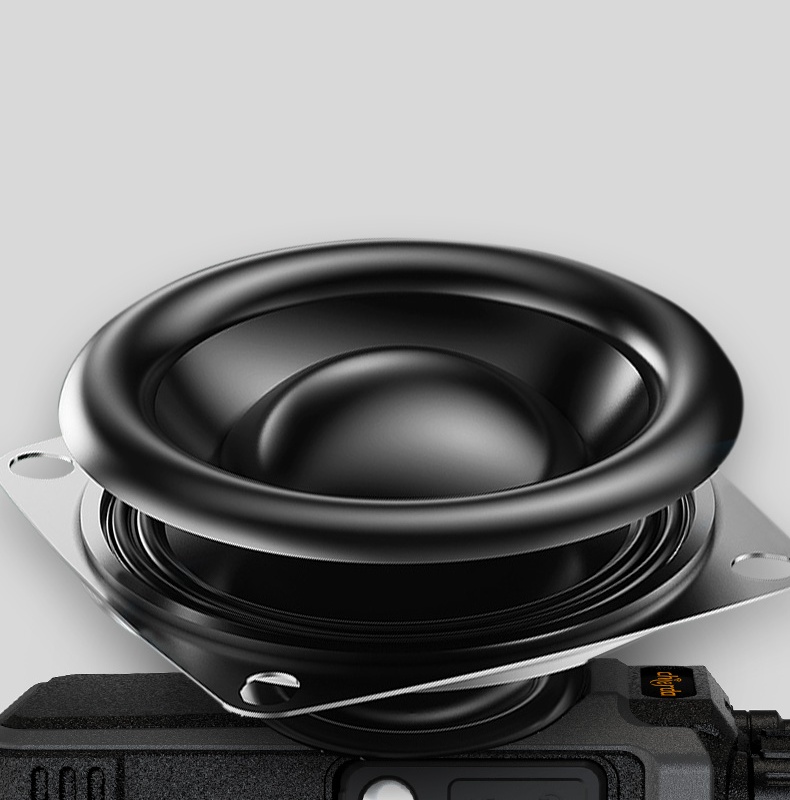

High-Power Speaker

The manufacturer upgraded the radio with a high-power speaker to restore the human voice and improve the talk experience.

One-Key Group Call

Users can set a group in advance and start a group call by pressing one key. For teams that reach the same group members repeatedly, this shortens the steps required to start a call.

Wireless Copy Function

The wireless copy function transfers settings between radios without a cable, which simplifies configuration for a fleet of radios.

VOX Hands-Free Function

VOX supports hands-free transmission. With VOX active, the user transmits by speaking, which suits tasks where both hands stay busy.

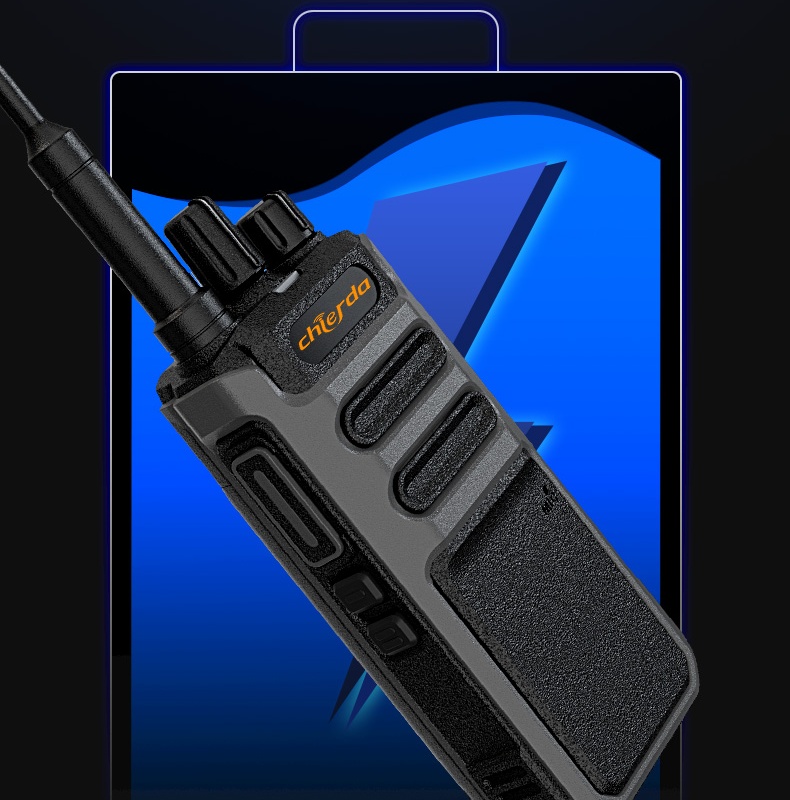

Battery

The radio carries a 7.4 V DC, 2600 mAh rechargeable battery. The manufacturer states it outlasts for a long time at high output power.

Applications

The manufacturer positions the TC378 as a high power, long range walkie talkie. No specific industry sectors are stated in the supplied materials.

whats in the Box

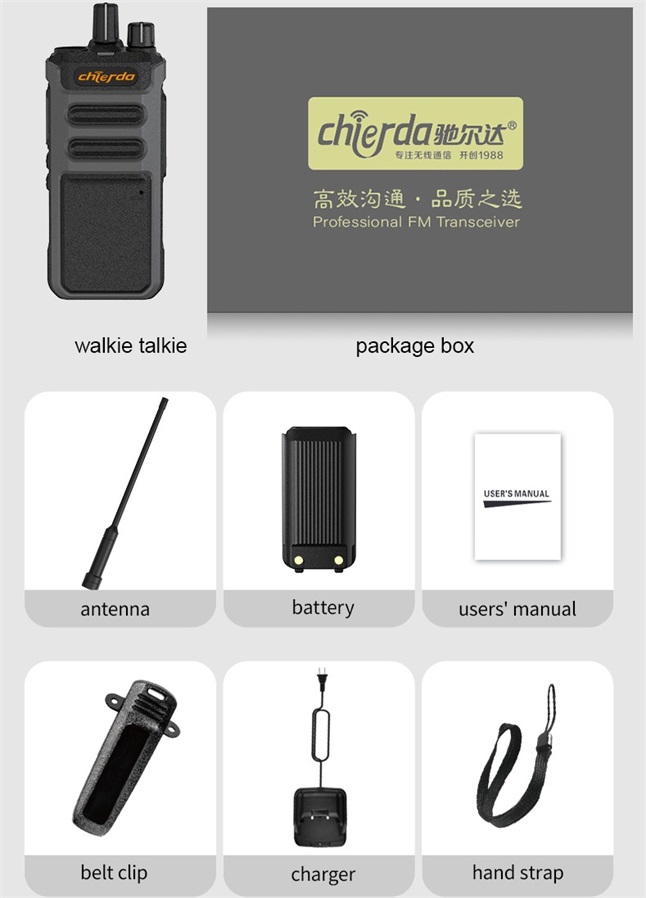

What’s in the Box

  • Radio × 1
  • Antenna × 1
  • Battery × 1
  • Belt clip × 1
  • Charger × 1
  • Strap × 1
  • User’s manual × 1



Features



Features



Technical Specifications

General

  • Frequency Range: VHF 136-174 MHz or UHF 400-480 MHz (selectable band version)
  • Channel Capacity: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 7.4 V DC
  • Battery Capacity: 2600 mAh
  • Frequency Stability: ± 2.5 ppm
  • Antenna Impedance: 50 Ω
  • Dimensions: 123.5 × 56.3 × 36.3 mm (without antenna)

Transmitter

  • Output Power: 10 W
  • Current: ≤ 1.3 A
  • Modulation Mode: FM
  • Modulation Distortion: < 5% (300-3000 Hz)
  • Maximum Frequency Deviation: ≤ 5 kHz / ≤ 2.5 kHz
  • CTCSS Frequency Deviation: 0.75 kHz ± 50 Hz
  • Remanent Radiation: ≤ 7 µW
  • Remanent Modulation: ≤ -35 dB

Receiver

  • RF Sensitivity: ≤ 0.25 µV / ≤ 0.3 µV
  • Squelch Sensitivity: ≤ 0.2 µV / ≤ 0.25 µV
  • Audio Frequency Power: ≥ 300 mW
  • Audio Distortion: ≤ 5%
  • Modulation Receiver Bandwidth: ± 7 kHz
  • Spurious Rejection: ≥ 55 dB
  • Selectivity: ≥ 65 dB
  • Intermodulation: ≥ 60 dB
