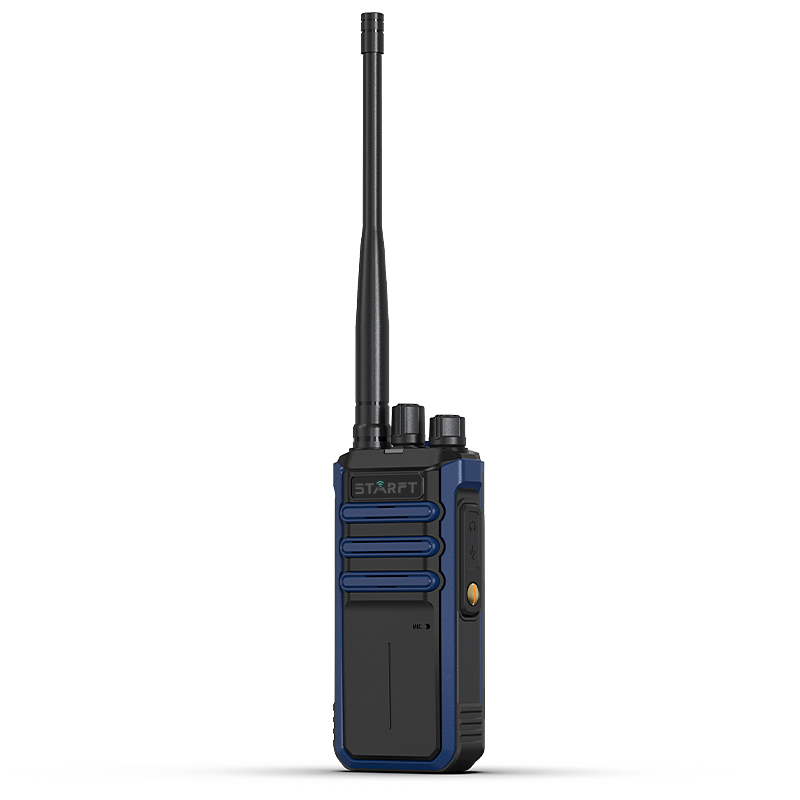

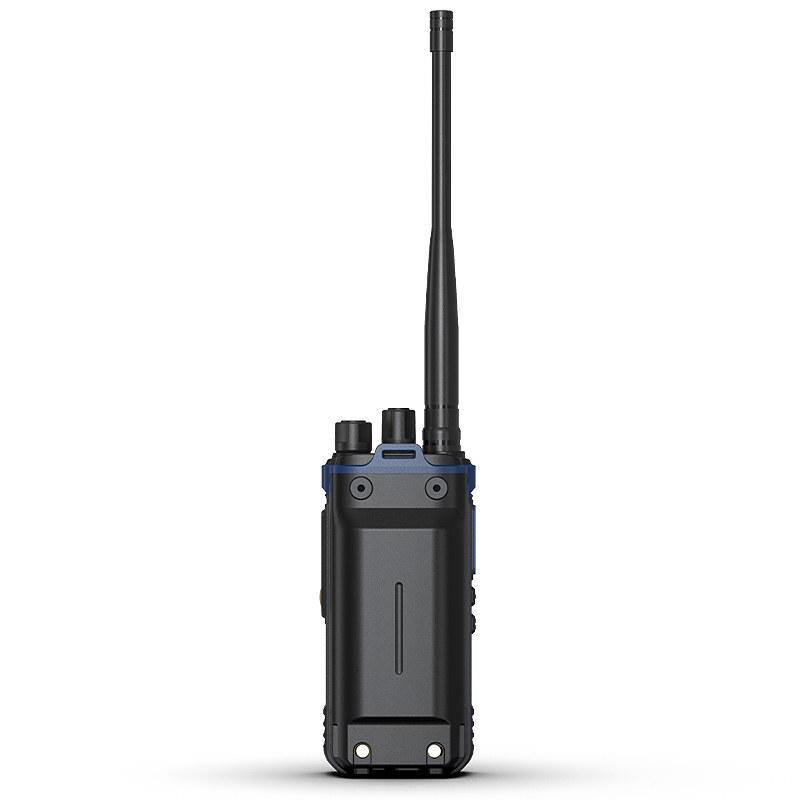

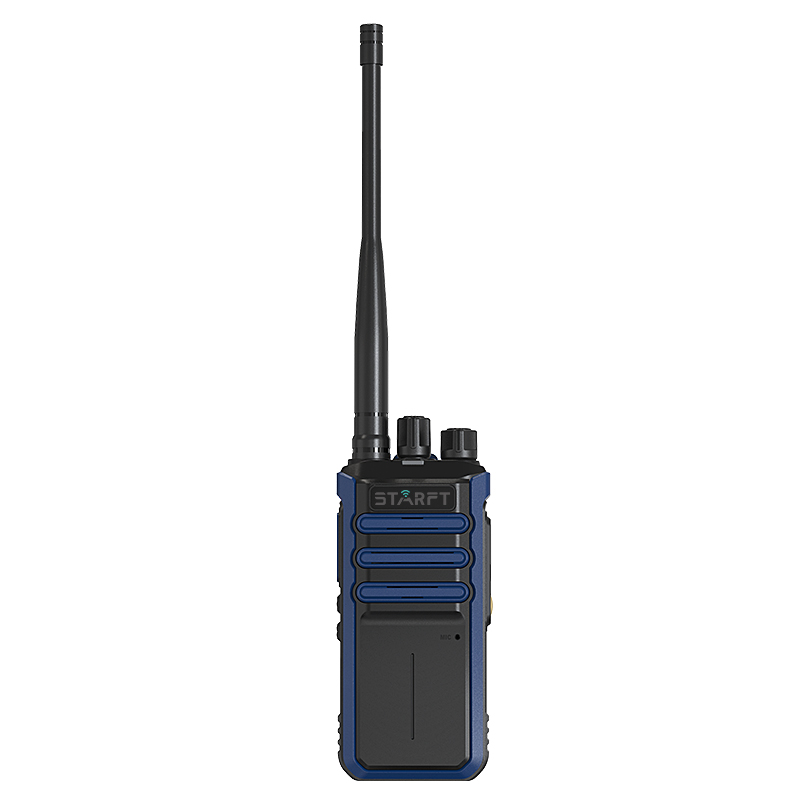

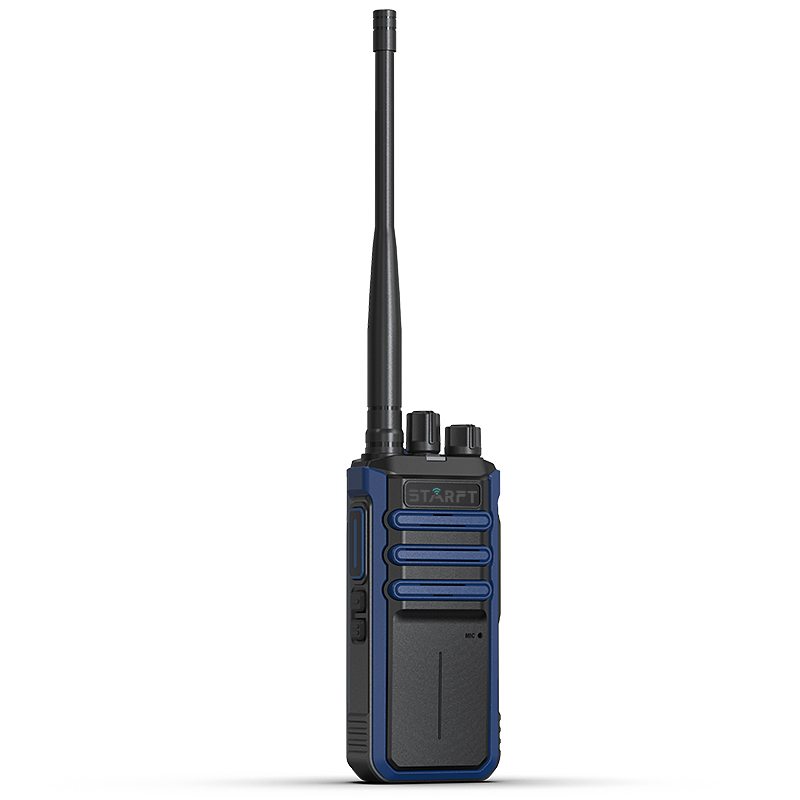

STARFT XA30 Rugged Two Way Radio
1. Rugged Construction
2. One-key Group Call
3. Wireless Copy
4. Long Battery Life
5. VOX Hands-free Function
6. Emergency Alert Function
7. Type-C Charging
Product Overview

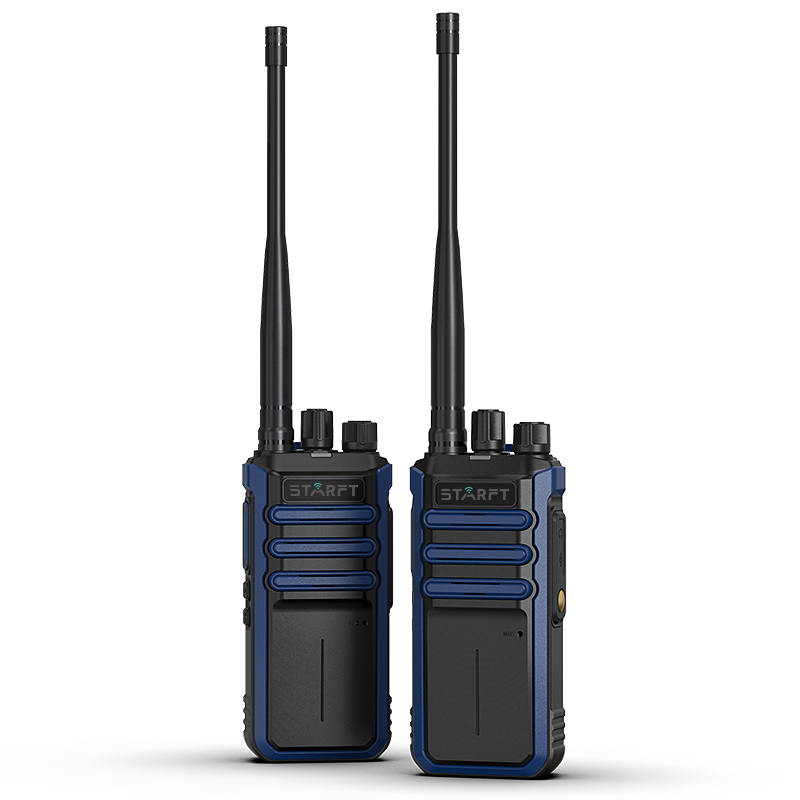

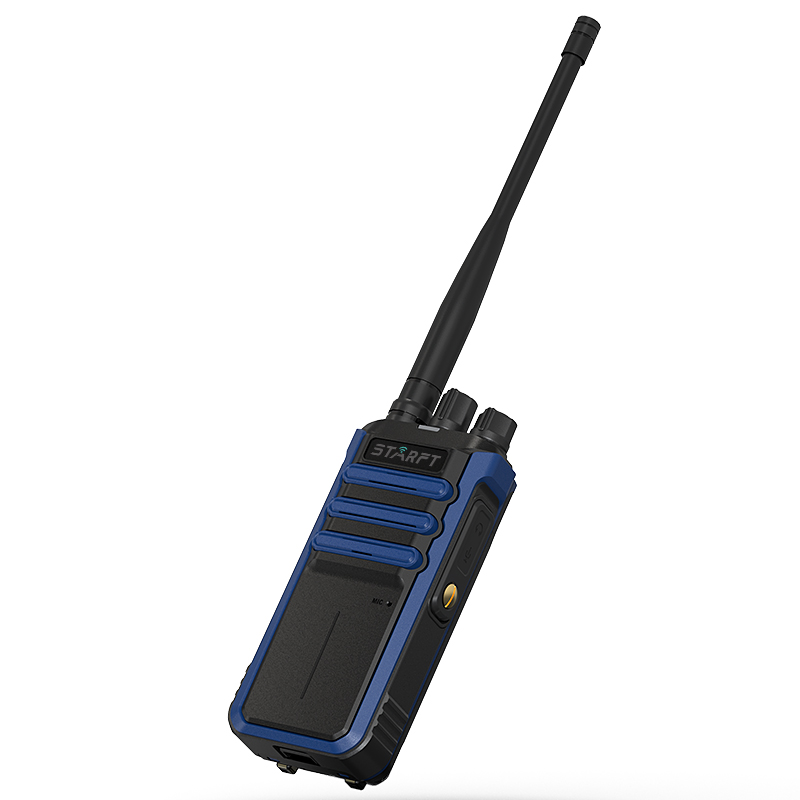

The STARFT XA30 Rugged Two Way Radio is a high-power handheld communication device designed for professional users who need dependable team communication. Featuring 10W output power and a durable ABS housing, the XA30 is built for demanding daily work environments.
With one-key group calling, wireless channel copy, VOX hands-free operation, and an emergency alert function, this rugged walkie talkie helps teams communicate efficiently while keeping their hands free when needed. Its Type-C charging capability adds convenience for everyday use.
Key Features of the STARFT XA30 Walkie Talkie
Rugged ABS Construction
The STARFT XA30 features an ABS housing designed for durability during daily use. Its rugged construction helps withstand abrasion and accidental drops, making it suitable for demanding work environments.
10W High Output Power
With up to 10W output power, the XA30 is designed to support communication over a wider coverage area than lower-power radios under comparable conditions.
Actual communication range depends on terrain, obstacles, antenna configuration, interference, and local radio regulations. The 10W configuration must be used in compliance with applicable licensing and frequency requirements.
One-Key Group Call
The XA30 supports one-key group calling, allowing users to initiate communication with a designated team quickly.
This function requires programming and configuration. Once set up, it can help simplify team coordination and improve operational efficiency.
Wireless Channel Copy
The wireless copy function helps transfer channel settings between compatible radios without requiring each device to be configured individually.
This feature can simplify setup when preparing multiple radios for a team or business operation.
VOX Hands-Free Function
The XA30 supports VOX (Voice-Operated Transmission), allowing the radio to transmit when it detects the user’s voice without pressing the PTT button.
Users can clip the radio onto their clothing and communicate hands-free when VOX is properly configured. Performance may vary depending on background noise and sensitivity settings.
Emergency Alert Function
The emergency alert function allows users to send a loud alert to their partners by pressing and holding the designated button.
This feature can help notify team members when assistance is required. Confirm the alert behavior and programming before deployment.
Clear Audio with Squelch
The XA30 includes a squelch function to help suppress unwanted background noise when no valid signal is being received. This supports clearer audio reception during everyday radio communication.
Type-C Charging
Type-C charging provides a convenient charging option for daily operation and helps simplify charging arrangements for professional users.
Applications
The STARFT XA30 Rugged Two Way Radio is suitable for professional communication in a variety of environments, including:
- Construction and job sites
- Warehouses and logistics operations
- Manufacturing facilities
- Hotels and hospitality teams
- Restaurants and service operations
- Event management and staff coordination
- Security and property management

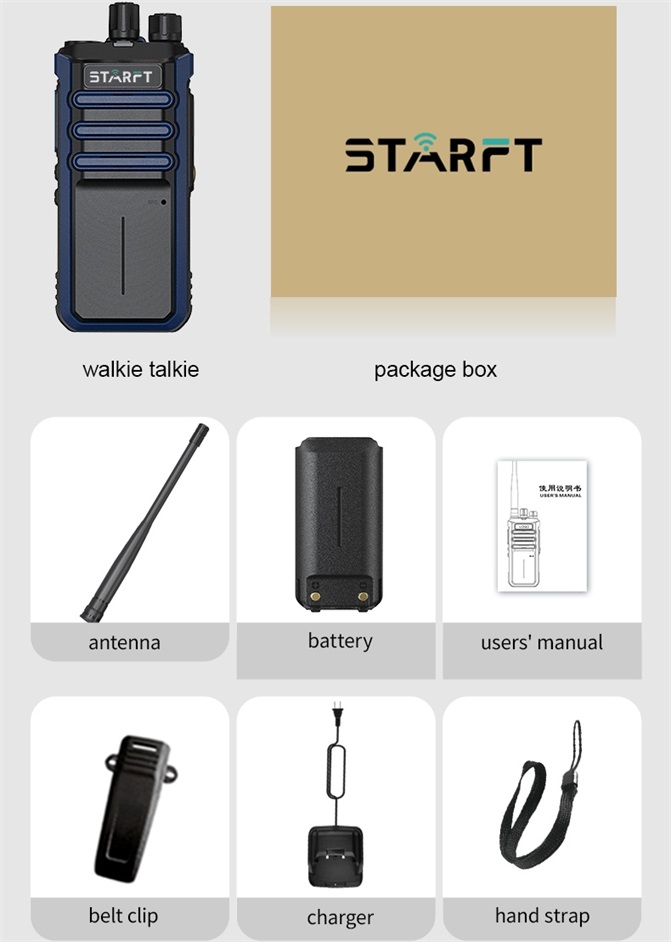

What’s in the Box?
Each STARFT XA30 product set includes:
- Radio × 1
- Antenna × 1
- Battery × 1
- Belt Clip × 1
- Charger × 1
- Strap × 1
- User Manual × 1




Technical Specifications
General Specifications
- Frequency Range: VHF 136–174MHz or UHF 400–480MHz
- Channel Spacing: 16
- Memory Channel: 12.5kHz / 25kHz
- Rated Voltage: 7.4V DC
- Battery Capacity: 2500mAh
- Frequency Stability: ±2.5ppm
- Antenna Impedance: 50Ω
- Dimensions: 123.5 × 56.3 × 36.3mm (without antenna)
Transmitter Specifications
- Output Power: 10W
- Current: ≤2.5A
- Modulation Distortion: <5% (300–3000Hz)
- Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
- CTCSS Frequency Deviation: 0.75kHz ±50Hz
- Residual Radiation: ≤7μW
- Modulation Mode: FM
- Residual Modulation: ≤-35dB
Receiver Specifications
- RF Sensitivity: ≤0.25μV / ≤0.3μV
- Squelch Sensitivity: ≤0.2μV / ≤0.25μV
- Audio Output Power: ≥300mW
- Audio Distortion: ≤5%
- Receiver Bandwidth: ±7kHz
- Spurious Rejection: ≥55dB
- Selectivity: ≥65dB
- Intermodulation: ≥60dB
