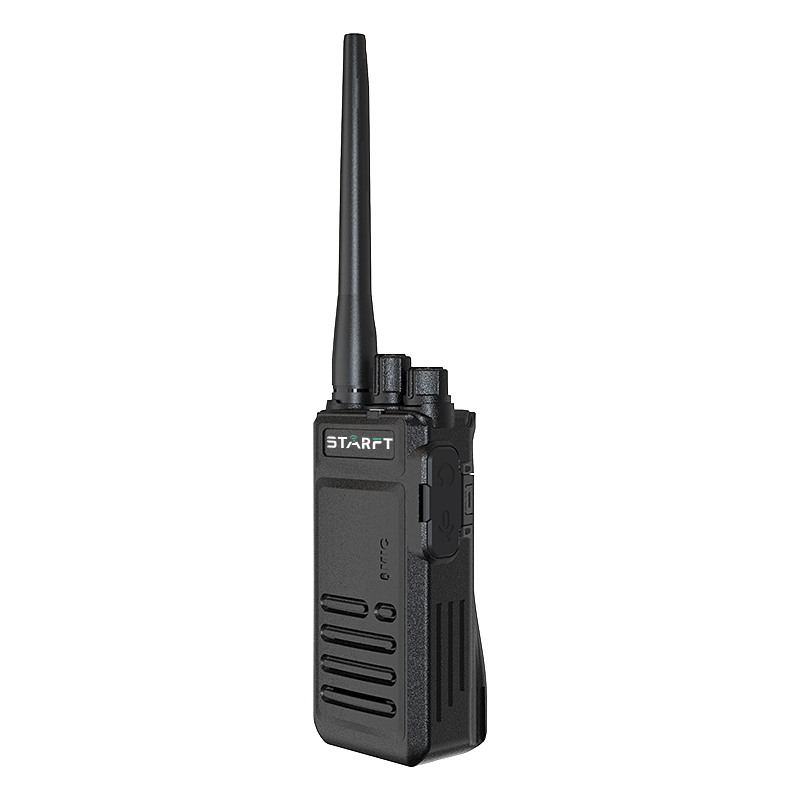

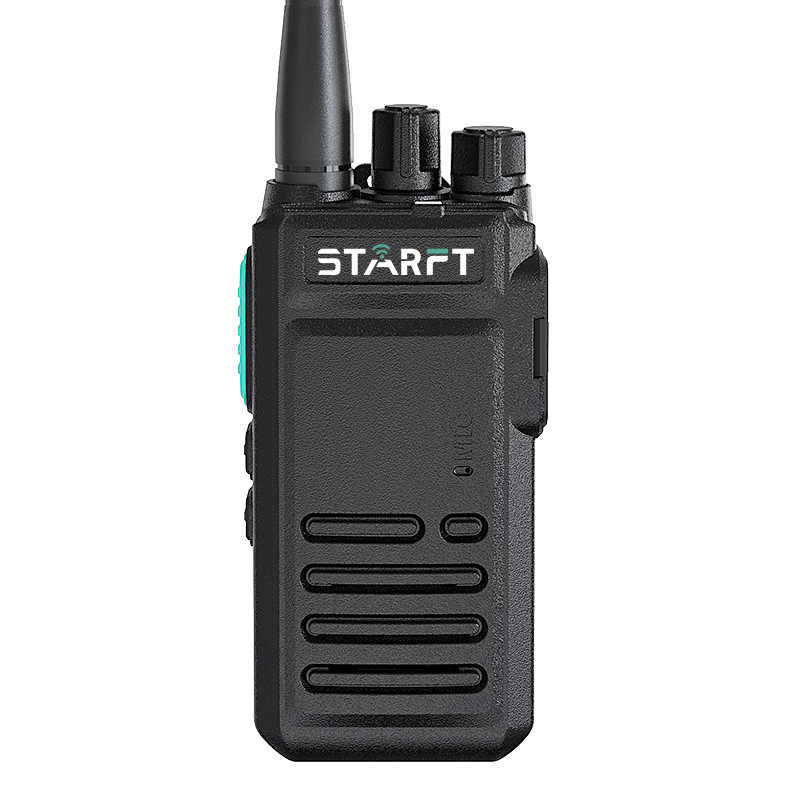

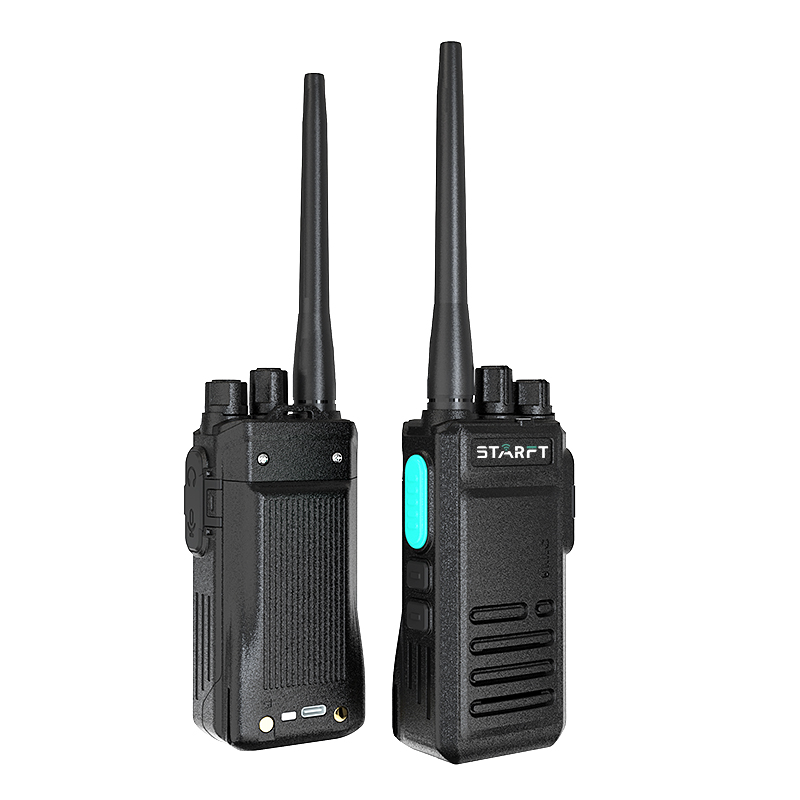

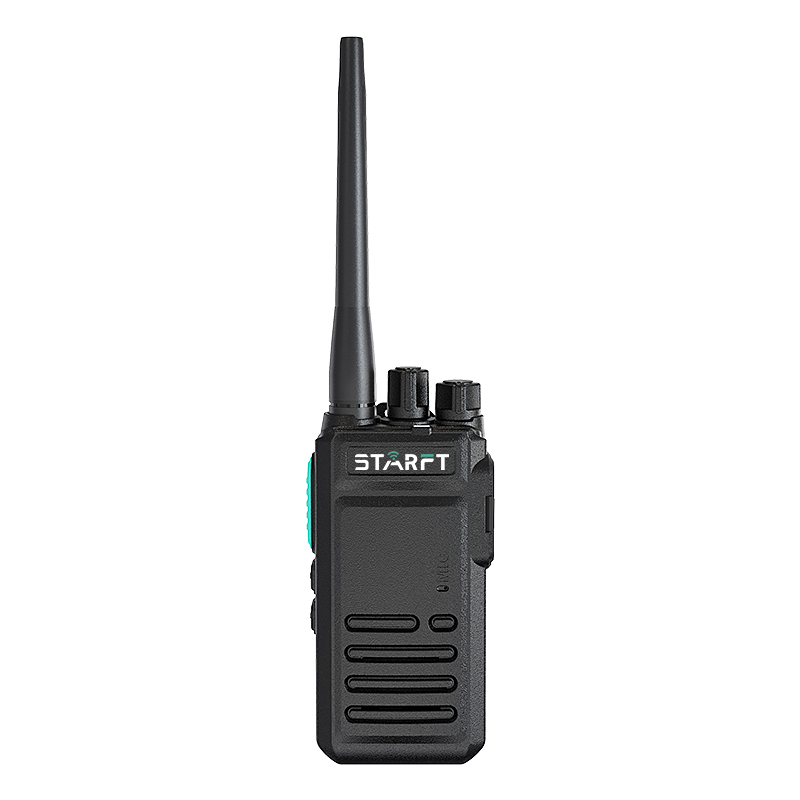

Starft XA503 Durable Handheld Radio

1. Rugged body

Product Overview

Features

The Starft XA503 is a durable handheld radio built for business and commercial use, including hotels and property management. Its rugged body stands up to the knocks of daily professional work, while a 2500mAh battery supports long shifts.

With advanced anti-interference technology, one-key frequency pairing, and one-key channel copy, the XA503 delivers a highly secure communication experience that keeps teams connected and coordinated.



Key Features

  • Rugged Body: A durable housing designed for the demands of daily business and commercial use.
  • Highly Secure Communication: Advanced anti-interference technology ensures clear and uninterrupted transmissions even in challenging environments.
  • One-Key Frequency Pairing: Instant synchronization gets radios onto the same frequency with a single key press.
  • One-Key Channel Copy: Quickly duplicate a partner’s walkie talkie channel setup without manual programming.
  • Powerful Penetration: High power output supports clear and reliable communication even through obstacles and long distances.
  • 2500mAh Battery: Large capacity battery for extended operating time.
  • 16 Channels with CTCSS: Organize departments and teams with CTCSS tone signaling.





Package Contents

  • Radio ×1
  • Antenna ×1
  • Battery ×1
  • Belt Clip ×1
  • Charging Stand ×1
  • Strap ×1
  • User Manual ×1

whats in the Box

Functions and Performance

Secure, Uninterrupted Communication
The XA503 provides a highly secure communication experience. Its advanced anti-interference technology keeps transmissions clear and uninterrupted, even in challenging RF environments found around buildings and equipment.

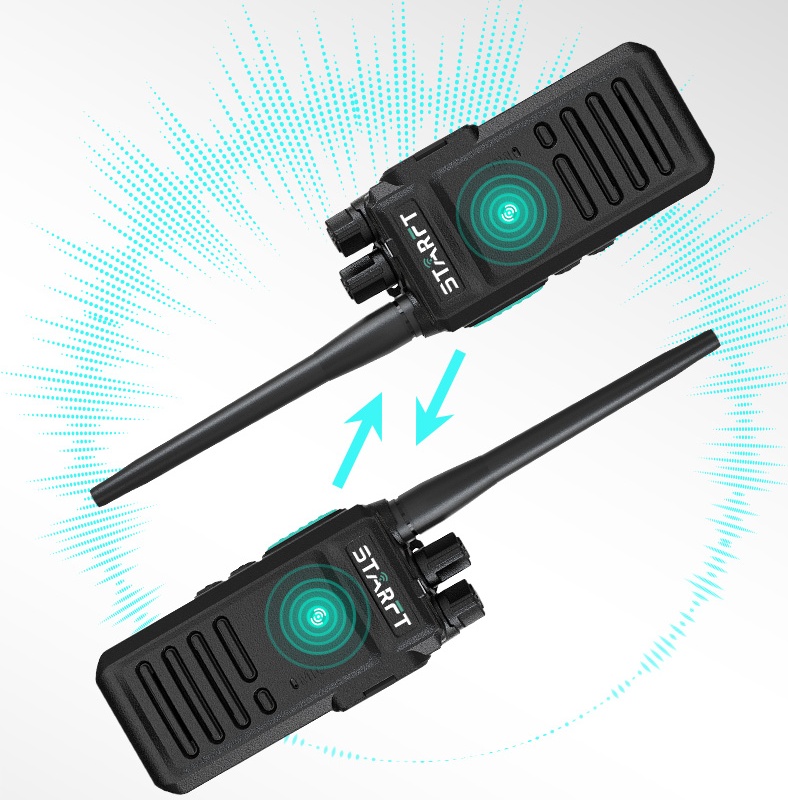

Fast Fleet Setup with One-Key Operations
One-key frequency pairing synchronizes radios instantly, and one-key channel copy duplicates a partner’s walkie talkie configuration in seconds. New hires and replacement units join the fleet without tedious programming, ensuring seamless and efficient communication.

Powerful Penetration
With high power output, the XA503 supports clear and reliable communication even through obstacles and long distances, such as across floors, corridors, and sprawling properties.

Dependable Reception and Audio
RF sensitivity of ≤0.25uV / ≤0.3uV and audio output of at least 500mW support reliable reception and clear listening throughout the workday.

Applications

  • Hotels: Rugged radios that survive the pace of housekeeping, maintenance, and front desk operations.
  • Property Management: Powerful penetration supports communication across buildings, basements, and large grounds.
  • General Business and Commercial Teams: One-key pairing and channel copy make fleet deployment simple for any sized organization.
Features
Features

Technical Specifications

General

  • Frequency Range: VHF 136-174 MHz / UHF 400-480 MHz
  • Memory Channels: 16
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Rated Voltage: 7.4V DC
  • Battery Capacity: 2500mAh
  • Frequency Stability: ±2.5ppm
  • Antenna Impedance: 50Ω
  • Dimensions (without antenna): 107 × 53 × 39 mm

Transmitter

  • Output Power: ≤5W
  • Current: ≤1.3A
  • Modulation Distortion: <5% (300-3000Hz)
  • Maximum Frequency Deviation: ≤5kHz / ≤2.5kHz
  • CTCSS Frequency Deviation: 0.75kHz ± 50Hz
  • Remanent Radiation: ≤7uW
  • Modulation Mode: FM
  • Remanent Modulation: ≤-35dB

Receiver

  • RF Sensitivity: ≤0.25uV / ≤0.3uV
  • Squelch Sensitivity: ≤0.2uV / ≤0.25uV
  • Audio Frequency Power: ≥500mW
  • Audio Distortion: ≤5%
  • Spurious Rejection: ≥55dB
  • Selectivity: ≥65dB
  • Intermodulation: ≥60dB

Company Profile

Founded in 1988, CHIERDA specializes in the R&D andmanufacturing of professional wireless communicationproducts, including two-way radios, mobile radios, andrepeaters. As a National High-Tech Enterprise, we arecommitted to “Quality First” and “Driven by Innovation.”
With ISO 9001 certification and SEDEX compliance, CHIERDA products meet CE, FCC, IC, RoHS, and other international requirements. Today, we serve customers in over 100 countries and regions, providing reliable wireless communication solutions for diverse markets and industries.

SINCE
1988
99%+
ON-TIME DELIVERY
20,000 m²
MANUFACTURING BASE
300+
EMPLOYEES
50+
TESTING INSTRUMENTS
100+
GLOBAL MARKETS

FAQs

Do you support OEM/ODM services?

Yes! We are a manufacturer offering OEM and ODM services. We can design and customize products according to your specific requirements.

What is your MOQ?

For sample testing, we recommend starting with an order of 2 pieces. Please contact us for more information about bulk order requirements.

Can you offer free samples for testing?

Generally, customers need to pay the sample fee in advance. However, once your order reaches the required quantity, we will refund the sample fee.

Can I place a sample order to test product quality?

Absolutely! You are welcome to place a sample order to evaluate our product quality before making a bulk purchase.

Can I get a better price for large orders?

Yes! We offer more competitive pricing for bulk orders. Generally, the larger your order quantity, the better the price.

How long does it take to ship my order after payment?

Our typical order processing and dispatch times are:

Sample orders: 1–3 days
Bulk orders: 5–8 days
Custom production: 15–30 days

When can I track my shipment online?

We usually provide the tracking number within 2 days. Once you receive it, you can check your shipment status and updates online.

What payment methods do you accept?

We generally accept bank transfers, Western Union, MoneyGram, Trade Assurance, and other payment methods. If you prefer a different payment option, please contact us. We will do our best to accommodate your needs.

How do you ensure product quality?

We use an MES production management system to track the manufacturing process of every product. All products undergo 5 inspections before shipment, and our First Pass Yield (FPY) exceeds 99.4%.

What is your warranty policy?

Radios: 12-month warranty
Accessories: 6-month warranty

We also provide remote technical support. Please contact us if you have any questions or need assistance.
